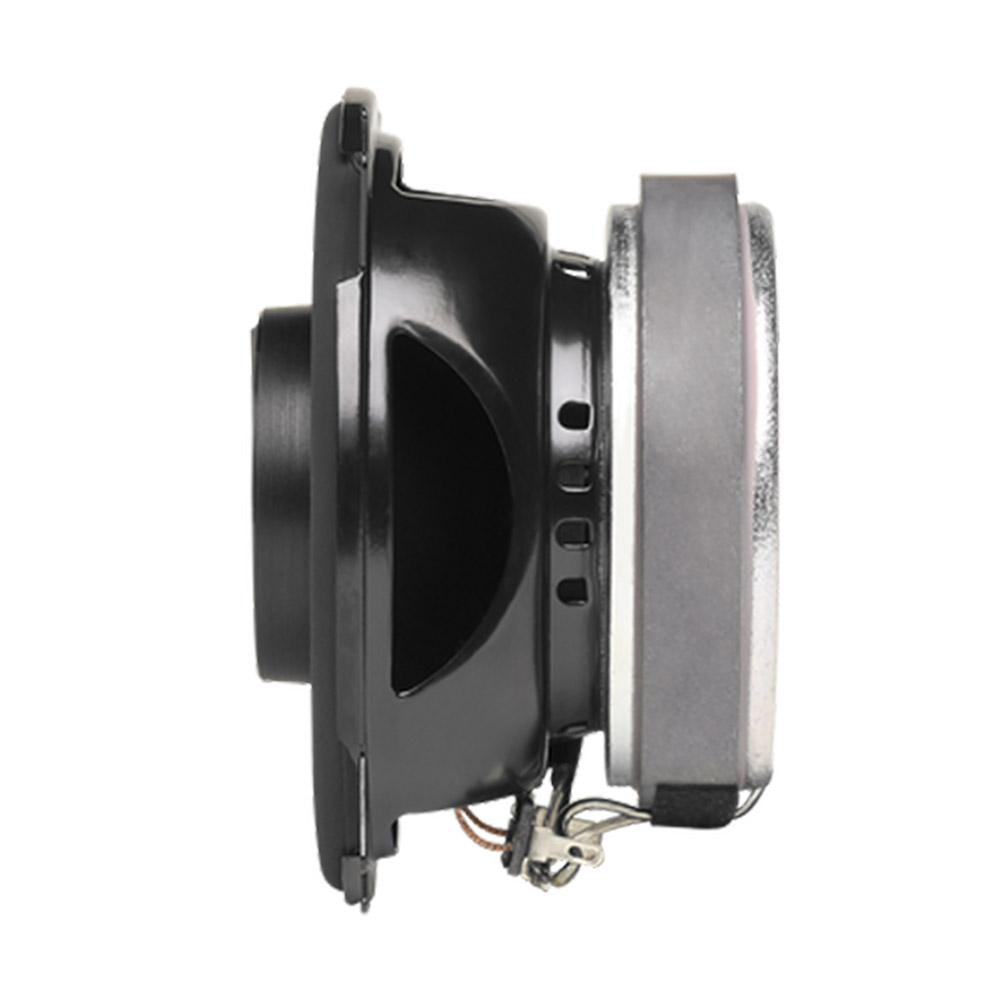

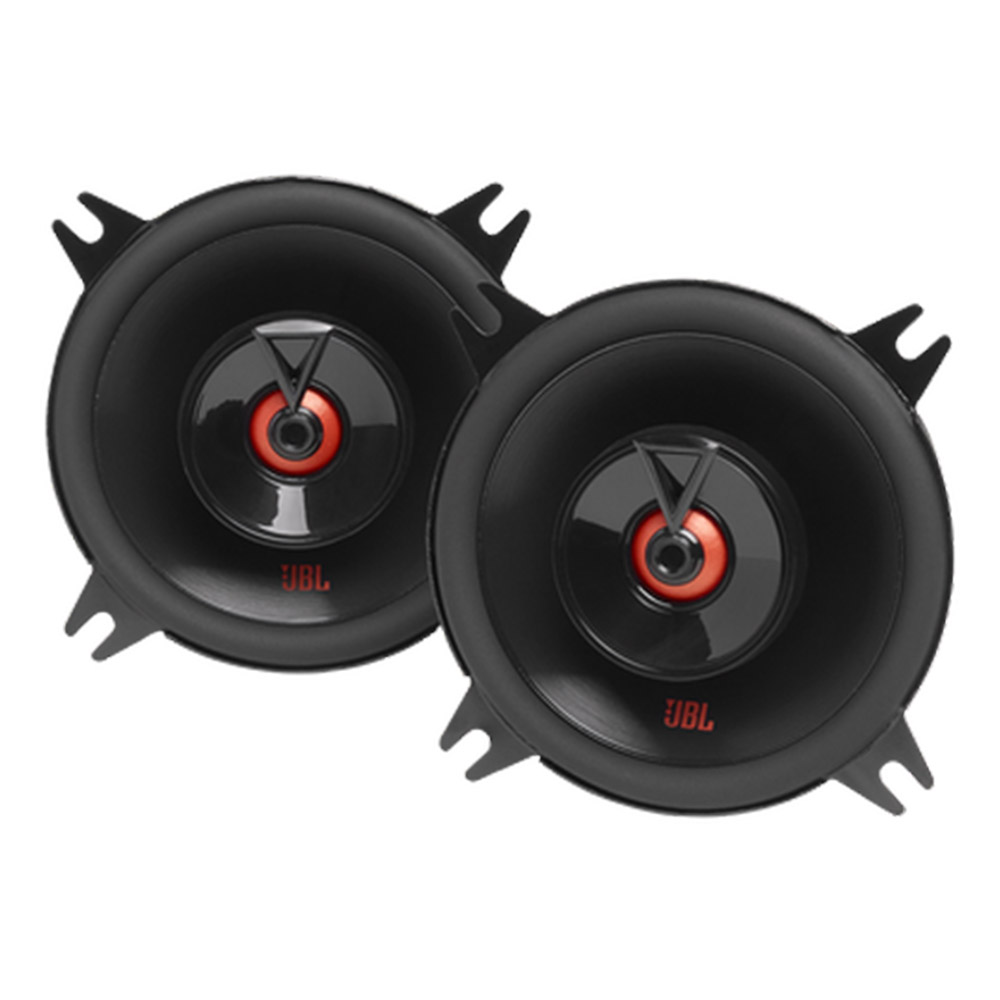

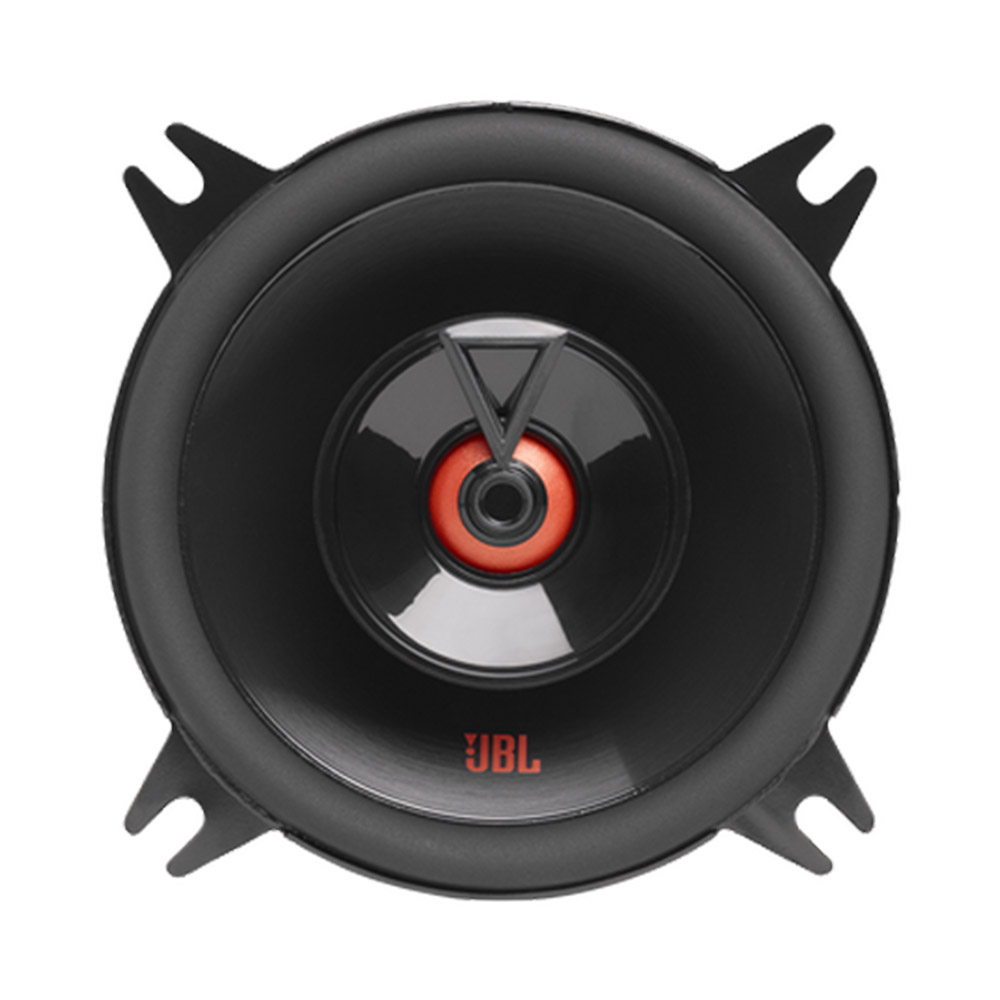

JBL Club 422F

4" (100mm) Two-Way Car Speaker

Features

Plus One Woofer Cone Architecture

Plus One Cones Provides more overall speaker one area than other speakers for the same size resulting in higher sensitivity, increased low frequency output and greater musical character

Edge Driven Silk Dome Tweeter

The Club 422F,Club 522F,Club 622,Club 8622F,Club 9632 features a full, edge driven silk dome tweeter which delivers a broader and smoother high frequency response never harsh regardless of output level than more commonly used W-domes

Acoustically Damped, UV-Resistant Polypropylene Cone

Every Club Speaker woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.

Bigger Magnet, Bigger Power Handling

The new Club lineup features a large magnet delivering higher power handling than competitors at similar price Point.

I-Mount Tweeter Mounting Kit

The I-Mount (Patent no. 5,859,917) tweeter mounting system allows easy and versatile installation of tweeters in each of the component system. it includes flush cup and surface mount mounting hardware.with a 1-3/4” cutout and a 1” mounting depth, installation become a snap. this allows the tweeter to be flush mounted and can be angled up to 40 degrees. Locknuts are included to keep everything in place, and the tweeter can be replaced without removing the whole assembly.

Specifications

• Power Handling 35W RMS, 105W peak
• Sensitivity (@ 2.83V/m) 90dB
• Frequency Response 75Hz – 20kHz
• Nominal Impedance 3.0 ohms

Whats In The Box

• 2 X Speakers
• 1 x Foam Gasket
