Package Includes

• Sony XAV-AX8150 Mechless 8.95" Apple CarPlay Android Auto DAB Radio Bluetooth Screen
• DAB Splitter (Uses Vehicle Antenna For Both DAB And FM Signal)
• Double DIN Fascia With Brackets (Dark Grey)
• Steering Wheel Control Interface
• AM/FM Antenna Adaptor
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This kit comes with a dark grey car radio fascia adaptor panel to allow the fitting of an aftermarket single or double din car radio upgrade.
The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. The fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. A spare pocket is supplied for fitting a single din stereo.

Steering Control Adaptor

Steering wheel control interface and adapter cable for Ford Transit, Transit Custom and Transit Connect vans without a separate  display above the radio.

The interface and radio adapter cable is plug and play, it is used to connect an aftermarket stereo upgrade and retain the use of the volume, track skip and source buttons from the steering wheel with the new radio.

ONLY SUITABLE FOR TRANSIT RADIOS WITHOUT THE DISPLAY ON TOP OF THE DASH

Fakra to DIN Antenna Adapter Cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

PLEASE NOTE

An additional airbag light unit or blanking plate is also required. If the vehicle originally had a passenger airbag status light in the radio panel, a replacement airbag status light unit is required, failure to refit one will cause airbag warning lights to show on the instrument cluster. If the vehicle does not have a passenger airbag status light, a blanking plate is required to fill the space in the new fascia.

See the image below for examples of the components fitted into a fascia.

XAV-AX8150 DAB Media Receiver with WebLink™ Cast

A big display, further-enhanced connectivity in a single DIN installation

This media receiver's 22.7cm (8.95") display1 seamlessly hovers over your dashboard and works in a single-DIN space. The sturdy mount can be adjusted in three directions to allow flexible installation in a wide variety of vehicles. And with updated support for smartphones, together with newly added HDMI2 connectivity, you'll enjoy safer and easier driving.

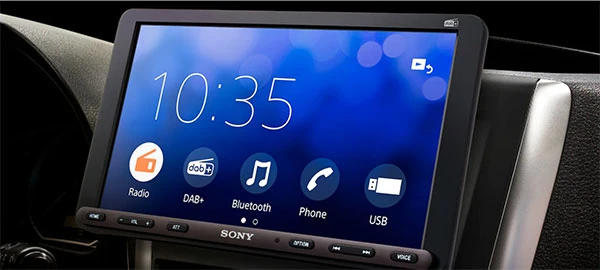

Oversized touchscreen offers everything at a glance

A huge anti-glare 22.7cm (8.95") display gives you more intuitive and safer control over music playback and smartphone functions.

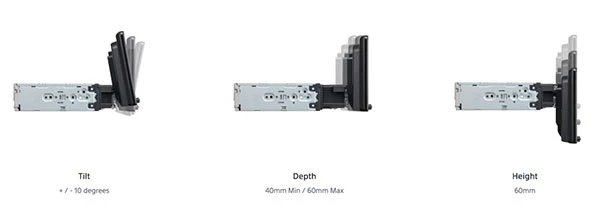

Three-way adjustable mount

The sturdy mount adjusts in three directions enabling flexible installation.

Use with your smartphone

Connect your compatible Apple or Android smartphone to get directions, stream music and more.

Everything at a glance

Whether you are getting directions, looking for a song on your smartphone, or customising your sound, the oversized 22.7cm (8.95") anti-glare touchscreen makes everything easy to see at a glance and safer to use on the road.

Three-way adjustable mount

A sturdy and adjustable mount works in three directions and with flexible installation options, it can be installed in a variety of vehicles.

Smarter driving with intelligent voice control

Connect your smartphone to the XAV-AX8150 media receiver and speak through the supplied microphone. Voice control makes it safer and easier than ever to navigate, communicate and play music on the road.

Siri with Apple Car Play

Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control

Voice Control with Android Auto

Use voice commands to dictate messages, take phone calls, or get help from Google Maps. You can even control music playback with your voice.

Your Personal Navigator

Get directions in real-time without ever taking your hands off the wheel, easily navigate to your destination, or search for stops mid-journey.

Navigating with Apple CarPlay

Tell Siri where you’re going, and it will give you real-time directions as you drive

Navigating with Android Auto

Use Google Maps to get directions and traffic updates whenever you need them.

WebLink™ Cast5 compatible

WebLink™ is a lightweight app delivery platform designed especially for in-vehicle use. Using the Android or iOS device connection, it is now possible to mirror your smartphone screen right on the car audio display — for reliable, responsive infotainment anytime on the road.

Hear music your way

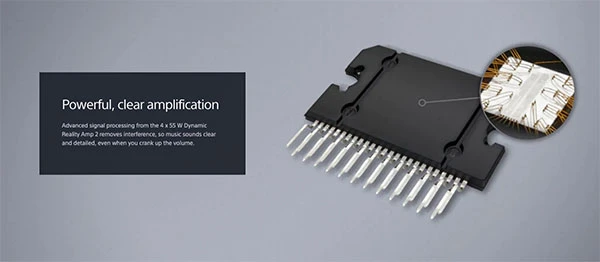

Multiple customisation options let you adapt the audio experience to your liking, and with the built-in 4 x 55 W amplification, your music will sound clear even at high volume.

Simple button controls

Get instant access to commonly-used features such as volume, source, sound settings and voice control, for safe and easy operation on the road.

Rear-view camera ready

Do you have a rear camera installed? View its feed through the screen, along with customisable guidelines that help you back in safely.

Quick Wake-up

With the Quick Wake-up feature, you're ready to go right after turning the ignition.

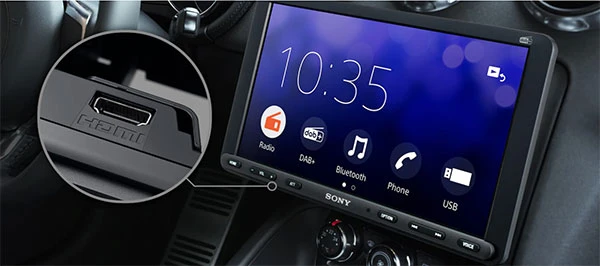

Access information and entertainment on the road with ease with the XAV-AX8150 Media Receiver. Despite the single-DIN installation, a huge 22.7cm (8.95") display puts smart connectivity, useful navigation and stunning sound quality within easy reach. Newly added HDMI connectivity also allows you to hook up an external audio and visual source device.

• Large 22.7cm (8.95") touchscreen
• Single-DIN chassis gives more installation options
• EXTRA BASS™ adds low-end power
• Digital radio tick mark certified
• HDMI input for an external source device

Size & Weight

• Dimensions (W X H X D) 229 x 136 x 253mm
• Weight 2.4kg

General Features

• Output Power 55W x4
• Pre Out 3 Pre 5V (Front / Rear / Sub x 1)
• Rear View Camera In
• USB (Rear x1)
• Firmware Upgradibility
• DSO (Dynamic Stage Organizer)
• Equalizer 10-band Graphic Equalizer
• Extra Bass (Off / 1 / 2)
• Album Artwork Indication

Connectivity

• Bluetooth

Tuner Features

• Preset DAB18/FM12/AM6
• Auto Memory BTM
• RDS / EON (RDS)

Bluetooth Profile

• HFP (1.6)
• A2DP (1.3)
• AVRCP (1.3)
• PBAP (1.1)

Bluetooth Features

• Speed Dial (6 memories)
• Recent Calls (# OF)
• Last Dialed Call (select from the dialed call history)
• Phonebook Access VIA PBAP
• Alphabetical Phonebook Sorting
• Ring Volume Level Control
• Call Volume Level Control
• External Microphone
• Battery Reminder
• Signal Strength Indication

Bluetooth Audio Features

• Audio Codec (Bluetooth Audio) SBC / AAC
• Pause (Bluetooth Audio)
• CUE / REV
• Track +/-
• Group (Folder) +/-
• Audio Level Adjustment (-8dB to +18dB)
• Repeat Control (Audio Device Side)
• Shuffle Control (Audio Device Side)
• Meta Data Indication

Panel Design

• Panel Surface Finish Color Black
• Key Illumination (White)

Monitor(AVC)

• LCD Type TFT Active Matrix
• Screen Aspect 16: 9
• Screen Diagonal (Inch / MM) 8.95 inch
• Screen Size (W X H MM) 198.0 x 111.7 (mm)
• Resolution (DOT) 800 x 480
• Dimmer
• Contrast Ratio 500
• Brightness 400 cd / m2

Display Panel

• Key Illumination Initial (White)
• Dimmer Adjust

User Interface

• Touch Panel Resistive + AG
• Gesture Command
• Parking Control
• Parking Line Adjust
• Aspect Ratio Select
• Rear View Camera-In Marker Setting

USB Mass Storage Device Control Feature

• USB Device Control (Repeat) TRACK / FOLDER / DRIVE
• USB Device Control (Shuffle) OFF / FOLDER / DEVICE
• USB Device Control (Pause)
• USB Device Control (Resume Play)
• USB Device Control (Audio Codec) PCM / MP3 / WMA / AAC / FLAC
• USB Device Control (Audio Playable File Extension) .wav / .mp3 / .wma / .m4a / .flac
• USB Device Control (Video Codec) MPEG4-SP / AVC (H.264 Baseline) / WMV / FLV / MKV / XviD
• USB Device Control (Video Playable File Extension) .mp4 / .wmv / .mkv

Multi-Language

• MENU English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
• CAUTION English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
• ID3 TAG English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian

What's In The Box

• External Microphone
• Fitting Frame
• Trim Ring(Hard Type)
• ISO connector
• Instruction Manual
• Warranty Card

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
