Ford Transit Custom 2012-2021 6.5" 2 Way Coaxial Car Front Door Speakers Under Seat Subwoofer Upgrade Kit
- Stock Status: Out Of Stock
- Item Condition : New
- Available QTY : 0
- Brand: Kenwood
- Model: KFC-PS1796 + CT25FD14 + CT55-FD02 + KSC-PSW7EQ
- EAN: 7427307007953
- Warranty: 2 Years Warranty
Description

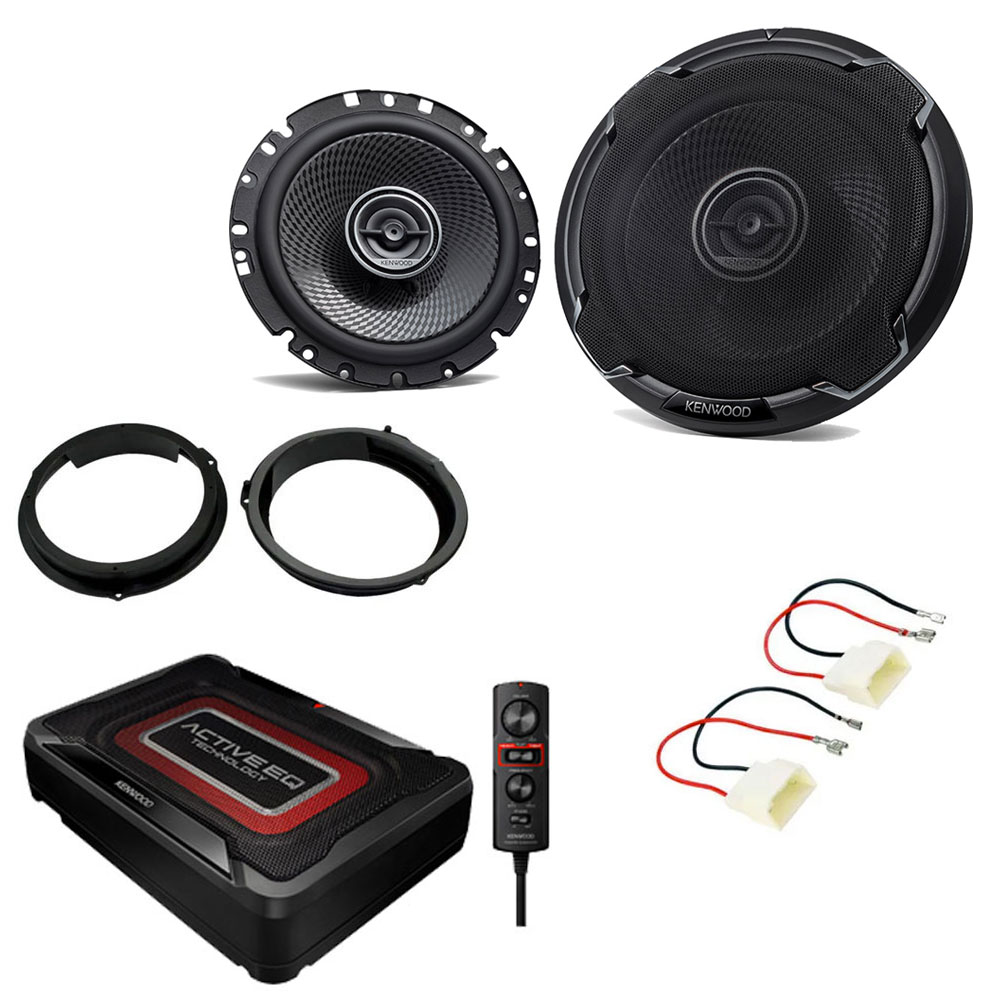

Package Includes
- Kenwood KFC-PS1796 PS Series 6.5" 17cm Flush Mount 2-Way Coaxial Car Speakers
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
- Kenwood KSC-PSW7EQ Car Audio Active Compact Under Seat Subwoofer
Product Compatibility Chart
| Make | Model | Years | Notes |
| Ford | Transit Custom | 2012 - 2021 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Kenwood KFC-PS1796 6.5" 17cm Flush Mount 2-Way Coaxial Car Speakers
Key Features
- 17cm, 2-Way / 2-Speaker System
- Diamond Array Pattern, Polypropylene woofer Diaphragm
- Steel basket, rubber surround
- 30mm Balanced dome tweeter
- 330W Peak Power
- Accoustic Sound Harmonizer
- Sound Field Enhancer
- 0,5m speaker cord included
- Grille assembly included
Speaker Features
- Speaker System 2-way 2-speaker
- Peak Input Power 330W
- Rated Input Power 100W
- Speaker Size 170mm
- Speaker Cone Design Diamond-Array pattern
- Magnet Type Ferrit
- Terminals Slide type
- Installation Capabillity Door/Rear Deck
Speaker/woofer Specifications
- Woofer Cone material Polypropylene (PP) Cone
- Speaker Basket Steel
- Speaker Surround Rubber
- Sensitivity 88dB/W/m
- Frequency Response 70Hz ~ 24000Hz
- Speaker Impedance 4Ω
- Dimensions with Grill (WxHxD) 179 x 179 x 66.4mm
- Dimensions w/o Grill (WxHxD) 165 x 165 x 54mm
- Mounting Depth 48mm
- Mouting Hole Diameter Ø 139.6mm
- Tweeter Height 6mm
- Speaker Weight with Grille (pc.) 813gr
- Speaker Weight w/o Grille (pc.) 733gr
- Gross Weight 1600gr
- Weight of Magnet 270gr
Tweeter Specifications
- Cone Size 30mm
- Cone Material Balanced Dome
- Magnet Type Neodymium
Accessories
- Screws (Parker-type) Ø 4 x 25mm, 8 pieces
- Speed nut φ 4, 8 pieces
- Adhesive tape pad 1 piece(s)
- Grille assembly included
- Speaker cable 0.5m
KSC-PSW7EQ Compact Powered Subwoofer
- Max Power 160W
- Wired Remote Controller
- Active EQ Technology Switch
- Class D Amplifier
- (W)280mm x (H)70mm x (D)200mm
Compact Design
Allows for installation almost anywhere, including tight spaces such as under a seat or panel.
Remote Control Sound Adjustment
- Volume : Input sensitivity control knob
- ACTIVE EQ : Equalizer selector switch
- Frequency : Cut-off freqeuncy control knob
- Phase : Phase select switch
Three types of bass to match the music of various genres equipped with ACTIVE EQ TECHNOLOGY.
New Diaphragm Speaker
The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.
Flexible Connectivity and Installation
Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.
Specifications
- Woofer Size 200mm x 130mm
- Max Power (W) 160W
- Current Consumption 5.9A
- Sensitivity (dB at 1m) 89dB
- Frequency Response (Hz) 40Hz - 200Hz (-15dB)
- Speaker Level Input (Speaker Level Input)
- Signal Sensing Turn-on (Speaker Level or RCA)
- Dimension (W x H x D) 280mm x 70mm x 200mm
- Weight 2.6kg
- Remote Control Cable Length 5m
