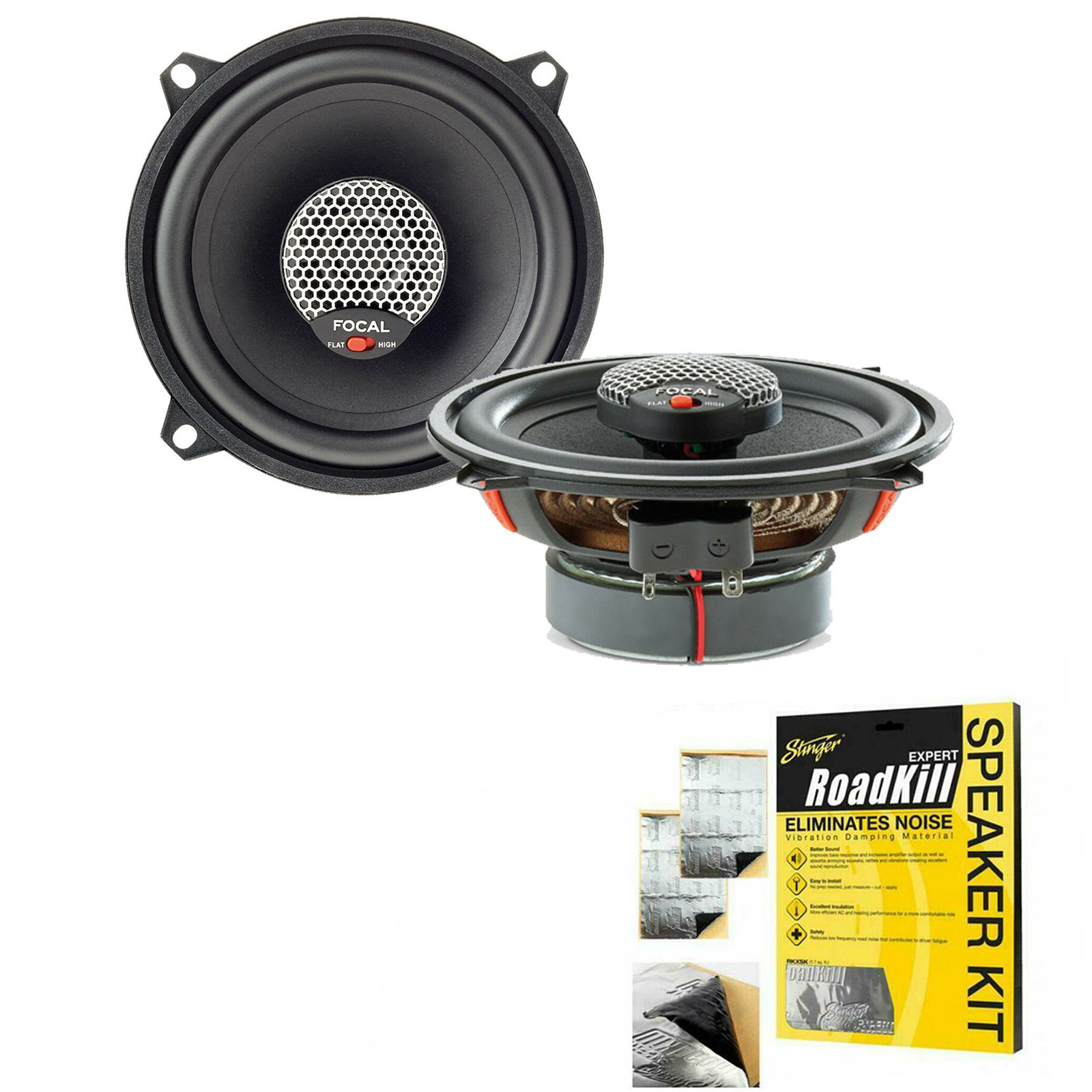

Package Included

• Focal Integration ICU130 13cm 5.25" 2 Way Coaxial Car Audio Speakers 120 W
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

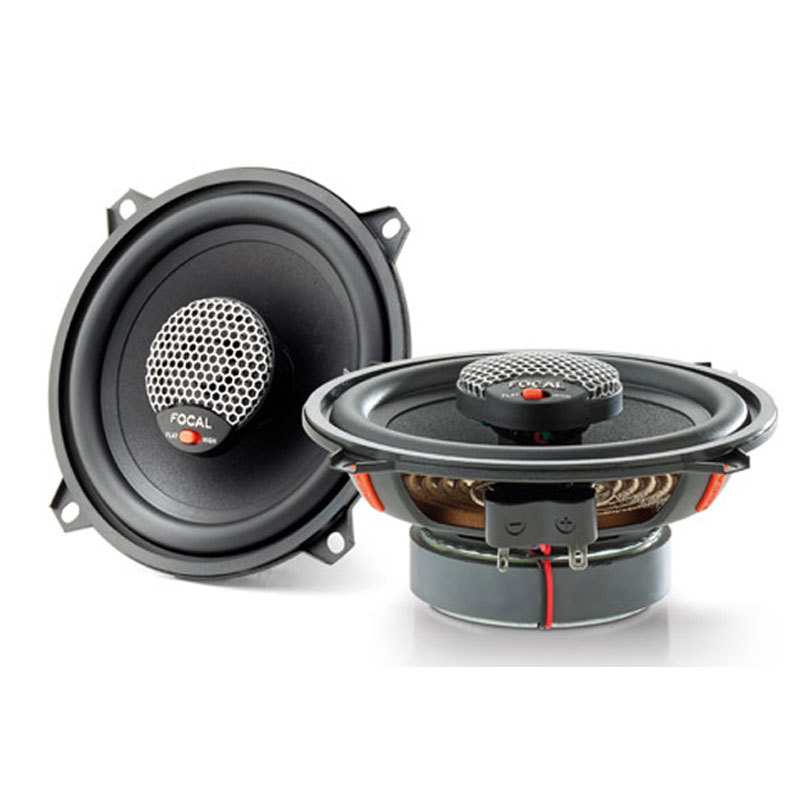

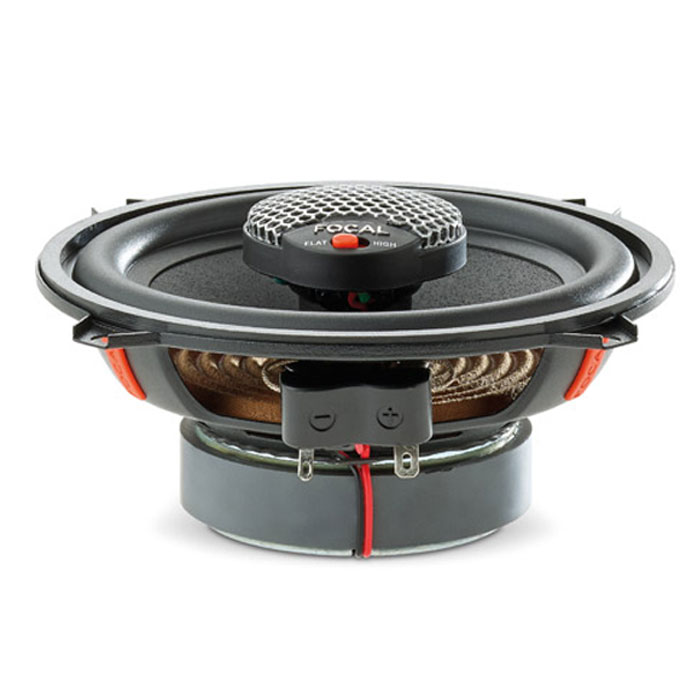

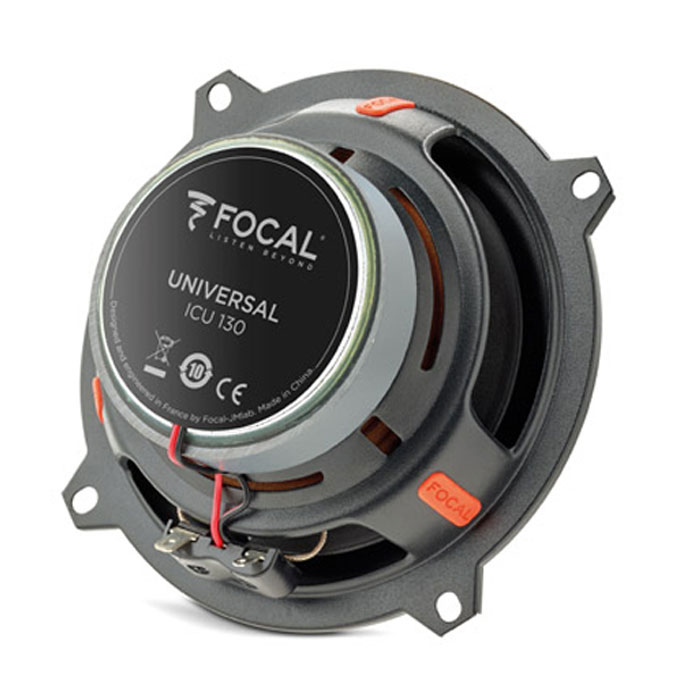

2-Way Coaxial Kit - 130MM Woofer

The ICU Universal 2-way coaxial speaker kit improves on your original-fit speaker installation. Its compact size, achieved by reducing the housing depth, and its snap-off fixings make this kit easy to fit. The new generation Universal comes with innovations and new features, including a new inverted aluminium/magnesium tweeter for even more detailed treble reproduction. A new chassis has also been designed for optimal integration and a more elegant design. All this is with just one objective: to offer easy-fit products that maintain excellent sound. On this coaxial model, the aluminium/magnesium tweeter has a 2-position +3 dB adjuster (Flat/High) for treble boost. This adjustment comes into its own when the speaker is placed low in the door.

Shallow fitting: 48,9 mm.

Natural, Uncoloured Sound

The Integration range is synonymous not only with ease of installation but also and most especially, with sound quality. At Focal we pride ourselves in supplying equipment of impeccable quality: for example, a polyglass membrane for natural, uncoloured sound and an inverted dome aluminium/magnesium tweeter for clear, detailed reproduction.

Reliability A Top Priority

The Focal spirit also encompasses the reliability of our ever evolving technological equipment. Butyl suspension ensures that your speakers will stand the test of time. You will be able to enjoy the Focal sound for a long time, thanks to our high quality design: manufacturing processes and the choice of materials are always high priorities for our engineers, guaranteeing a result that exceeds your expectations.

Technical Characteristics

• Woofer: 51/8" (130mm)
• Voice coil diameter: 1" (25mm)
• Max. power: 120W
• Nom. power: 60W RMS
• Sensitivity (2.83V/1m): 91.8dB
• Frequency response: 90Hz-21kHz
• Al/Mg inverted dome tweeter
• Accessories: delivered without grilles
• Integrated crossover: 6dB/oct

Specifications

• Nominal power 60W RMS
• Maximum power 120W
• Sensitivity (2,83V/1m) 91.8dB
• Frequency response 90Hz-21kHz
• Cone type Polyglass
• Surround type Butyl
• Nom. impedance 4Ω
• VC diameter 25mm 1"
• Net weight 550g 1.2lbs

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
