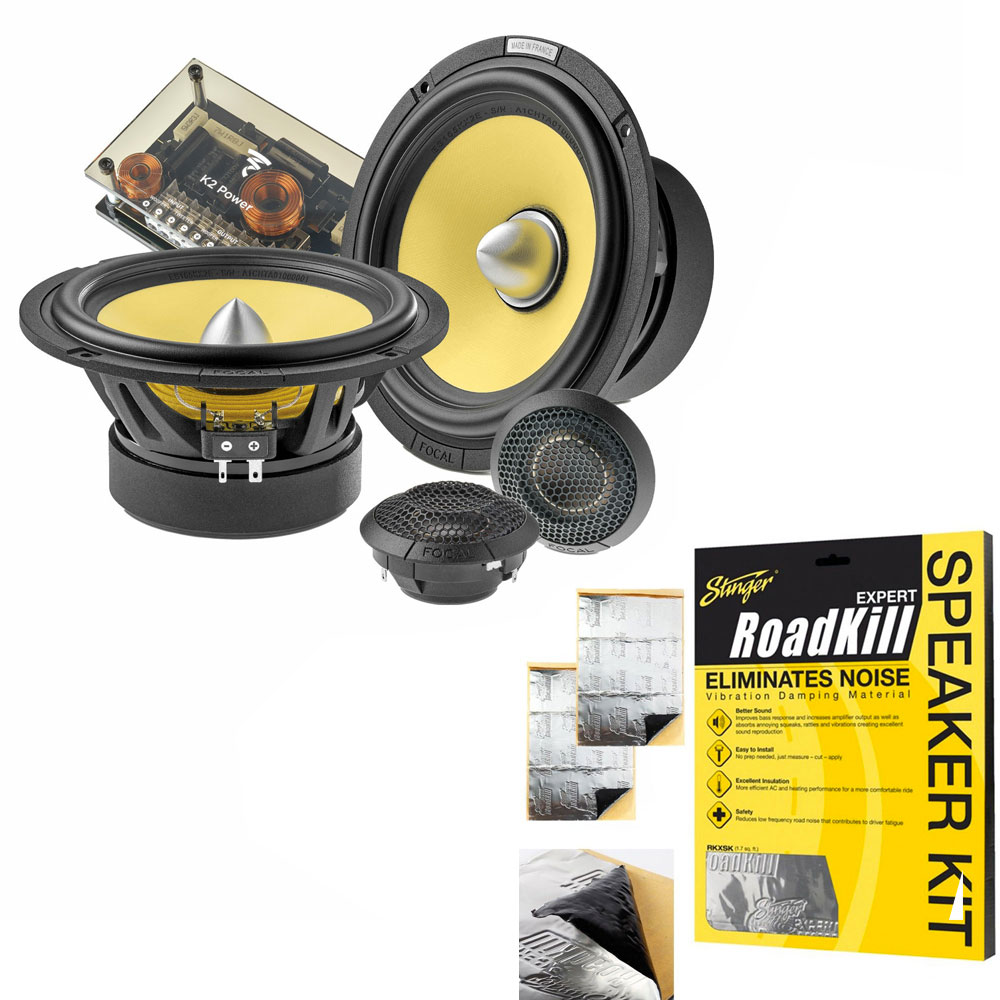

Package Included

• Focal ES165KX2E 6.5" (16.5cm) 2-Way Component 2-ohm Speaker System
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

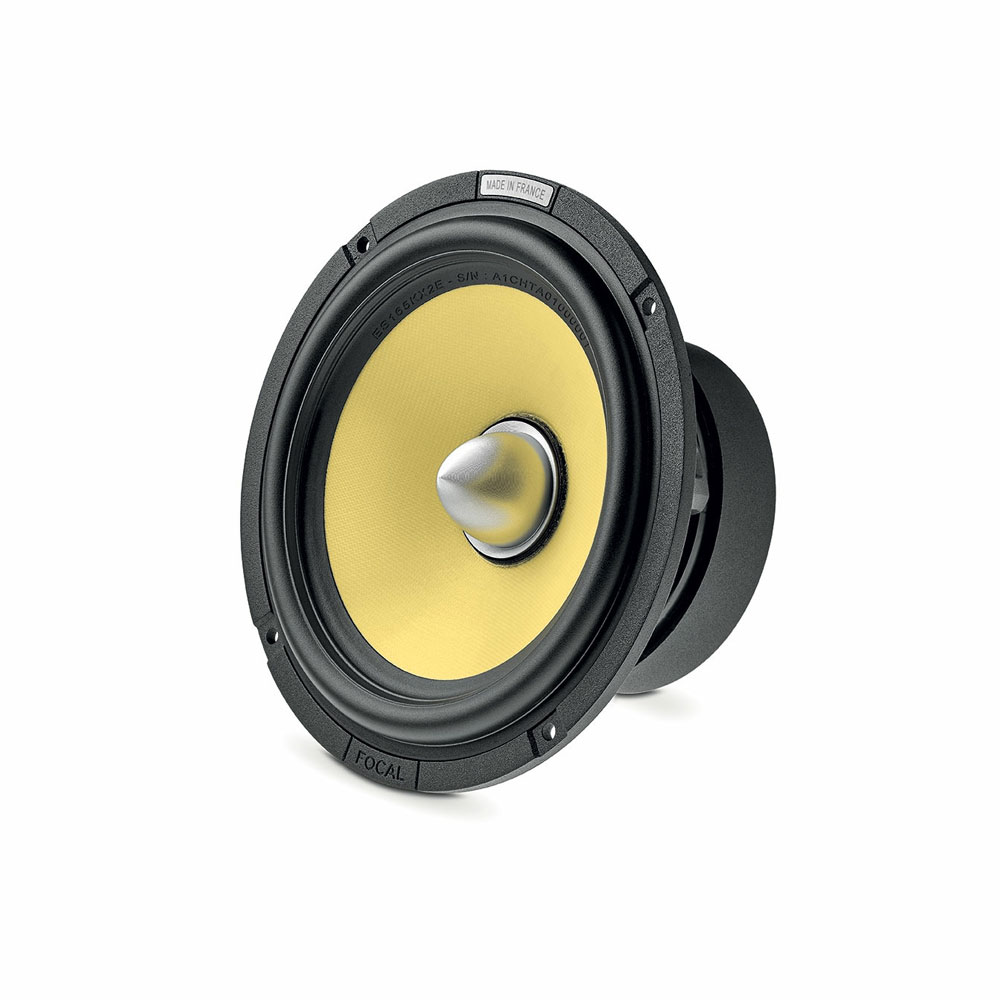

ES165KX2E 2 Separate Way Kit 16.5 cm

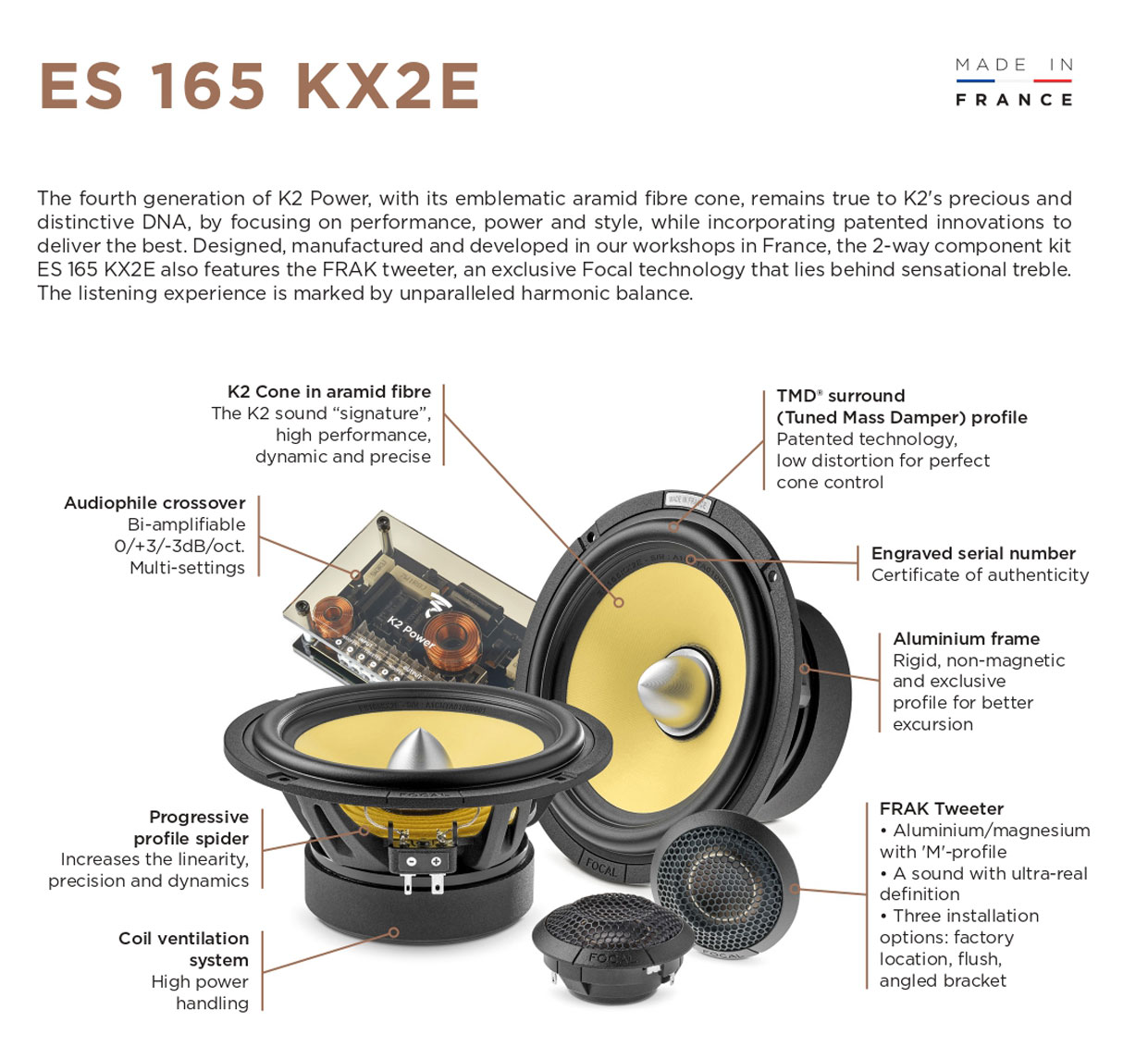

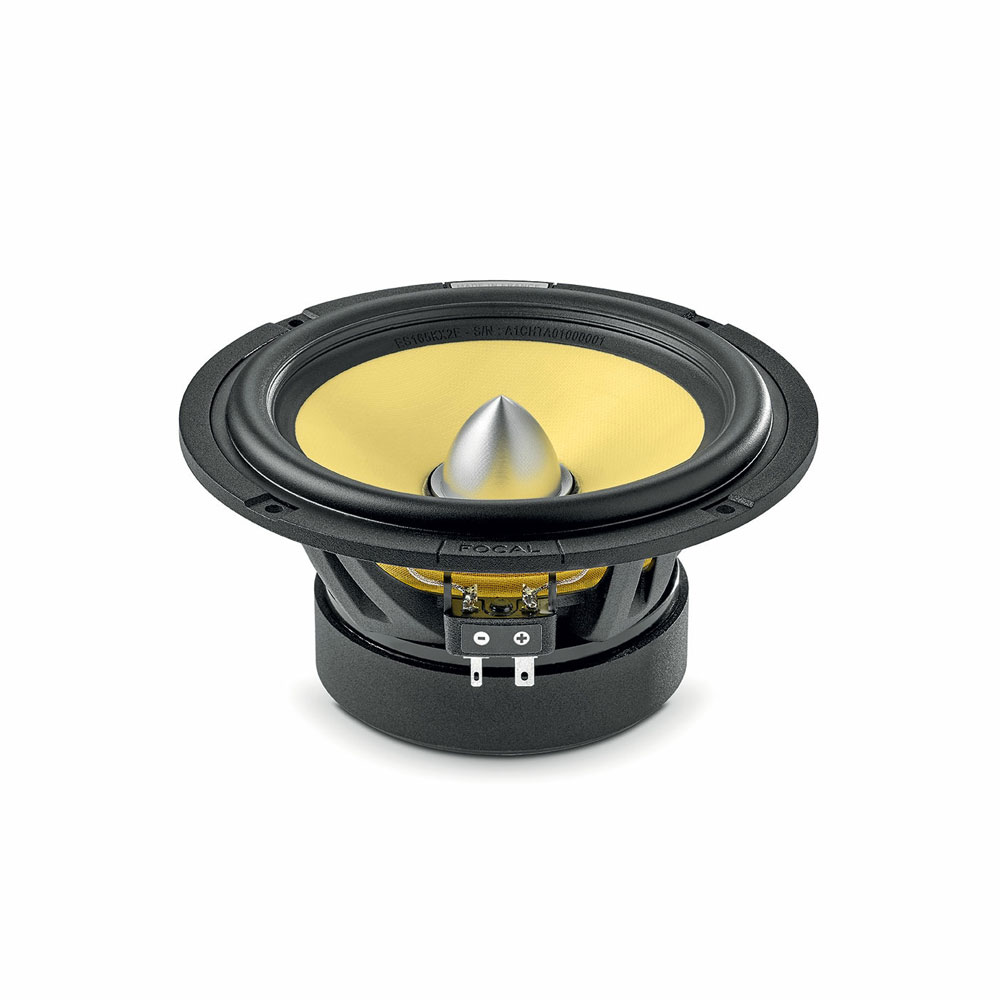

Like all fourth generation K2 Power kits, the ES 165 KX2E system enhances on-board listening. It consists of two 16.5 cm woofers with K2 aramid fiber membrane, a Focal innovation revealing rich and powerful sound. The central cone of the woofers guarantees better dispersion of sound within the cabin, for perfect immersion.

Key Features

• K2 Cone
• FRAK tweeter from the K2 Power M range
• Robust design and high quality materials
• Exceptional power handling

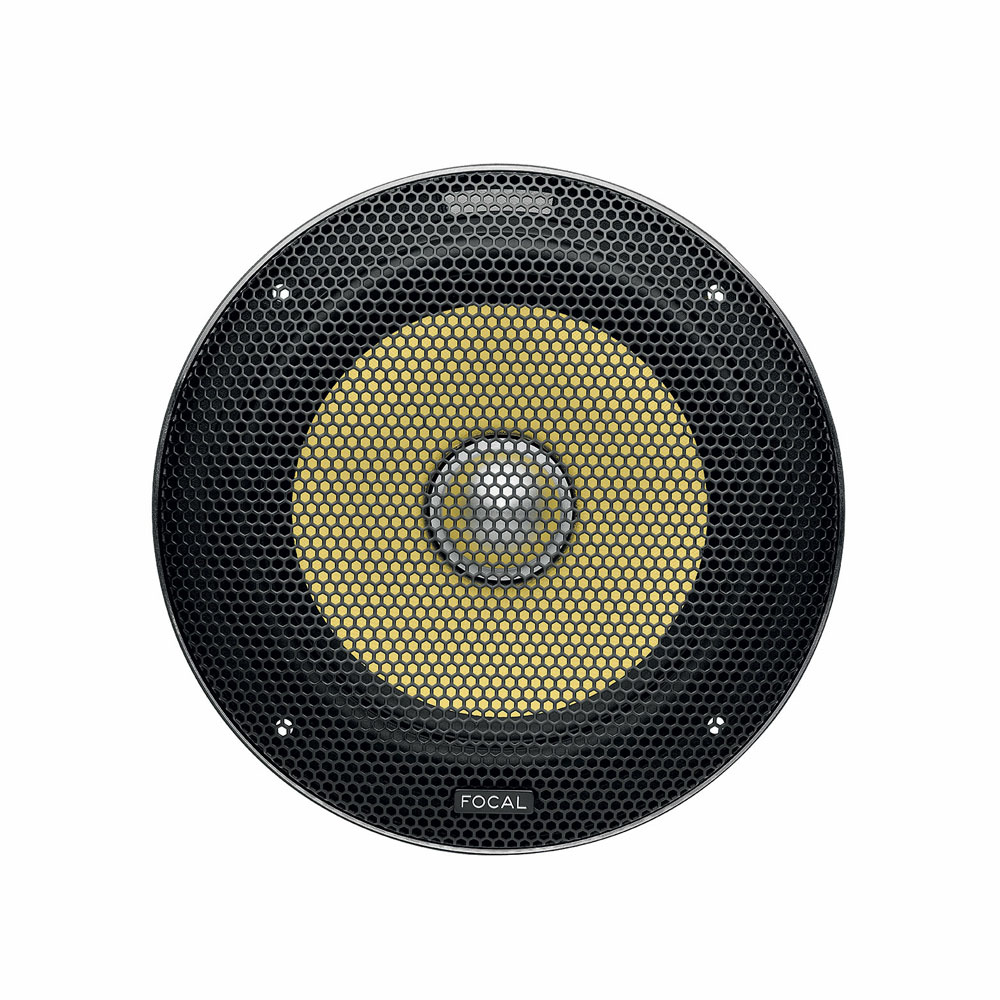

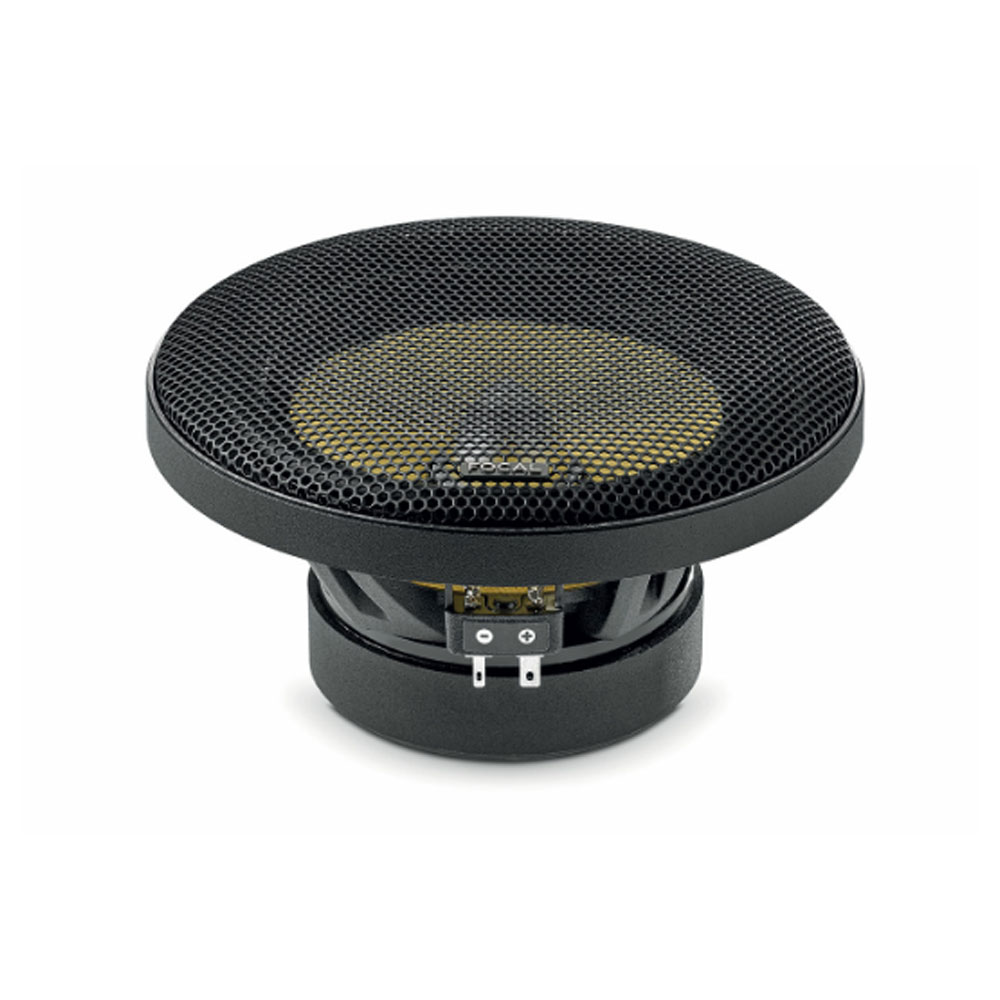

• Aluminium grilles included

Harmonic Balance

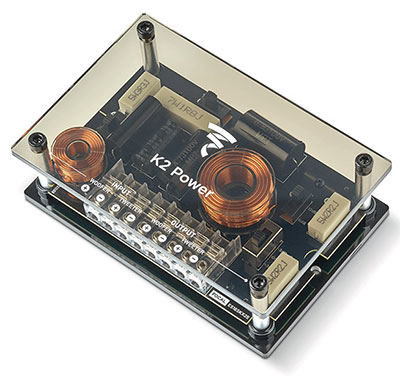

FRAK tweeters with inverted dome and "M" profile are the source of ultra-realistic sound. Coupled with bi-amplifiable audiophile crossovers, they provide perfect control of high frequencies to reproduce smooth, well-defined treble.

Focal Technologies

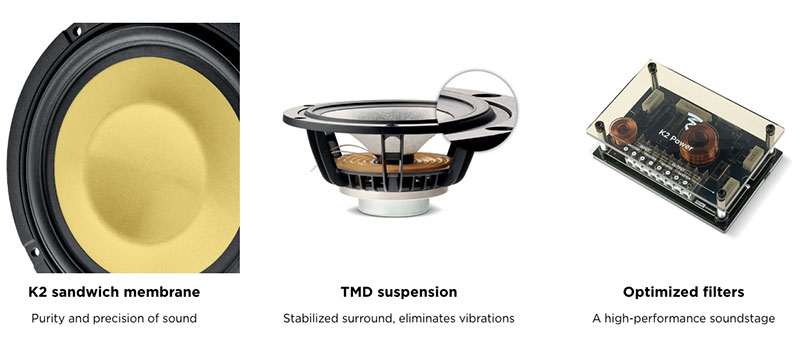

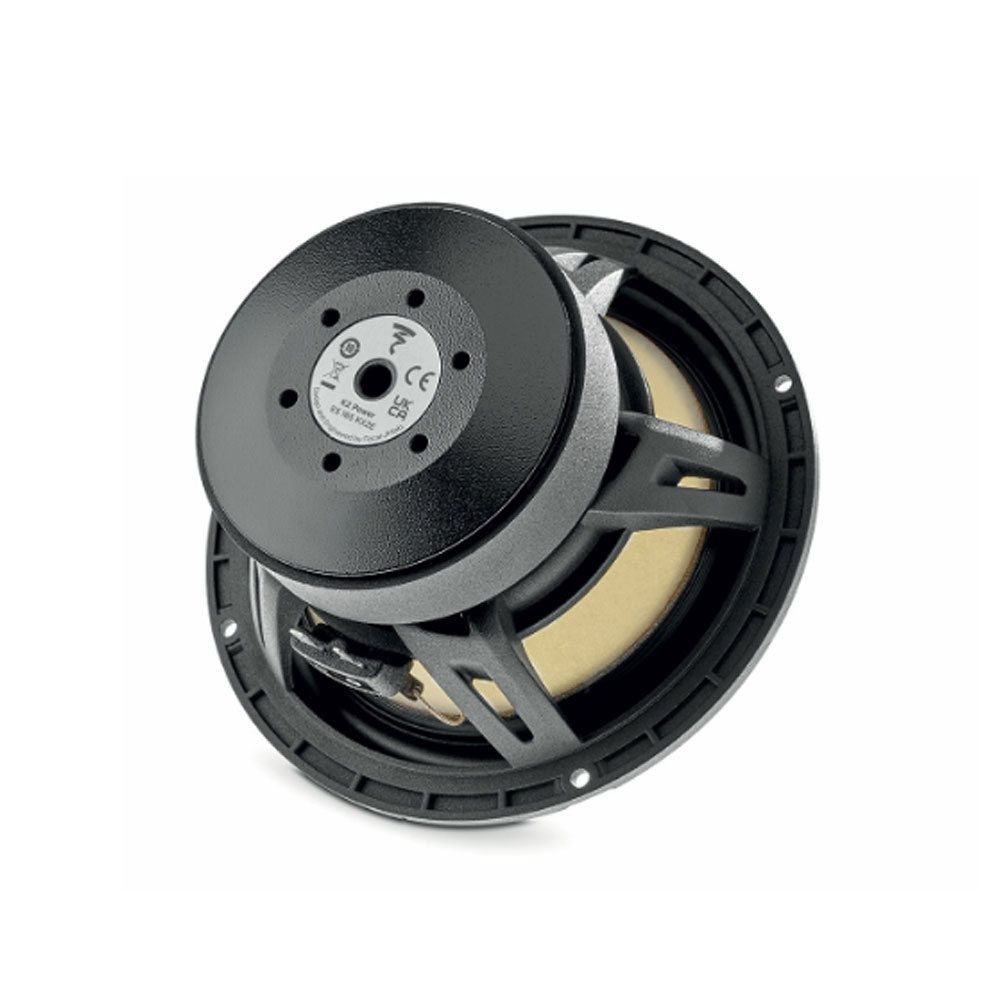

TMD® suspension, progressive-profile spider, aluminum frame, optimized coil ventilation system... K2 Power kits benefit from Focal's acoustic expertise for high power handling and precise, dynamic sound.

Custom Installation

For optimum, flexible mounting, the tweeters can be mounted in one of three ways: in their original position, flush-mounted, or tilted to perfectly orientate the soundstage in your vehicle.

Features

• Type 2-way component kit
• Maximum power 240W
• Nominal power 120W RMS
• Sensitivity (2.83V/1m) 92.5dB
• Frequency response 55Hz – 32kHz
• Impedance 2Ω
• Cone K2 Sandwich

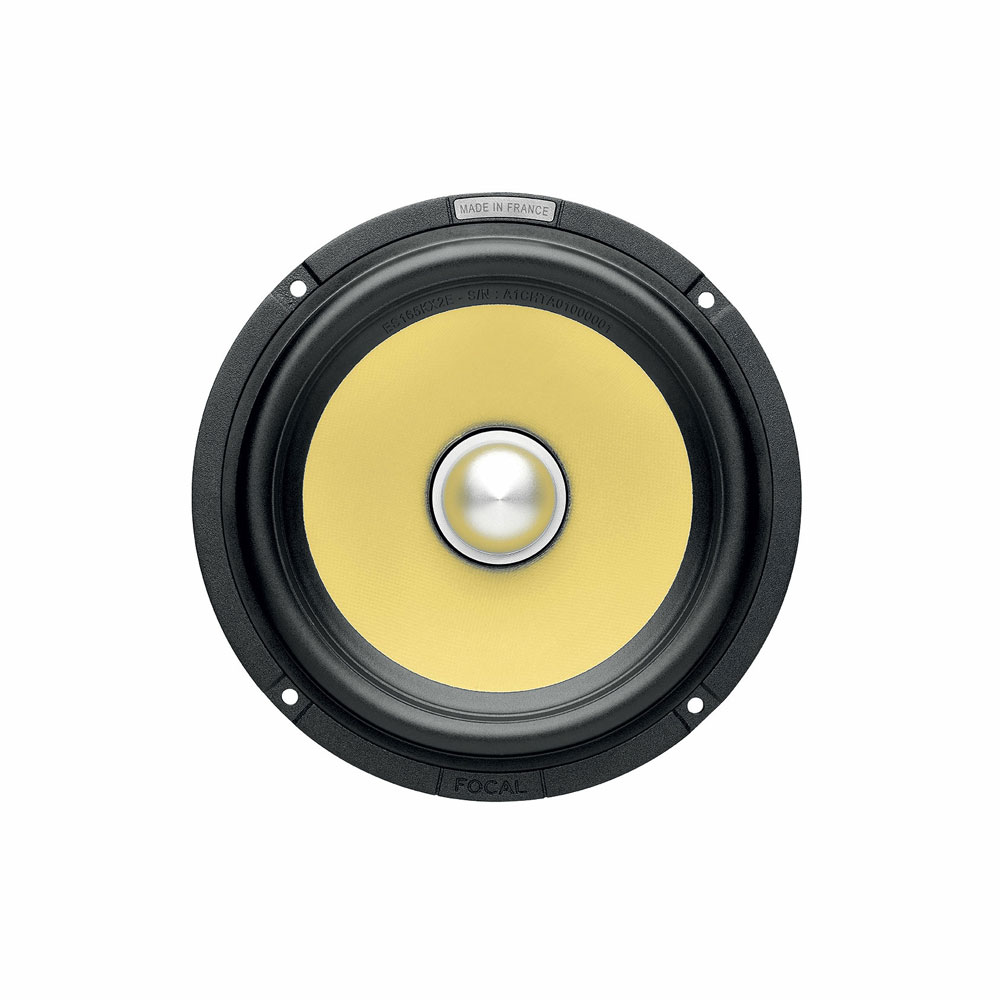

• Woofer 61/2" (165mm)
• Voice coil diameter 15/8" (40mm)
• Depth 3" (76mm)
• Magnet Ferrite
• Surround TMD®
• Tweeter 'M'-profile
• Crossover 6-12/12dB (3kHz)

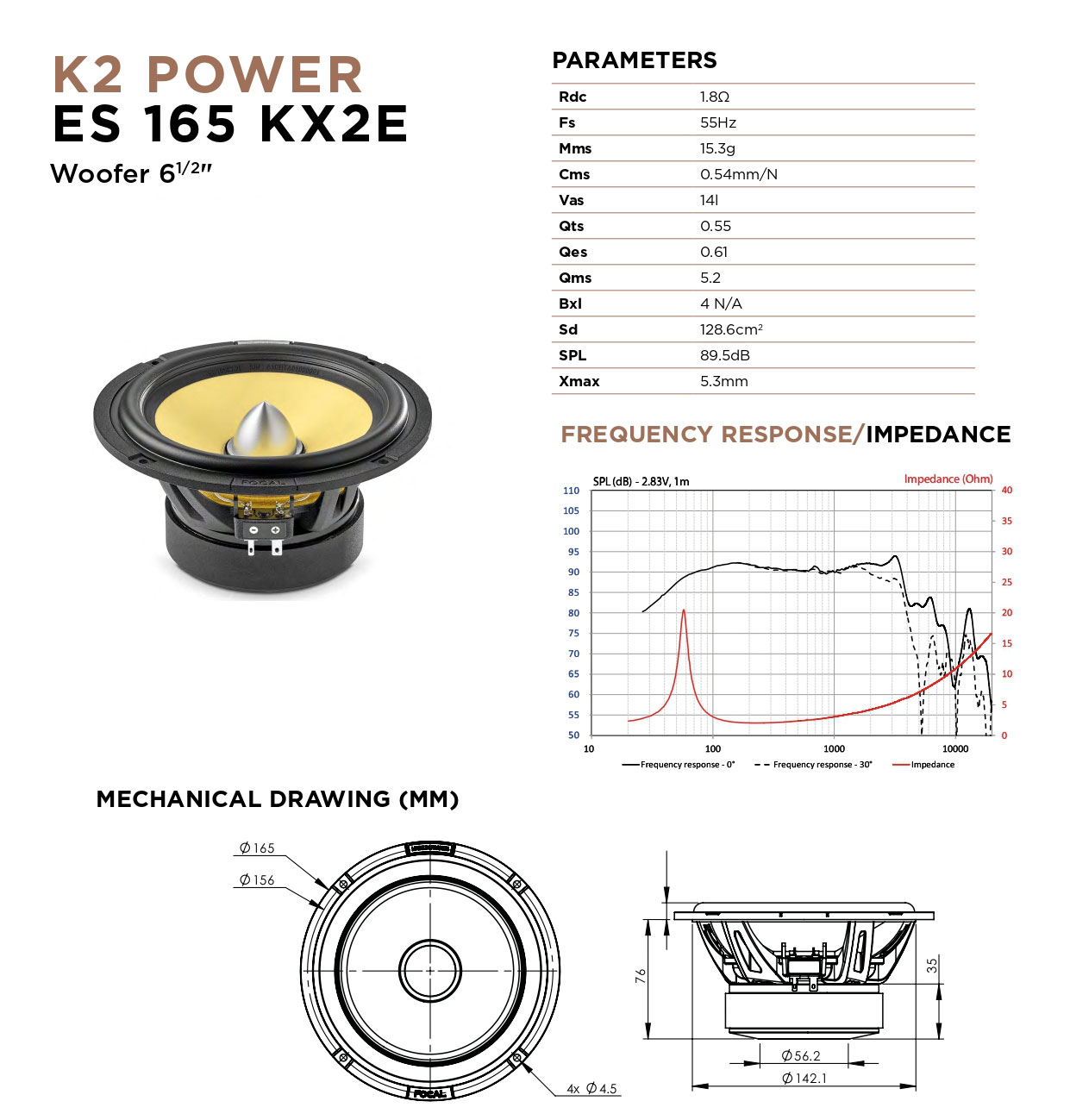

Specifications

• Nominal power 120W
• Maximum power 240W
• Sensitivity
• (2.83V/1m) 93dB
• Cone K2 Sandwich
• Nom. impedance 2Ω
• Surround Butyl
• DC resistance 1.8Ω
• VC diameter 40mm 15/8"
• Former Kapton
• Layers 2
• Wire CCAW
• Magnet (dxh) 100x22mm 4x7/8"
• Net weight 1700g 3.7lbs

Tweeter Specifications

• Nominal power 25W
• Maximum power 150W
• Sensitivity 91dB
• Nom. impedance 4Ω
• Frequency response 600Hz-32KHz
• Cone Aluminium/Magnesium
• M-profile
• Surround TMD®
• VC diameter 25mm 1"
• Net weight 85g

What's in the box

• 2 x woofers
• 2 x inverted dome tweeters
• 2 x Crossovers
• 2 x Tweeter flush mount rings
• 2 x Tweeter angled surface mount cups
• 2 x Tweeter grilles (installed)
• 2 x Woofer grilles
• 2 x Woofer grille mounting rings
• 2 x Woofer gaskets
• 8 x Speed clips
• 4 x 3/4" Screws
• 8 x 1-1/8" Screws
• Quick start guide
• 2 x Focal window stickers

Sold As A Pair, Aluminium Grilles Included

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
