Car Audio Stereo Installation kit for installing a new after market headunit into your Audi. This is complete kit including Fascia Trim Panel, Wiring Harness, Aerial Adaptor and keys to remove your old stereo.

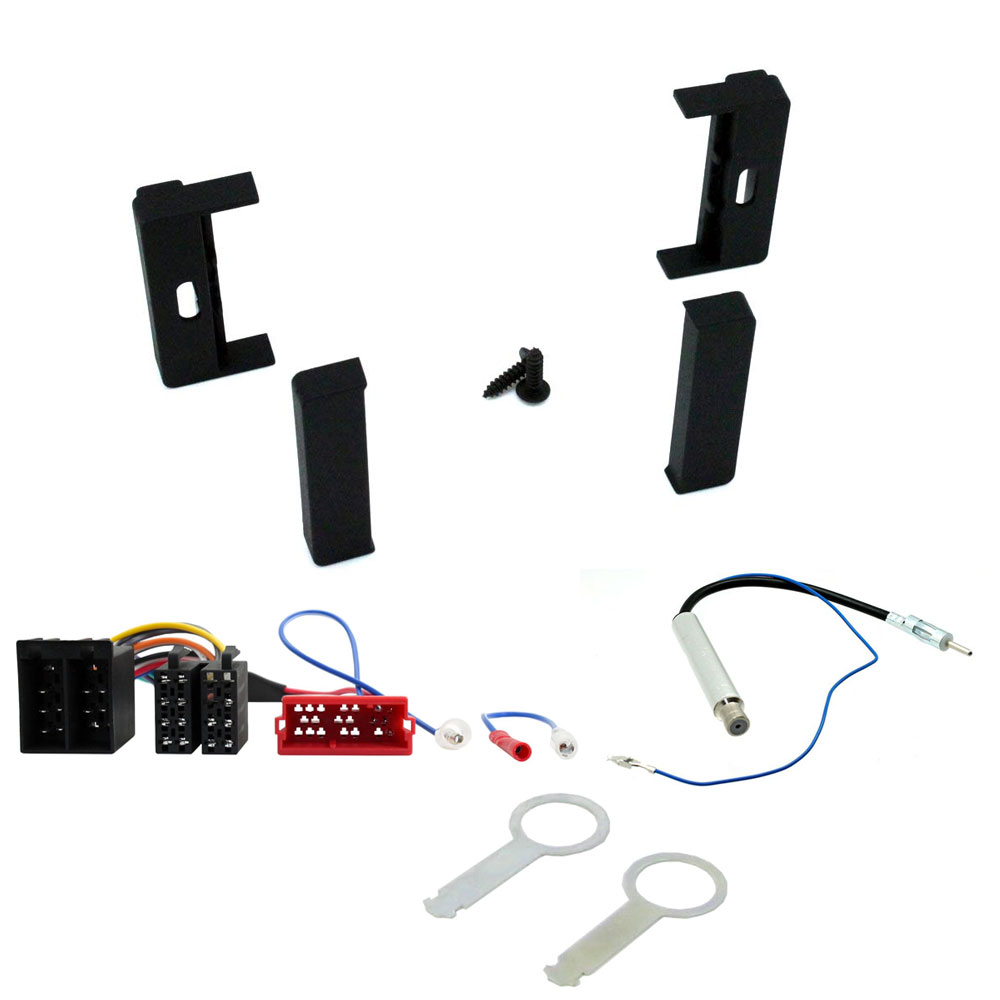

Package Includes

• Single Din Fascia Plate (Black)
• Wiring Harness (Half Amplified Systems)
• Aerial Adaptor
• Stereo Removal Keys

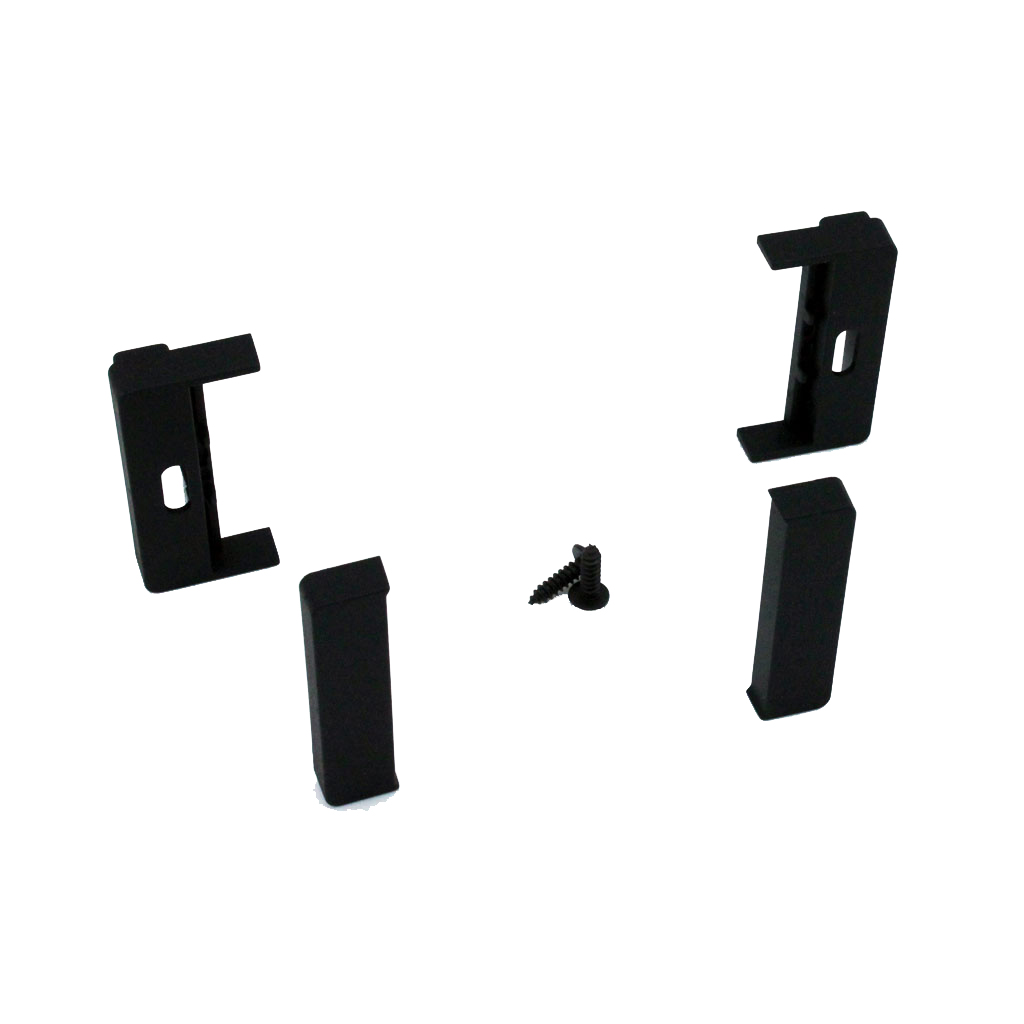

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Wiring Harness

The wiring harness will allow to install the stereo.

When connected your new stereo may not power up, and this is no fault of the wiring harness purchased.
Audi / VW / Skoda / Fiat and other vehicles tend not to have an ignition switched live feed.
In these cases it is necessary to manually connect a spurred live feed from fuse box for example to feed switched power so the new stereo turns on and off with the key.
The wire in particular on the new wiring harness will be the red wire.

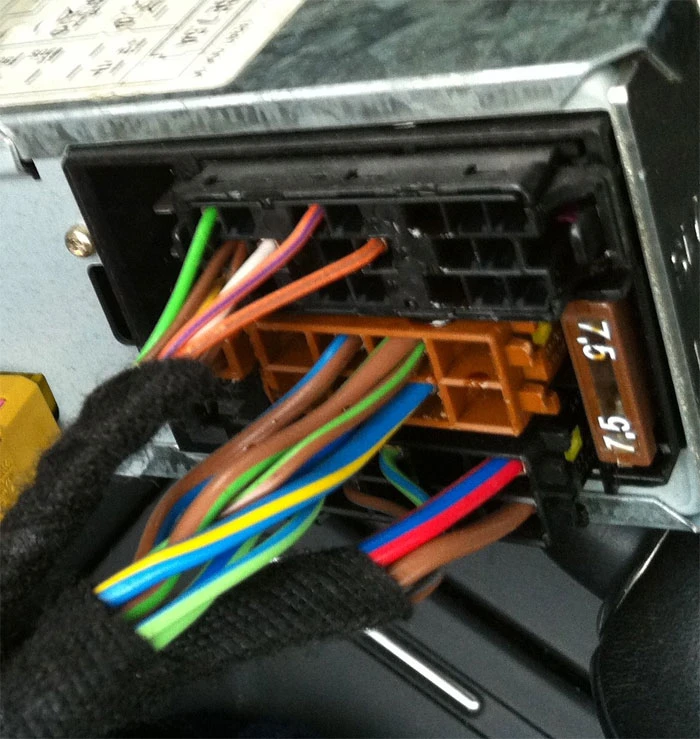

PLEASE NOTE: THIS ADAPTER SUITS HALF AMPLIFIED AUDI WITH ISO CONNECTIONS AS IN PHOTO. MOST AUDI DO NOT HAVE IGNITION LIVE WIRE ON ORIGINAL PLUG SO STEREO MAY NOT POWER UP WHEN CONNECTED. THIS WILL NEED TO BE MANUALLY WIRED IN BY INSTALLER. THERE IS A BLUE WIRE ON ADAPTER WHICH REQUIRES CONNECTION TO REMOTE WIRE ON NEW STEREO NORMALLY BLUE ALSO OR BLUE WITH WHITE STRIPE. THIS WILL POWER ON THE FACTORY AMPLIFIER AND GIVE SOUND IN REAR SPEAKERS.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Blue wire needs to be connected to the Remote Antenna or ignition supply wire (if rem ant wire not available) on back of car stereo.

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
