Car Audio Stereo Installation kit for installing a new after market headunit into your Audi. This is complete kit including Fascia Trim Panel, Steering Control Interface, ISO to Male Din Aerial Adaptor and keys to remove your old stereo.

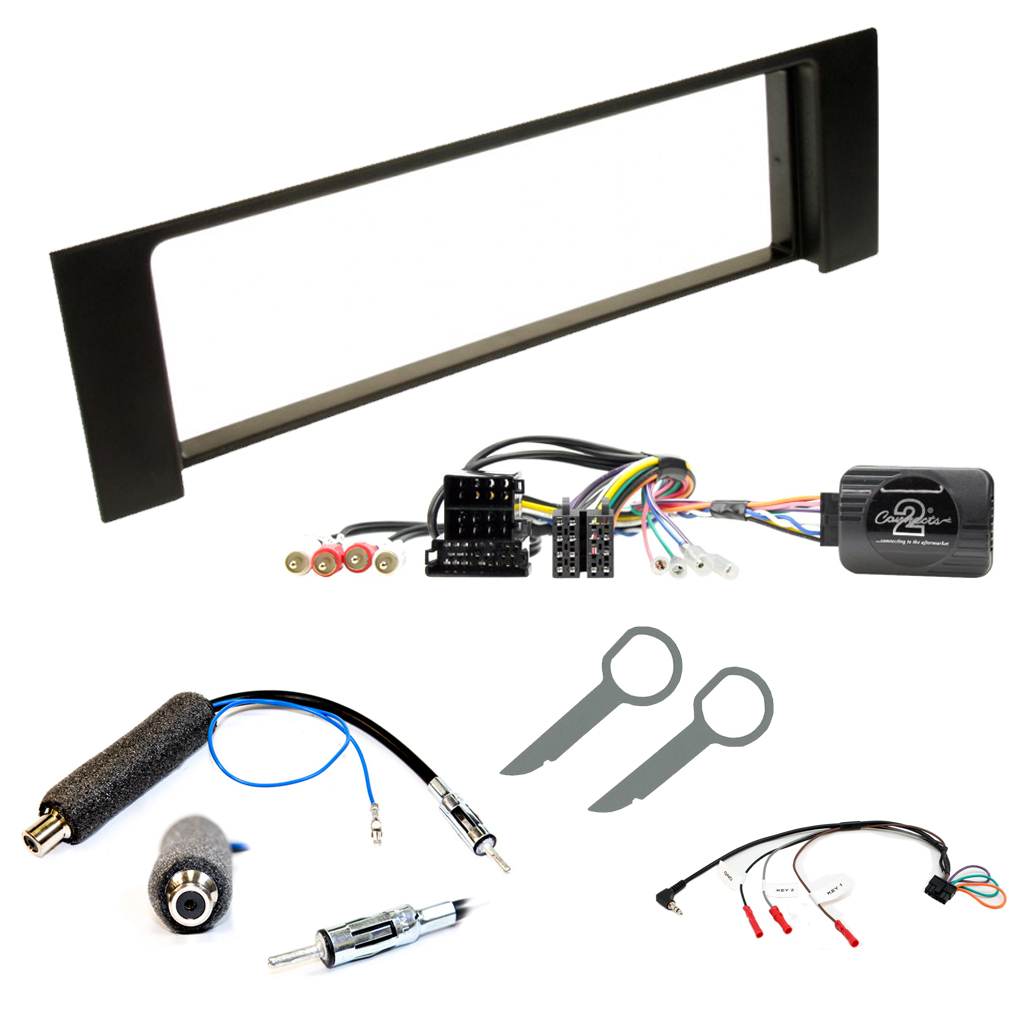

Package Includes

• Single Din Fascia Panel (Matt Black)
• Steering Control Stalk Adaptor
• ISO to Male Din Aerial Adaptor
• Stereo Removal Keys
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

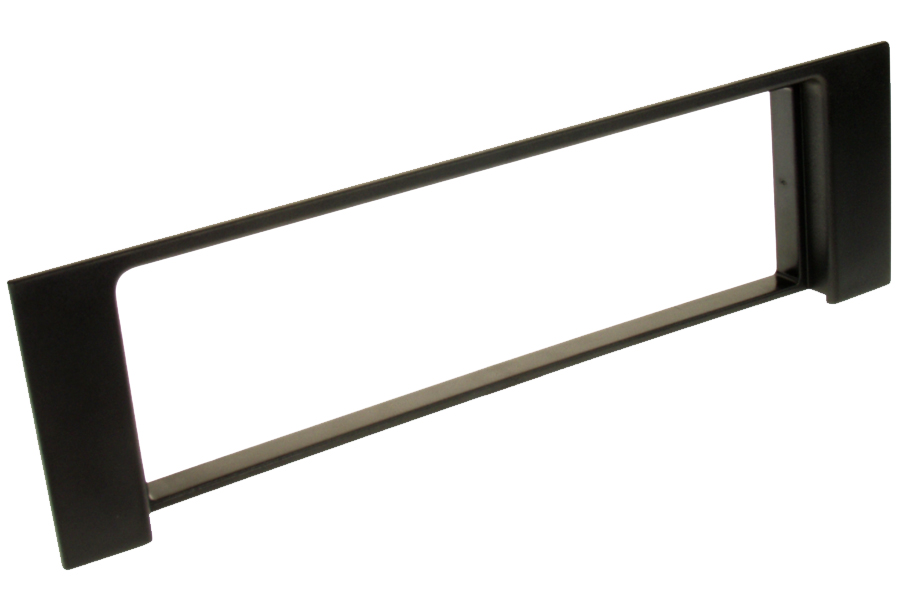

Fascia Adaptor

Car radio fascia adapter panel to allow the fitting of an aftermarket single din car radio upgrade. The fascia allows the fitting of an aftermarket radio into the dashboard by matching the shape, colour and style of the original radio.

A single din radio fits into this fascia using the fitting cage supplied with the new radio. The fascia is designed to fit Audi A4 B6 2001 - 2005 and A4 Cabriolet 2001 - 2009 cars with original single din Concert 2 radios.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Antenna adapter cable for cars with ISO connectors that have amplified original antennas. This cable converts the cars existing ISO aerial plug to an aftermarket DIN type used by most car radio manufacturers.

It also provides a power feed to give 12v from the car radio to the cars amplified antenna.

For Alpine Radios use item 21-101 to convert the DIN end to ISO or use item 21-080

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

Features & Benefits

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
• Maintains the original features of the vehicle such as date, time and temperature display
• Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
• For interfaces where phone buttons are supported, the following brands allow pick up/hang up in Bluetooth mode: Alpine, Clarion, Kenwood, Pioneer and Zenec. Please see icon list below to see if this interface supports phone buttons.
• Please check the connections in the vehicle match the harness you are purchasing

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible aftermarket headunits:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• EONON
• JOYING
• XTRONS
• PUMPKIN
• Other Chinese SWC learning head units

Important Patch lead:

• You can simply cut the loops / wires to select which brand you are fitting.
• Supplied with instruction sheet
• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
