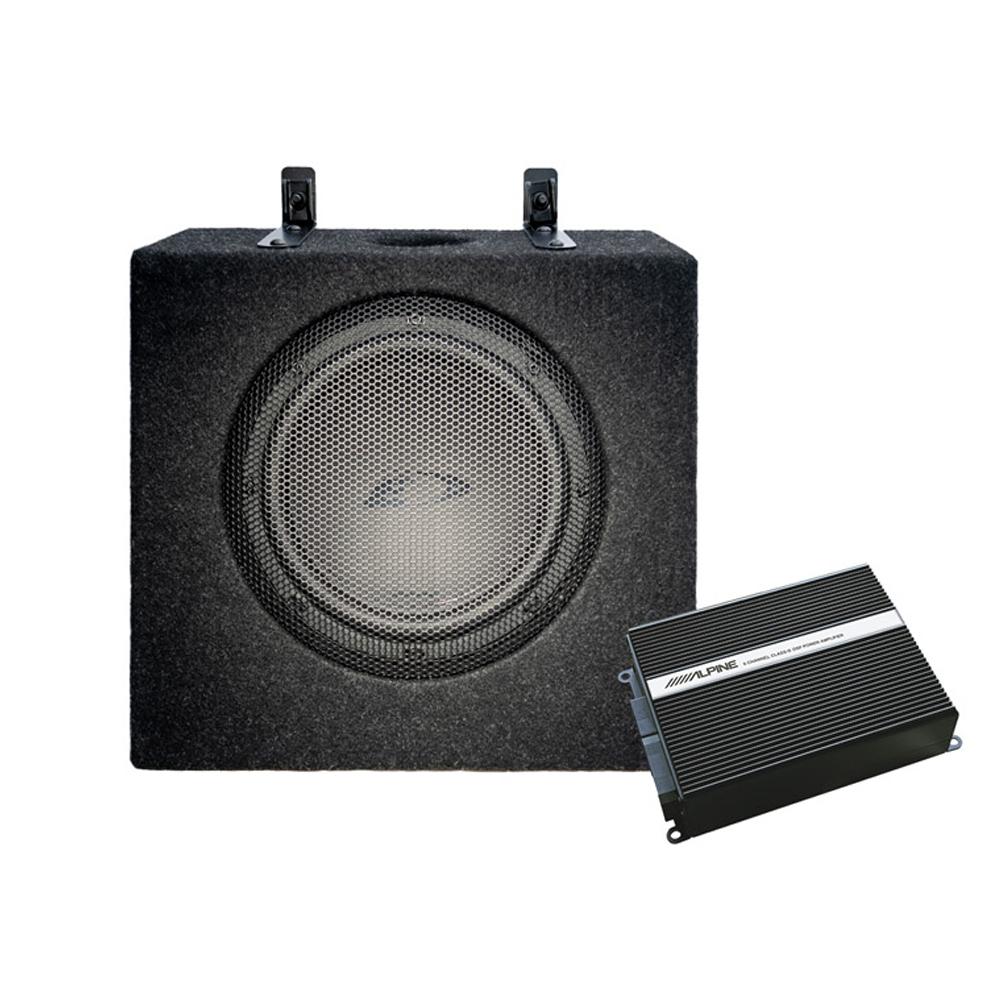

SPC-W84AT6-2

Upgrade your Alpine Adventure Audio speaker system for Volkswagen T6.1 or T6 to the Concert Ensemble with the new SPC-W84AT6-2 6-Channel DSP amplifier PDA-S560 and subwoofer system.

This sound upgrade will add lots of power output, dynamic and bass to your existing Alpine speaker system to achieve the ultimate listening experience in your vehicle.

The DSP amplifier is pre-programmed to perfectly match the sound characteristics of the Volkswagen T6.1 and T6, to ensure perfect sound quality, while the included wiring harness for original Volkswagen radios or aftermarket radios featuring RCA pre-amp outputs allows for fast plug-and-play installation in your vehicle.

The included 180 Watt subwoofer with wooden enclosure for installation under the passenger seat adds powerful bass and is even compatible with the rotary seat of the California camping bus.

Enjoy the second generation of Alpine Status sound systems with an even more powerful amplifier.

The Alpine Adventure Sound Experience

The new series of Alpine Adventure Audio sound solutions for the Volkswagen T6.1 and T6 have arrived - with the listening and mobility styles of motorhome and camping van enthusiasts in mind. Specially engineered for the challenging, and often audio-unfriendly environments of these camping and utility vehicles, our systems are guaranteed to provide unmatched sonic excellence on those long drives to your destination. They are not only a joy to listen to, but also a breeze to install, and their distinctive design will spruce up any cockpit without spoiling the original cabin cosmetics. Make your road-trips as exhilarating as your activities upon arrival with an Alpine Adventure Audio system!

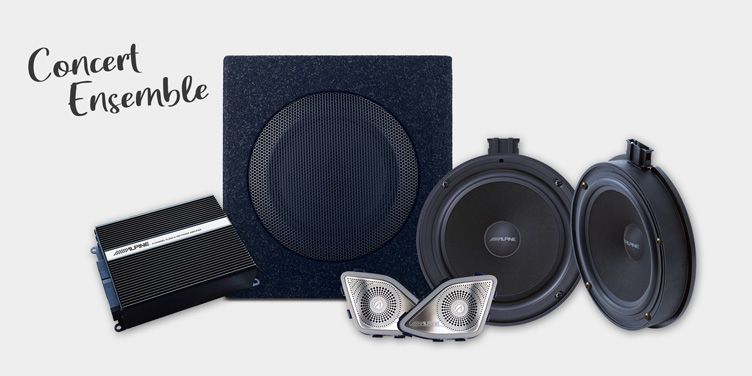

Upgrade to Concert Ensemble

If you have already installed an Alpine Adventure Audio speaker system in your Volkswagen T6.1 or T6, you can further upgrade your sound experience to the Concert Ensemble with the SPC-W84AT6-2 for even more dynamics, power and bass, as well as a better staging with digital time correction. Enjoy your favorite tunes with the unparalleled Adventure Audio listening experience.

More Power, More Dynamic

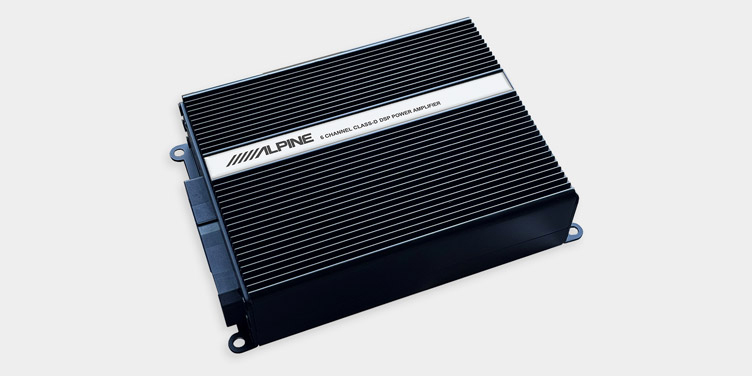

The 1120 Watt (peak power) Alpine DSP amplifier ads much more power and dynamic to your entire sound system and additionally drives the included 180 Watt dual-coil subwoofer. The DSP amplifier is pre-programmed to perfectly match the sound characteristics of the Volkswagen T6.1 / T6 cabin, but can be further adjusted for steering wheel configurations (left or right), radio type and other factors.

Powerful Bass Upgrade

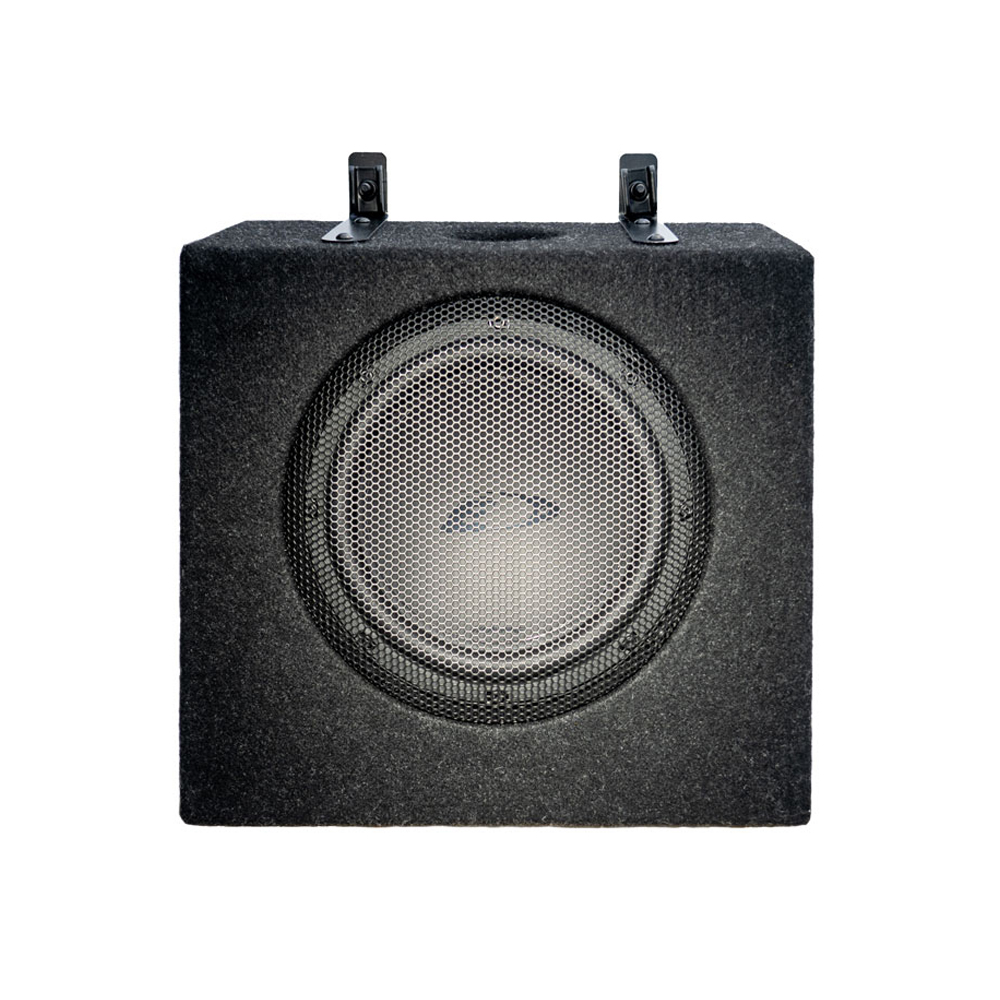

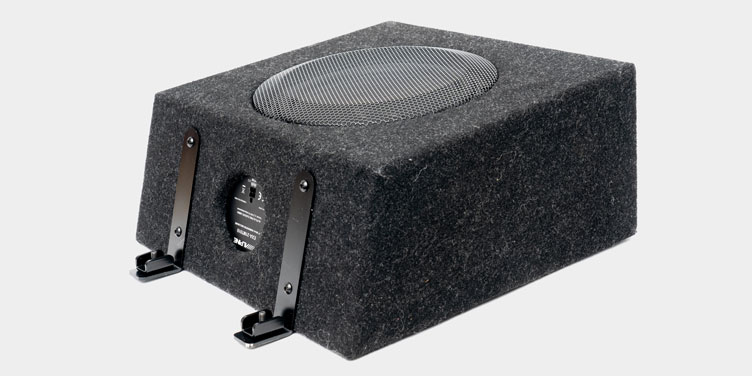

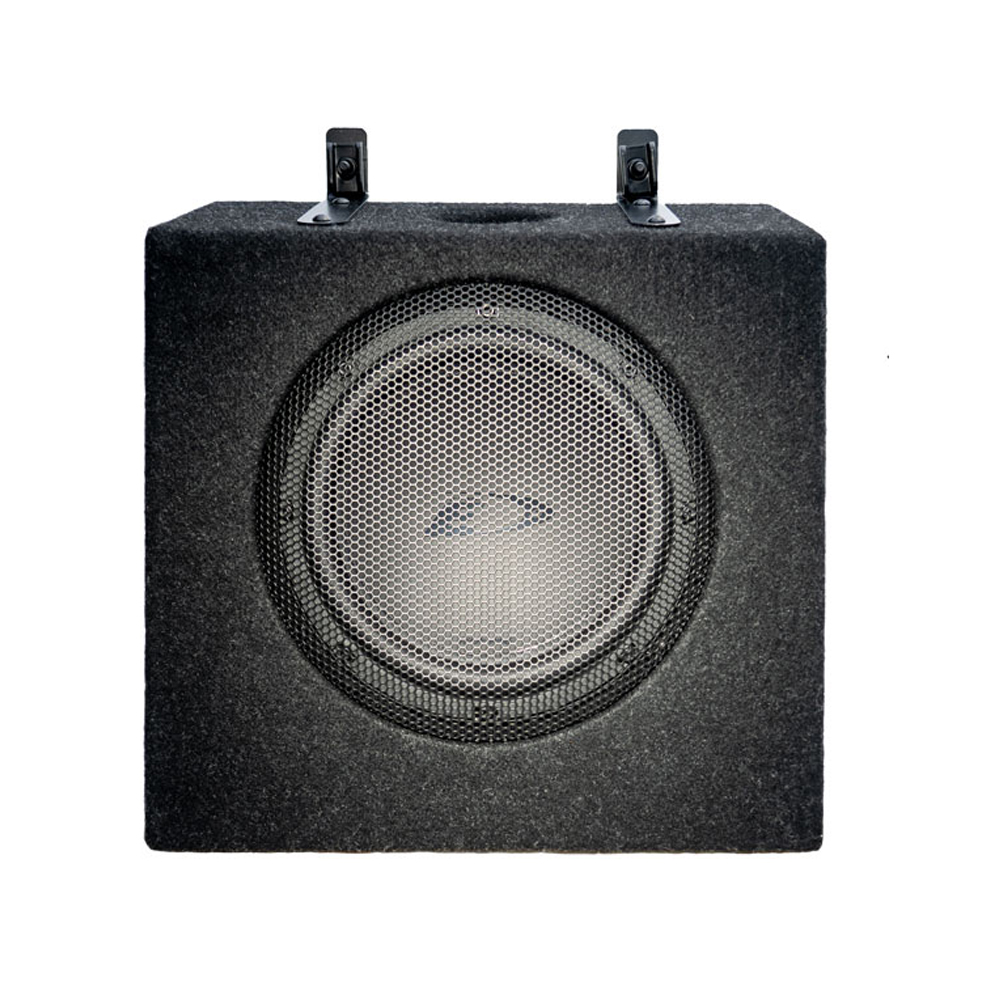

Enjoy strong, powerful bass with the included 180 Watt subwoofer to make all your audio tracks sound even more exciting. The dual-coil subwoofer comes pre-installed in a sealed wooden enclosure, installed under the passenger’s seat of your T6.1 or T6. It is also compatible with the rotary seats of the California version, as well as the seating bench of the Caravelle van (installation position for Caravelle with 2-person bench is under the driver’s seat).

Fast & Easy Installation

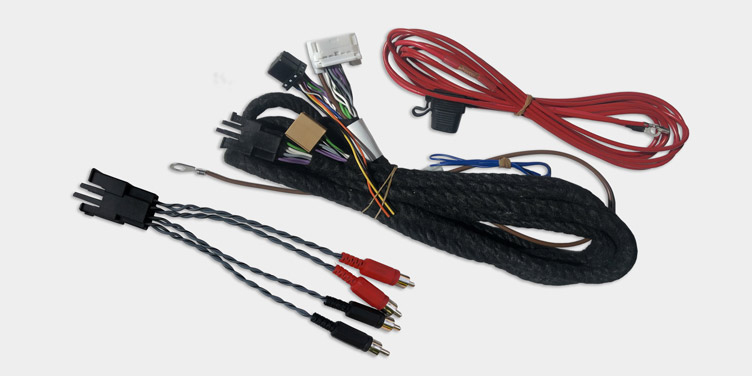

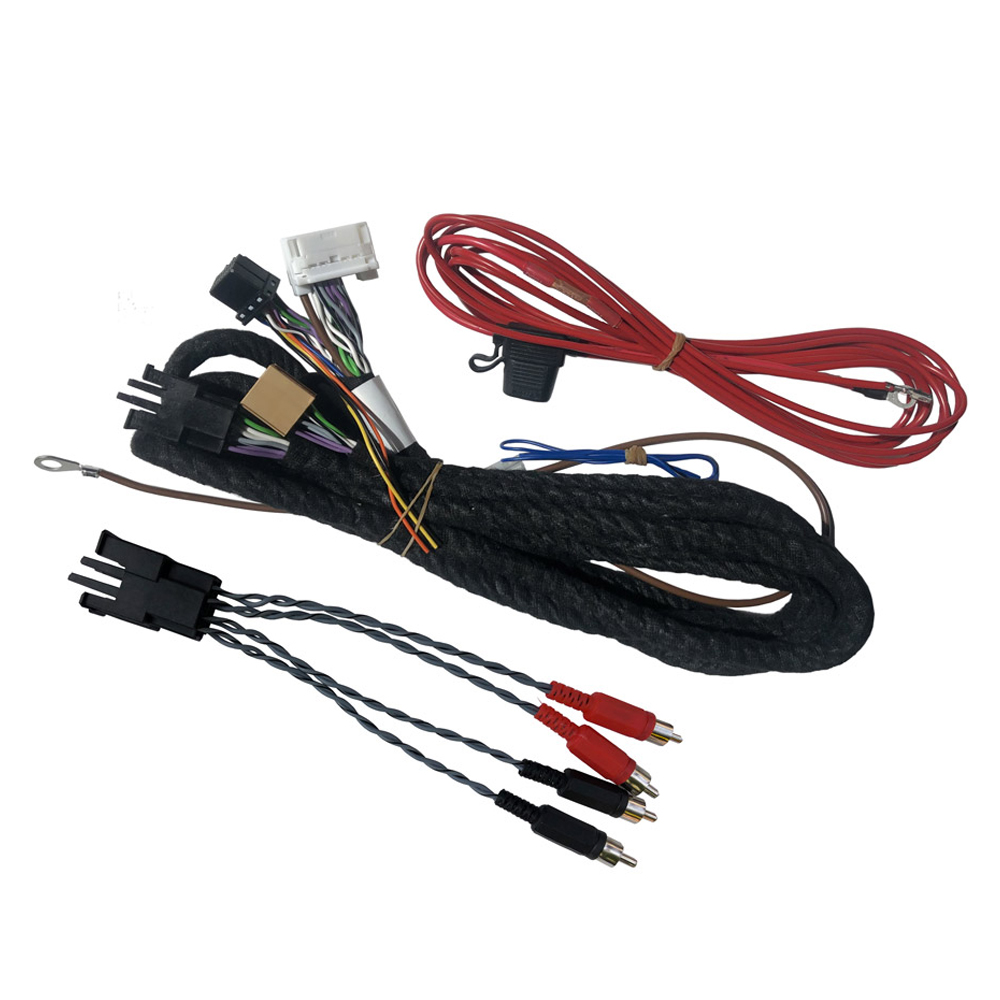

All required installation brackets and cable harnesses are included in the SPC-W84AT6-2 kit to enable a smooth and easy installation. This version includes a plug-and-play wiring harness to connect the sound system to an original Volkswagen T6.1 / T6 radio or aftermarket radios featuring RCA pre-amp outputs.

Features & Specifications

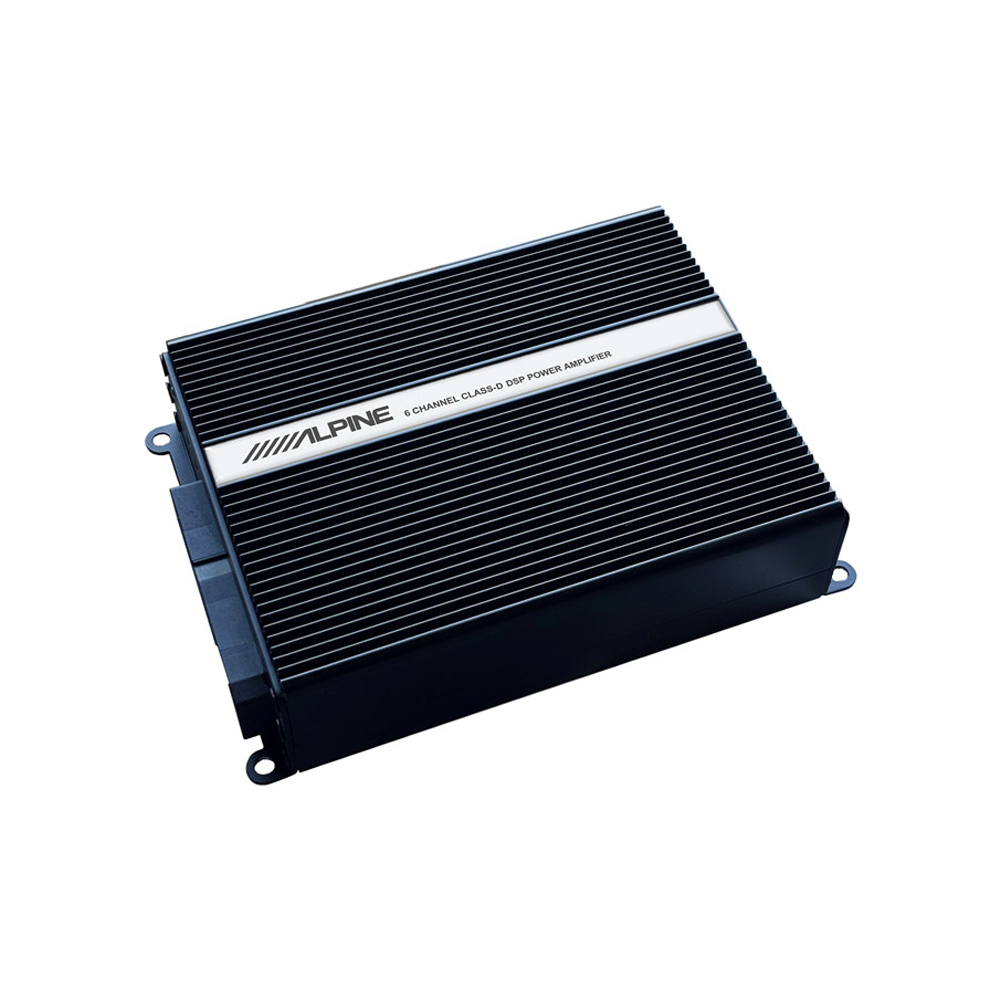

DSP Amplifier

• 6-Channel DSP Class D Amplifier
• RMS Power Ratings CH 1-4 into 4 Ohms: 80W RMS x 4 (14.4V at 1% THD+N)
• RMS Power Ratings CH 5-6 into 2 Ohms: 120W RMS x 2 (14.4V at 1% THD+N)
• Class AB (channel 1-4) and Class D (channel 5+6) amplification circuits
• 4x high power inputs
• Power Requirement: 12 V
• Measurements: 142mm x 40mm x 122mm (176mm with connectors plugged in)
• Pre-programmed VW T6.1 / T6 sound settings with EQ and digital time correction
• Adjustments for LHD or RHD vehicles
• Designed to work with retrofit radio (RCA)
• Designed to work with original Volkswagen T6.1 / T6 radios (high-power)

Subwoofer

• 20cm (8”) dual voice coil subwoofer (2 Ohm + 2 Ohm)
• 180 Watt peak power handling / 60 Watt RMS power handling
• Frequency response: 10 Hz - 22.000 Hz
• Includes installation brackets for VW T6.1 / T6 under-seat installation
• Measurements: 355mm x 330mm x 170mm
• Sensitivity: 91dB 1W/W

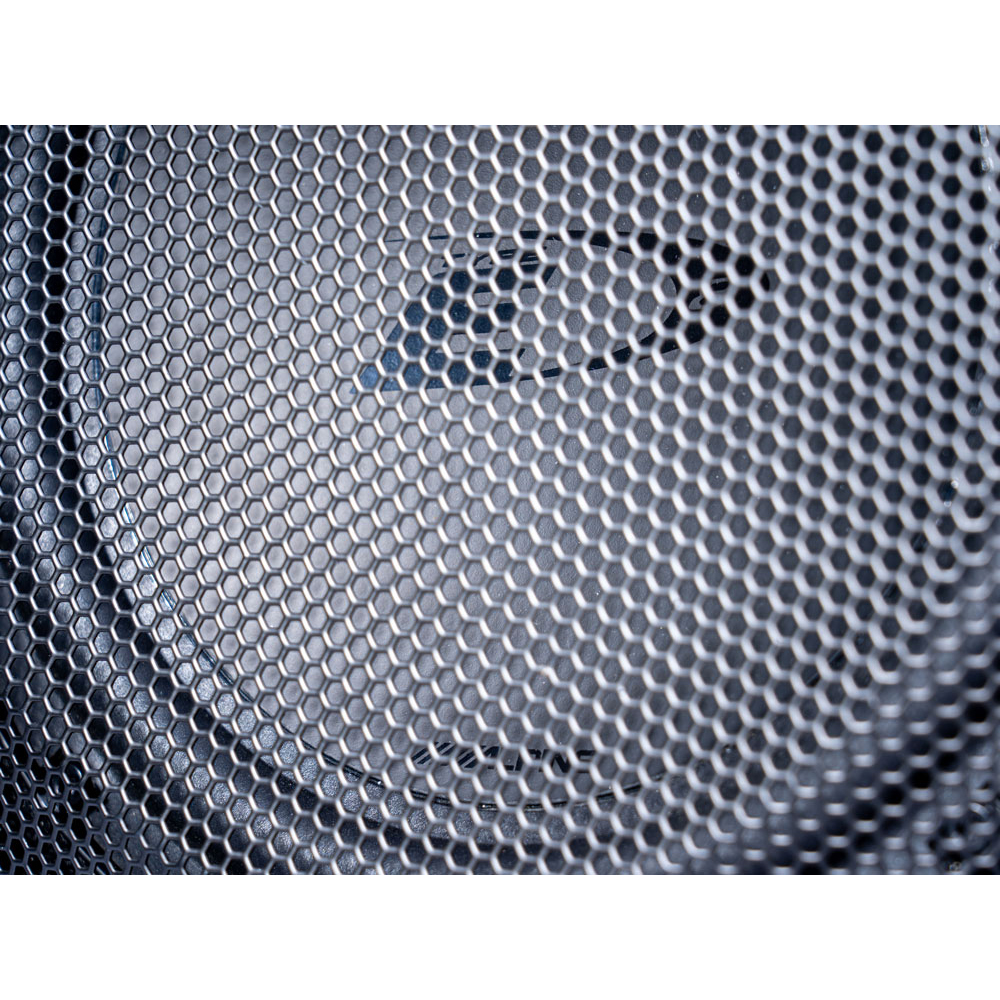

• Included subwoofer grill
