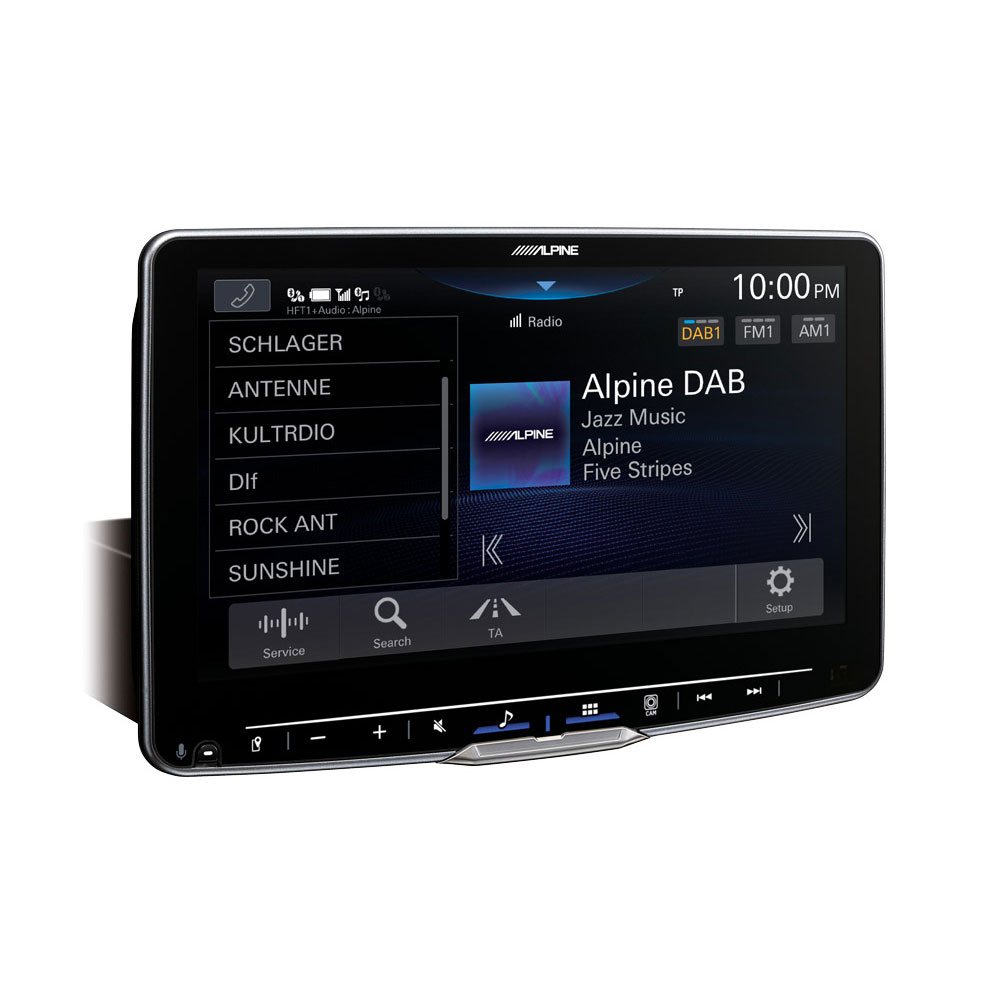

iLX-F905DU8

The iLX-F905DU8 Alpine Halo9 for the Fiat Ducato 8 is the second generation of Alpine’s world-famous Halo product line, featuring a 9-inch high-resolution WXGA touch-screen and comes with all required installation parts (such as a plug-and-play wiring harness, CAN interface, frame, etc.) for the Ducato 8. The super-slim display appears to simply hover over your dashboard and can be adjusted in various ways for the best position.

Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.

You can chose from a wide selection of online navigation apps such as Google maps and use them on your Alpine screen through Apple CarPlay and Android Auto.
Bring exceptionally good sound quality into your vehicle: the Alpine Halo9 is the world’s first Head Unit featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as 2-way X-overs, a Parametric EQ, digital time correction and much more.

SPECIAL ORDER ITEM, DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

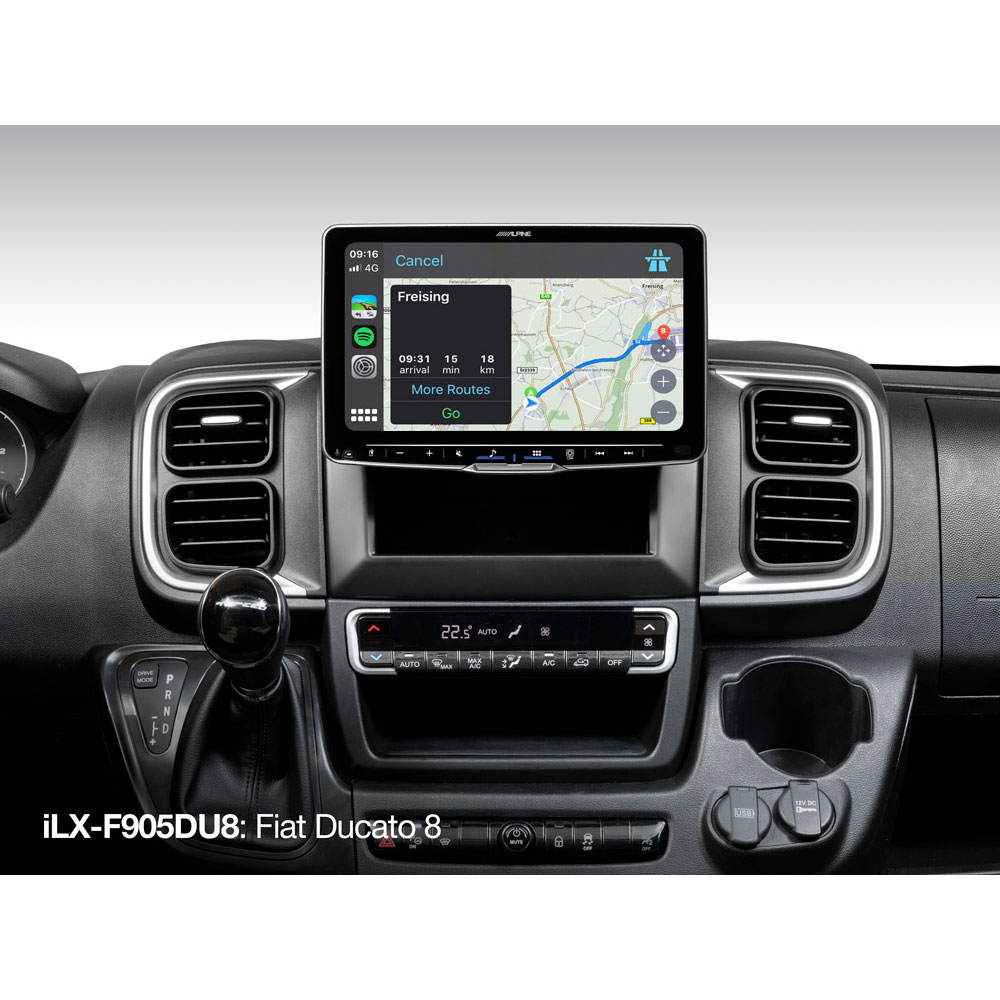

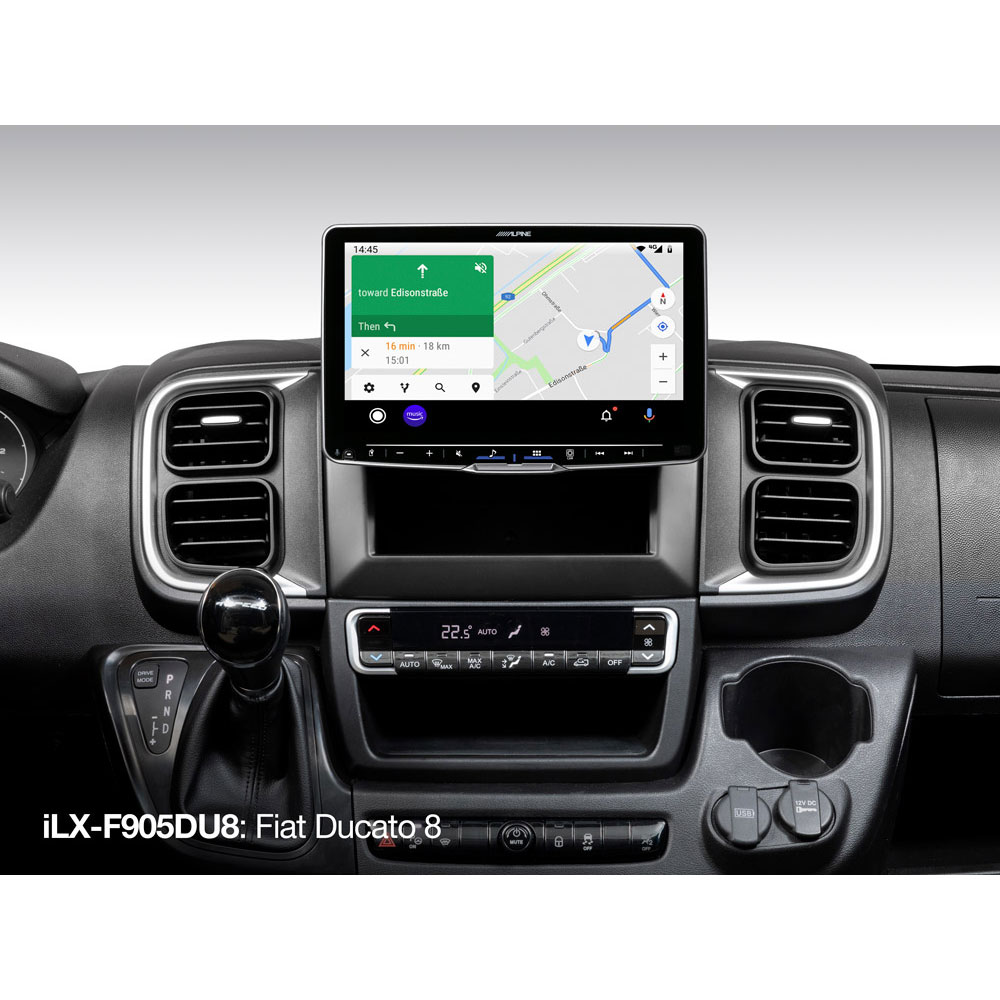

iLX-F905DU8: Made for Fiat Ducato 8

The new 2022 Fiat Ducato 8 has arrived and features an all-new dashboard and electronics system. Alpine already offers a tailor-made 9-Inch Media Receiver, featuring DAB+ digital radio, Apple CarPlay and Android Auto compatibility for Fiat Ducato 8, that ties-in perfectly to the Ducato 8’s dashboard and electronics. All required components for installation are included to make the installation as easy as possible.

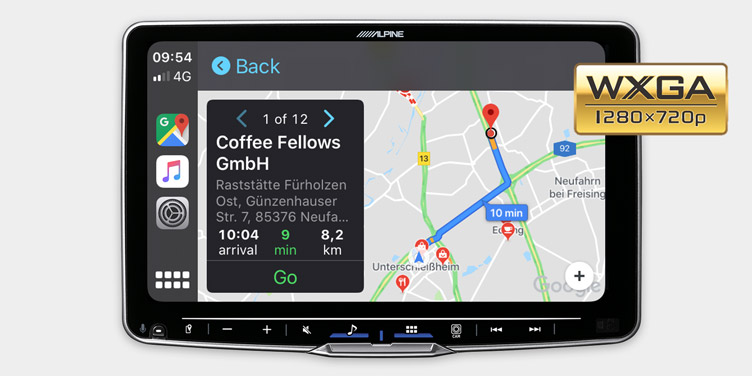

9-inch WXGA HD Display

The large, 9-inch WXGA touch-screen display features a resolution of 1280 x 720p and includes over 2.7 million pixel elements - making icons, menus and visual content extremely crisp and vibrant in your dash. The screen is attached to an adjustable mount connected to the Ducato 8’s radio dock and leaves a free 1DIN pocket below for storing smaller items such as cigarettes, etc.

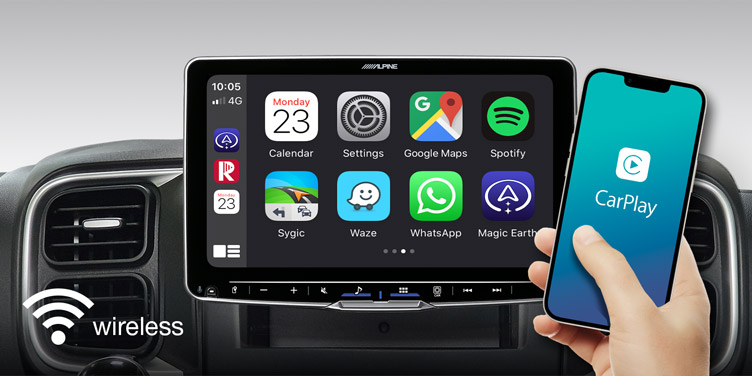

Wireless Apple CarPlay

The iLX-F905DU8 “Works with Apple CarPlay” wirelessly and lets iPhone users make and receive calls, access and write text messages, play music, and get direction in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control. Due to the WiFi connection, you can keep your iPhone in your pocket and do not need to plug it in all the time (except for charging).

Wireless Charging Console

A very useful accessory for your Fiat Ducato is the Wireless Charging Console KCE-3QI (sold separately). The KCE-3QI fits perfectly into the 1 DIN shaft and provides Qi compatible inductive charging for your wireless charging enabled mobile phone.

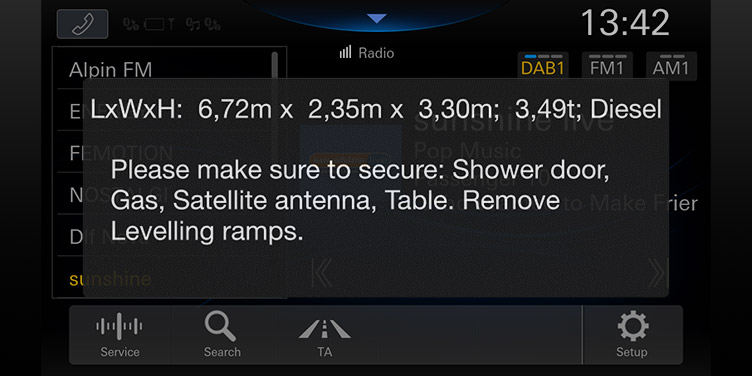

Pre-Flight Check

Most damages to motorhomes occur, because the vehicle was not fully prepared for the road. Alpine’s on-screen Pre-Flight Check can be fully customized to your vehicle and reminds you before you start driving, to ensure that the gas is shut off, all tables and doors are secured, satellite antennas are retracted, etc.

Easy control from the steering wheel

If your Ducato is equipped with control buttons on the steering wheel, you can use them with the iLX-F905DU8 as well. The Alpine system is fully connected to the vehicle’s electronics and accepts all steering controls such as volume control, telephone accept & decline buttons, voice control and audio mute.

Wide Entertainment & Online Navigation Options

The all new DAB/ radio tuner allows DAB – FM switching and lets you enjoy seamless radio reception without interruptions. Next the increased USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo9 features many additional entertainment options: the built-in Bluetooth module allows audio streaming from your phone and the HDMI input enables the connection of an external video playback device. You can of course use Android Auto with any compatible smartphone running Android (wired connection).

World’s First Head Unit With Built-in Class-D Amplifier

The iLX-F905DU8 is the world’s first aftermarket Head Unit featuring a built-in 4x 50 Watts Class-D amplifier – allowing excellent, high-end sound reproduction with highly reduced noise or phase shift. The key benefit of Class-D amplification technology is its high efficiency of about 90%, compared to 50 - 70% of Class AB amplifiers. New high-speed fans with internal heat sinks keep your Alpine Halo9 cool - and the music playing.

Enjoy Excellent Sound Quality

Featuring a 56-band Parametric EQ in the advanced mode, a 2-way digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools at your disposal to tune your Alpine Halo9 and the attached amp / speaker system to perfection. But we didn’t stop there: The Alpine Halo9 is Hi-Res Audio certified and can decode and playback Hi-Res Audio files up to 96kHz / 1.536 kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.

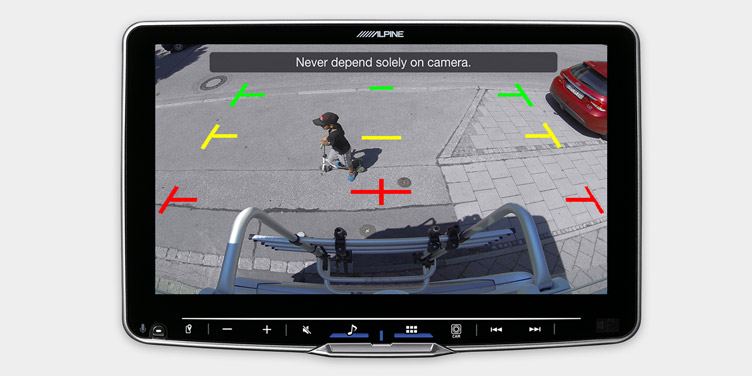

Drive-Assist Cameras

A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your Ducato’s size will appear on the screen to help you safely park your motorhome. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously, if your car supports it.

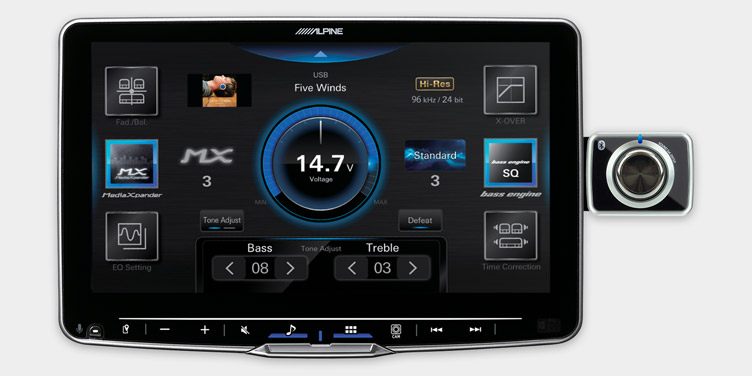

External Control Knob

The separately available RUE-BK01 control knob connects wirelessly to the Alpine Halo9 and can be installed to the left or right side of the touch-screen. Alternatively you can also place the control knob anywhere else in the vehicle with a simple custom installation. Turning the knob will adjust the head unit’s volume output, while pushing it activates the rear view camera on the screen.
Note: this control knob has no function if wireless Apple CarPlay is active.

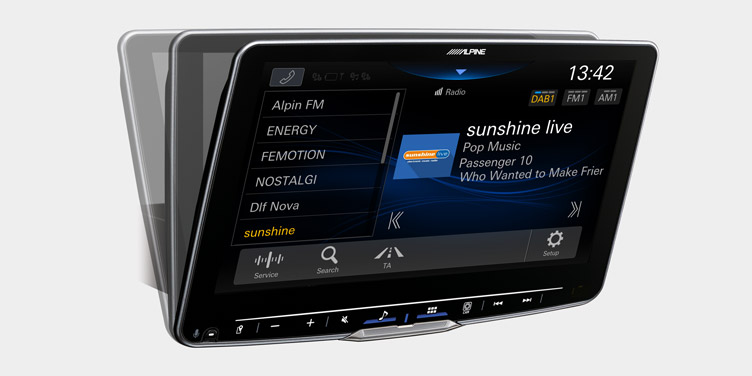

Freely Adjustable Display Angle

You can adjust the iLX-F905DU8’s display angle from +45 degrees to -20 degrees to match a wide range of dashboard angle. You can freely adjust the display angle at any time, to achieve best visibility and to avoid sunlight glare.

Adjustable Display Height and Distance

The display height can be adjusted +/- 3cm from the center position. This allows fully standing or hanging display configurations as well as everything in between. You can also adjust the distance of the display to your dash in a 20mm range. After the display height and distance to the dash are selected, everything gets locked into place to be very solid.

LIN Bus Adaptor to Retain Fiat Ducato Wireless Charger

Most damages to motorhomes occur, because the vehicle was not fully prepared for the road. Alpine’s on-screen LIN Bus Adaptor to Retain Fiat Ducato Wireless Charger can be fully customized to your vehicle and reminds you before you start driving, to ensure that the gas is shut off, all tables and doors are secured, satellite antennas are retracted, etc.

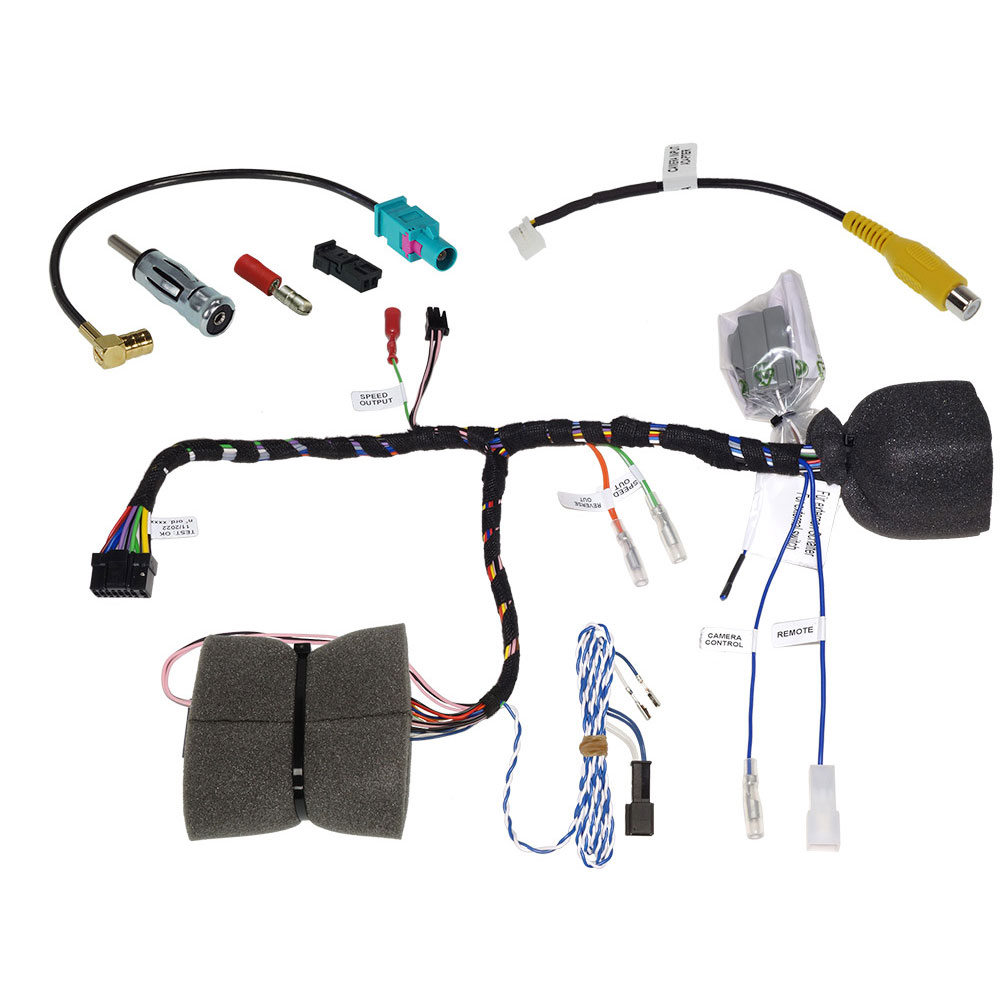

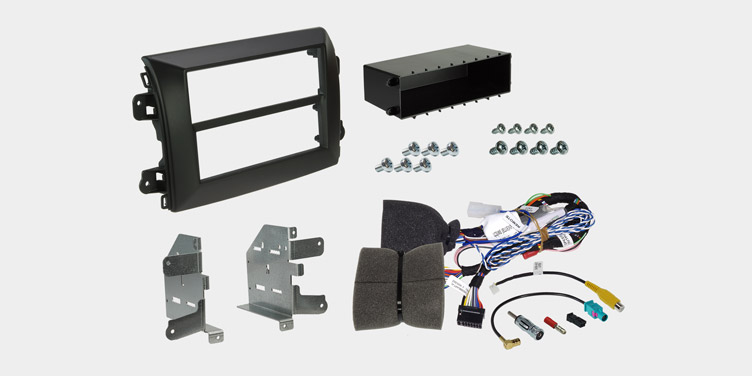

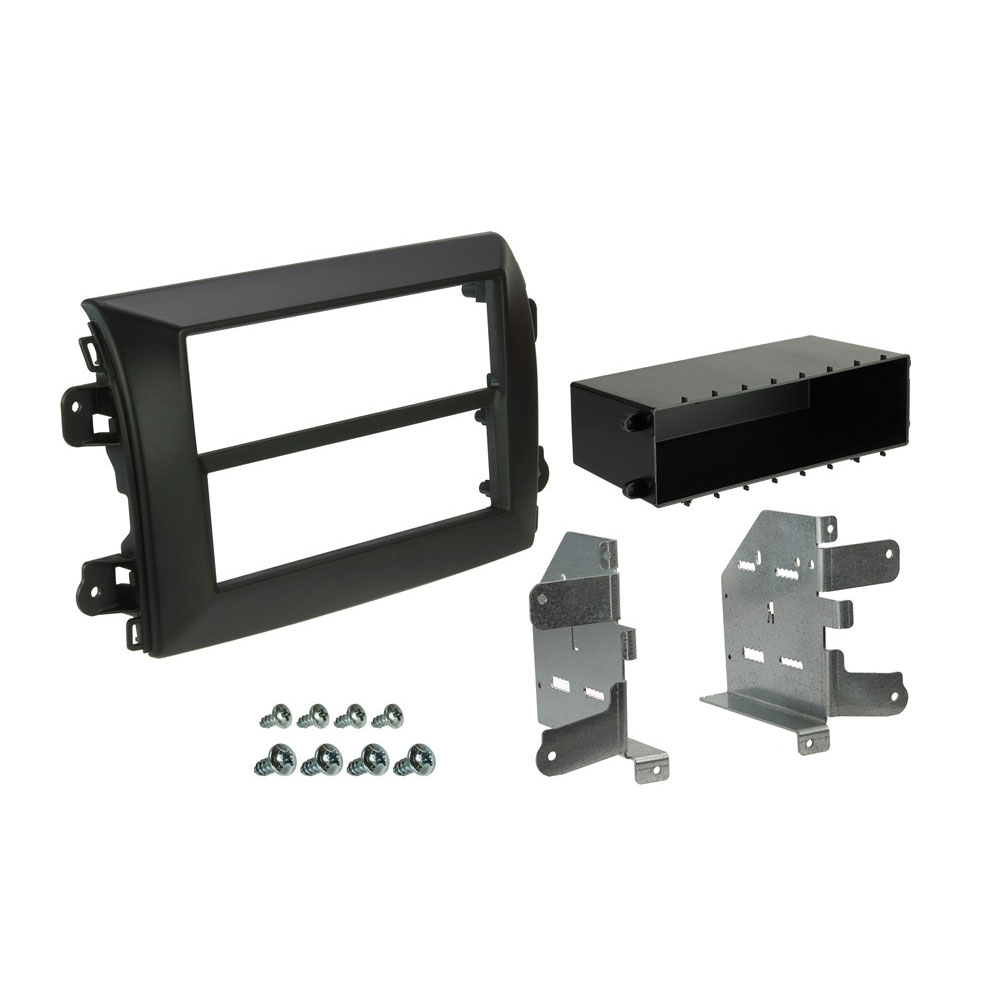

Custom-fit frame and installation brackets for Fiat Ducato 8 included

The iLX-F905DU8 includes a custom-fit frame, installation brackets, wiring harness with CAN interface and an antenna adapter. The CAN interface retains usage of the steering wheel remote control buttons.

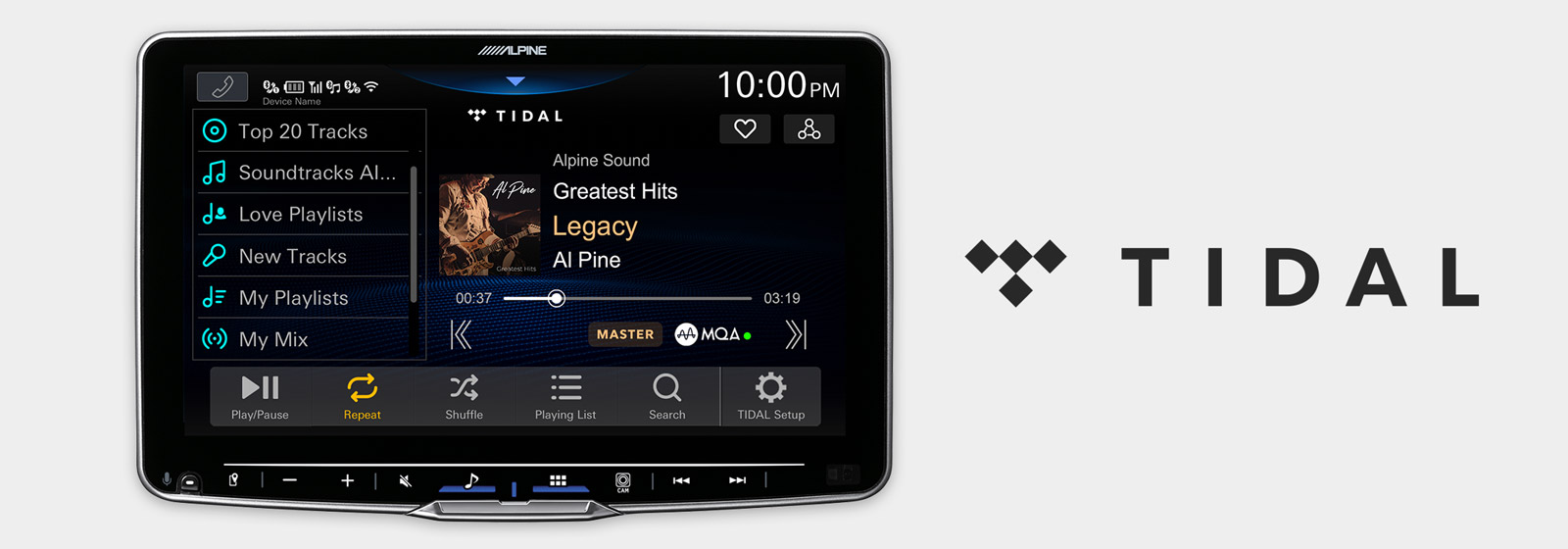

TIDAL Hi-Res Audio App

With the integrated TIDAL app you can access the High-Res Audio streaming experience with TIDAL, enjoying its catalog of over 90 million songs and 450,000 videos. TIDAL HiFi and HiFi Plus members get lossless audio and high-fidelity music options for superior sound quality that elevates the music experience. TIDAL Masters, delivered in partnership with Master Quality Authenticated (MQA), allows HiFi Plus Members to listen to music exactly as the artist intended the track to sound. With thousands of expertly curated playlists customers will be able to listen to all genres and discover new artists via TIDAL Rising.

FEATURES

Radio / DAB Tuner

• Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
• Memory: Auto Memory
• Seek Mode: Local, DX, Pre-Set, Service
• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function

BLUETOOTH®

• Built-in BLUETOOTH® Module V4.2
• HFP (Hands-Free Profile) Compatible
• A2DP (Advanced Audio Distribution Profile) Compatible
• AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Phone Book Synchronization
• Speed Dial: 4 Preset Memory (per phone)
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: (Outgoing and Incoming)
• 24 Menu Languages
• Microphone Included

Works with iPhone®

• Compatible with iPhones featuring a lightning connector
• Various search functions and Album Artwork Display
• Battery Charging

Connectivity

• Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)

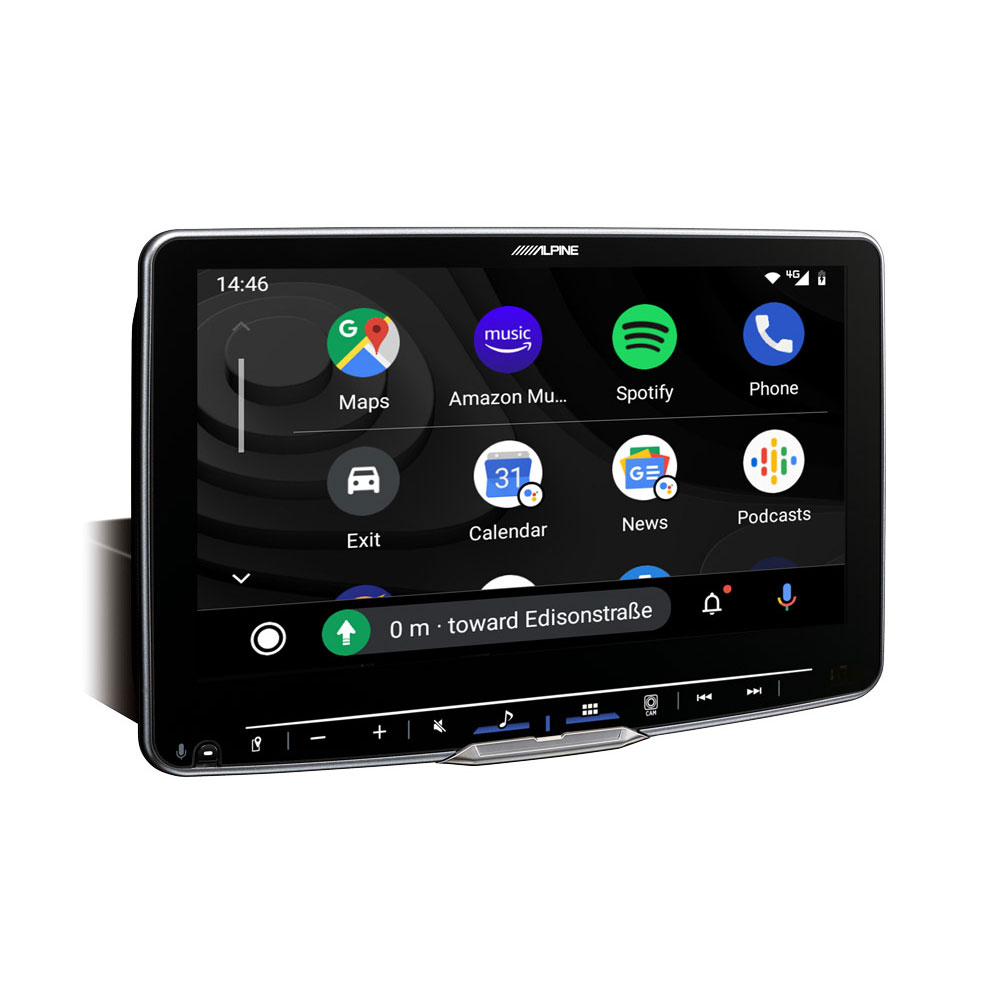

• Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
• Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam

Navigation Function

• Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
• Includes GPS enabled navigation antenna

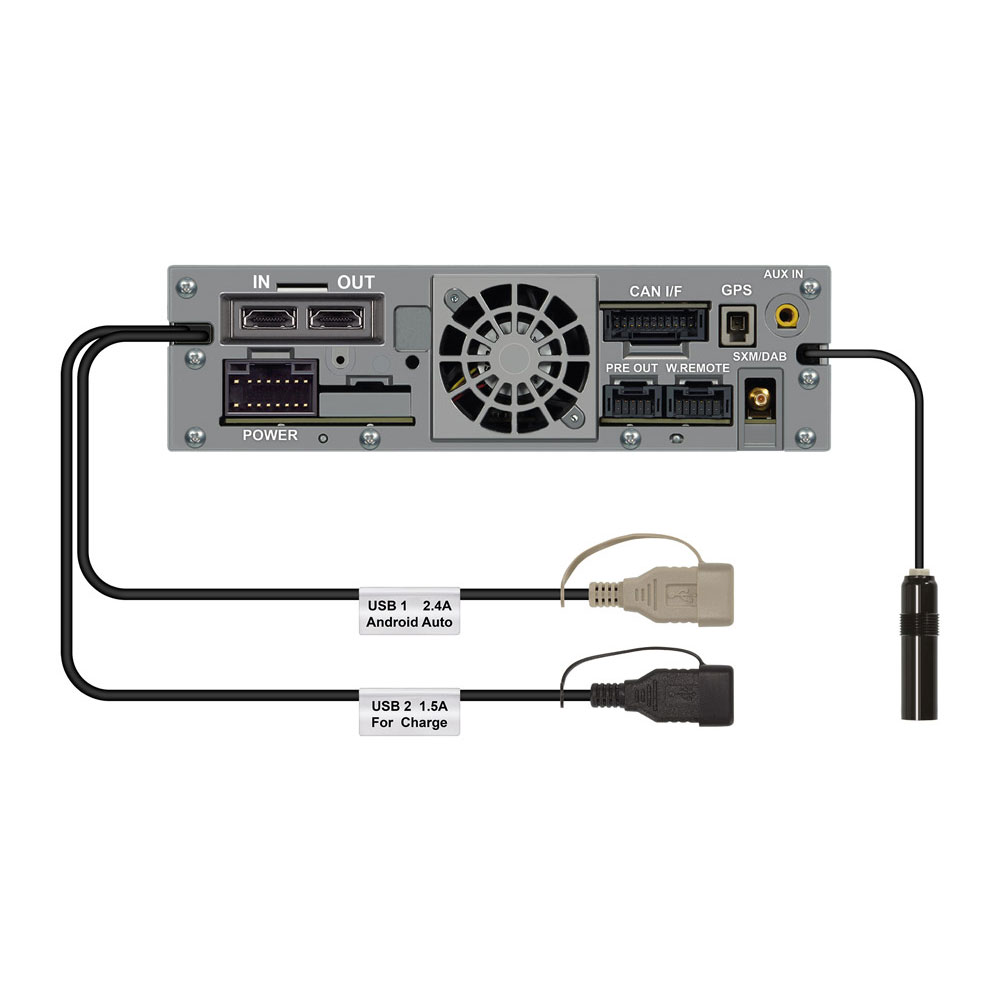

USB Media Connection

• 2x USB cable included
• USB port 1: data port / USB port 2: charging port
• Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
• Video Playback: MP4, MOV, FLV, MKV compatible
• Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
• Various search functions included

Sound Tuning

• Bass Engine SQ and Bass Engine PRO sound tuning
• Subwoofer Level Adjustment
• 6 V PreOut
• 10 Equalizer PreSets
• 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
• 6-Channel Digital Time Correction
• 2-way Digital Crossover
• Independent Source Volume Level Setting
• For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section

General

• 4x 50 Watts Class-D High Power Amplifier
• 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
• Display angle adjustable after installation
• 3 PreOuts (6 V, Front / Rear / Subwoofer)
• 1 A/V AUX Input (3.5 mm micro jack)
• 1 HDMI input / 1 HDMI output
• 2 USB Ports (1x USB data port / 1x USB charging)
• Steering Wheel Remote Control Ready
• Vehicle Display Interface Ready (UART connection)
• Remote Control Ready
• 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
• Camera Distance Guides (adjustable)
• Live Contrast Adjustment
• Menu Language: 24 Languages
• Auto Dimmer
• Anti-theft security code
• Engine Start-Stop unaffected

Installation

• Includes Plug-and-play wiring harness to connect an Alpine Head Unit to the Fiat Ducato 8 electric system
• Includes steering wheel remote control interface to enable operation of your Alpine Halo system from your steering wheel buttons (including phone operation)
• Custom-fit metal brackets to mount the Halo unit
• Plastic trim panel + 1 DIN pocket
• LIN Bus Adaptor KWE-Qi-DU8 (sold separately) needed for Ducato original Qi phone charger to work with Alpine system
• Wireless Charging Console KCE-3QI (sold separately) for Ducato not equipped with an original Qi phone charger

Compatible Cars

the iLX-F905DU8 is only compatible with vehicles featuring radio preparation or open dash (no radio equipped).

SPECIFICATIONS

Screen

• Screen Size: 9-inch Capacitive WXGA
• Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4x 50 W

WiFi

• Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
• Channels: 1 – 13 ch (2.4 GHz)
• Security Protocols: WPA3/WPA2-PSK (TKIP, AES)

USB

• USB Requirements: USB 2.0
• USB 1: data port / 2,400 mA (Mass Storage Class)
• USB 2: charging port / 1,500 mA (CDP support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT16 / FAT32 / exFAT
• FLAC, MP3, WMA, AAC, WAV, APE Decoding
• Video Playback: MP4, MOV, FLV, MKV compatible
• Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1 kHz): 0.005%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 95 dB

GPS

• GPS compatible navigation antenna included
• GPS frequency: 1575.42 +/- 1.023 MHz
• Reception sensitivity (search): - 136 dB max

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2
• Output Power: +4 dBm Max. (Power class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)
• Supports LDAC Audio Codec

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5 Modes, Level 0 to +6
• For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section

HDMI Section

• Input Format 720p / 480p / VGA

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 6 V / 10k ohms

Dimensions

• Weight: 2.3 kg
• Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
• Display Size (W x H x D) mm: 232 x 151 x 55 mm
