SPH-DA97DAB-UNI2

The 9.0” Wi-Fi® enabled SPH-DA97DAB can now be fitted to multiple different vehicles thanks to the 1-DIN floating installation style. Featuring Apple CarPlay® (wireless & wired), Android Auto™ (wireless & wired), DAB+ Digital Radio, Bluetooth®, and Pioneer’s Direct Key for quick, easy, safe one touch operation.

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

	Wi-Fi® Wireless connectivity specifically designed to support a cable free connection between your smartphone and the receiver.

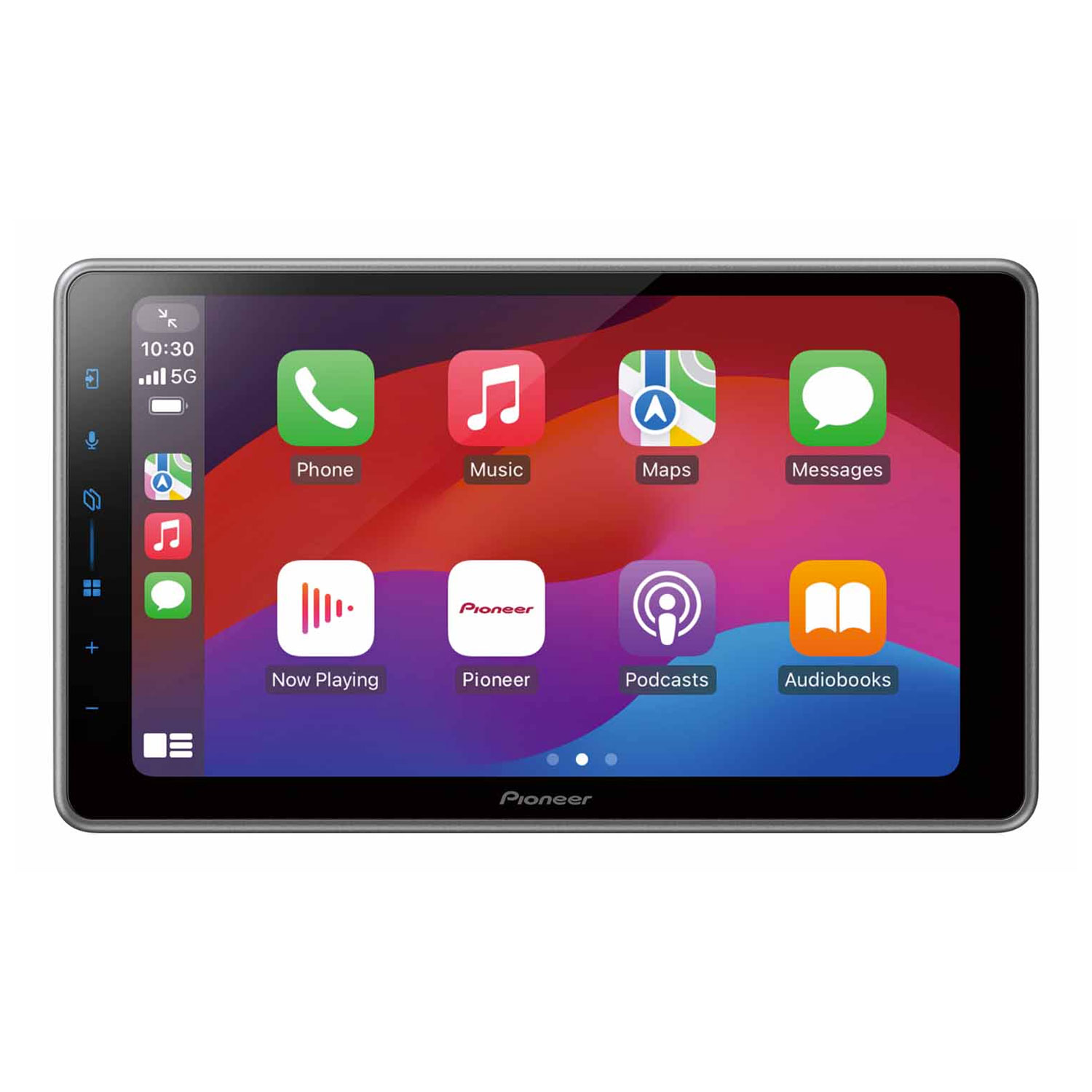

	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.

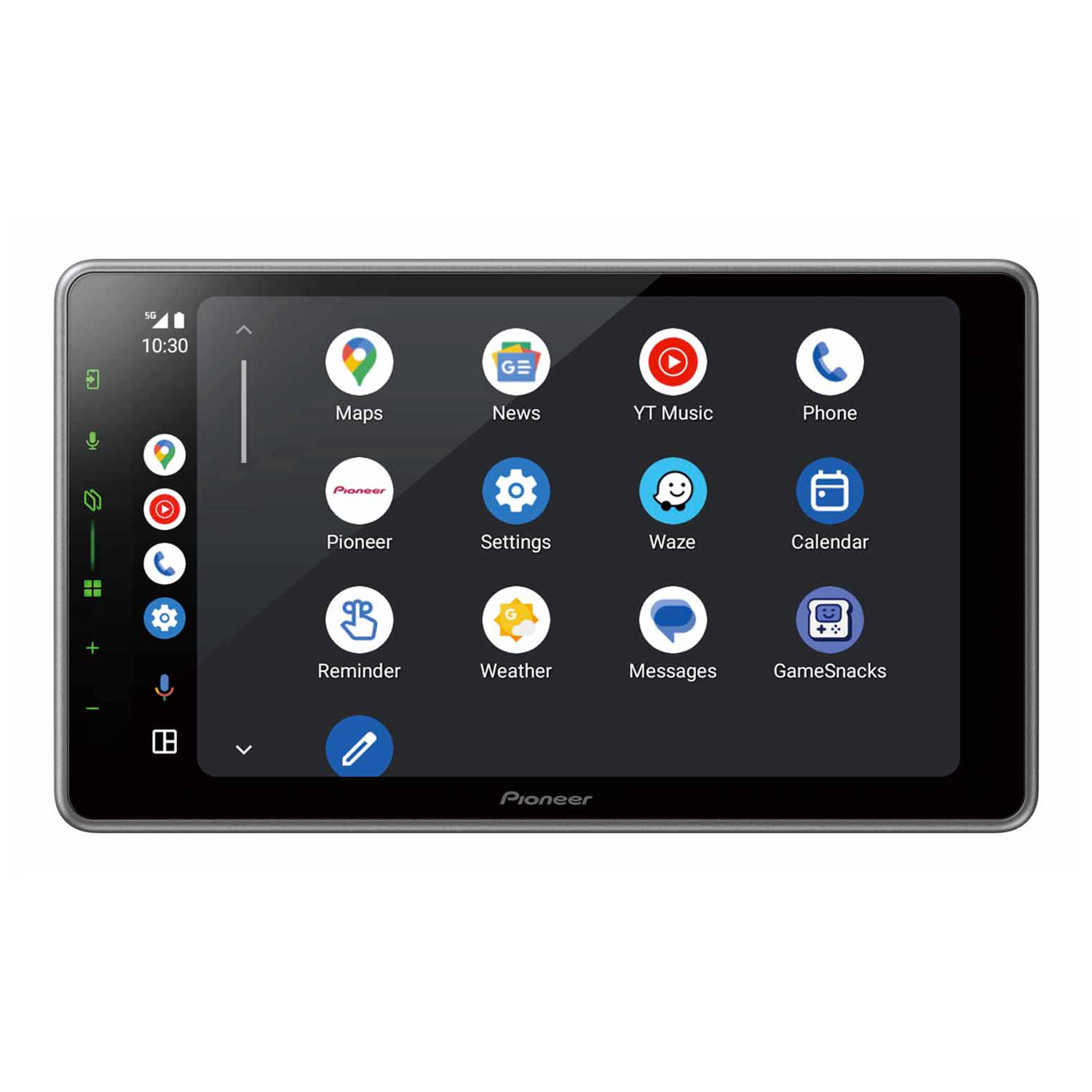

	Android Auto  Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	Capacitive Touchscreen Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Modular Design The screen panel can be installed separately from the main unit, useful for cars with no dashboard space expanding your installation options.
	WebLink The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
	Aux-in Plug your compatible device for easy and convenient playback.
	Advanced Sound Retriever Reproduce high-quality sound from compressed digital audio files and Bluetooth® wireless audio streams.
	Pioneer PxLink Companion App Pioneer PxLink brings a custom-fit interface to your lifestyle. Enhancing the operability and the convenience of the Pioneer In-Dash receiver, PxLink provides a safe and comfortable in-car experience. What you can do with PxLink: - Easily change the equalizer, source, etc. with shortcut keys without switching the receiver screen - Customize the shortcut keys to your preference and change the receiver wallpaper - Get notified of new features, updates, and important news - Easily update the receiver to the latest firmware using PxLink
	Pioneer Split Screen Mode Display Apple CarPlay® and the receiver’s menu at the same time on one screen. Useful when you want to operate the music (i.e. Radio or USB) while looking at the map screen.

Key Features

• Installation Type: Floating
• Screen Size: 9.0 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wireless / wired
• Android Auto™ Connection: Wireless / wired
• Wi-Fi
• Pioneer Split Screen Mode Apple CarPlay
• Pioneer PxLink Companion App
• Navigation:
  • Via Apple CarPlay
  • Via Android Auto
• DAB+
• DAB Antenna: Optional CA-AN-DAB.001 (Sold separately)
• Vehicle Bus
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination

Audio Features

• Graphic Equaliser: 13-Band
• Advanced Sound Retriever
• Listening Position Selector
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• DAB+
• Digital Radio Tick Mark Approved product
• RDS FM Radio

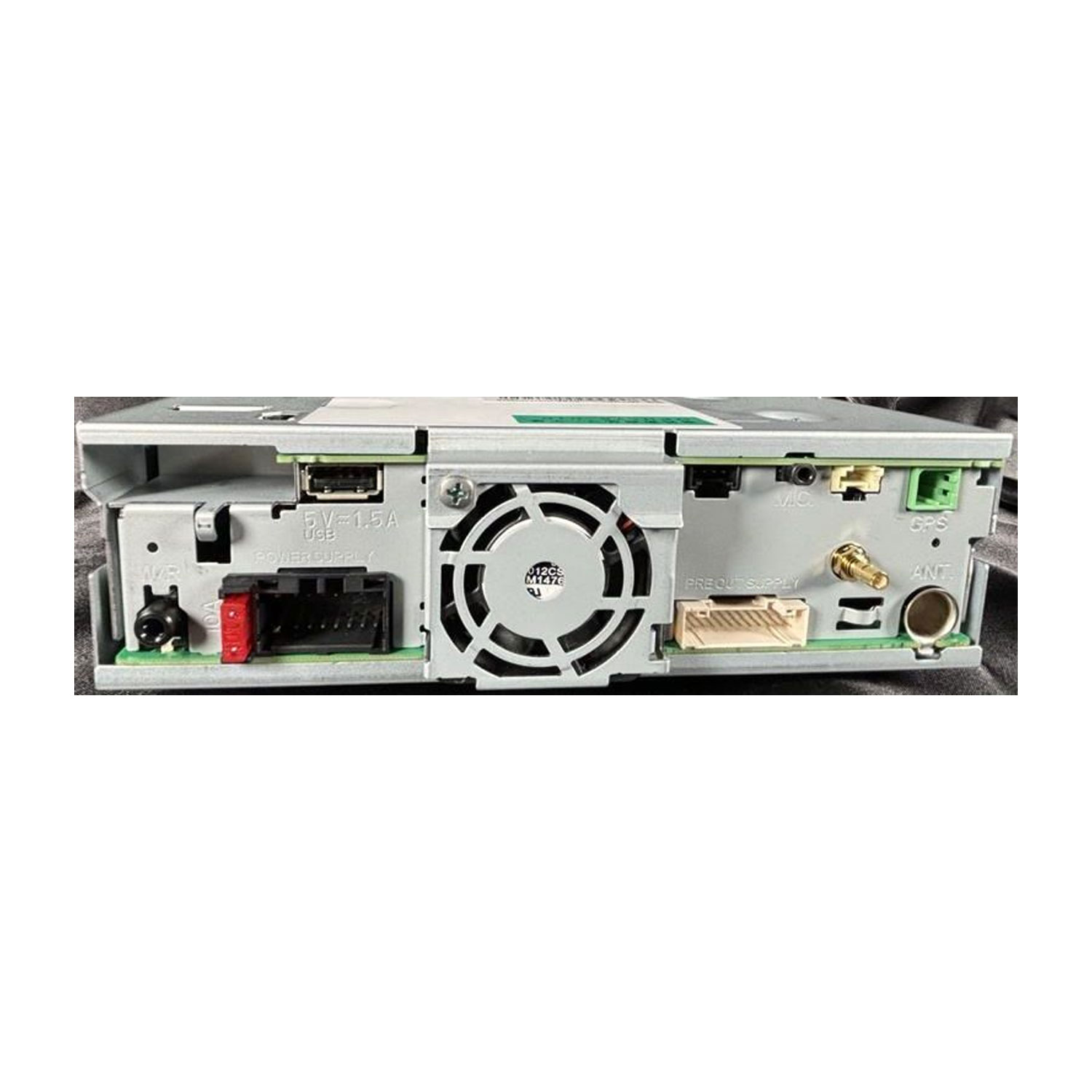

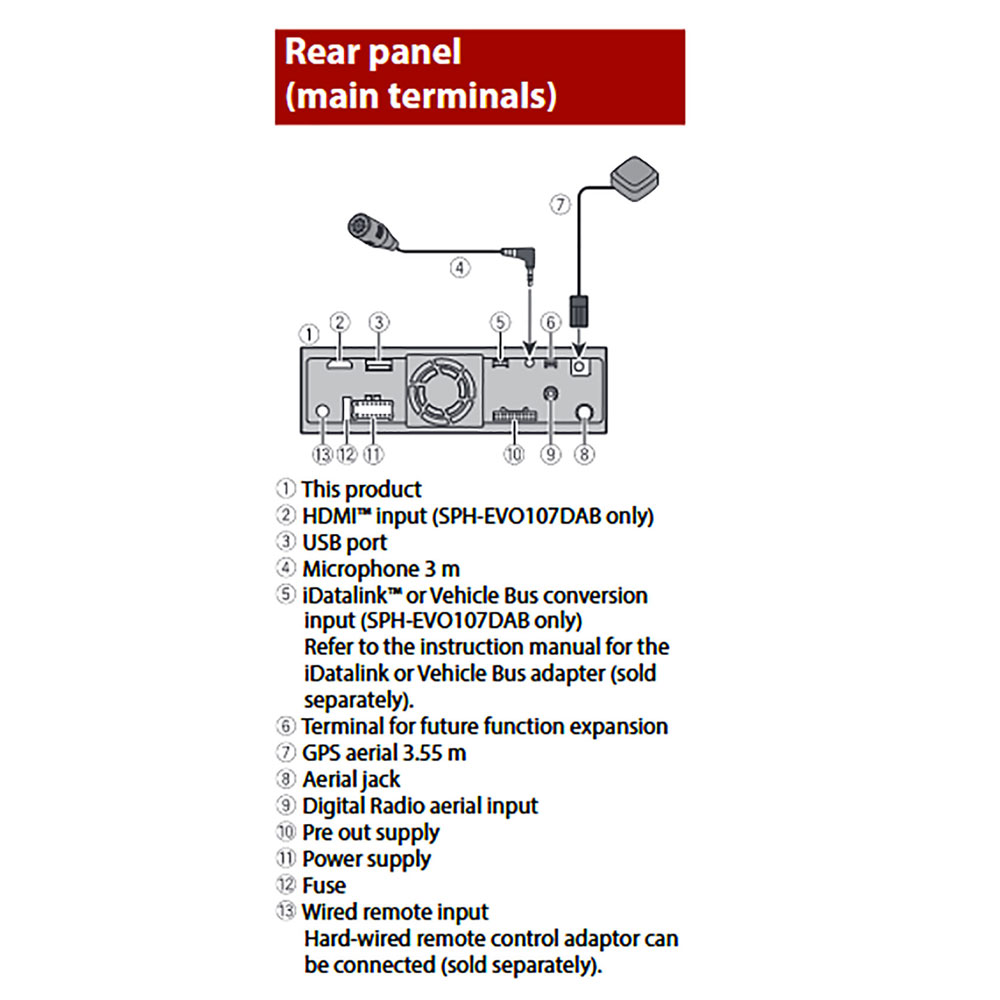

Connections

• Camera Input: 1
• RCA AV Input: 0
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Steering Wheel Control: Supported
• Mechafree:
• Accessories:
  • External Bluetooth microphone (included)
  • GPS antenna (included)
  • USB extension cable (included)
