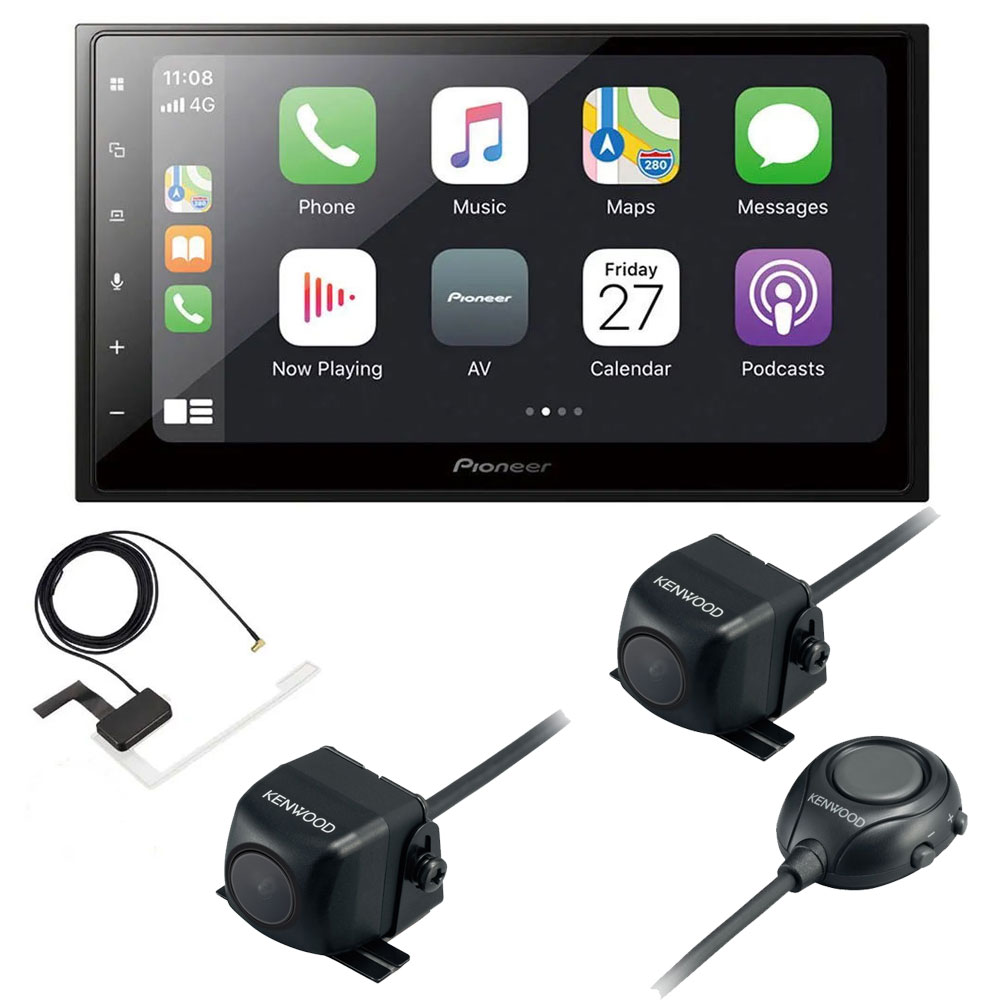

Package Includes

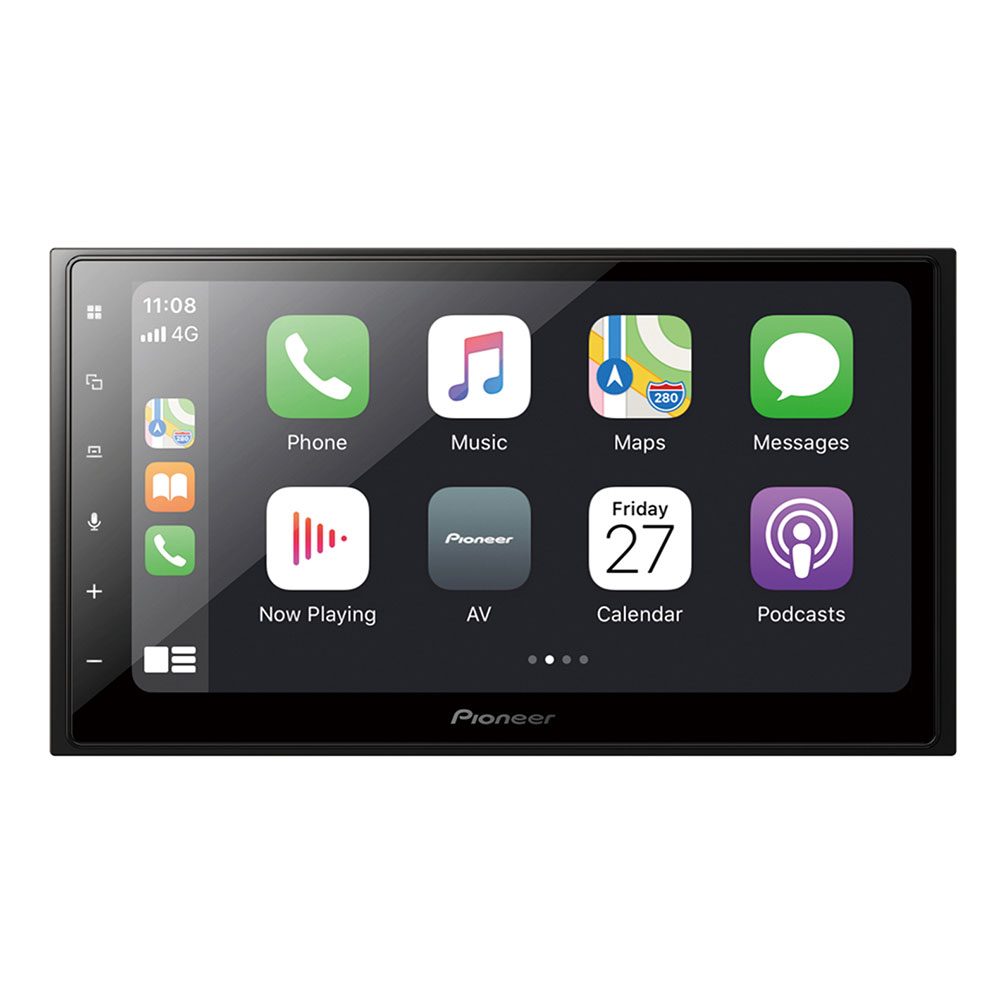

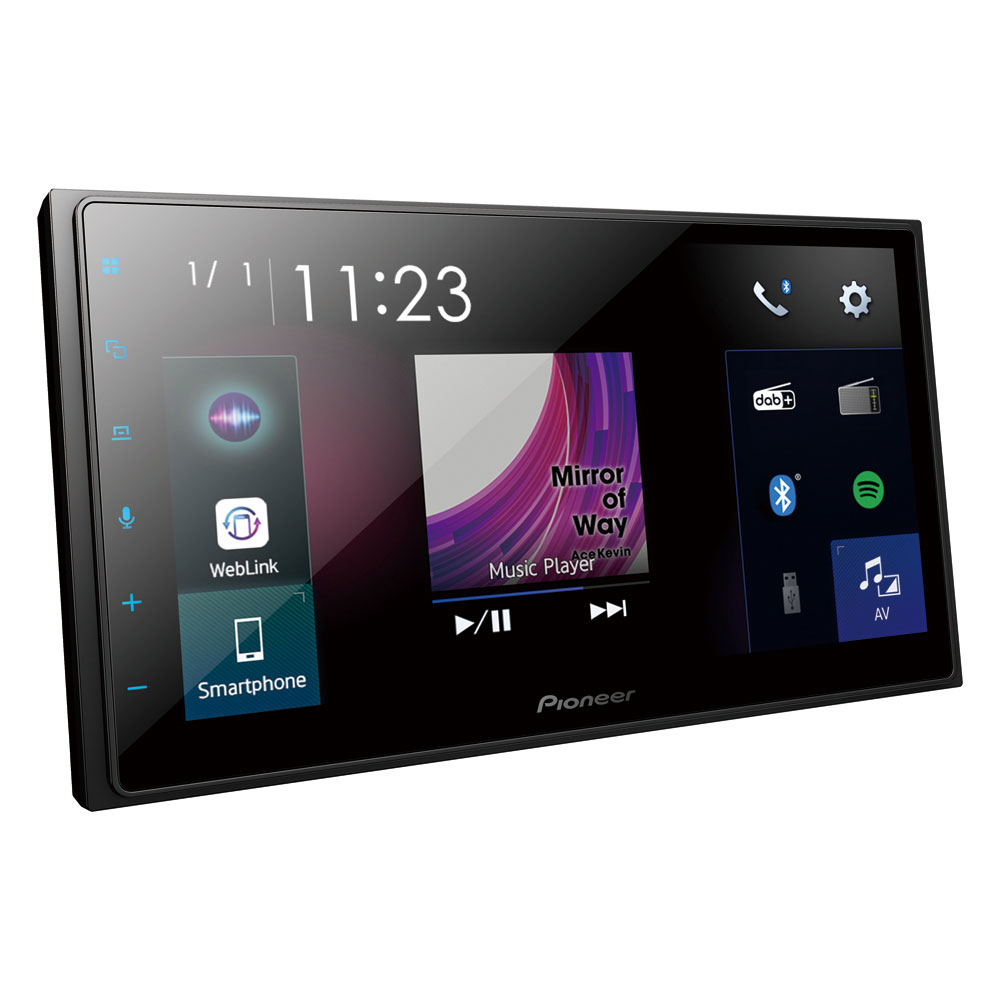

• Pioneer SPH-DA250DAB 6.8" Screen Apple CarPlay / Android Auto Bluetooth DAB Digital Stereo
• DAB Aerial
• Kenwood CMOS-230 Universal InCar Rear View Reversing Camera
• Kenwood CMOS-320 Universal Reversing Multi View Camera For Av Screens Front Rear

Powerful Entertainment For Your Car.

The 2-Din SPH-DA250DAB lets you connect to a compatible iPhone or Android phone using a single USB cable, which will allow you to control Apple CarPlay, Android Auto, WebLink and Waze (Via Android Auto or Apple CarPlay) from your dashboard in a convenient and safe way. It plays DAB/DAB+ Digital Radio, audio/video content from USB devices.

Additionally, this car AV player features Bluetooth, allowing you to stream your music or call hands-free over a wireless connection.

Upgrade your music with high-grade audio functions: a 13-band graphic EQ, auto EQ and Time Alignment allow you to customise the sound settings to your own preferences.

	Apple CarPlay is the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.

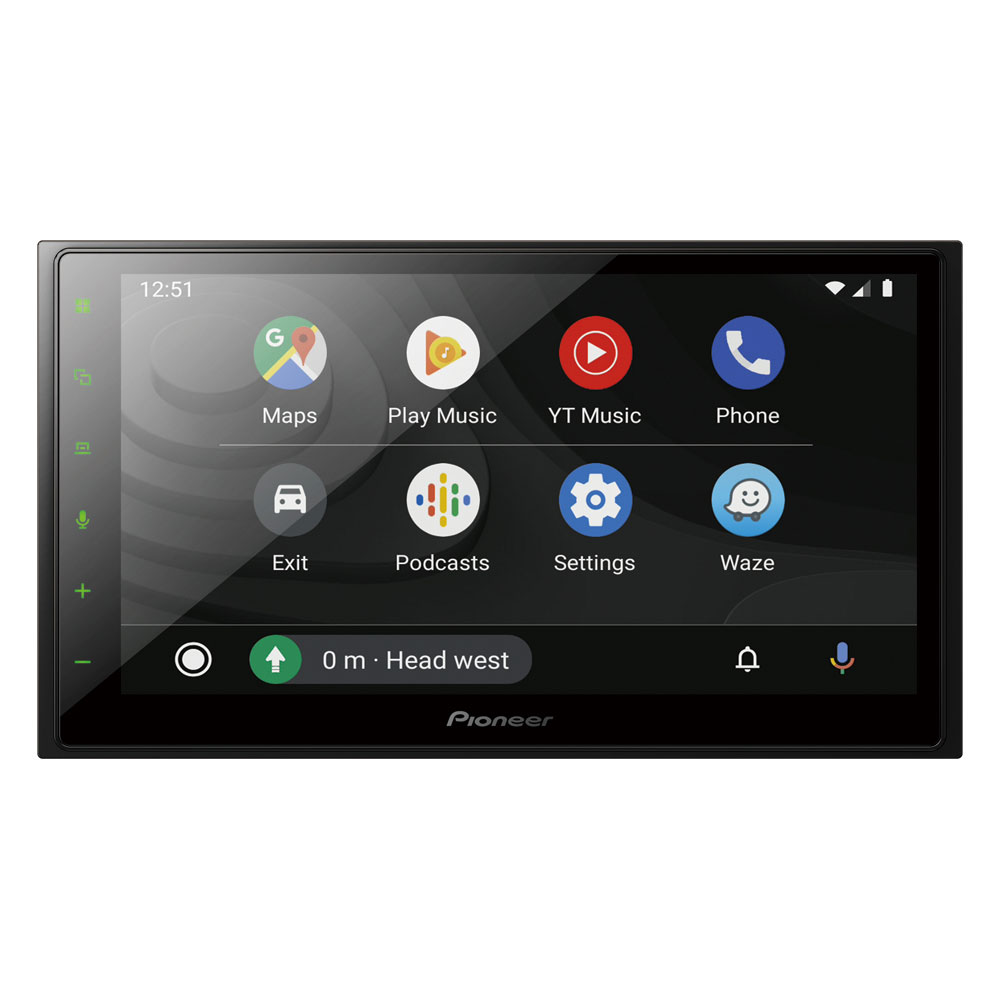

	Android Auto Extends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
	WebLink The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone and the cloud.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Obey local driving laws with built-in Bluetooth (HFP). Hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
	6.8" Capacitive Touchscreen A fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
	Mechafree This product is designed for modern digital music formats.
	Made for iPod / iPhone Directly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
	Compatible with Android Connect and listen to music stored on your device without the need for an app
	USB Input Connect any device with an USB interface cable to charge your device or listen to clean, clear sound.
	Dual Camera Input Dual camera inputs enable you to add a reverse (rear facing) camera and front facing camera that can assist with front and rear visibility, towing, or parking.
	Spotify With Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
	Waze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust your audio output in detail for a music experience tailored to your preferences.
	Multi Colour Match the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.

Main Features

• Apple CarPlay
• Android Auto
• WebLink
• DAB+
• Digital Radio Tick Mark Approved product
• Bluetooth®
• Mechafree
• USB Input
• Dual Camera Input
• Spotify Via Android Auto or Apple CarPlay
• Waze Via Android Auto or Apple CarPlay
• FM Radio
• Camera Input
• Screen 6.8" Capacitive Touchscreen
• Plays
  • Your iPod, iPhone, Android Smartphone
  • Bluetooth audio
• Via USB:
  • MP3, WMA, AAC, WAV and FLAC audio files
  • H.264, MKV, FLV and MPEG4 video files in Full HD
  • Mpeg2, DivX video files
  • JPEG image files
• Customisable Key and Display Illumination
• Installation Type 2-DIN
• Accessories Included:
  • 1 USB extension cables
  • 1 Microphone for hands-free calling
• USB Input Rear USB (1 Amp)

Screen Features

• 6.8" Capacitive Touchscreen
• Multi Colour

Apple Compatibility

• Made for iPod / iPhone
• Siri Eyes Free
• Works with iPhone

Android Compatibility

• Compatible with Android

Audio

• FLAC
• 13-band Graphical EQ
• MOSFET 50 W x 4 Amplifier
• Graphic Equaliser    13-band
• 3-Way Network Mode
• Listening Position Selector
• Auto EQ (Equaliser)
• Auto TA (Time Alignment)
• High Pass Filter
• Low Pass Filter
• Subwoofer Control
• RCA Pre-Outs 3. (Front, rear and subwoofer)
• High Voltage Output (4Volt)
• Advanced Sound Retriever

Tuner Features

• DAB/DAB+ Functions
• RDS FM Radio

Bluetooth

• Hands Free Calling (Hands Free Profile)
• Additional Bluetooth Features
  • Audio streaming
  • Automatic Phone book Transfer (5 x 1000 contacts)
  • 2 Phones full time connect
  • Autopairing via USB
• Compatibility HFP/A2DP/SPP
• Pioneer Bluetooth

Connections

• Aux-in 1 rear AV Aux-In
• RCA AV Input 2
• RCA AV Rear Output
• Hard Wired Remote Ready
• ISO connector
• RGB input 1
• High Voltage Output 4V

Kenwood CMOS-230 Universal InCar Rear View Reversing Camera

Key Features

• Wide-angle mirror image
• 1/3.6" Colour CMOS sensor
• Waterproof unit with flexible mount base
• NTSC Video Signal Out (RCA)

Camera Unit

• Camera Type 1/3.6" colour CMOS sensor
• Colour type
• Effective number of pixels roughly 330000
• High sensitivity Pixels
• Output video wide-angle mirror image
• Waterproof chassis
• Mounting system    Fexible mount base
• Installation positions Rear
• Rear view switching Reverse line
• High voltage protection
• Wide angle lens
• Focal length f: 1.12mm, F value 2.2
• Horizontal Angle view +/- 128°
• Vertical Angle View +/- 103°
• Illumination range approx. 0.9 to 100000 lux
• Iris System Electronic
• White balance Automatically
• Scanning System    Interlace
• Synchronizing System Internal
• Video output level 1Vpp, 75O
• Video signal format NTSC (Mirror view)
• Connection cable (DC+video) 9 m

General Specifications

• Operating voltage 14.5V (9 ~ 16V Allowable)
• Maximum Current Consumption 0.05A
• Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
• Weight 22gr
• Operation Temperature Range -30°C ~ 70°C
• Storage Temperature Range -40°C ~ 80°C

Kenwood CMOS-320 Universal Reversing Multi View Camera For Av Screens Front Rear

Universal Multi View Camera

The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.

Key Features

• Universal Multi View Camera
• Night, Normal, Wide, Corner & Overhead View
• Switch Unit Included
• 1/3.6" Colour CMOS sensor
• Waterproof unit with flexible mount base
• NTSC Video Signal Out (RCA)
• Can be installed on the front or rear side of the car

Camera Unit

• Camera Type 1/3.6" colour CMOS sensor
• Colour type
• Effective number of pixels roughly 330000
• High sensitivity Pixels
• Output video Wide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front View
• Waterproof chassis
• Mounting system Fexible mount base
• Installation positions Rear
• Camera ID setting
• Rear view switching Reverse line
• Front view switching by remote or Kenwood unit
• Guideline view
• Guideline Adjustments Size, Horizontal Direction, Red Line Position
• Image Adjustments Centering, Right-and-Left, Up-And-Down Angle
• High voltage protection
• Wide angle lens
• Focal length f: 1.05mm, F value 2
• Horizontal Angle view +/- 195°
• Vertical Angle View +/- 145°
• Illumination range approx. 0.9 to 100000 lux
• Iris System Electronic
• White balance Automatically
• Scanning System Interlace
• Synchronizing System Internal
• Video output level 1Vpp, 75Ω
• Video signal format NTSC (Mirror view)
• Connection cable (DC+video) 5 m

General Specifications

• Operating voltage 14.5V (9 ~ 16V Allowable)
• Maximum Current Consumption 0.1A
• Dimensions (WxHxD) 23.4 x 23.4 x 26.1mm
• Weight 23 gr.
• Dimensions Switch Unit (WxHxD) 27.5 x 32.8 x 12 mm
• Weight Switch Unit 10 gr.
• Operation Temperature Range -30°C ~ 70°C
• Storage Temperature Range -40°C ~ 80°C
