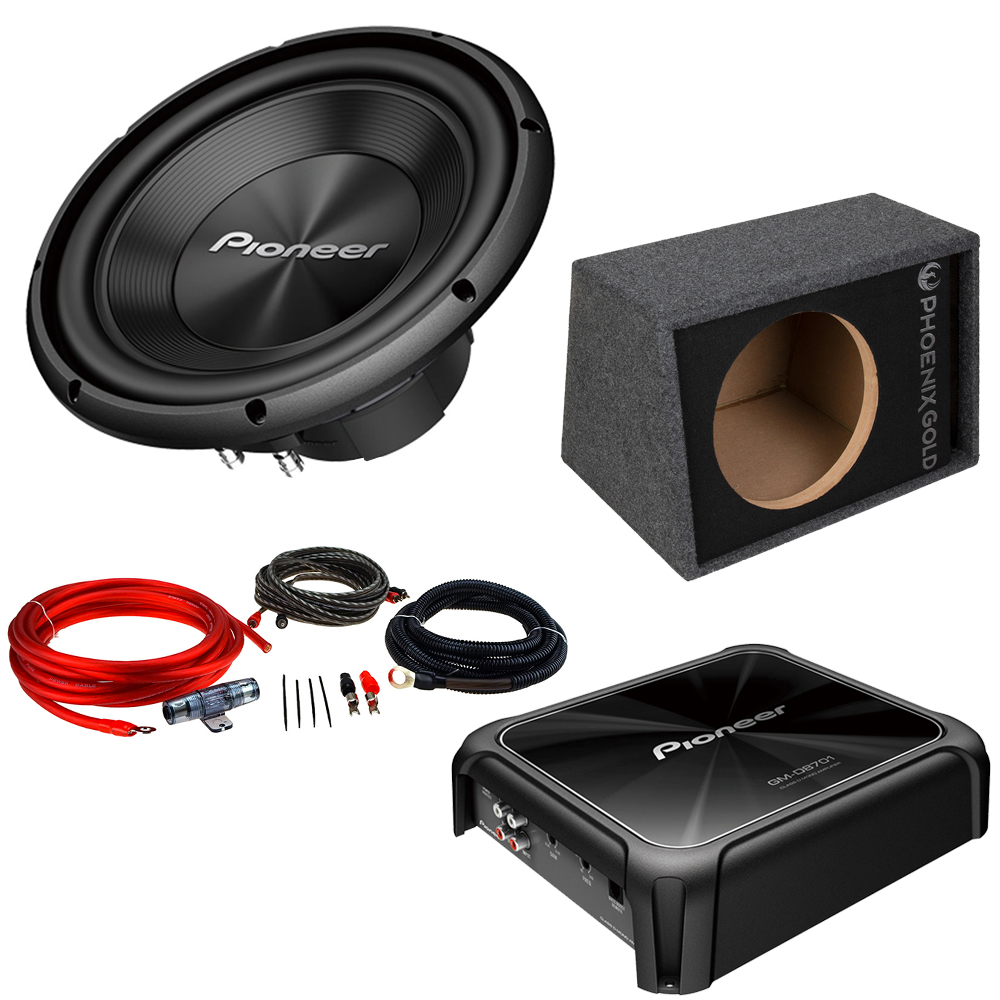

Package Includes

• Pioneer TS-A300D4 30cm 12" Enclosure Type Dual Voice Coil 1500W Subwoofer
• Pioneer GM-D8701 Class D Mono Monoblock Car Stereo Bass Amp Amplifier 1600 Watts
• Phoenix Gold ZB112P 12 Inch Ported Subwoofer Bass Box Enclosure
• Phoenix Gold ZXK20 4AWG 1000W 20mm2 CCA Power Amplifier Wiring Kit

Upgrade your sound with powerful bass.

Upgrade the original sound system of your car. Our A-series subwoofers compliment our A-series speakers to give you that sound upgrade solution that you have been looking for.

The A-series subwoofers combine superior high quality sound, design and technology, along with carefully selected materials to improve bass response.

When matched with Pioneer's GM-A series of amplifiers, you can enjoy powerful, solid bass in your car, no matter what volume level.

IMPPTM

Enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.

Main Features

• IMPPTM
• Woofer Size 30 cm
• Type D4 / Dual Voice Coil (DVC)
• Max Power 1500 Watt
• Continuous power output 500 W
• Impedance 4 Ω
• Dual Voice Coil (DVC)
• Terminals Push Type
• 30cm / 12"

Pioneer GM-D8701 Class D Mono Monoblock Car Stereo Bass Amp Amplifier 1600 Watts

Compact Power

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

Speaker line input sensor

connect your existing OEM unit without the hassle of add-on adapters.

Variable LPF

adjust your low-pass filter frequency for greater audio system flexibility.

Multi-block Terminal

smoothly connect up to 4 subs for high-power audio output.

D-class

enjoy first class sound and powerful volume on a versatile system at half the size of other units.

Main Features

• Variable LPF
• D-class
• Channel(s) 1
• RCA terminals
• Speaker Terminals Block-type
• LPF
• Maximum power
  • 1 x 600W (4Ω)
  • 1 x 1000W (2Ω)
  • 1600W (1Ω)
• Continuous power output
  • 1 x 300W RMS (4Ω)
  • 1 x 500W RMS (2Ω)
  • 1 x 800W RMS (1Ω)
• Frequency response 10 Hz - 240 Hz
• Input level control RCA (0,2V - 6,5V)
• SP (0,8V - 16V)
• Distortion < 0,05 %
• S/N ratio > 100dB
• Chassis size (W x H x D) 302 x 60 x 215 mm
• Bass Boost bass boost remote included
• Bass Boost Remote
• Crossover Frequency 40 - 500Hz (-12 dB/oct) Hz
• Mono

Connections

• Multi-block Terminal

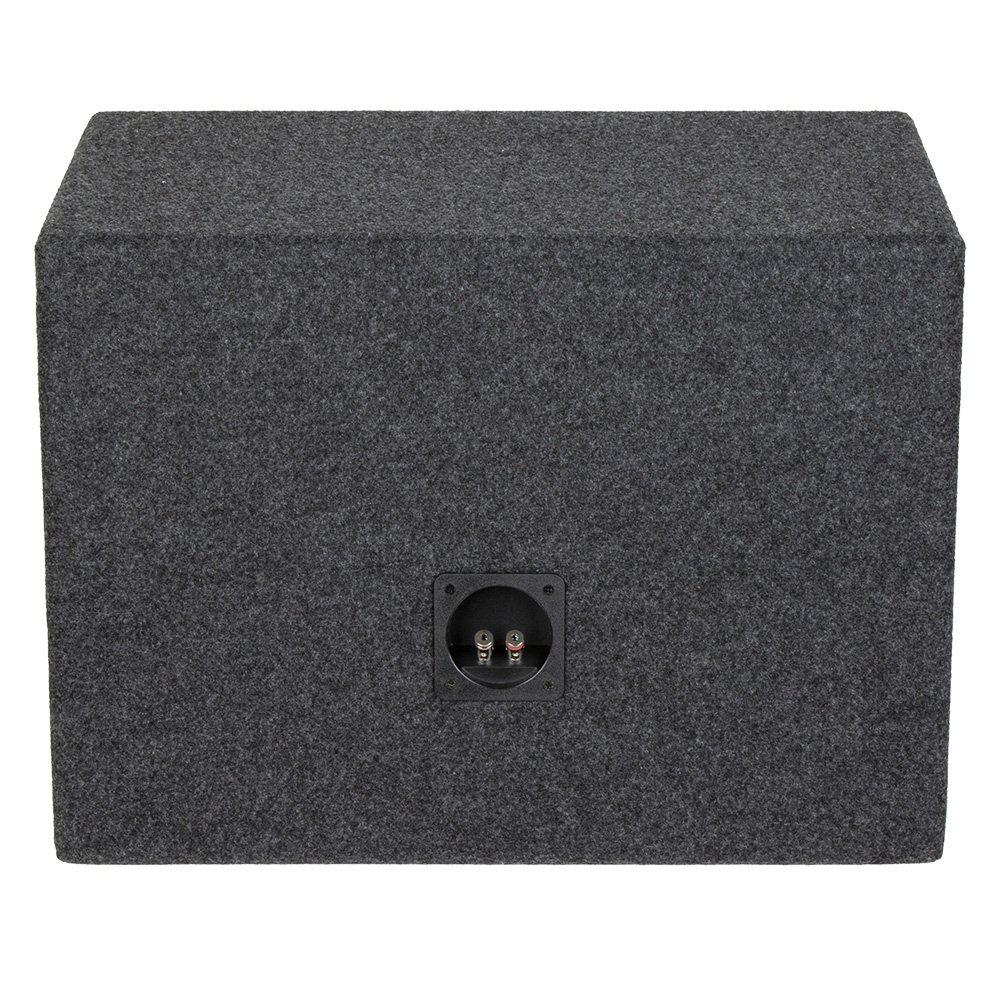

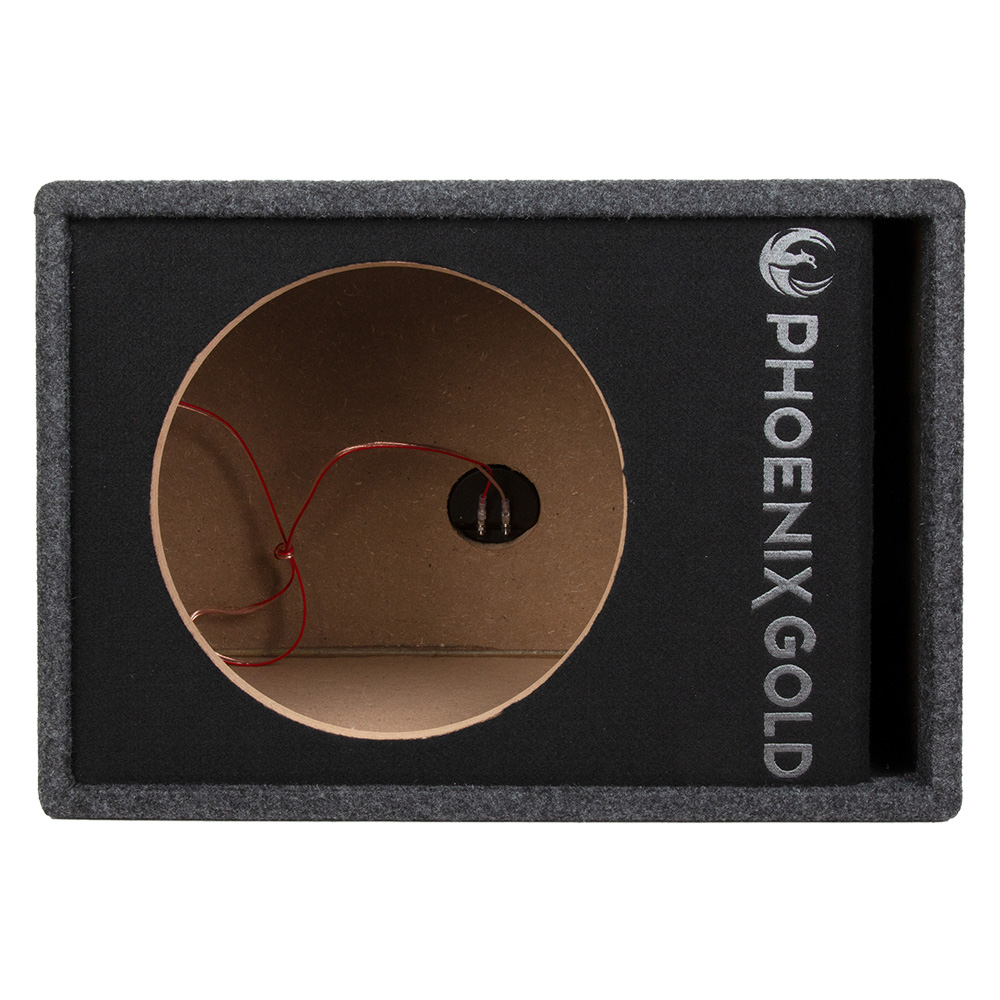

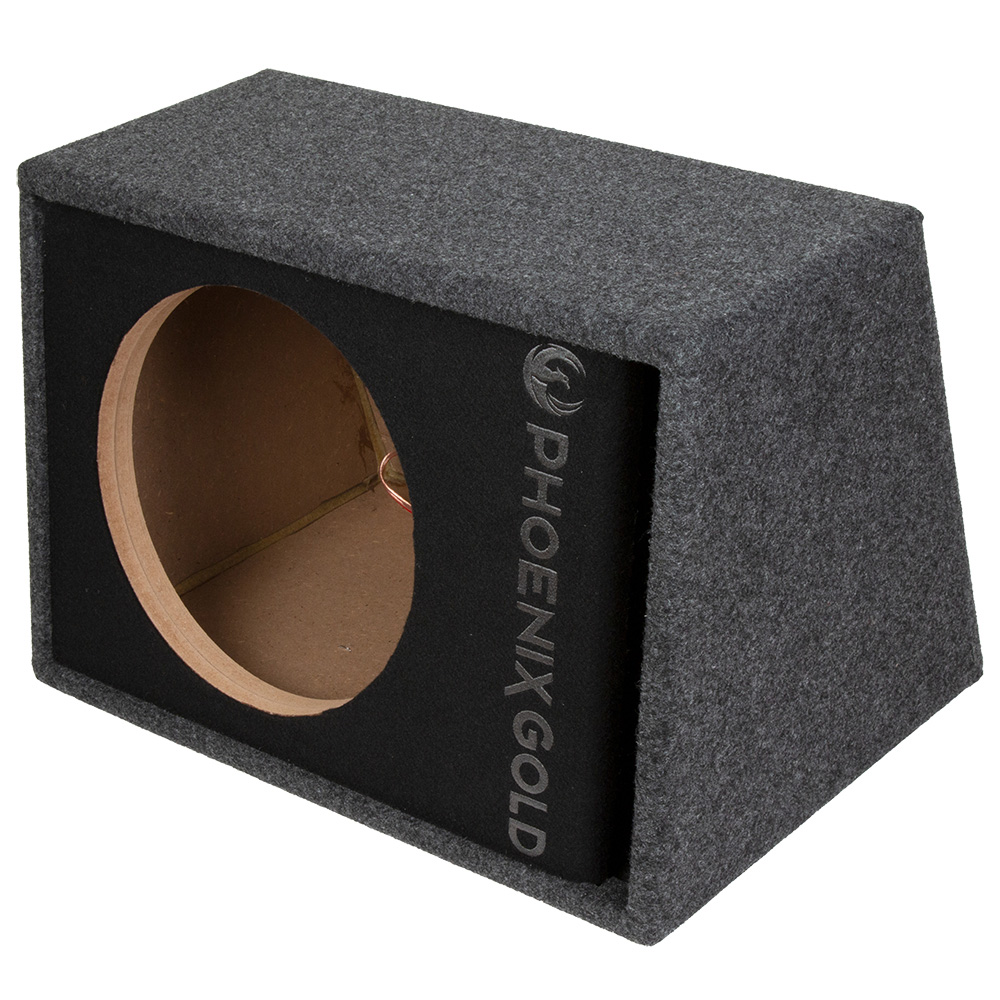

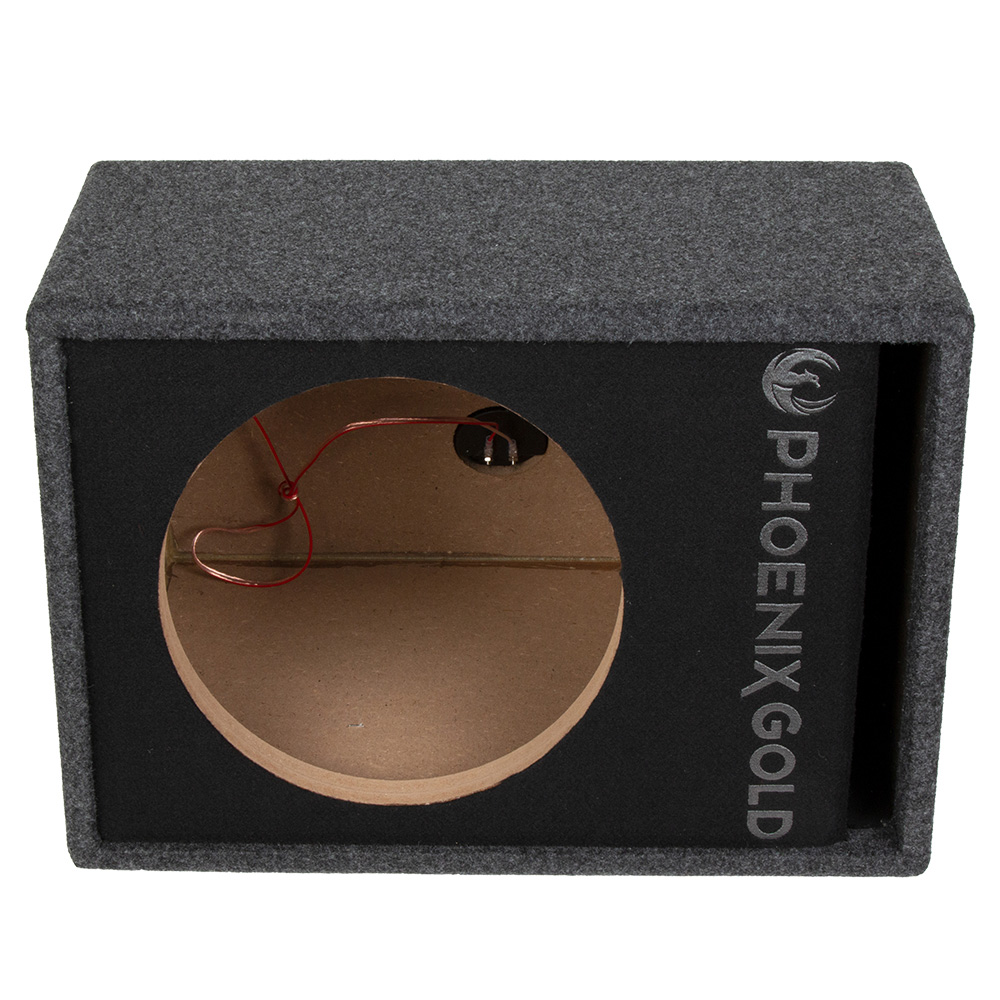

ZB112P 12-Inch Ported Subwoofer Bass Box Enclosure

ZB112P – 12-Inch Ported Subwoofer Bass Box / Enclosure made out of 18mm MDF to be robust and get the best performance out of your subwoofer. The enclosure is 39L (Net) and features a slot port design for maximum performance. Heavy-duty wood screws are included for subwoofer mounting.

Works great with our ZMAX and Z-Series subwoofers.

Specifications

• Ported enclosure
• 18mm MDF (36mm baffle)
• 1.5mm2 pre-terminated speaker cable
• Stitched Phoenix Gold logo
• Dimensions (LxHxD): 555 x 380 x 244/399 mm

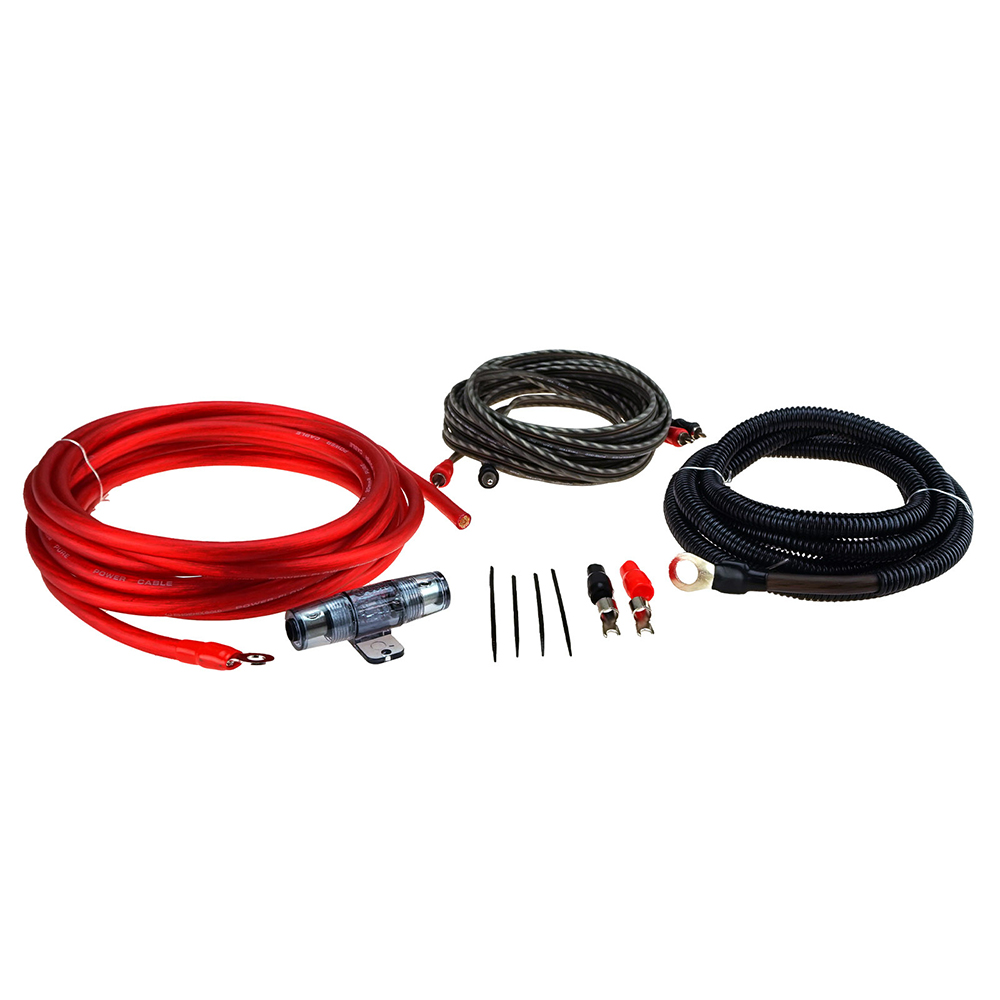

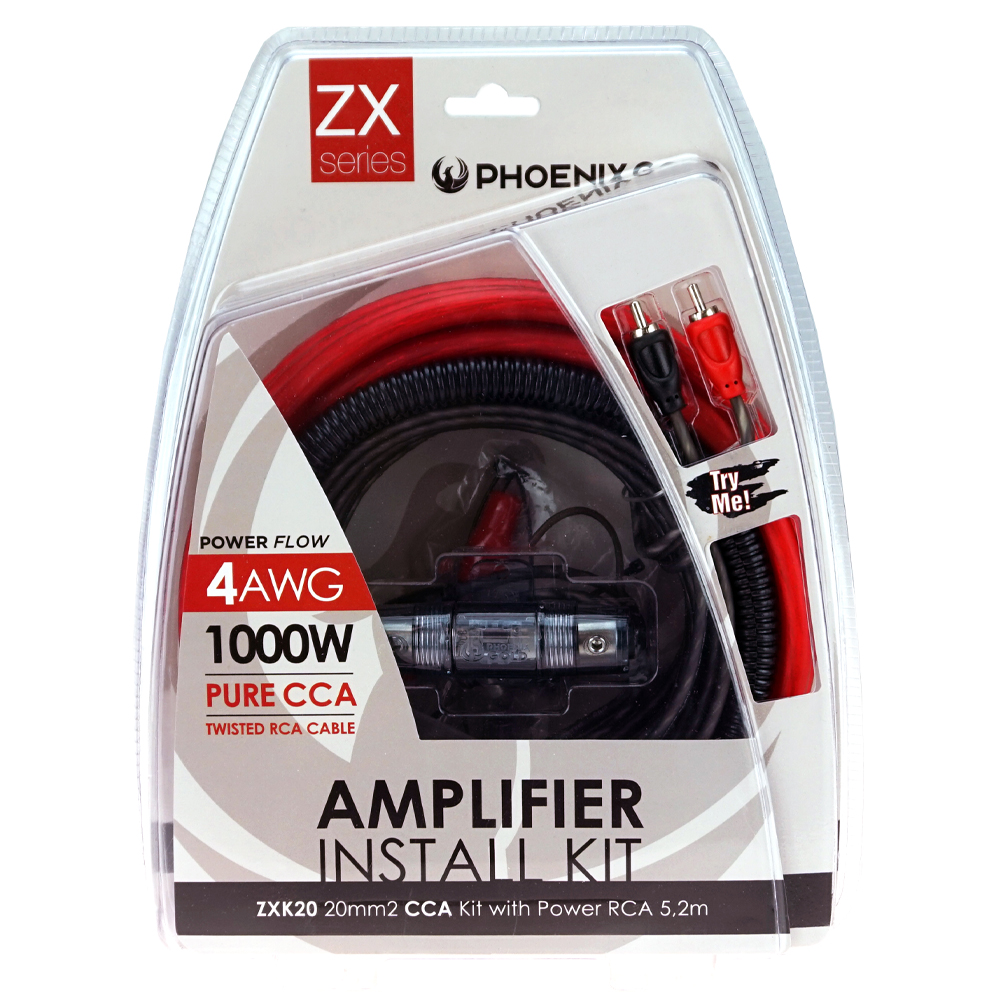

Phoenix Gold ZXK20 4AWG 1000W 20mm2 CCA Power Amplifier Wiring Kit

Phoenix Gold now releases its own cable kits. The ZXK20 series includes CCA (Copper Clad Aluminium) cable. Paired with a twisted pair RCA cable, this ZXK20 kit will be a perfect complement to your Phoenix Gold power amplifiers or any power amplifier for that matter.

Features

• Complete set for audio systems up to 1000 watts
• Premium 20mm2 CCA power and ground cable for optimal power transfer
• Nickel-plated connections for maximum corrosion resistance
• Incl. twisted RCA cable 5.2m
• Original Phoenix Gold Accessories

Contains

• 1 x 5.2m 20mm2 CCA Red Power Wire
• 1 x 0.8m 20mm2 CCA Black Ground Wire
• 1 x 5.2m Twisted RCA Cable
• 1 x 1.8m Split Loom Tubing
• 1 x Fuse Holder and Fuse
