Mercedes Sony Mechless Bluetooth USB iPhone iPod Car Stereo Upgrade Kit
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 5
- Brand: Sony
- Model: DSX-A410BT + FKIT-MERCEDES-01
- Other Part #: 38446
- EAN: 7427282689335
- Warranty: 2 Years Warranty
Available Options
Description

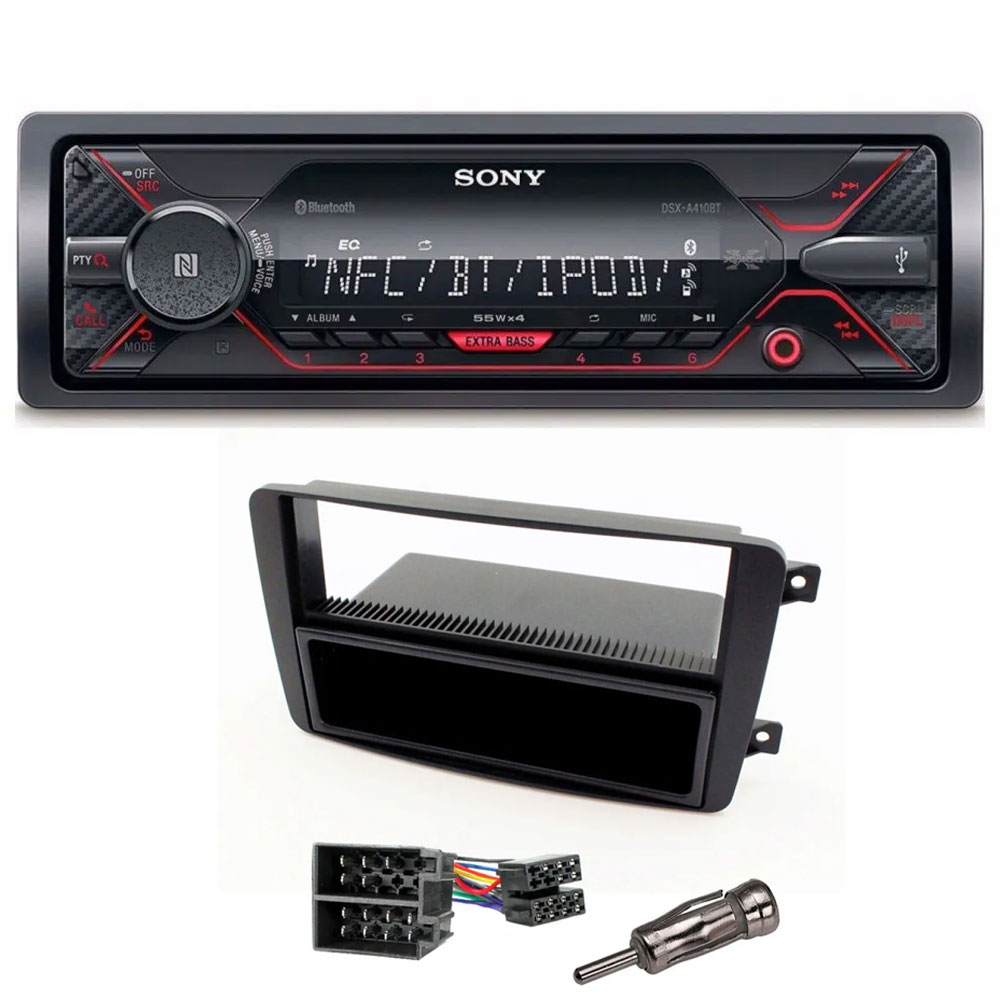

Package Includes
- Sony DSX-A410BT Mechless Digital Media Receiver Bluetooth USB iPhone iPod Car Stereo
- Fascia Panel Adaptor
- Wiring Harness Adaptor
- Aerial Adaptor
Product Compatibility Chart
| Make | Model | Years | Notes |
| Mercedes-Benz | C Class | 2000 - 2004 | |
| Mercedes-Benz | CLK | 2000 - 2004 | |
| Mercedes-Benz | M Class | 1998 - 2006 | |
| Mercedes-Benz | Vaneo | 2002 - 2005 | |
| Mercedes-Benz | Viano | 2004 onward | |
| Mercedes-Benz | Vito | 2004 - 2006 |
MERCEDES DO NOT HAVE IGNITION LIVE WIRE ON ORIGINAL PLUG SO STEREO WILL NOT POWER UP WHEN CONNECTED. THIS WILL NEED TO BE MANUALLY WIRED IN BY INSTALLER. BEST PLACE FOR THIS POWER SUPPLY WILL BE LIGHTER SOCKET WIRING
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
Wiring Harness
The wiring harness will allow to install the stereo without having to cut any wires. This ISO - ISO Inverted adapter is required when replacing your factory fitted radio with an aftermarket radio. It will convert the original vehicle power & speaker wiring connectors to a standard ISO connector. Simply plug one end of the adapter into your cars wiring harness and the other into your new radio.
Sony DSX-A410BT Mechless Digital Media Receiver Bluetooth USB iPhone iPod Car Stereo
Size & Weight
- Dimensions (W X H X D) 178x50x119mm
- Weight 0.7kg
General Features
- USB (Front)
- AUX (Front)
- EQ (EQ10)
- High Pass Filter (80 / 100 / 120)
- Low Pass Filter (80 / 100 / 120)
- Subwoofer Direct Connection (Easy)
- Extra Bass (1,2)
- Output Power 4 x 55W
- PRE Out x 2 (Rear + Sub)
- SUB Out
Tuner Features
- Preset FM18 / AM12
- RDS / EON
Panel Design
- Display Color (Color Variation / Negative Or Positive) Black colour / Negative
- Display Device (LCD / FL / OEL / TFT) LCD (with Acryl)
- Key Illumination Red
iPhone / iPod Music Playback Control via USB
- Pause
- Repeat All / Track
- Resume
- Shuffle Off / Track
Bluetooth Features
- Built-In Microphone
- MIC Gain Adjustment (Low / Mid / Hi)
- Version Bluetooth Version 3.0
Bluetooth Audio Features
- Audio Codec SBC, AAC
- Audio Level Adjustment (-6dB - +6dB)
- CUE / REV
- Pause (Bluetooth Audio)
- Track +/-
USB Mass Storage Device Control Features
- Jump Mode
- Compatible File Formats (Codec) MP3, WMA, FLAC
- List Browse
- USB Device Control (Pause)
- USB Device Control (Repeat) ALL / TRACK / ALBUM
- Resume
- Shuffle Off / Album / Device
USB Profile
- USB Mass Storage Device
- USB Media Transfer Protocol
- USB Android Open Accessory Protocol (2.0)
What's In The Box
- Trim Ring (Collar): Black (Not Painted)
- Panel Case
NO CD MECHANISM
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification" may be necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
| Technical | |
| Size | Single DIN |
| Plays | MP3, WMA, FLAC |
| Max. Power Output | 4 x 55W |
| Radio Data System | Yes |
| Bluetooth | Yes |
| iPod Ready | Yes |
| Aux In | Front Aux In |
| USB | Front USB |
| Pre Out | 2 RCA Pre Out (Rear + Sub) |
