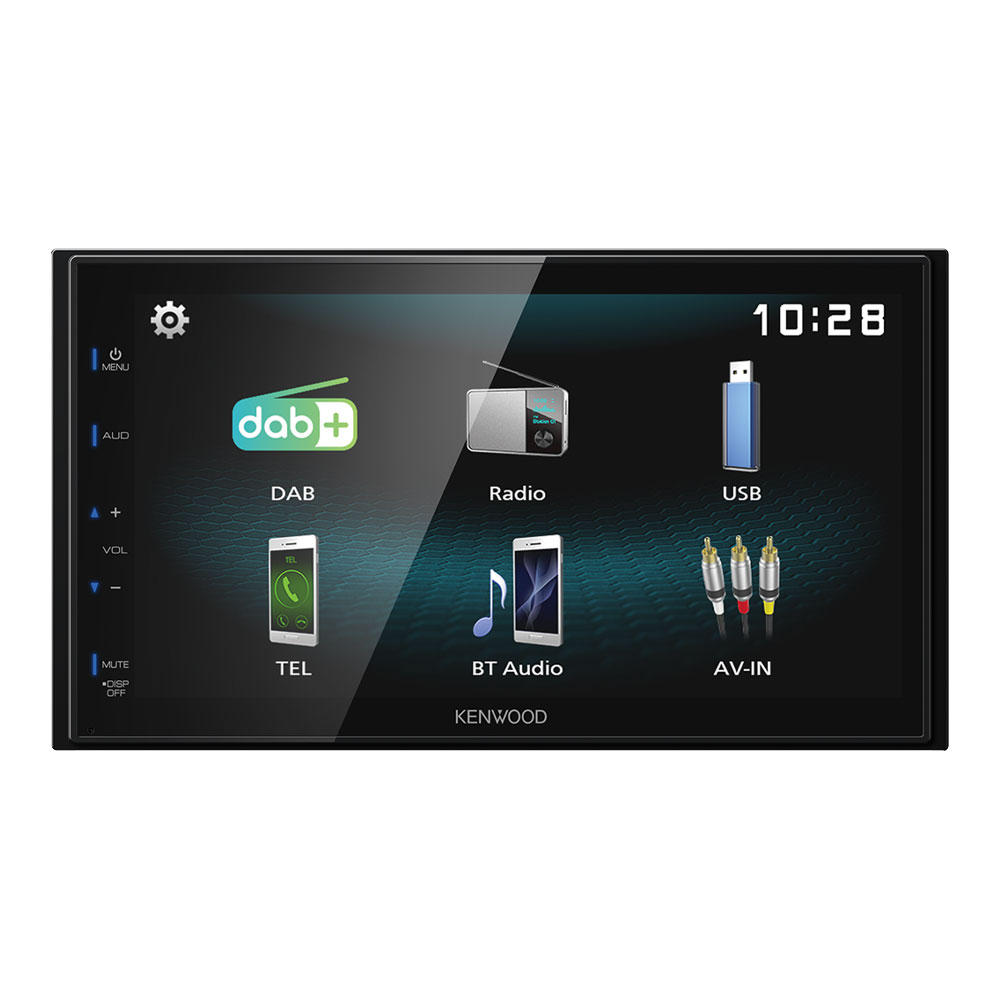

DMX125DAB 6.8” WVGA Digital Media AV Receiver with DAB Radio Built-in

The KENWOOD DMX125DAB Car Stereo has a crisp, clear 6.8” resistive touch screen, multi-format playback and rear camera input. It has a USB input for connectivity and Android Mirroring with compatible Android smartphones. Built-in DAB ensures this is a must-have upgrade for any vehicle!

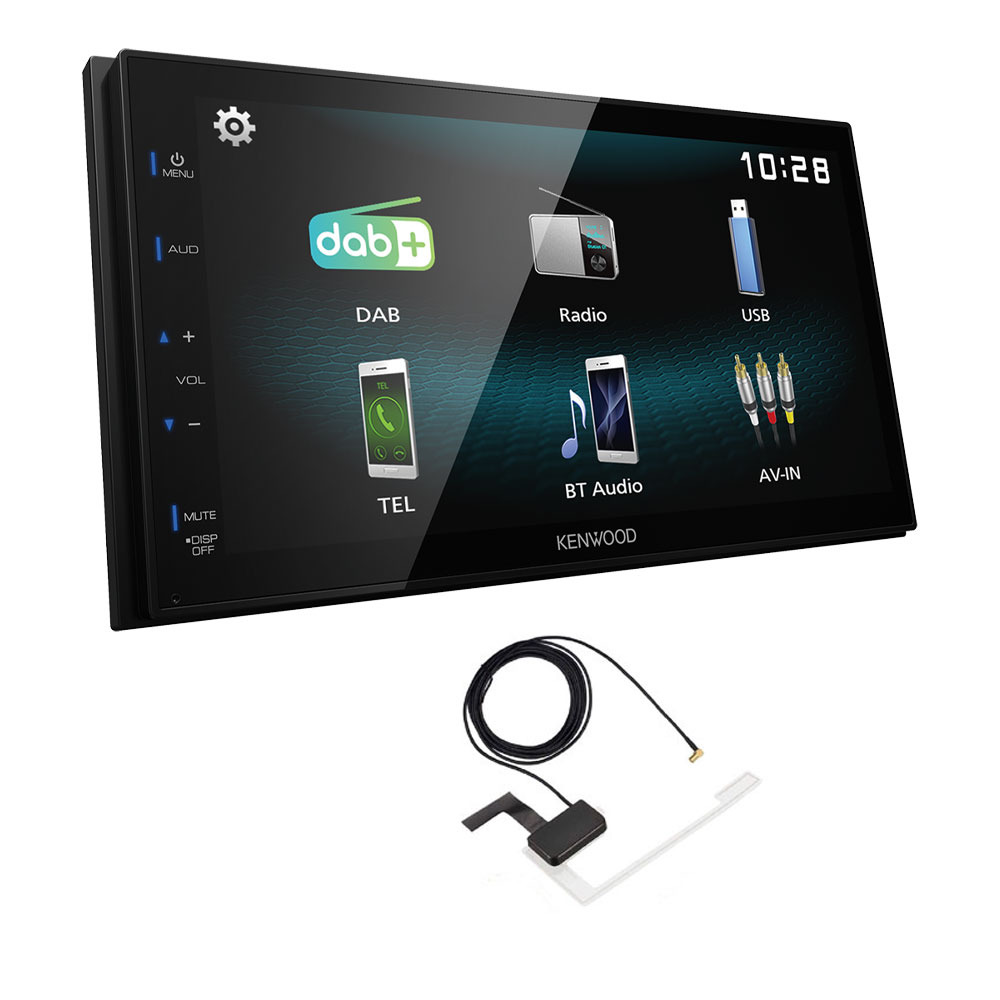

DAB AERIAL INCLUDED

Key Features

• Capacitive 6.8" WVGA touch screen
• Android USB mirorring ready
• DSP / DTA /13 band equalizer
• DAB+ tuner built in
• 3 preouts, (2.0V) (Front/Rear/Sub(mono))
• AV-in, Video-out & RCAM-in
• Bluetooth handsfree & audiostreaming built-in
• Rear USB, 1A Charge
• MP3, WMA, AAC, WAV & FLAC audio file playback
• MPEG1/2 & MPEG4, H.264, WMV & MKV video file playback
• Shortbody, only 75mm installation depth

General Features

• DIN Size 2 DIN
• Smooth GUI
• Key Illumination Blue LED
• Touch sensor
• Touch Sensor Tone
• Optional IR remote controller, KNA-RCDV331
• Digital Clock (24H)
• ISO connector
• Built-in Bluetooth
• DAB Tuner Built-in
• Android USB Mirroring

Monitor Features

• Screen Type Capacitive touch panel
• LCD type 6,8 inch Wide VGA
• Display Type Glare
• High Resolution VGA Display
• LCD backlight LED
• Touch Panel Clear resistive
• Display Mode 1 Mode: Full
• Screen adjust: Brightness
• Screen adjust: Colour
• Screen adjust: Contrast
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Demonstration Mode
• Opening Screen Type standard
• R-CAM interrupt
• R-CAM Caution On Screen Display
• Menu text in selectable language
  • English (Default)
  • Espagñol
  • Français
  • Deutch
  • Italiano
  • Nederlands
  • Finnish
  • Russian
  • Português
  • Polski
  • Cestina
  • Magyar

Tuner Features

• Station Select Auto / Manual
• FM Reception
• AM Reception, (MW Reception)
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 30 Presets (18FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Alphabet Search
• Traffic Information
• DAB-DAB/DAB-FM auto switch
• Time Shift
• DLS (Dynamic Label)
• PTY (Programme Type) search
• PTY (Programme Type) watch
• Announcement Switching (ASW) Select
• Soft linking

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 8 phones
• Hands Free Profile (HPF) V1.6
• Audio Streaming (A2DP), (SBC)
• Phonebook Access Profile (PBAP)
• Number of PBAP entries Up to 1000 phonebook entries
• PBAP call history Up to 50 entries of dialed, received and missed calls
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone included

Playable Audio file

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video file

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• Rear USB Terminal
• USB Type 2.0 Full speed
• MP3 playback with ID3 Tag Display
• WMA (Windows Media File) playback
• AAC (Advanced Audio Codec) playback
• MPEG1 Video decoder
• MPEG2 Video Decoder
• MPEG4 Video Decoder
• Repeat/Scan/Random search
• Repeat / Random Play
• 1A Charge Capability for Smartphone.

Audio features

• Max. Output Power (MOSFET Power IC) 4 x 50W
• Pre-out    3RCA: Front/Rear/Subwoofer
• Pre-out Output Level 2V
• Subwoofer Reference Level Adj
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• DSP Chip AK7601
• Position Control
• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ manual setting
• High Pass Filter (HPF) (Front/Rear/Center)
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• Source DSP Memory
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Speaker Size & Location Control
• X'over network

Video Features

• Audio Video Output
• Audio/Video Input
• Video-In for Rear-view Camera 1 dedicated video input (RCA)

Connectivity

• USB interface
• Reverse sensor wire
• Parking sensor (handbrake) wire
• 2-way (Tel/Navi) mute wire
• AV-Input (Non Switchable) (RCA)
• AV Output Video only (RCA)
• Rear View Camera Input
• FM Antenna Input
• DAB Aerial input SMB connector
• External microphone input
• OEM Wired Remote Control ready

No CD Mechanism
