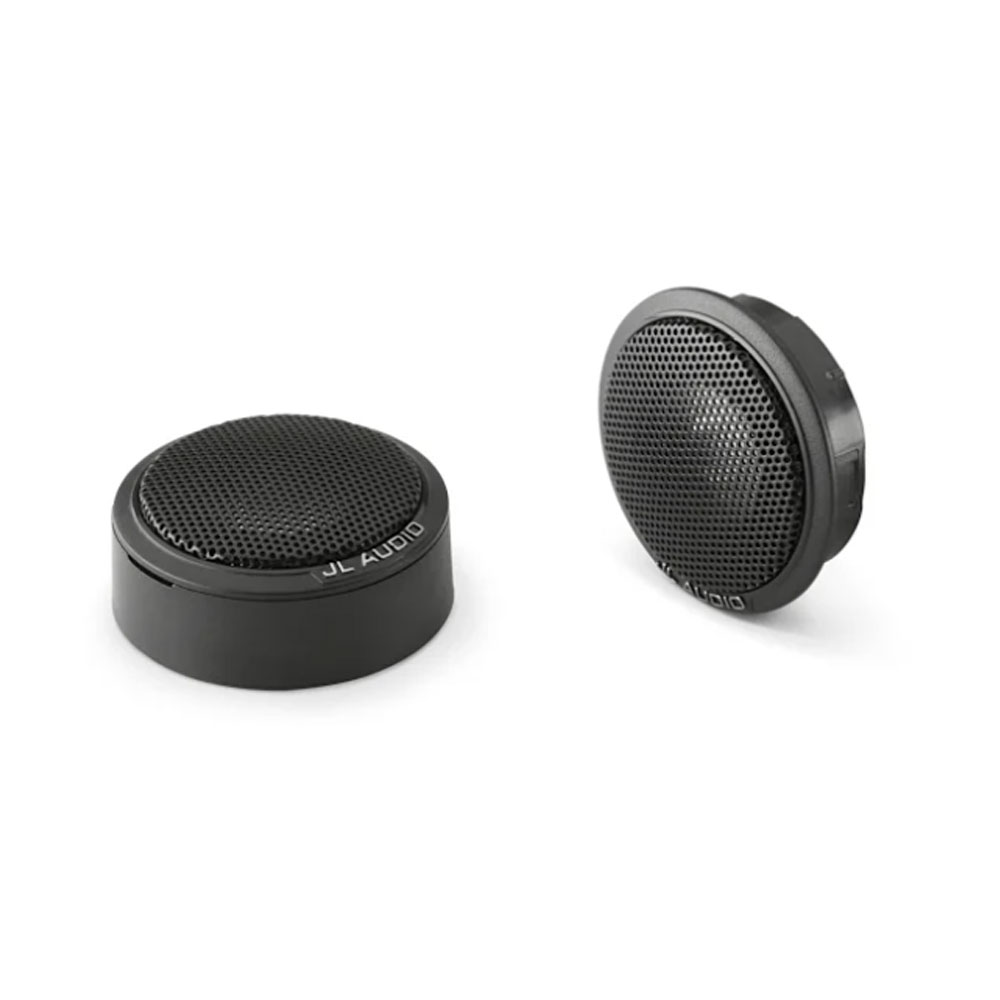

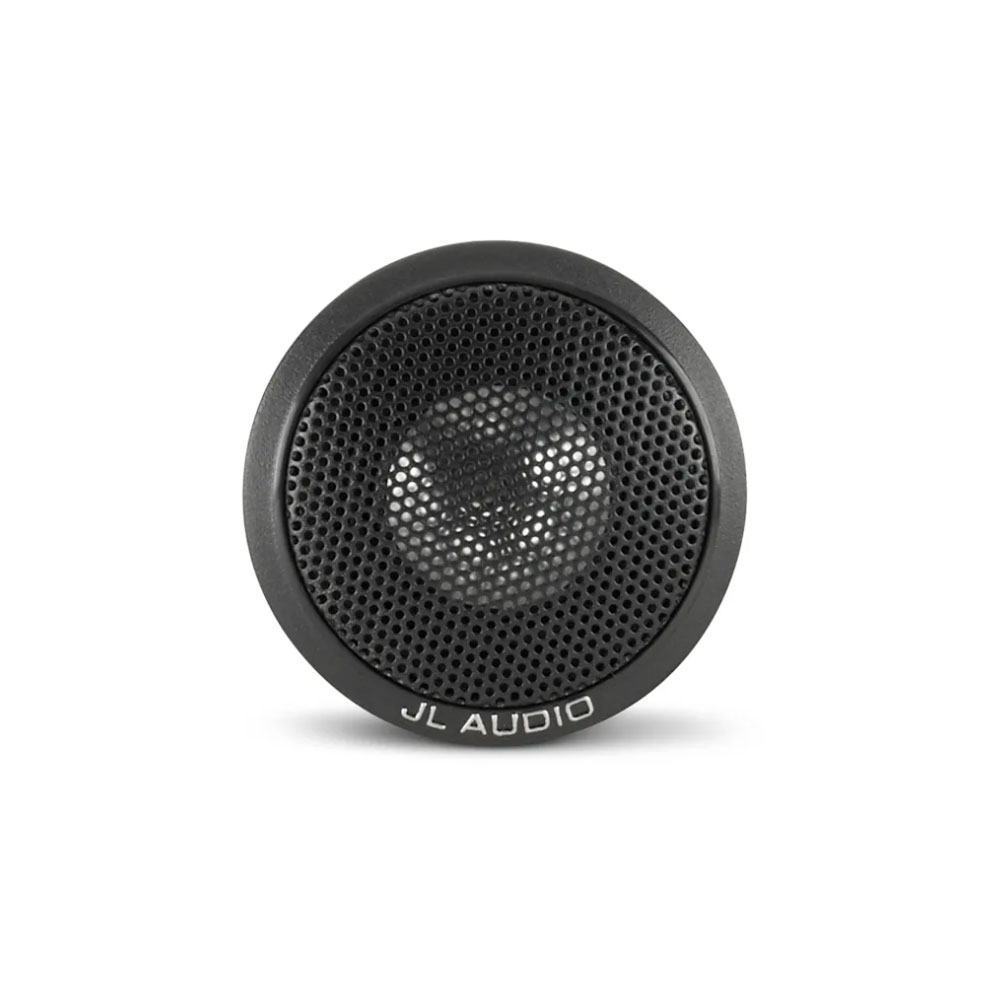

C1-075CT Component Tweeter Pair

Experience superior performance with the JL Audio C1 component tweeters. These tweeters offer outstanding off-axis response and extended high-frequency reproduction. Featuring true, edge-driven aluminum domes with silk suspensions, they deliver detailed treble frequencies. Whether flush-mounted or surface-mounted using the included fixtures, the C1 tweeters are versatile for various installation needs.

General Specifications

• Sizes 0.75"/1"
• Continuous power handling (RMS) 0.75": 50 W
• Sensitivity (SPL @ 1 W/1 m)  0.75": 91 dB
• Frequency response (+/- 3 dB) 0.75": 4 kHz-24 KHz
• Nominal impedance 0.75": 6 Ω
• Recommended amplifier power (RMS) 0.75": 20-50 W/Channel
• Cone material Mineral-filled polypropylene
• Tweeter type Aluminum Dome
• Tweeter size 0.75": 0.75" (19 mm)

Connections

• Speaker connections Spade connectors

Tweeter Specifications

• Flush mount fixture diameter 0.75": 1.67" (42 mm)
• Surface mount fixture diameter 0.75": 1.71" (43 mm)
• Flush mount mounting hole diameter 0.75": 1.46" (37 mm)
• Flush mount mounting depth 0.40" (10 mm)
• Flush mount tweeter frontal protrusion 0.75": 0.23" (6 mm)
• Surface mount tweeter frontal protrusion 0.75": 0.76" (19 mm)

Crossover Specifications

• Width 1.96" (50 mm)
• Height 0.90" (23 mm)
• Depth 1.34" (34 mm)

What's In The Box

• Two tweeters
• Two crossovers
• Two flush mount housings
• Two surface mount housings
• Two metal spring clips (for flush mounting)
• Four 5/8" flat head screws (for surface mounting)
• Two 25 mm stud bolts
• Two 10 mm stud bolts
• Two M5 nuts
