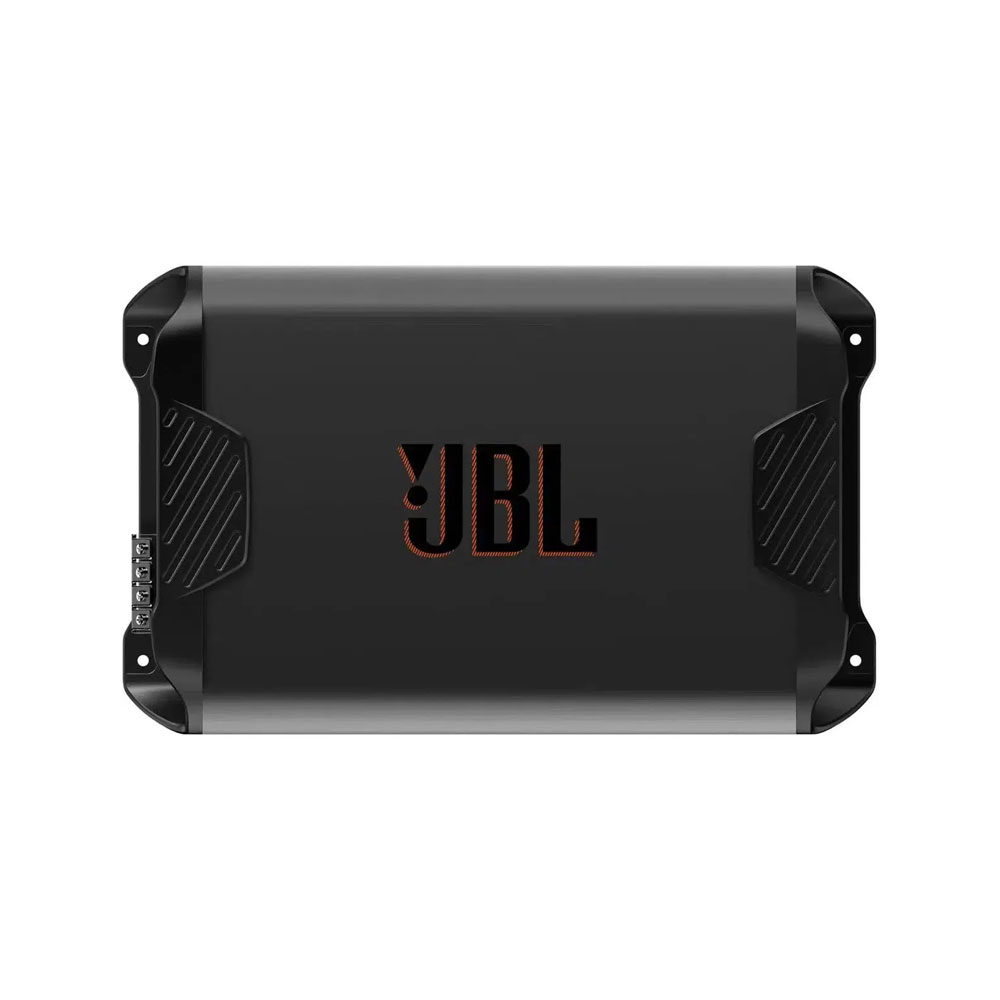

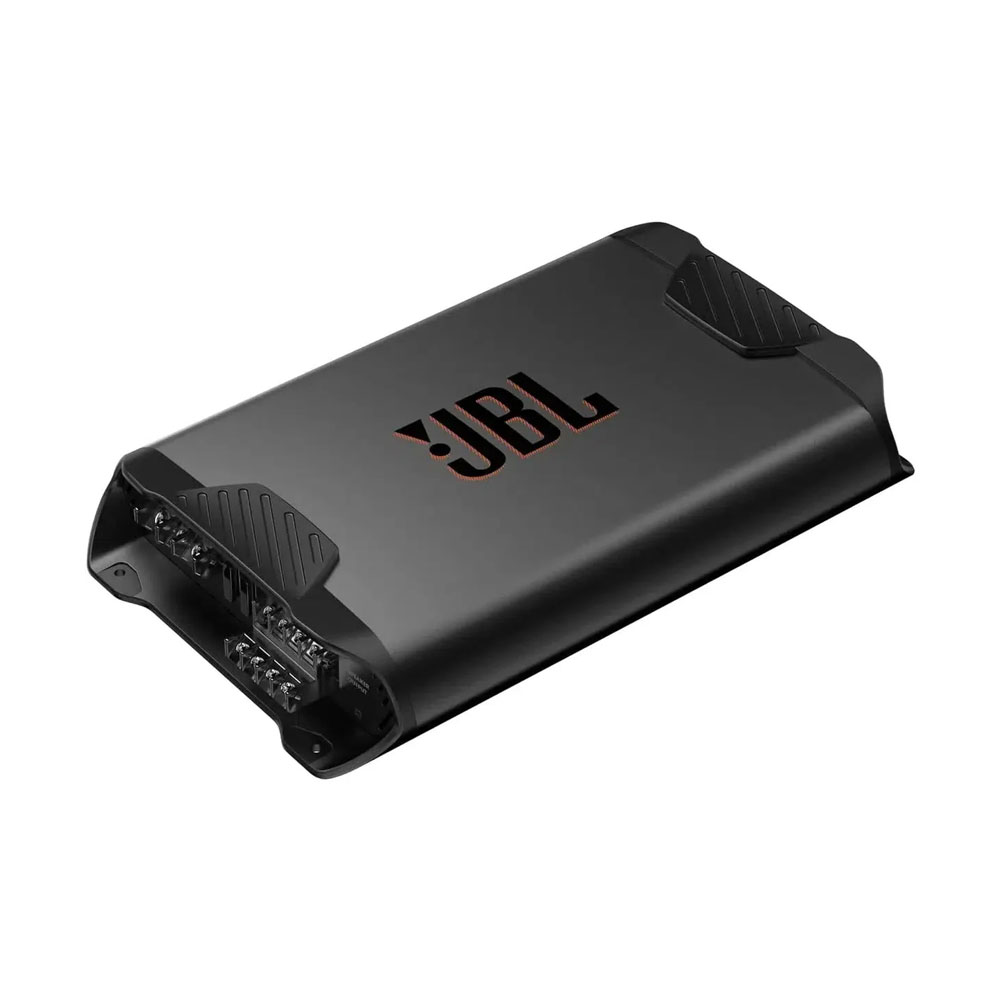

Concert A704 4 Channel Car Amplifier

Experience outstanding sound with the Concert A704, a 4-channel amplifier from JBL. Characterized by efficient cooling and reliable performance, this amplifier offers unparalleled class AB amplification. With adjustable high/low pass crossover and an automatic power-on feature, the Concert A704 is a clear winner in both performance and operation. Its elegant look complements the concert-ready sound, making it a highlight of any sound system

Features

• Class AB 4-channel amplifier
• Adjustable high/low-pass crossover
• Automatic switch-on
• Efficient cooling design
• Concert sound and elegant look
• Reliable performance

Powerful Class AB amplifier

Class AB amplifier output stage combines the advantages of the Class A amplifier and the Class B amplifier while minimizing the problems of low efficiency and distortion associated with them.

Adjustable High-Pass/Low-Pass Crossover Filter

Concert amplifiers have the High-Pass Filter (HPF) and the Low-Pass Filter (LPF), which allow you to adjust the frequency from 40Hz to 400Hz based on your own music taste to deliver the appropriate musical frequencies to speakers.

Auto Turn On Facility

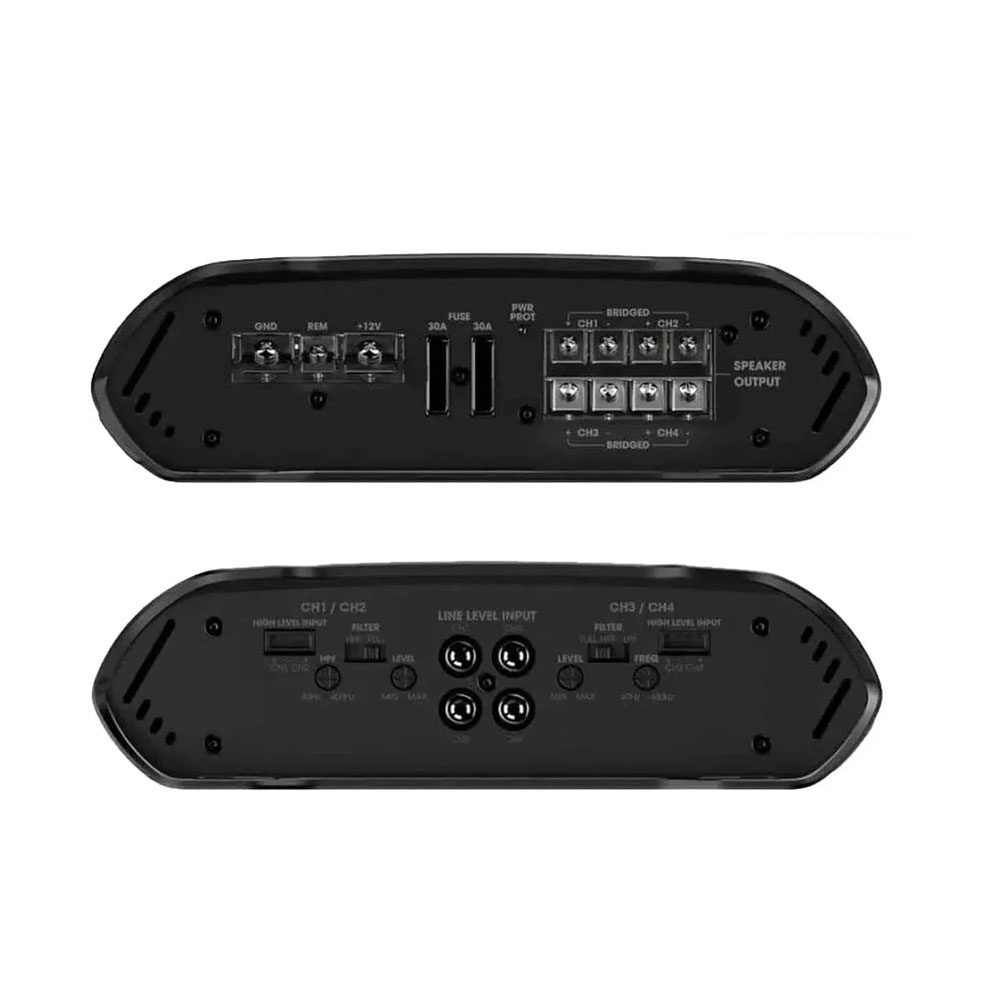

When using the High-level signal inputs, the amplifier automatically turns on once a DC offset is detected (>2.5 volts). When using the Line-level signal inputs, the amplifier will also turn on once a +12V signal is detected from the remote turn-on wire.

Efficient Cooling Design

High performance amplifiers are not only powerful but also compact which depend on overall Efficient Cooling Design.

Concert Sound and Elegant Look

JBL Concert amplifiers deliver extraordinary sound experience with elegant industry design.

Reliable Performance

In order to deliver high quality sound and reliable performance, the high-quality component such as audio capacitors, power MOSFET are selected for Concert amplifiers. Those amplifiers also have to undergo a rigid testing process that would destroy unstable amplifiers.

JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time.

General Specifications

• 4-Channel Class AB Car Amplifier
• Rated Power RMS Output: 70W x 4 @ 4 ohm; 90W x 4 @ 2 ohm; 180W x 2 @ 4 ohm bridged, <1%THD
• Full/High-Pass/Low-Pass Filter: 40-400Hz, 12dB/octave
• SN Ratio (1W @ 4 ohms): >75dB
• Frequency Response (-3dB): 10Hz – 45kHz
• Gross weight: 2.86kg

Package Contents

• 1 x 4 channel power amplifier car JBL Concert A704
• 4 x self-tapping 3/4-inch screws
• 2 x replacement fuse
• 1 x quick guide
• 2 x 2-channel high-level input wiring harness
