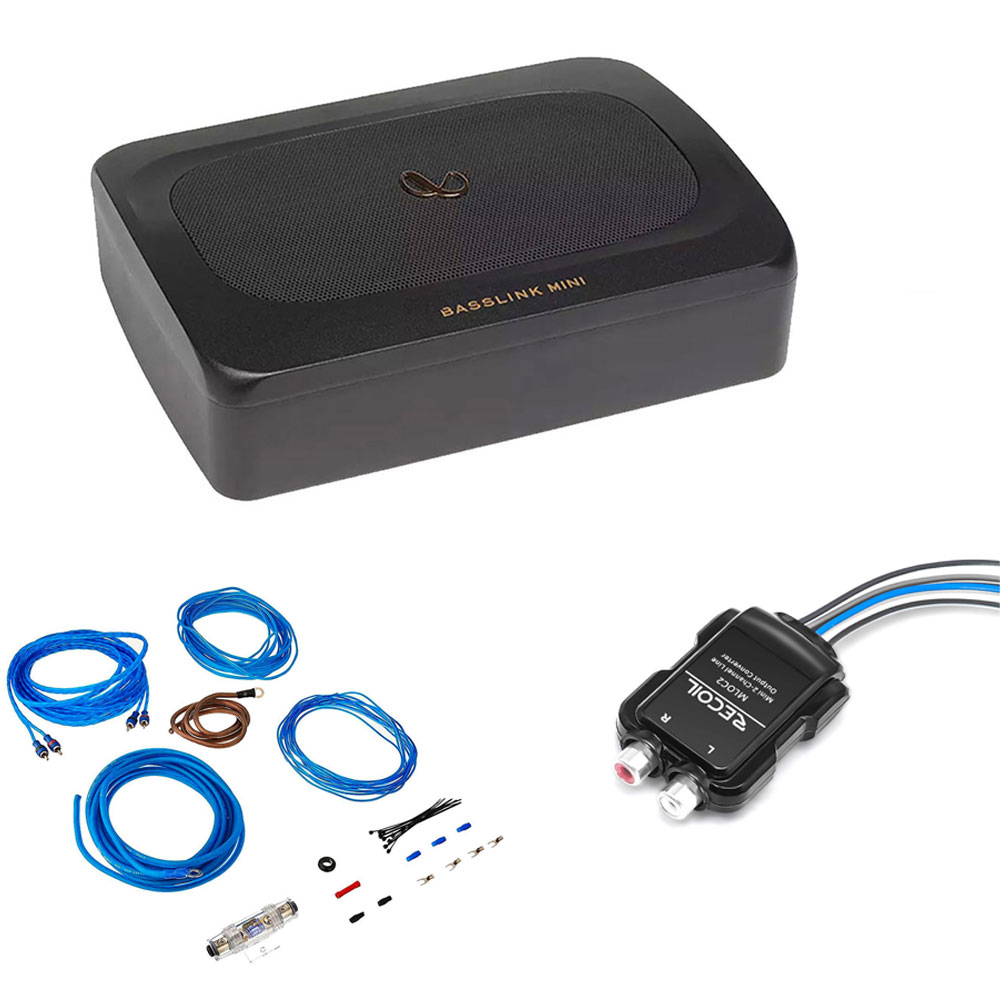

Package Includes

• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
• Stinger SSK8 8GA 600W Complete Wiring Kit
• InCarTec 23-005 2-Channel 80W high-to-low Level Line-out Converter with Built in Amp Remote Trigger

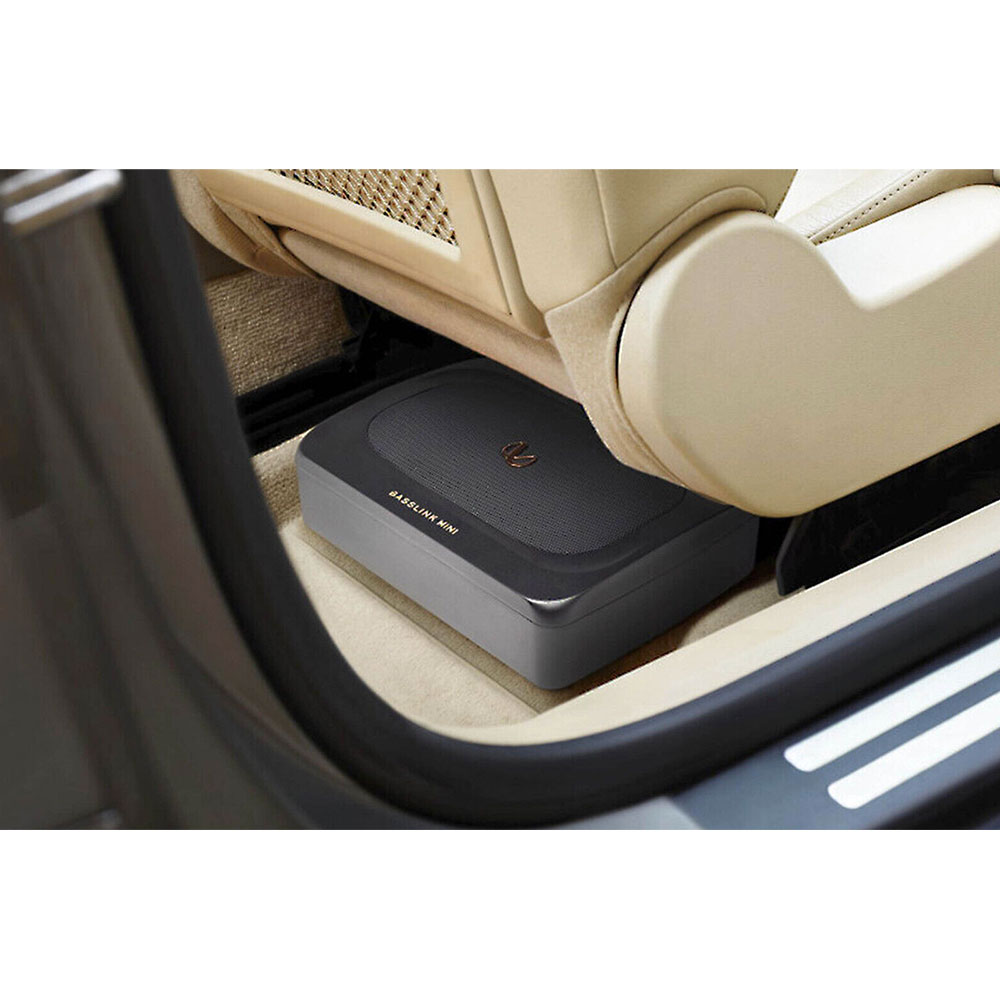

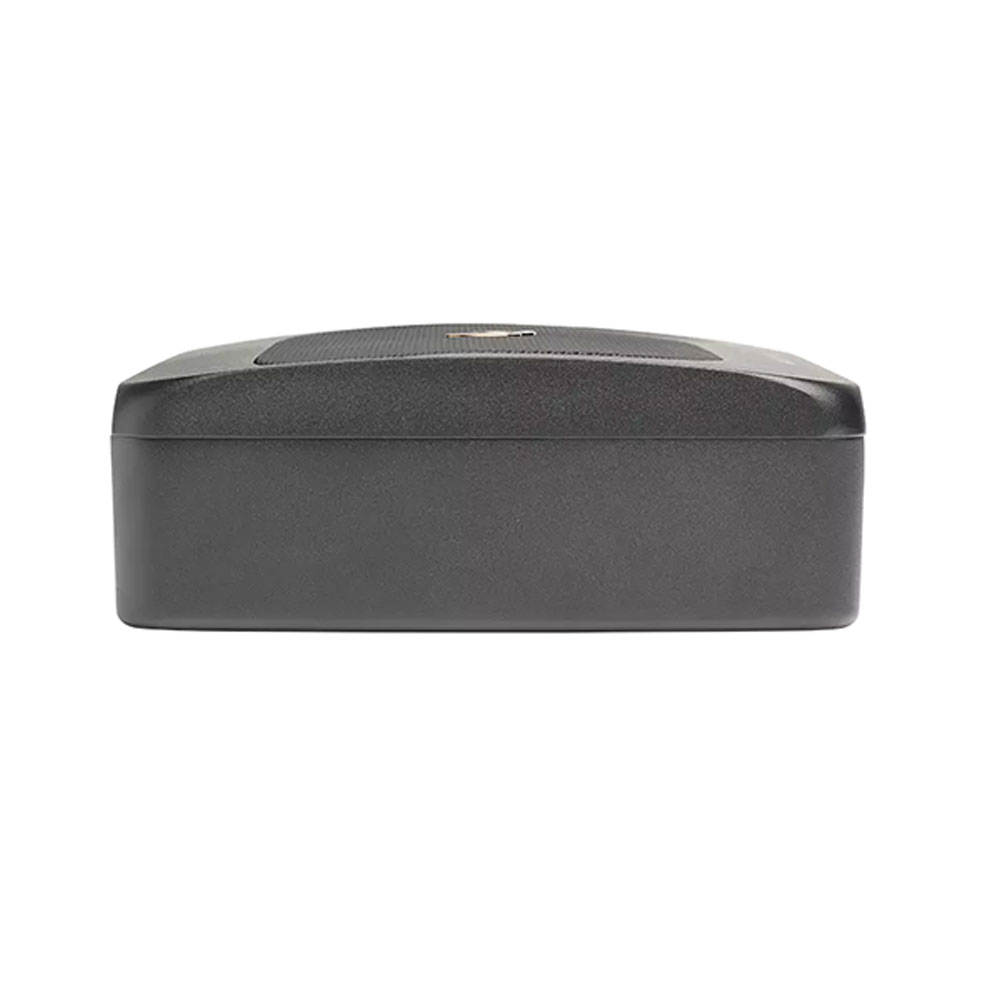

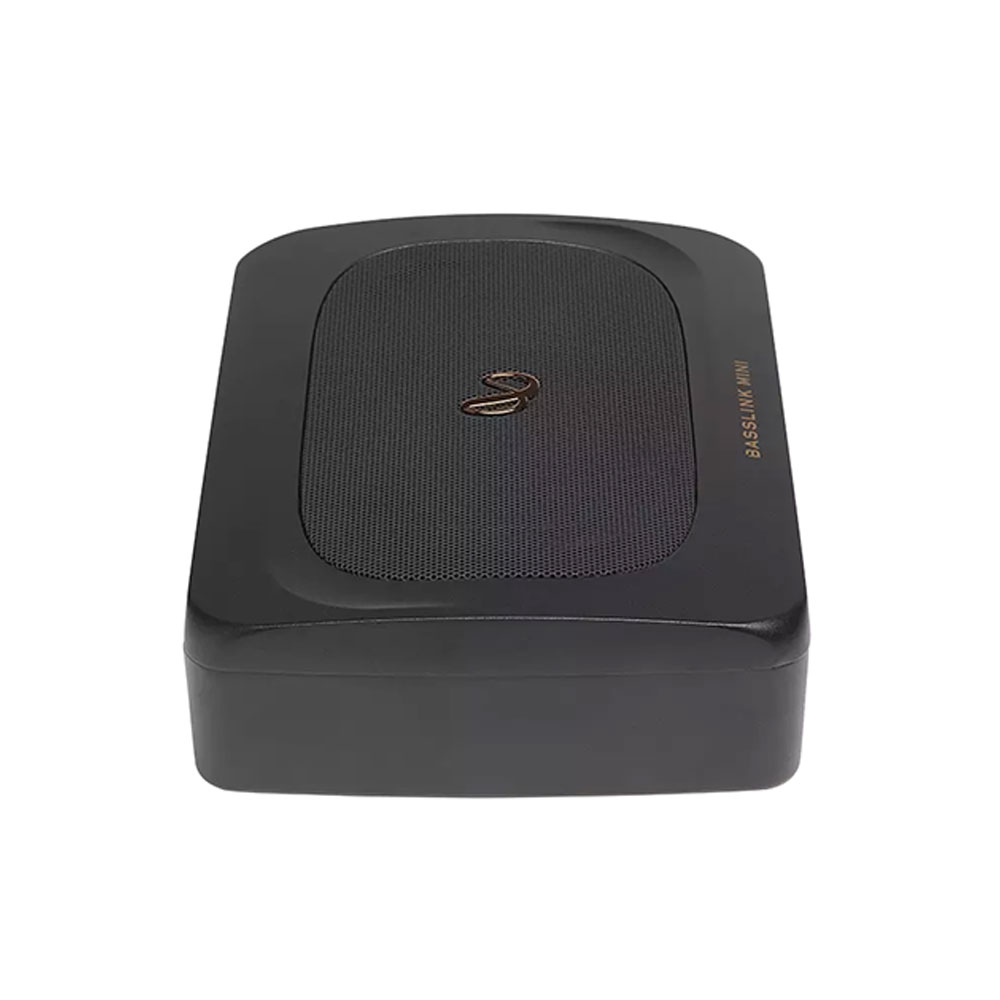

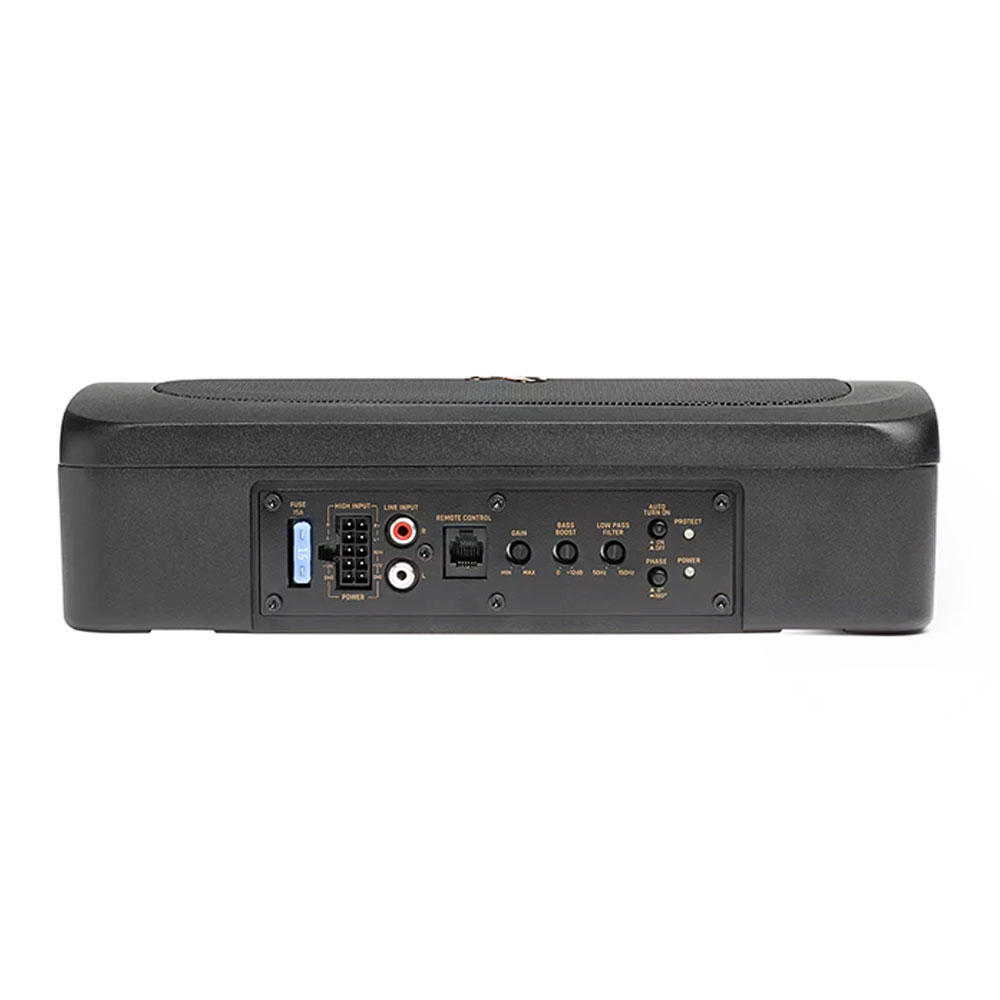

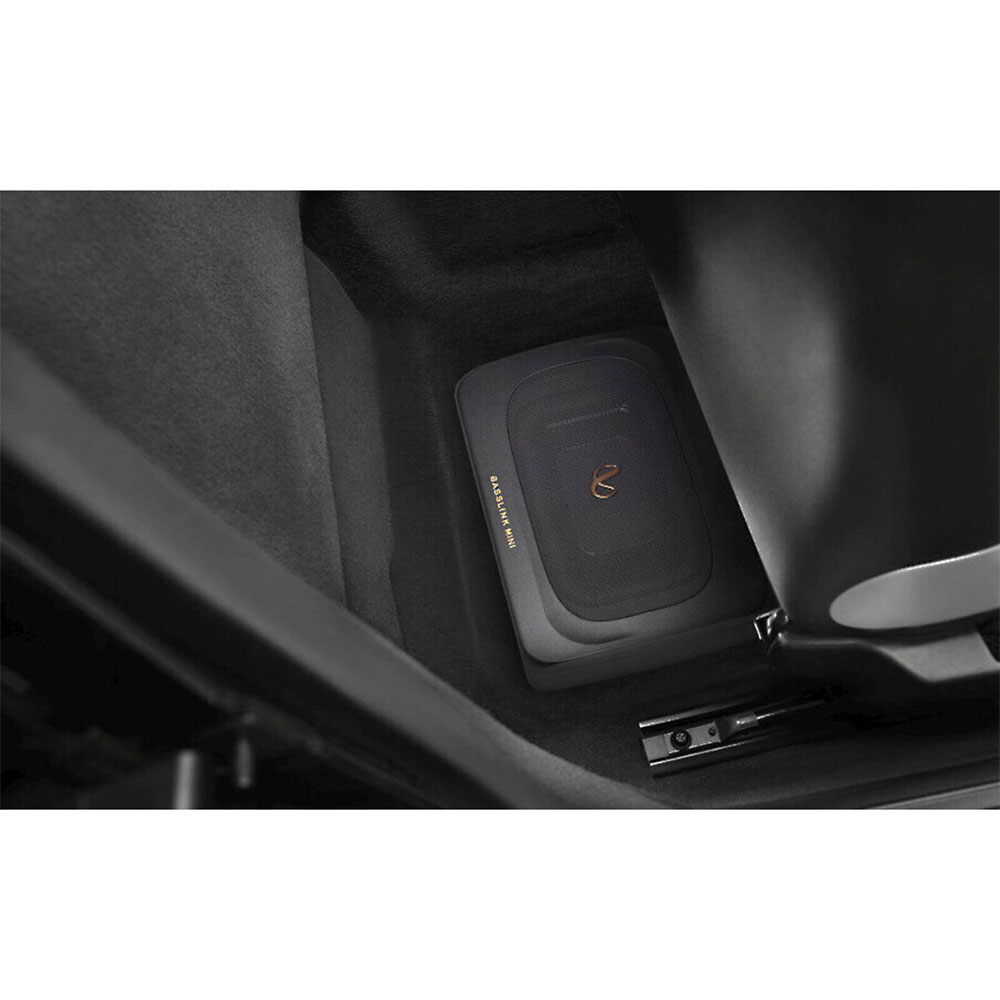

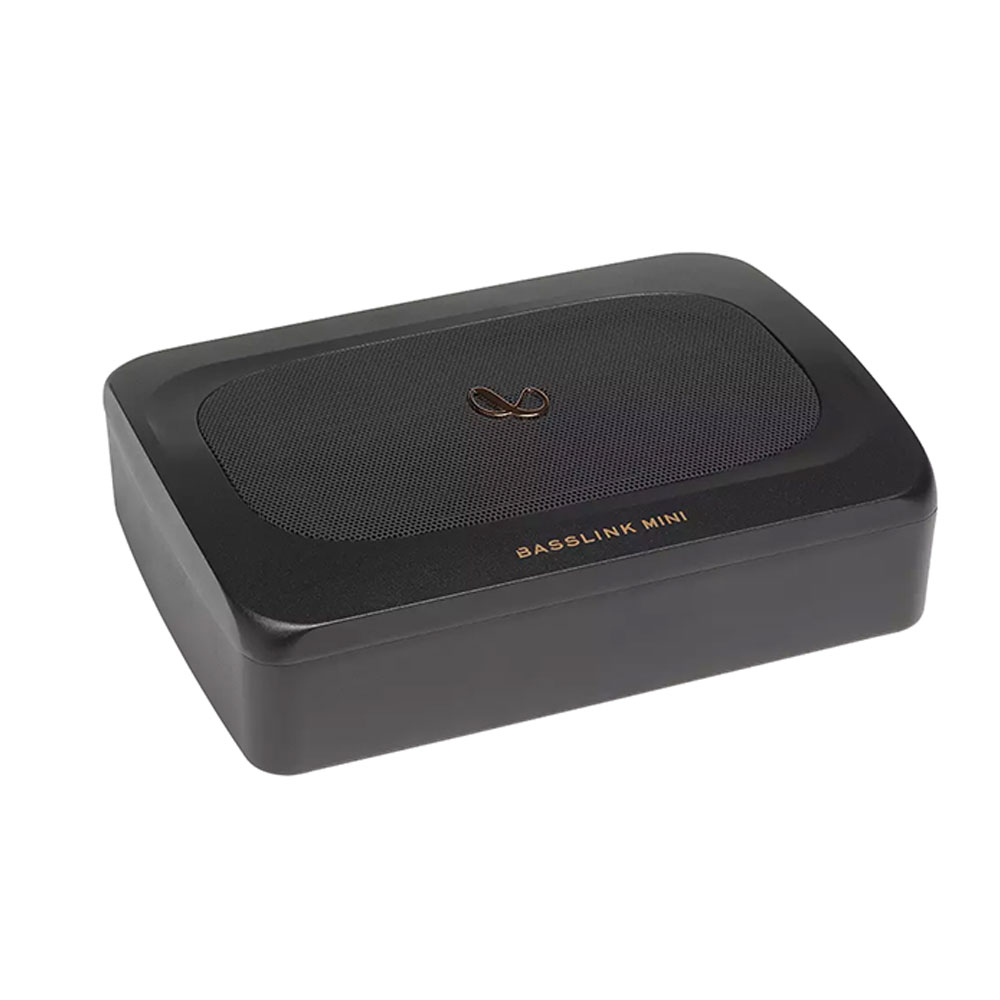

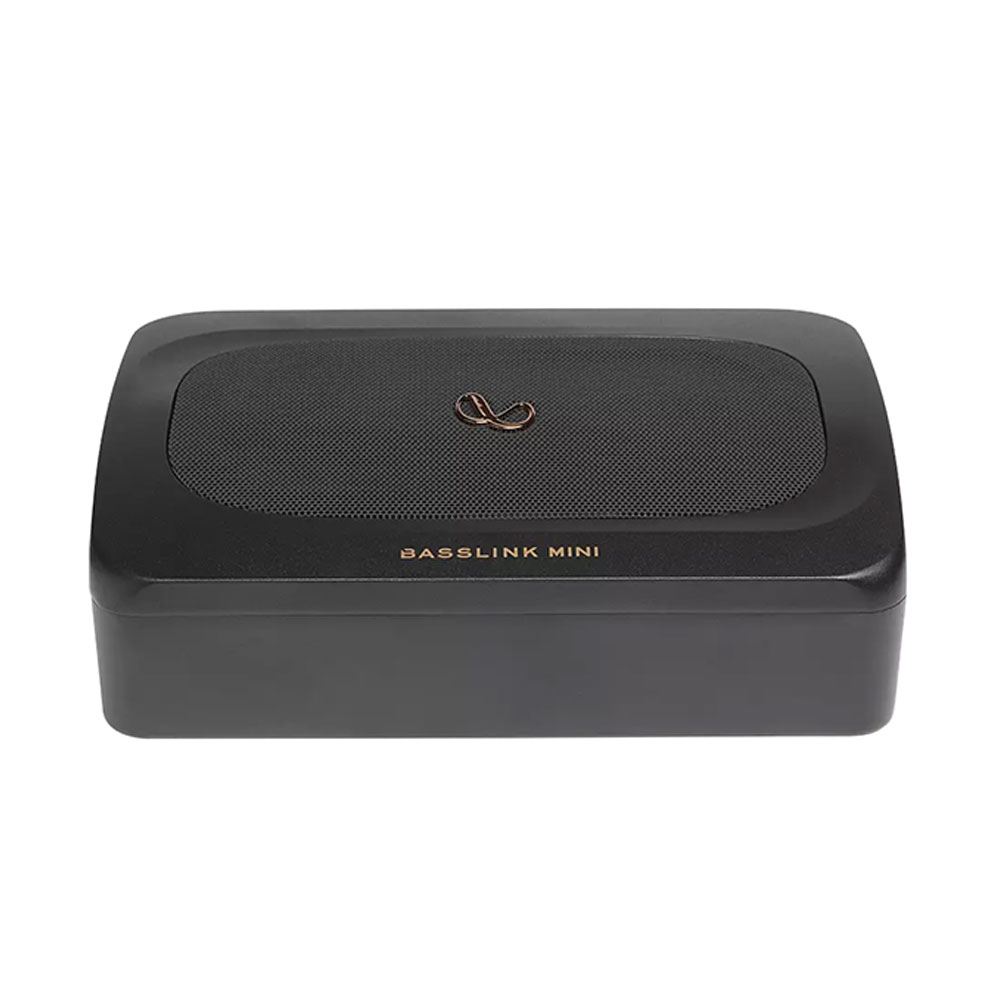

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)

In The Box

• 1 x Under seat subwoofer
• 4 x Screws
• 4 x Small metal plate
• 1 x Wiring harness
• 1 x Bass volume remote control (with cable)
• 1 x 15A Fuse

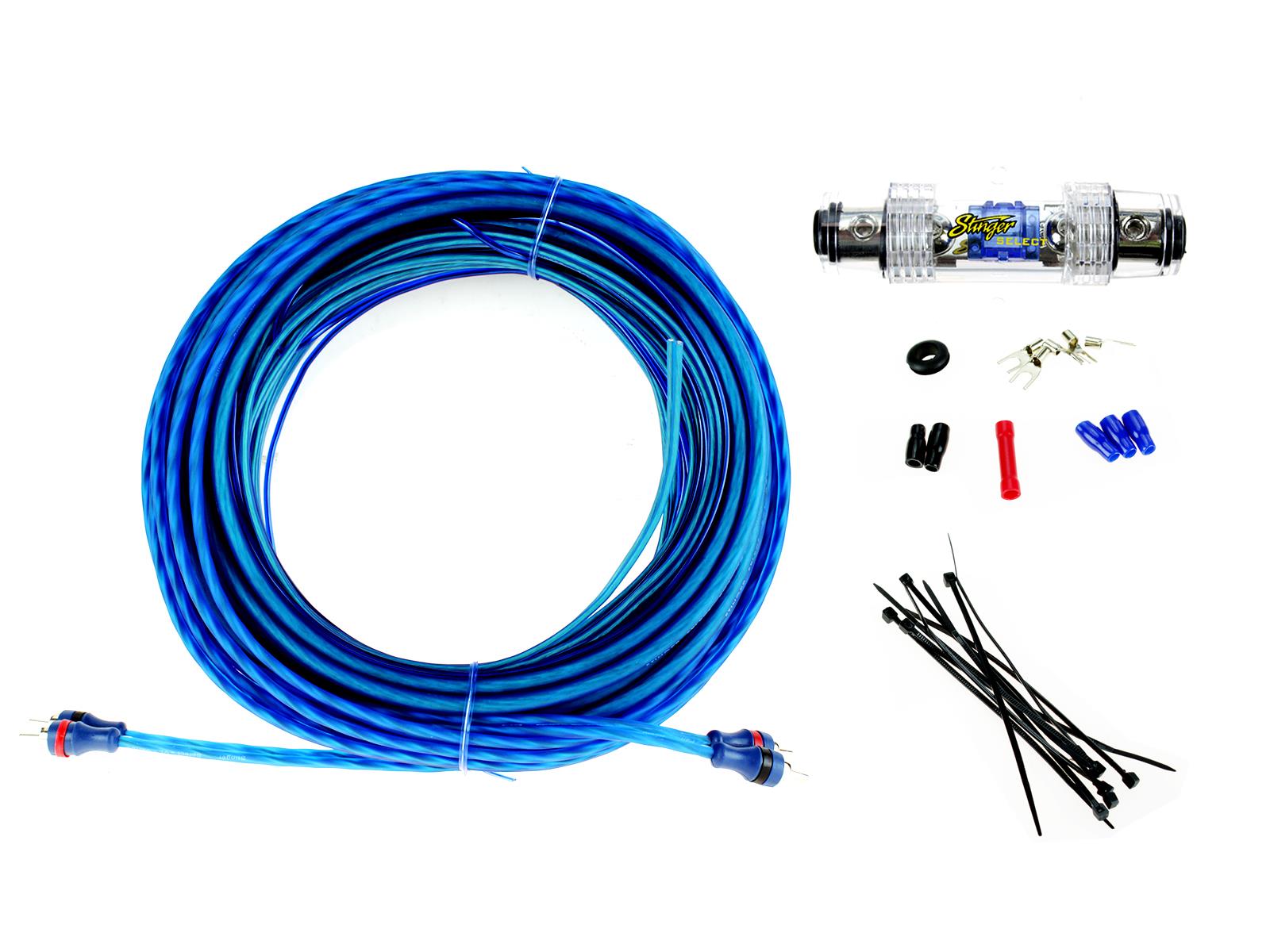

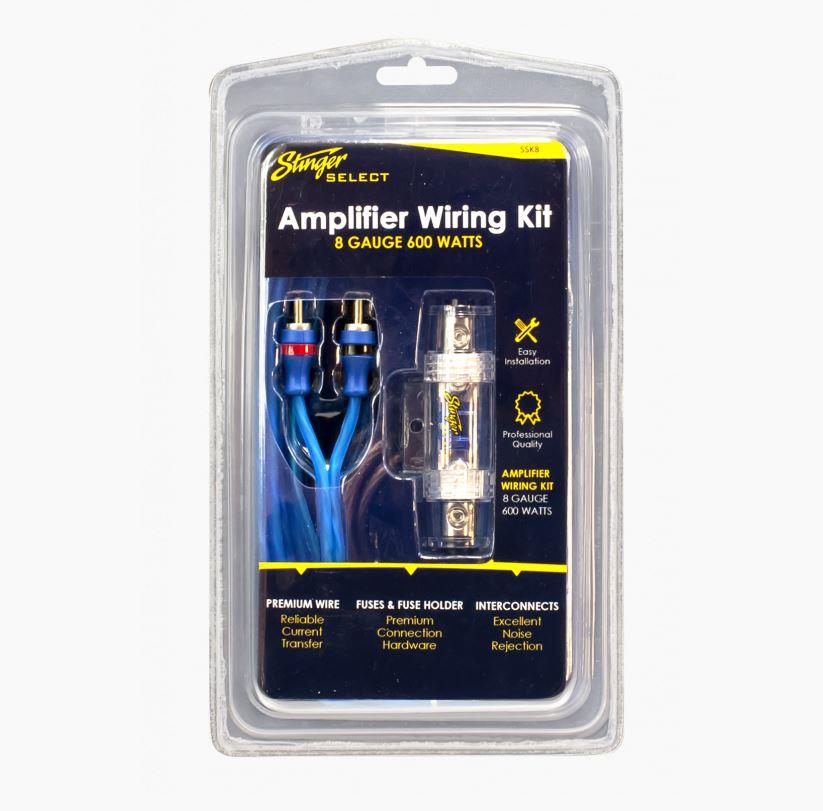

Stinger SSK8 8GA 600W Complete Wiring Kit

Featuring Ultra Flexible CCA cable construction for excellent current transfer to power hungry amplifiers on a budget. Quality twisted pair interconnects for noise free signal transfer. Also includes ultra flexible speaker wire, remote turn-on, MIDI high current fuse holder and ring terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.

Includes

• 17FT Matte Blue Ultra Flexible Power Wire (CCA)
• 3FT Matte Gray Ultra Flexible Ground Wire (CCA)
• 17FT Twisted Pair RCA Interconnects (OFC)
• 17FT Blue Remote Turn-on Wire (CCA)
• 20FT Matte Blue Ultra Flexible Speaker Wire (CCA)
• 1pc. High Current Water-resistant MIDI Fuseholder with 60A Fuse

InCar Tec 23-005 2-Channel 80W high-to-low Level Line-out Converter

A 2 Channel 80W adjustable high-to-low level subwoofer amplifier Line Output Converter (LOC) with a built-in amplifier remote trigger. This device is designed to convert 2 channels of speaker level audio into 2 channels of line level audio that can be used by car audio amplifiers.

This interface detects an audio signal and generates an amplifier turn on signal based on this, the amplifier turn on signal stays on for 60 seconds after the audio signal disappears. This allows the amplifier to stay turned on between tracks and during moments of silent audio.

Features and Specifications

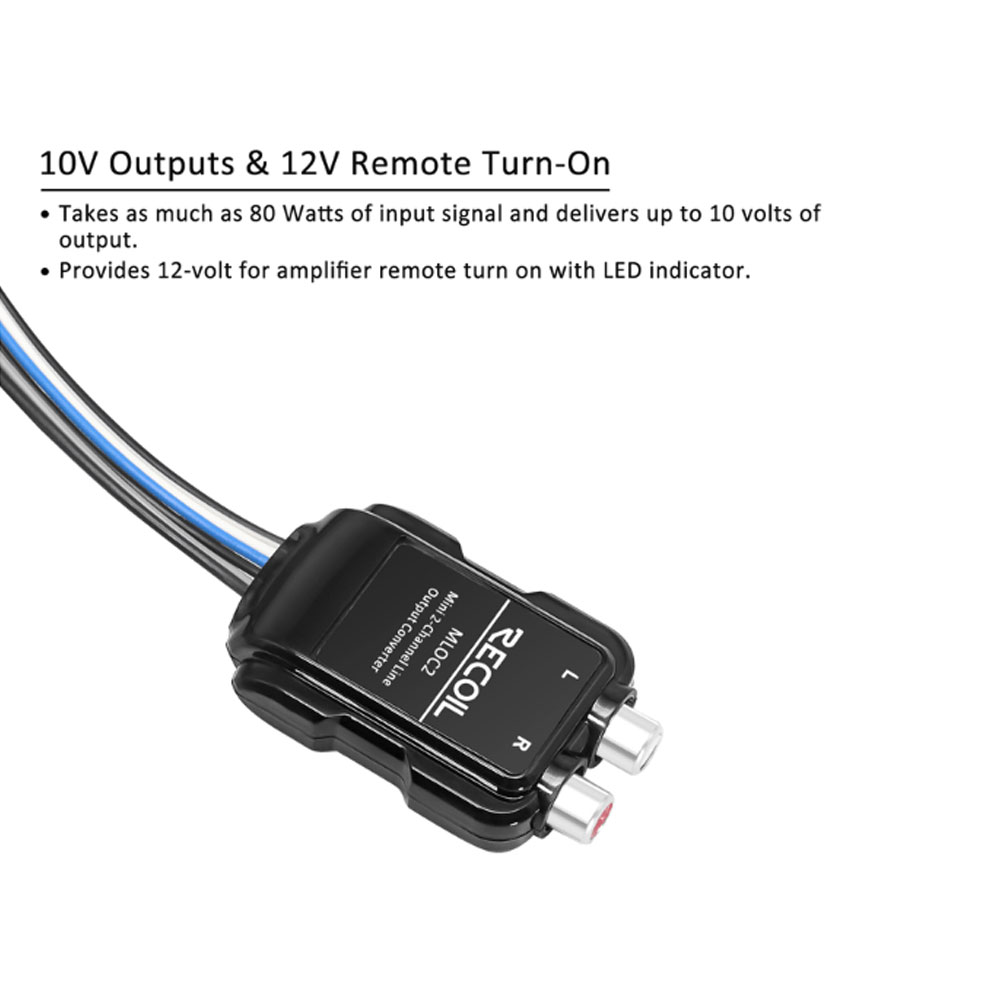

The line output converter is capable of handling 80 watts per channel of continuous input without over heating. The input circuitry is designed to correct the crossover distortion commonly found on standard LOCs while providing a high to low level stepdown of 6:1.

Output audio level is also easily adjustable using the on board high quality potentiometers. The remote output/ amplifier trigger is rated at 500mA (+12V) and can easily handle an outboard relay if additional current is needed.

The remote output will trigger instantaneously when the Line Output Converter (LOC) detects a DC voltage on the White, Left + audio input wire above 5V or a very low audio signal. It will shut off 60 seconds after no signal is detected.

Installation

The LOC should be installed on a stereo's speaker output wires or the output wires on an original OEM factory fitted amplifier of up to 80 watts per channel. These wires can usually be found behind the stereo in the vehicles dash, on the output of an original OEM amplifier, or on the input terminals of the vehicles original speakers.

Please refer to the wiring diagram on the instructions for the input connections.
