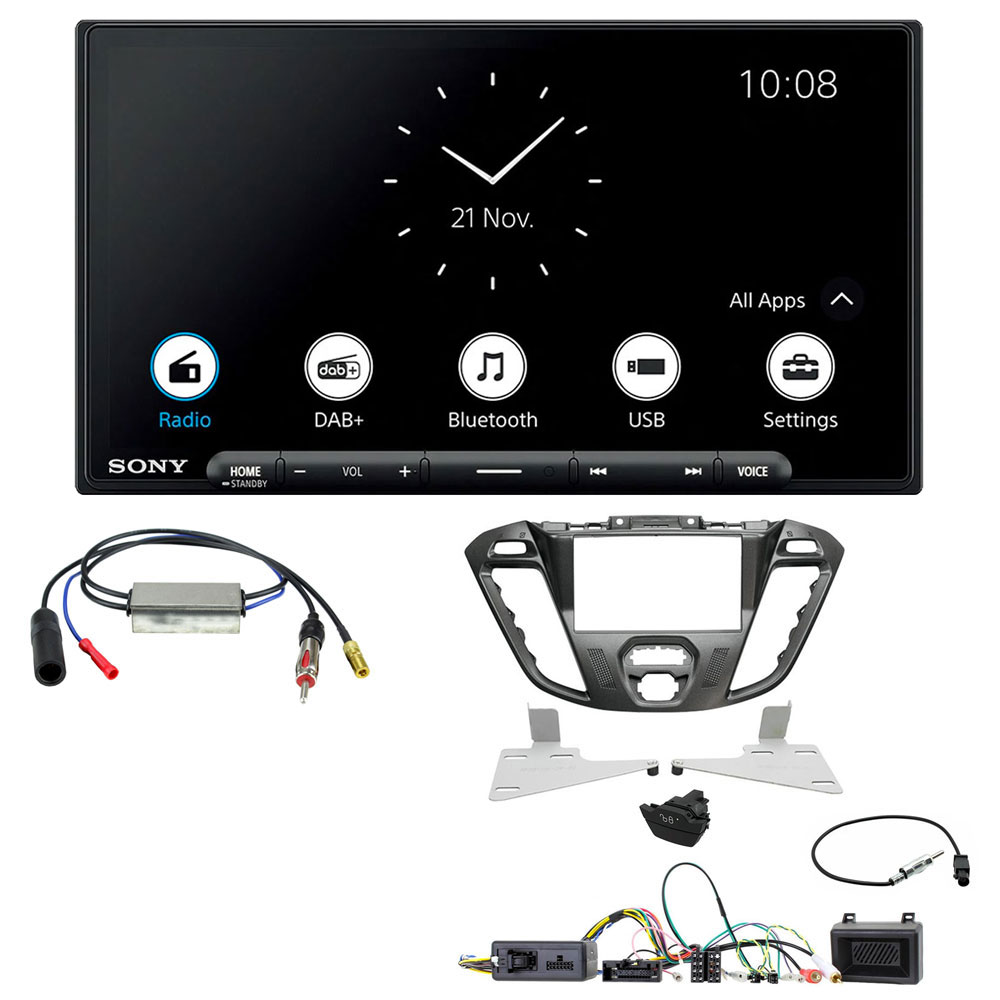

Package Includes

• Sony XAV-AX4050 Wireless Apple CarPlay Bluetooth DAB Android Auto Car Stereo
• Double Din Fascia Adaptor (Pegasus)
• DAB Splitter (Uses Vehicle Antenna For Both DAB And FM Signal)
• CAN BUS Steering wheel Control Adaptor
• Fakra Aerial Adaptor
• Hazard/Door Lock Switch
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

XAV-AX4050

Enjoy smooth and simple control for every journey. An anti-glare 6.95 inch (17.6 cm) touchscreen and interface are designed to give you intuitive control over music, communications and more. With expanded wireless connectivity, plus time alignment and a 14-band EQ, it allows for even more personalisation and provides the perfect in-car audio experience.

Fully Wireless Smartphone Connectivity

Thanks to a Wi-Fi® connection to your smartphone, together with the supplied GPS antenna, you can use voice control to navigate, communicate and play music on the road even with your device in a pocket12.

Enhanced DAB Radio Interface

Enjoy your favourite stations on DAB/DAB+ digital radio for interference-free quality music and entertainment. The newly designed user interface now includes slide shows for album art or program info, depending on your country or region.

Sound Customisation

The built-in DSP offers sound processing and time alignment—down to a remarkable 1 cm for each of the five addressable channels (four speakers and subwoofer via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste. Together with the three-zone crossover, you can arrange the perfect match of front, rear and subwoofers.

LDAC™ For Exceptional Sound Quality

Enjoy the convenience of Bluetooth® wireless audio and exceptional sound quality thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.

Simple Button Controls With Intuitive Design

The new button design features large keys to seamlessly fit with the sleek display. Access volume, source, sound settings and voice control, for safe and easy operation on the road.

Rear View Camera Ready

Got a rear camera installed? You can view its feed through the screen, along with customisable guidelines to help you reverse safely.

Updated User Interface With Customisable Wallpaper

Customise the new ergonomic user interface to suit your car interior or taste, with four preset and two manual wallpaper colour settings.

Easy Installation, With a Compact Rear Chassis

Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation and leaves plenty of room for cables and other accessories in the space behind the display.

Quick Wake Up

With the Quick Wake-up feature, you’re ready to go right after turning on the ignition.

• Anti-glare touchscreen with Quick Wake-up feature
• LDAC™ compatible
• Time alignment and 14-band EQ for pitch-perfect sound customisation
• Build your own system with 3 preouts
• USB Type-C® for 5V / 3A charging power3

Size & Weight

• Dimensions (W X H X D) 178 x 100 x 132 mm
• Weight 0.928 kg

General Features

• Equalizer 14-band Equalizer
• Firmware Upgradability
• Output Power 55W x4
• Pre Out 3 Pre (Front LR / Rear LR / Sub x 1)
• Rear View Camera In Rear
• Time Alignment
• USB (Type-C x 1, REAR)

Tuner Features

• Auto Memory BTM
• Preset FM18/AM12
• RDS / EON (RDS)

Bluetooth Profile

• A2DP (1.3.1)
• AVRCP (1.6.1)
• HFP (1.7.1)
• PBAP (1.1)

Bluetooth Features

• Alphabetical Phonebook Sorting
• Battery Reminder
• Call Volume Level Control
• External Microphone Supplied
• Last Dialed Call (select from the dialed call history)
• Phonebook Access Via PBAP
• Recent Calls (# OF)
• Ring Volume Level Control
• Signal Strength Indication
• Speed Dial (6 memories)

Bluetooth Audio Features

• Audio Codec (Bluetooth Audio) SBC/AAC/LDAC
• Audio Level Adjustment (-6dB to +6dB)
• CUE / REV
• Meta Data Indication
• Pause (Bluetooth Audio)
• Repeat Control (Audio Device Side)
• Shuffle Control (Audio Device Side)
• Track +/-

Panel Design

• Key Illumination (White)

Monitor(AVC)

• Brightness Typ: 600 cd/m2
• Dimmer Auto/Manual select
• LCD Type Transmissive, TN Type
• Resolution (DOT) 800 x 480
• Screen Aspect 16 : 9
• Screen Diagonal (Inch / Cm) 6.95 inches / 17.6 cm

Display Panel

• Dimmer Adjust
• Key Illumination Initial White

User Interface

• Parking Control
• Parking Line Adjust
• Rear View Camera In Marker Setting
• Touch Panel Resistive

USB Mass Storage Device Control Feature

• USB Device Control (Audio Codec) MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
• USB Device Control (Audio Playable File Extension) .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
• USB Device Control (Pause)
• USB Device Control (Repeat) Track/Folder/Drive
• USB Device Control (Resume Play)
• USB Device Control (Shuffle) Off/Folder/Device

Multi-Language

• Caution English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
• Menu English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

Connectivity

• Bluetooth

Whats In The Box

• External Microphone
• GPS Antenna
• Power Supply Leads
• USB Extension Cable(Type-C)
• Warranty Card

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
