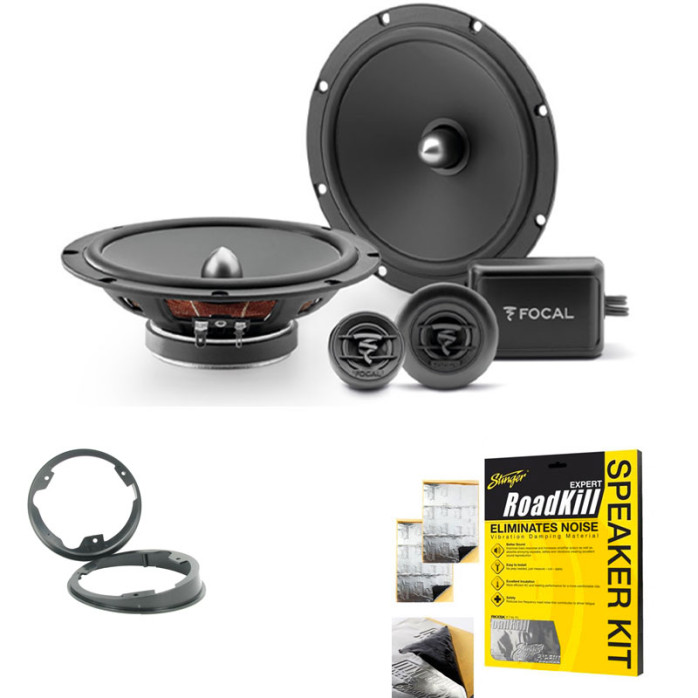

Package Included

•  Focal ASE 165 S 6.5" (16.5cm) 2 Way Shallow Component Car Speaker Kit
• 165mm Speaker Adaptor
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

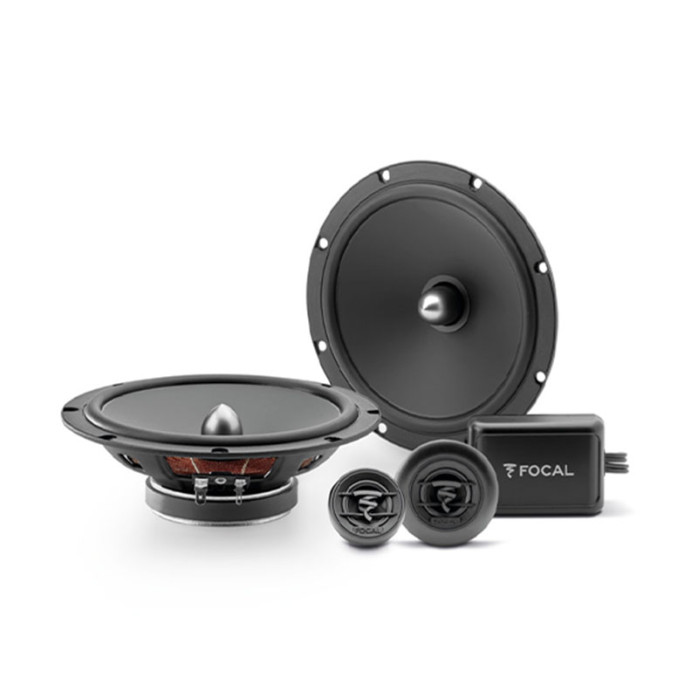

6 1/2” (16,5CM) 2-WAY Component Kit

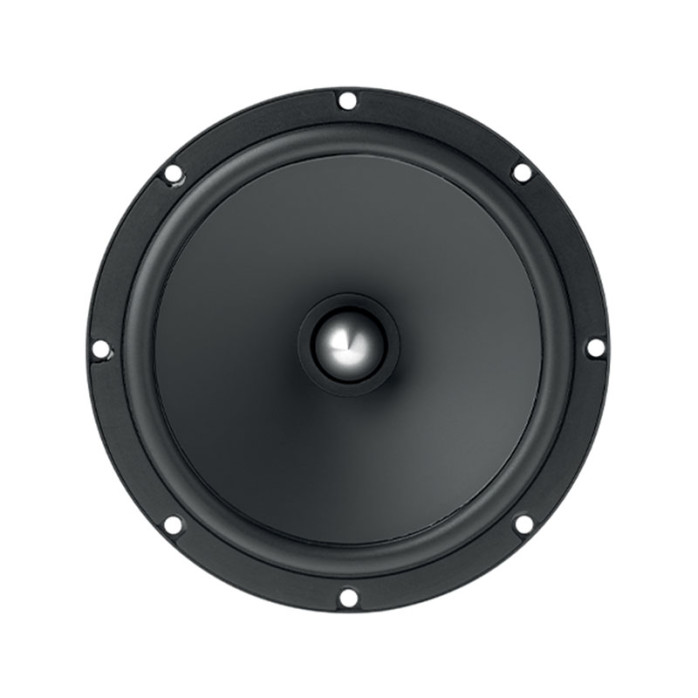

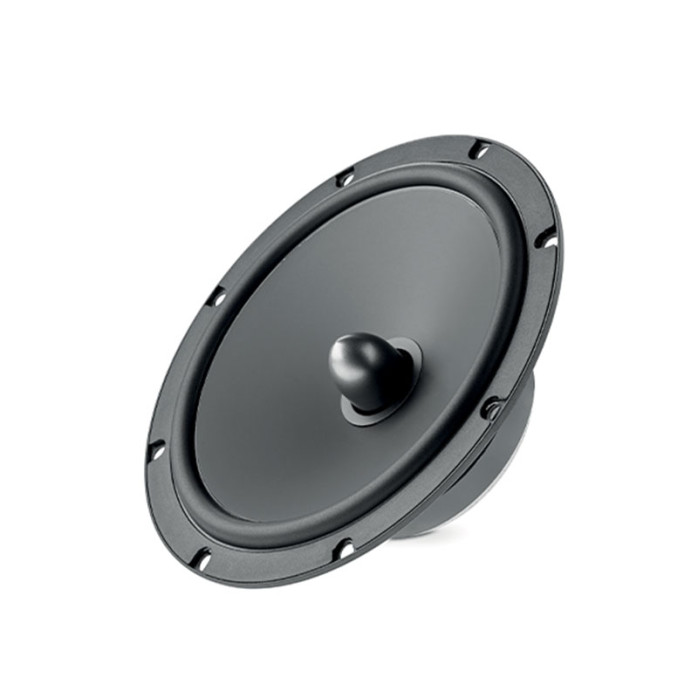

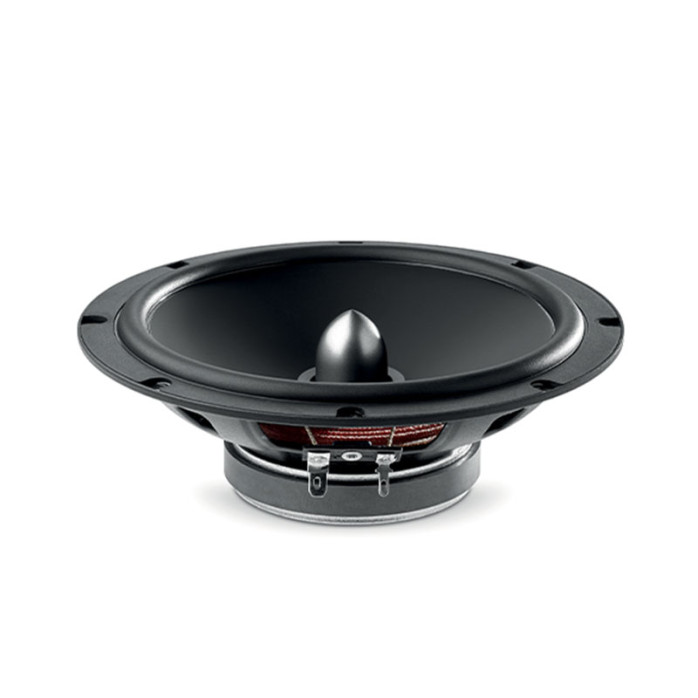

Like all the Auditor kits, the 2-way component kit ASE 165 S delivers neutral and dynamic sound, precise treble and an improved soundstage thanks to its 6 1/2” (16.5cm) woofer with polypropylene cone and its adjustable, inverted dome mylar tweeter.
It has the additional advantage of being shallow – just 1 7/8” (4.8cm) deep – making it easy to install and helping it to disappear into the doors.
Offering plenty of installation options, ASE 165 S can be linked with other electronics or directly connected to the vehicle’s original amplifier. The tweeters can be mounted directly in the A-pillars or positioned in the vehicle's original locations.
The kit's high power handling, combined with high sensitivity, guarantees an unrivalled level of performance in its category. It is perfect for a début Focal system and/or for improving your original sound system.

Focal Technologies

All Auditor products benefit from Focal know-how and expertise: the mylar inverted dome tweeter – a strong marker of the Focal DNA – for precise treble and an improved soundstage; polypropylene cone for a neutral and dynamic sound; butyl surround for impressive resistance; ferrite magnet.

Easy And Multiple Mounting Options

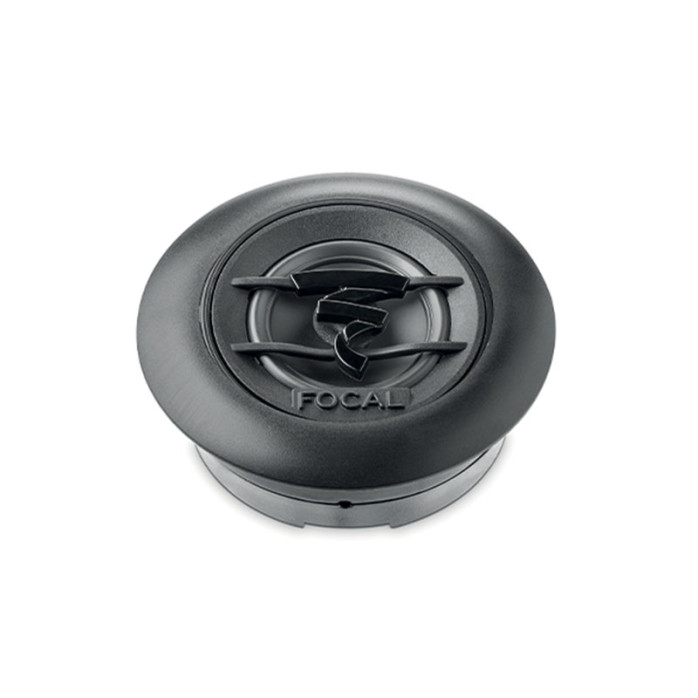

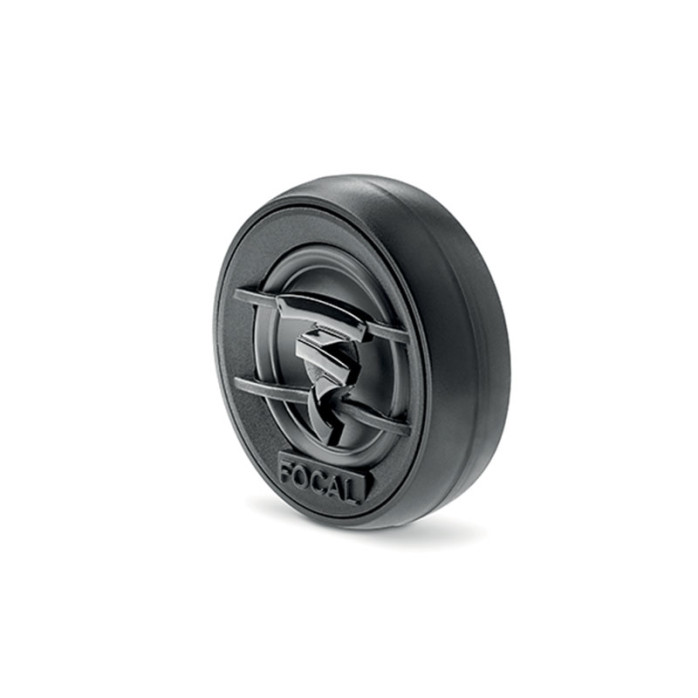

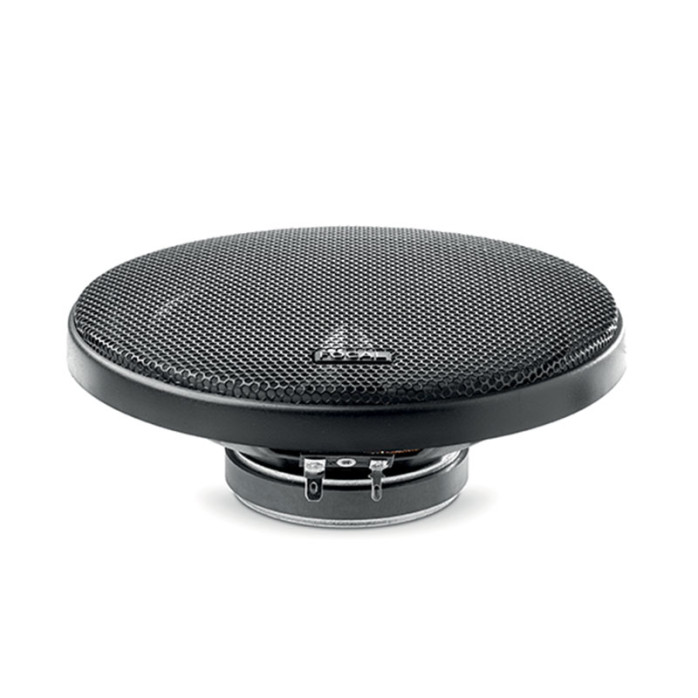

The woofers can be either surface-mounted (grill provided) or installed in the vehicle's original locations. The inverted dome tweeters are delivered with brackets for surface or ‘flush’ mounting. The tweeter can also be removed from its flush support if you want to install it in the original tweeter’s location.

Design

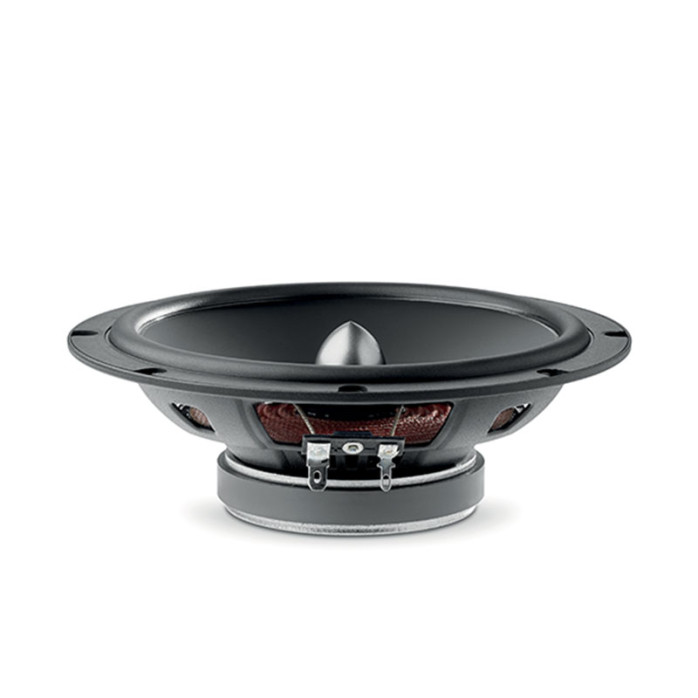

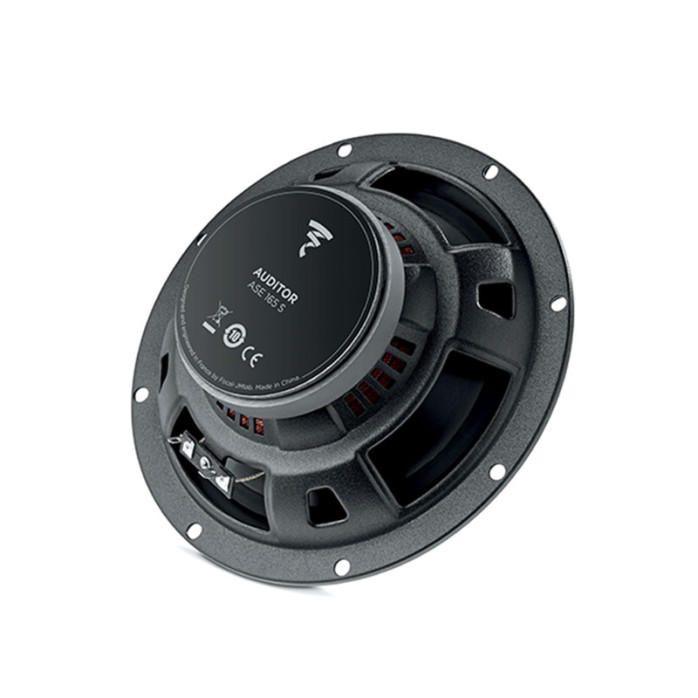

The steel basket of the speaker driver is rigid and durable. The flat grilles supplied, in ABS and Mesh, are just as good-looking as they are inherent in the kit's performance. Finally, the black lacquer finish on the tweeter means it assimilates seamlessly into the cabin of all modern vehicles.

Features

• Type 2-way shallow component kit
• Woofer 165mm
• Depth 48.5mm
• Cone Polypropylene
• Maximum power 110W
• Nominal power 55W RMS
• Sensitivity (2.83V/1m) 91dB
• Frequency response 60Hz - 21kHz
• Impedance 4 Ω
• Voice-coil diameter 25mm
• Magnet Ferrite
• Suspension Butyl
• Tweeter Inverted dome tweeter

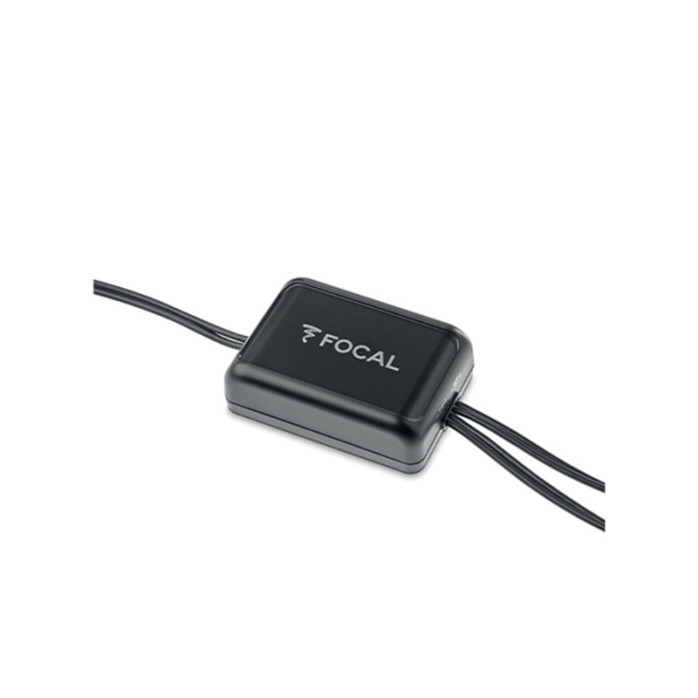

• Crossover Crossover box

Specifications

• Nominal power 70W
• Maximum power 140W
• Sensitivity 93dB
• Nom. impedance 4 Ω
• Frequency response 60Hz-21kHz
• Cone Polypropylene
• Surround Butyl
• VC diameter 25mm 1"
• Net weight 750g

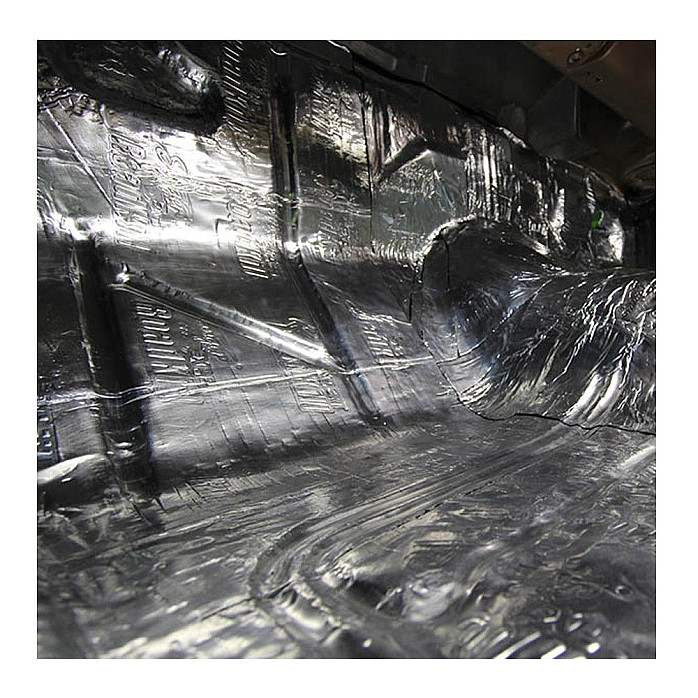

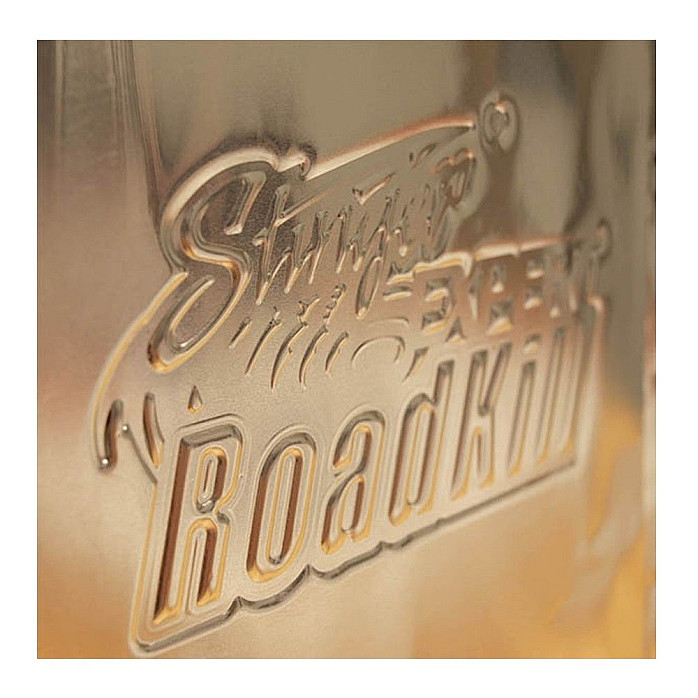

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
