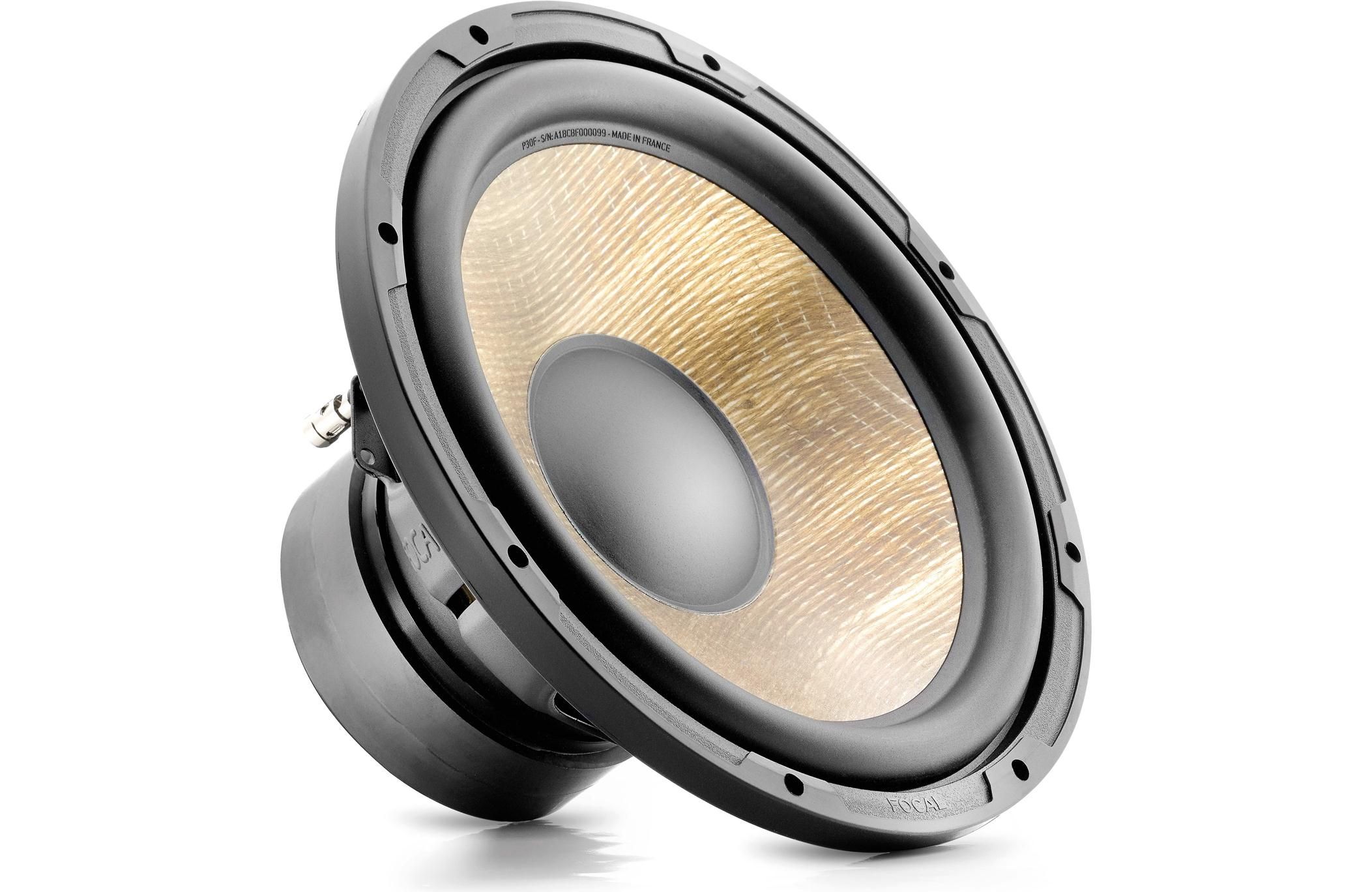

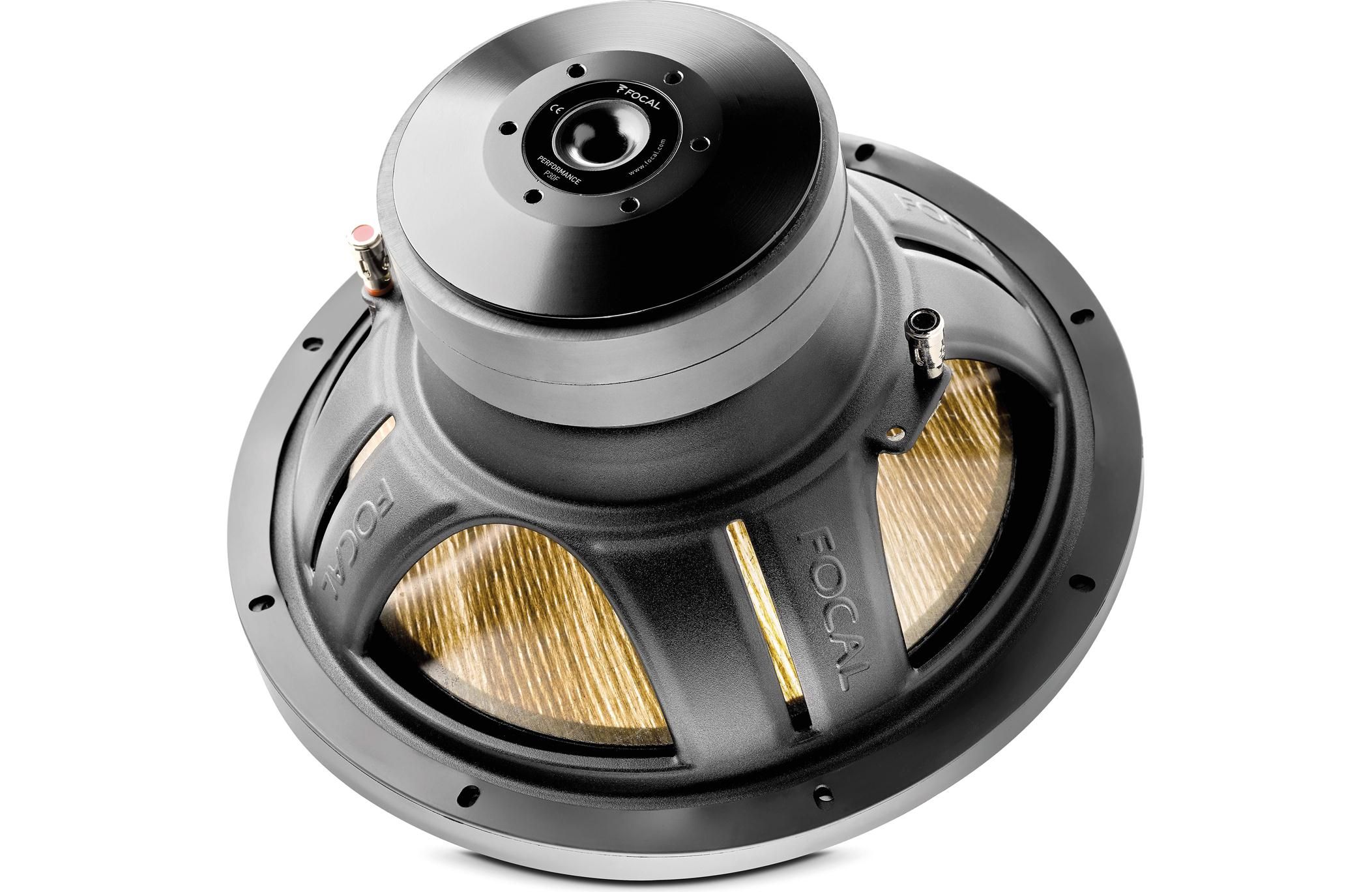

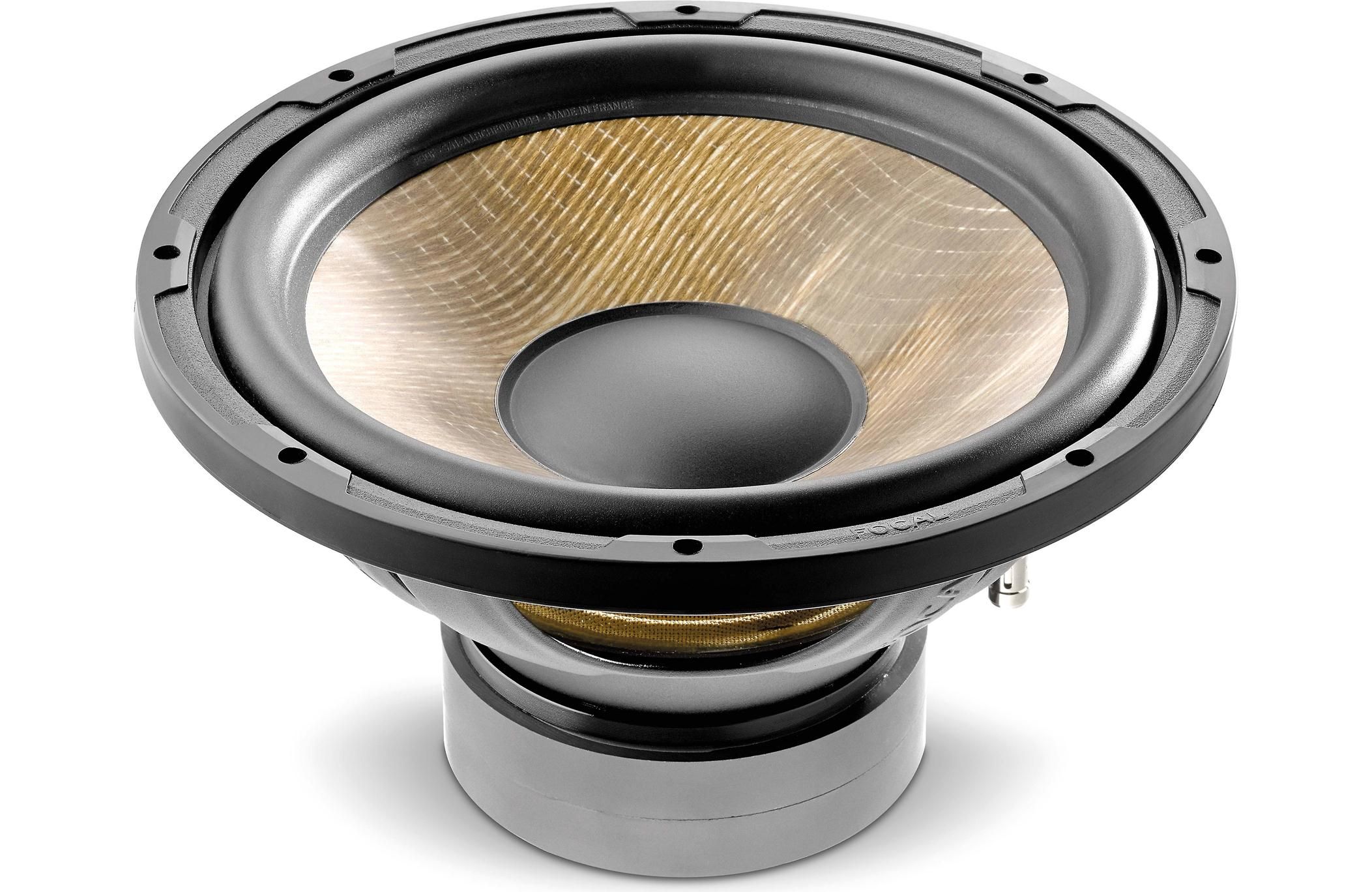

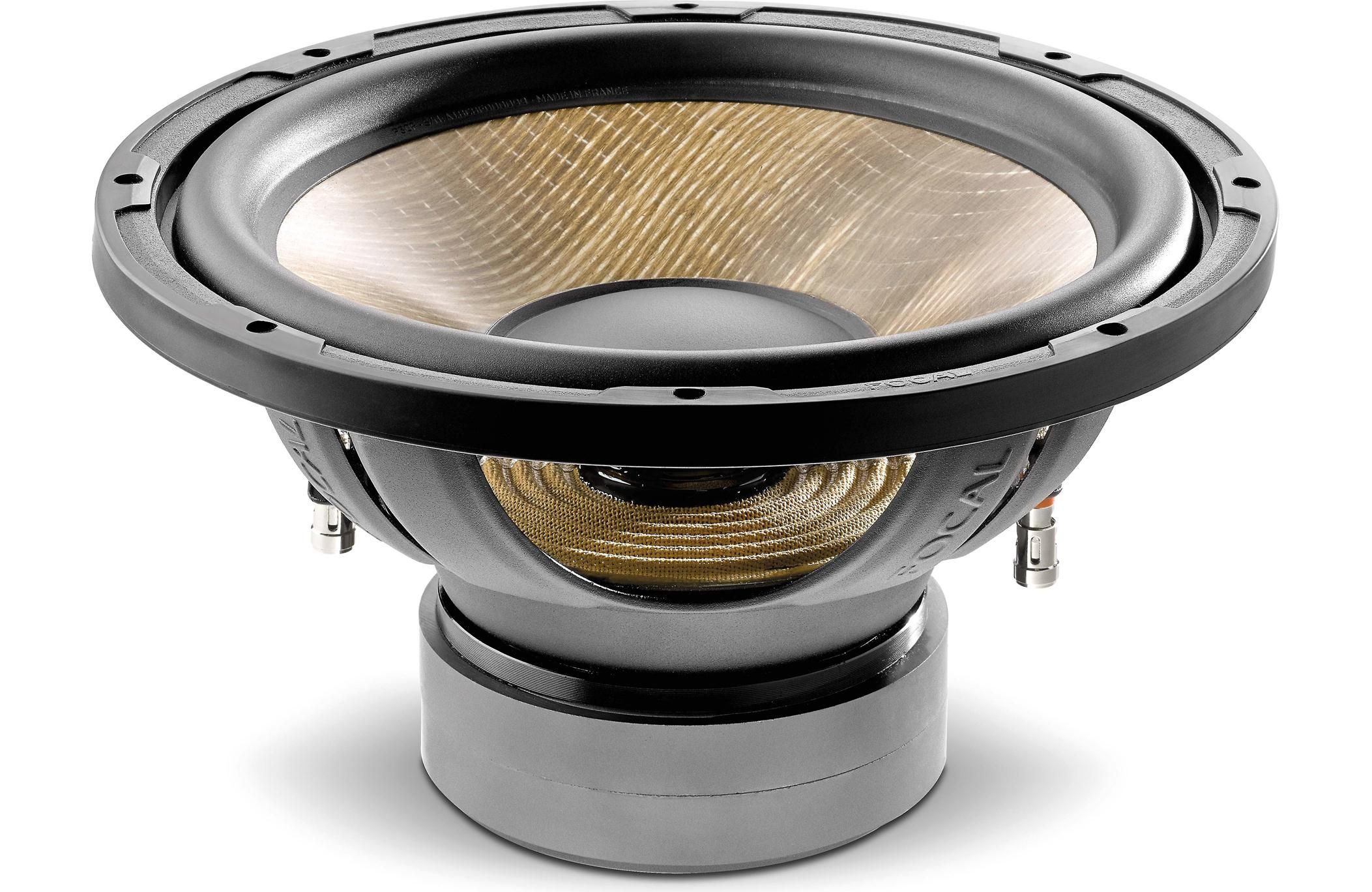

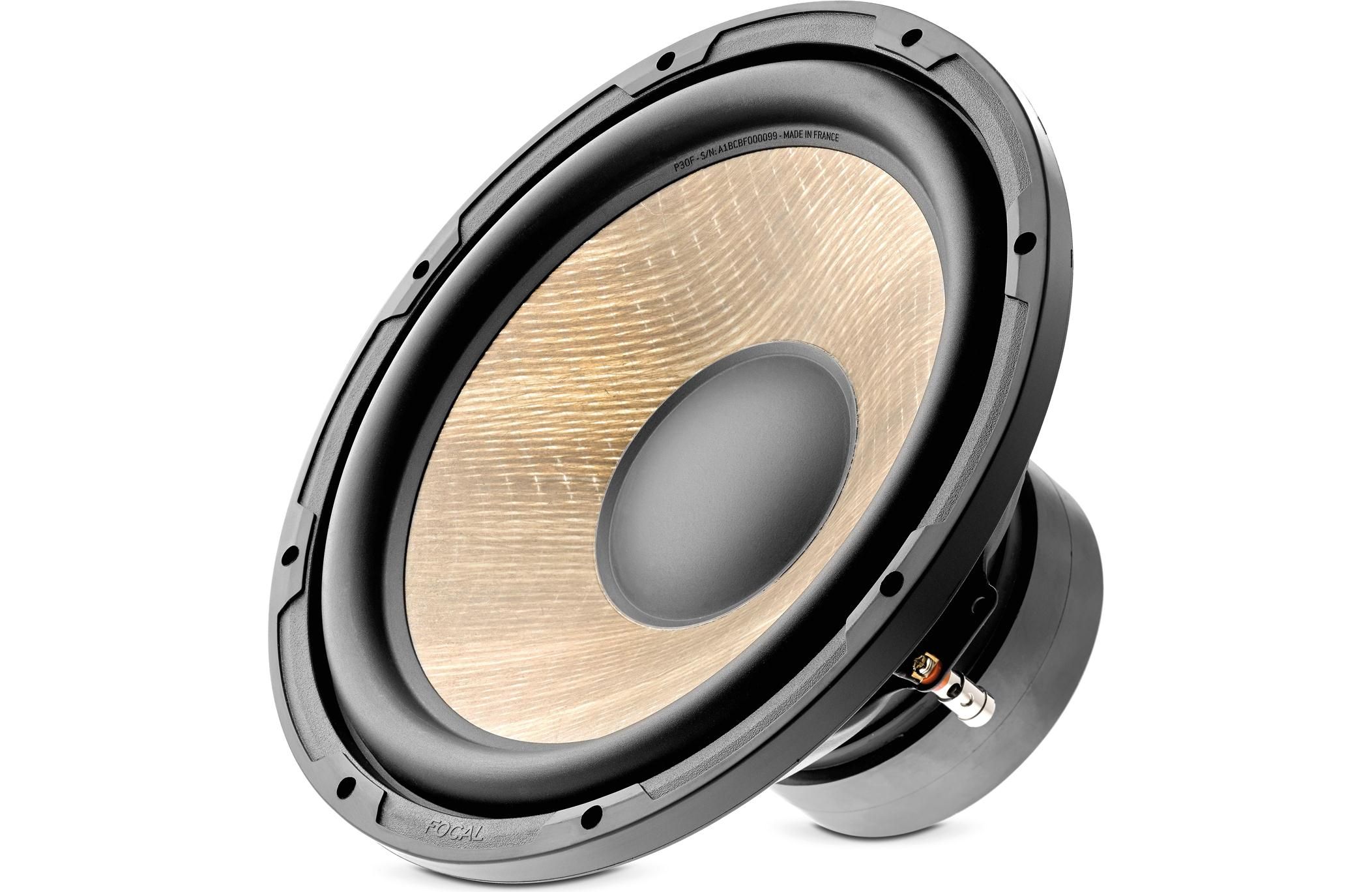

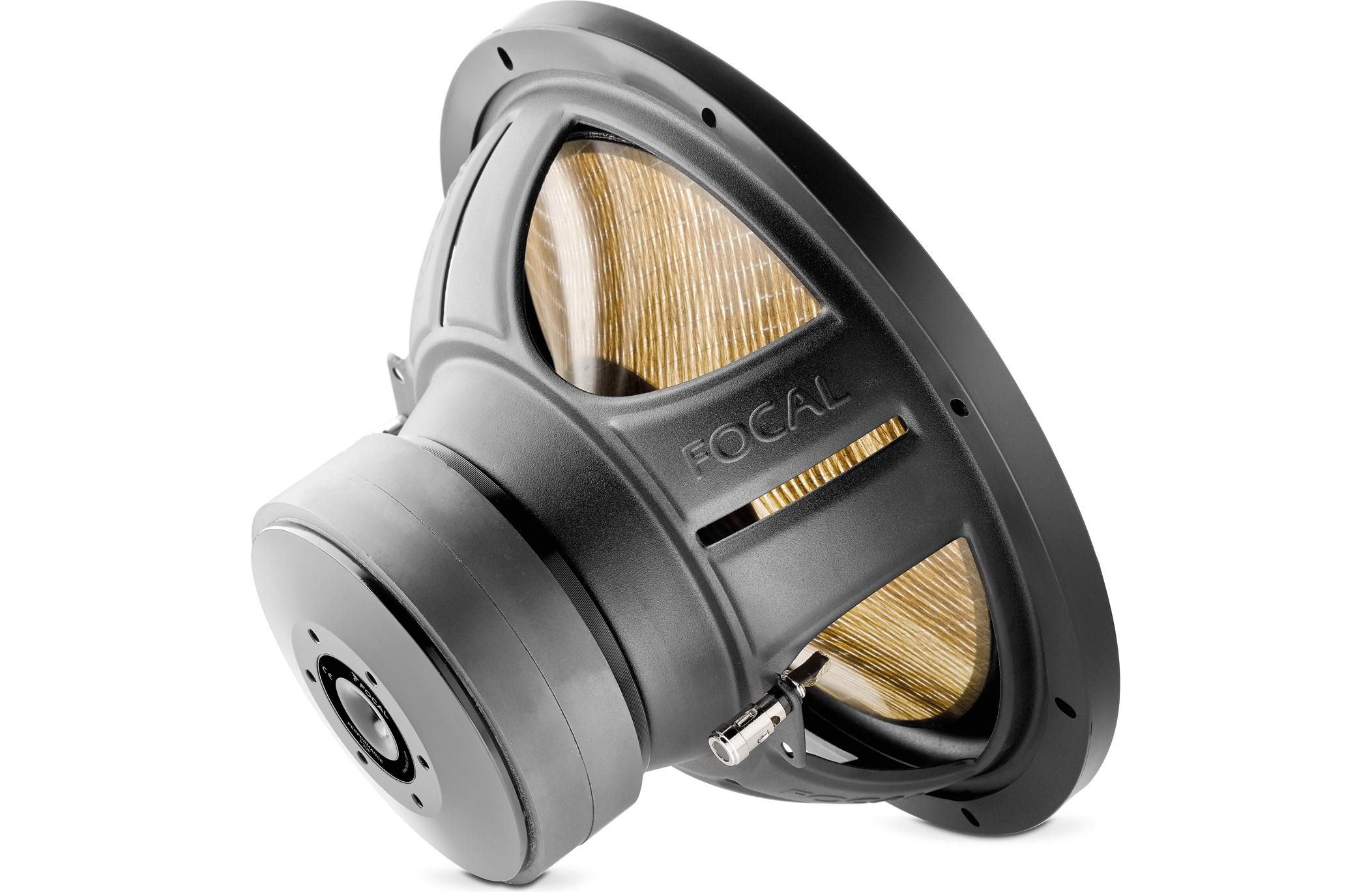

200MM / 500W SUBWOOFER

The P 20 FE subwoofer is equipped with Focal's exclusive Flax cone which guarantees high rigidity and therefore bass reproduction with impact.

Robust and reliable, its shaped rubber surround allows impressive articulation, synonymous with dense and deep low frequencies. The coil on glass fibre stand, meanwhile, reduces overheating to guarantee perfectly adapted ventilation. Finally, the 120mm “Dual Magnet” motor offers even more power (500 watts/250 watts RMS).

P 20 FE is the ideal compromise for sealed-box (10 to 15L) or bass-reflex use (10 to 20L).

Key Points

• Unique, patented Flax cone
• "Dual Magnet" motor
• Made in France in the Focal workshops
• Power and precision

The Flax Cone, Expressive And Natural

This flax cone has been exclusively made in France by Focal since 2013. With its original design, it is 100% geared towards acoustic performance. This sandwich cone is formed of a flax fibre core placed between two thin sheets of glass fibre. Flax is a fibre with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, while its rigidity sustains the bass and provides good damping to deliver a faithful listening experience. Flax fibre is twice as light as glass fibre as it is hollow. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.

Features

• Subwoofer 8" (200mm)
• Magnet 43/4 x 11/4" (120x32mm)
• Cone Flax sandwich
• Surround Rubber
• Max. power 500W
• Nom. power 250W RMS
• Sensitivity (2.83V/1m) 82,5dB
• Impedance 4Ω

Specifications

• Nominal power 250W RMS
• Maximum power 500W
• Sensitivity (2.83V/1m) 82.5dB
• Cone Flax®
• Surround Rubber
• Nom. impedance 4 Ohms
• DC resistance 3.4 Ohms
• VC diameter 38mm 11/2"
• VC height 28mm 11/8"
• Former Glass Fiber
• Layers 4
• Wire Copper
• Inductance 1.7mH
• Xmax 10mm 03/8"
• Magnet dxh (mm) 120 x 32mm 43/4" x 11/4"
• Flux density 0.75T
• Gap height 8mm 05/16"
• Net weight 3.5kg 6.6lbs
