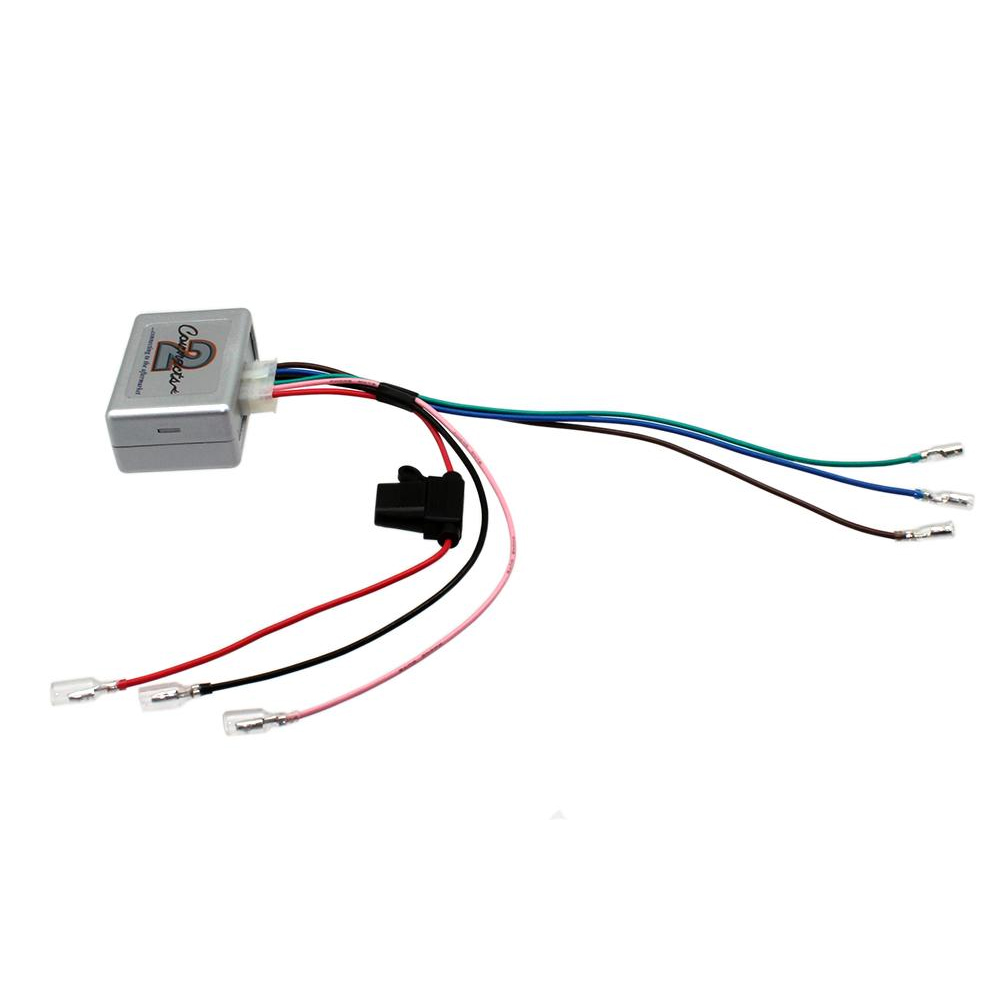

Connects2 CT54-04 Voltage Dropper

24V- 12V Voltage Dropper - Converts ignition and permanent feeds. Switch mode power supply. 10 Amp continuous. Input voltage 18V - 30V. Output voltage 12V. Standby current <17mA. Conversion efficiency min 90% max 95%.

Specifications

• Power Input Voltage 18V - 30V
• Output Voltage 13V (+/- 0.1V)
• Remote Input on Voltage 18V - 30V
• Remote Output on Voltage 13V (+/- 0.1V)
• Output Current - Continuous 10A
• Output Current - Maximum 12A
• Standby Current <17mA
• Efficiency 90% 95%
• Operating Temperature -40°C ~ +85°C

Features & Benefits

• Ideal for installing products with lower voltage into commercial vehicle systems
• Multiple uses. Install head units, bluetooth kits, navigation, fleet management, trackers & security/alarms

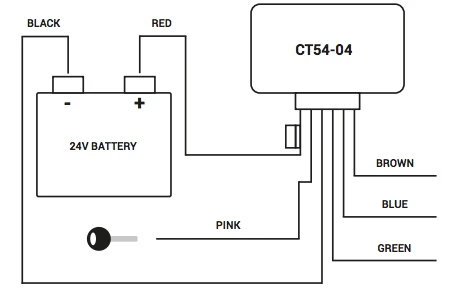

Wiring on CT54-04 Harness

• BLACK - Connect to source of input Ground (24V)
• RED - Connect to source of input Battery Live (24V)
• PINK - Connect to source of input Ignition (24V)
• BROWN - Connect to source of output Permanent (12V)
• BLUE - Connect to source of output Ground (12V)
• GREEN - Connect to source of output ACC (12V)
