CAM-MZ4 Boot Handle Car Reverse Camera

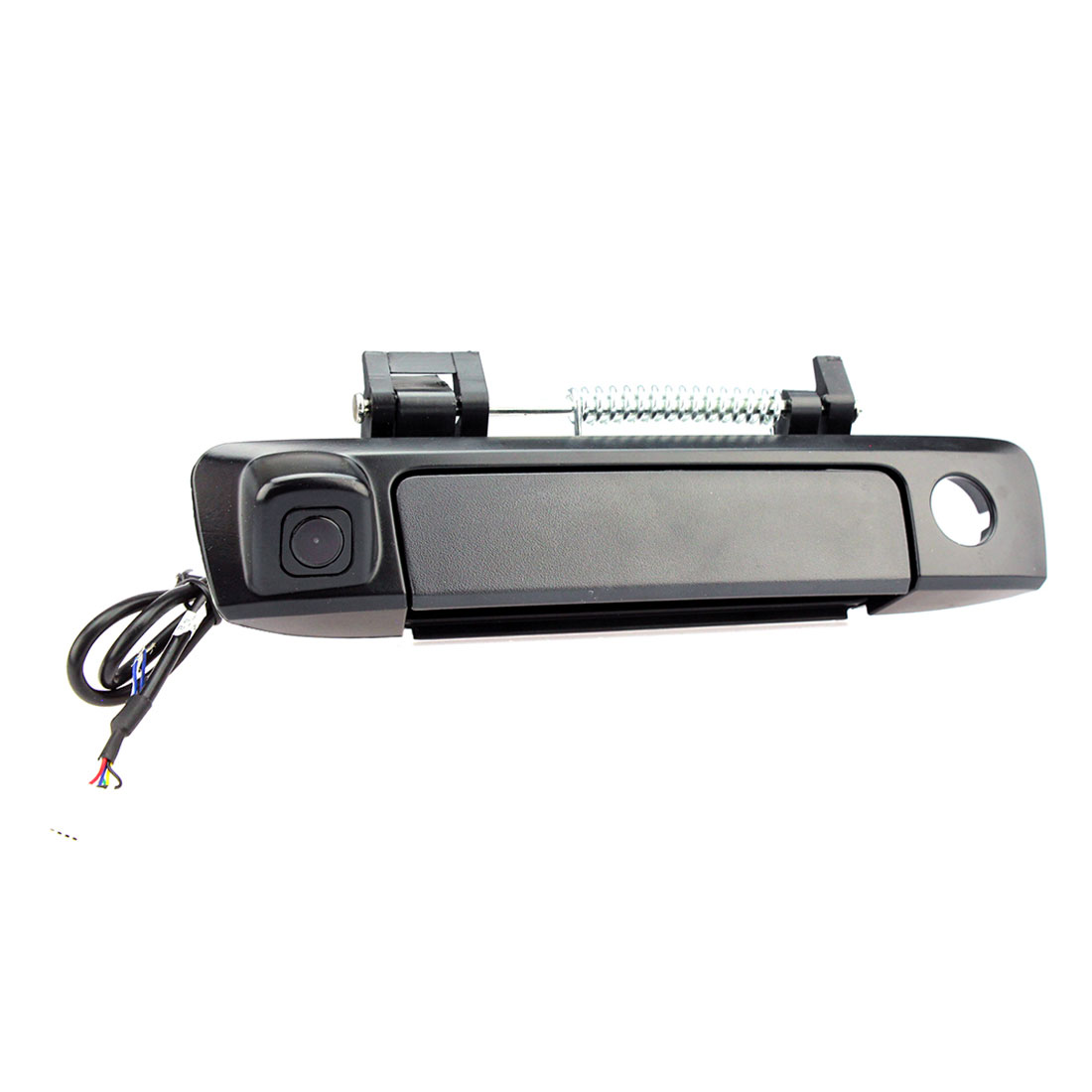

The CAM-MZ4 is a Replacement Boot Handle Reverse Camera for the 2012 to 2016 Mazda BT-50. The unit replaces the vehicles original boot handle with a camera built into the housing. The CAM-MZ4 features a CMOS image sensor, 640 x 480 resolution and 170 degree viewing angle, this combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.

Specifications:

• CMOS Image Sensor
• 640 x 480 Resolution
• Max Relative Aperture: 2.2 (+/- 5%)
• Fixed Iris Lens Construction: 3 elements + 1 IR filter
• Field Of View: D = 168 Degrees, H = 136 Degrees, V = 100 Degrees
• Hard/Anti-Fog/IR-Cut Coating
• NTSC/PAL Compatible
• Video Output: 1.0V p-p 75ohm
• Minimum Illumination: 0.1 Lux
• Parking Lines Displayed
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 33mA @ 13.8V
• Operating Temperature: -20 Degrees C to +70 Degrees C
• Enhanced Performance in Low Light
• Waterproof Rating: IP68
