BLAM BL-690RS (6" X 9") 2-Way Component Car Speakers (PAIR)
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 1
- Brand: BLAM
- Model: BL-690RS
- EAN: 7427282723077
- Warranty: 2 Years Warranty
Description
Product Compatibility Chart
| Make | Model | Years | Notes |
| Isuzu | D-Max | 2020 onward | 2nd Gen (RT50) Facelift |
| Isuzu | MU-X | 2020 onward | (Facelift) |
| Lexus | RX | 2003 - 2009 | 2nd Gen (XU30) |
| Mazda | BT-50 | 2020 onward | (3rd Gen) TF |
| Nissan | Rogue | 2008 - 2011 |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.

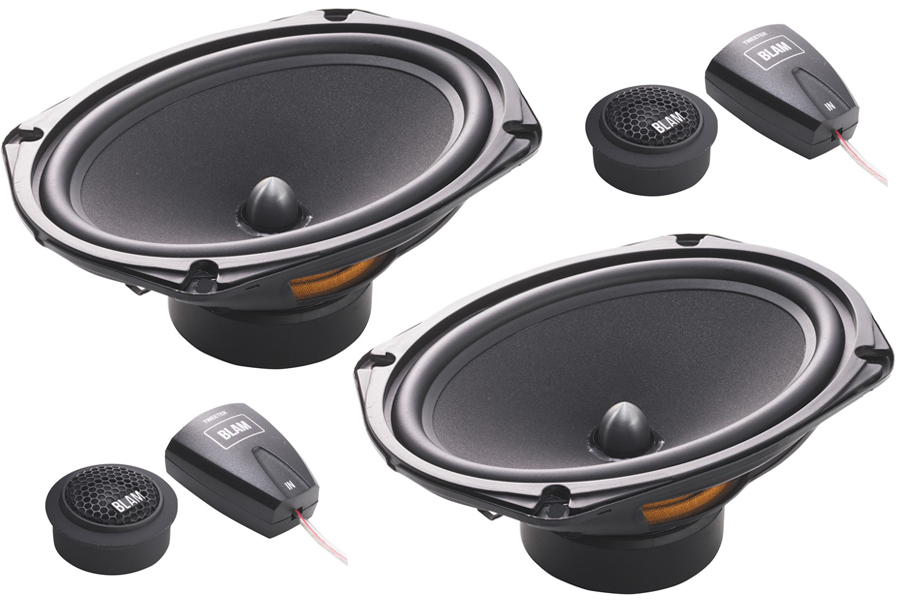

A pair of premium high-end BLAM 690RS (6 X 9 INCH) 2-Way component speakers.
System includes two 6»x9» woofers, 2 tweeters with flush-and surface-mount hardware included, and 2 external in-line 6 dB/Oct. high-pass crossovers with adjustable tweeter level 0 Db or -3 dB
- Max power 150 W – Nom. Power 75W
- Frequency response: 55 Hz- 28 kHz
- Sensitivity 93 dB – Impedance 2 O
Woofer featuring a high-quality coated cellulose pulp membrane, combined with peripheral butyl suspension. The generous size of the magnet (85x17mm) contributes to the speaker gaining very high efficiency and a high-power handling. The 2O voice coil doubles the power of all OEM car radios. 20 mm (3/4”) silk dome tweeter features an ultra-powerful neodymium motor, a soft dome and a very lightweight voice coil due to the use of copper-aluminium alloy (CCAW) wire for hi-efficiency (25 mm (1’’) silk dome tweeter on 690RC).
Technical Specifications
- Component Speakers
- Max power 150 W
- Nominal power 75 W
- Impedance 2 Ω
- Freq. Response 60 Hz - 20 KHz
- Sensitivity (2,83V/1m) 93 dB
- Magnet Ferrite
- Magnet size Ø x h 85 x 17 mm 3,35“x 0,67“
- Total driver displacement 0,3 l 0,011 cf
- Weight of one component 2,315 lb
- Voice coil Ø 25 mm 0,984“
- Voice coil height 11 mm 0,433“
- Cone Coated cellulose pulp
