High-sensitivity 2ohm, 2-way component system

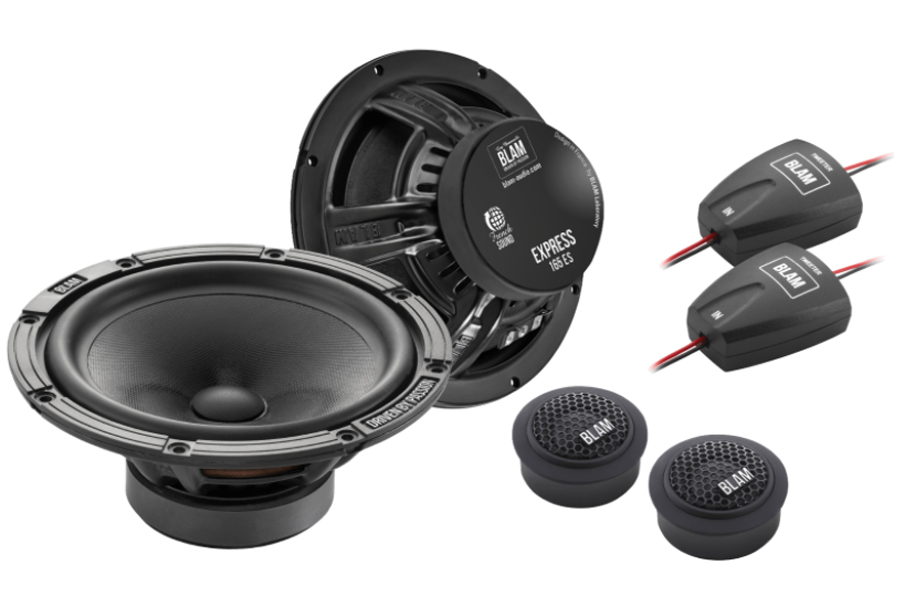

This kit is composed of two 165 mm (6.5”) woofers, two 20 mm (3/4”) soft dome tweeters and two separated high pass 6dB/octave crossovers

• High-sensitivity 2-way component system
• Max power 120 W – Nominal power 60 W
• Frequency response 65 Hz – 25 kHz
• Sensitivity 93.5 dB – Impedance 2 ohms

Composition

• 2 Woofers:
• Specific basket in stamped steel
• Treated and tropicalized cellulose pulp cone
• Butyl rubber surround
• Long life “Conex” damper
• 25 mm (1’’) voice coil with kapton former
• 80 mm x 15 mm (3.1’’ x 0.6’’) motor assembly (Y30)
• Thick magnetic circuit (5 mm)
• 20 mm (3/4’’) high quality soft dome tweeter
• N38 neodymium motor
• 6 dB/octave high-pass separated crossover

Supplied Accessories:

• Mounting screws
• User’s manual

Technical Specifications

• Component Speakers
• Max power 120 W
• Nominal power 60 W
• Impedance 2 Ω
• Freq. Response 65 Hz - 8 KHz
• Sensitivity (2,83V/1m) 93.3 dB
• Magnet Ferrite
• Magnet size Ø x h 80 x 15 mm 3.150“x 0.591“
• Total driver displacement 0.2 l 0.007 cf
• Weight of one component 0.86 kg 1.896 lb
• Voice coil Ø 25 mm 0.984“
• Voice coil height 10.6 mm 0.417“
• Cone Cellulose pulp
