Zenec ZE-NC2040 OEM Car Sat Navigation Multimedia for Volkswagen/Audi/Seat

VW Golf IV, Passat, Bora, Polo, Sharan, Audi A4 (B6), A6 (C5), Seat Ibiza, Leon, Cordoba (6L), Toledo (1M), Alhambra

E>GO naviceiver - 100 % custom-fit

Navigation, entertainment, communication – the ZE-NC2040 naviceiver is a complex navigation and multimedia system with a large range of features. ZENEC‘s new top-of-the-line model fits together visually with all automobiles belonging to the VW Golf IV line – for example with the VW Golf IV, VW Passat, VW Bora, VW Polo and VW Sharan.

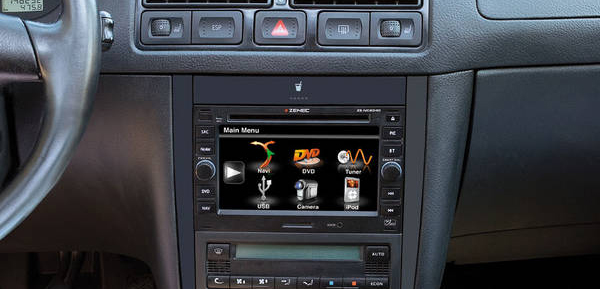

The red button illumination and the customized design of the front panel makes the E>GO not only perfect for the respective look of the car interior, but the E>GO is also effortlessly integrated into the existing automotive electronics. ZE-NC2040 can be installed into the original dash board of the above named automobiles without further modifications and without any additional adapters: simply take out the factory radio, put in the E>GO and drive off.

ZENEC E>GO – ingeniously easy, visually perfect.

When it comes to the top-of-the-line naviceiver equipment, all wishes have been fulfilled: The built-in CD/DVD drive plays all the current A/V formats. The electrical and mechanical anti-shock system provides for perfect image and sound fidelity during the ride. In addition to an RDS tuner for the best radio reception, the ZE-NC2040 is also equipped with an integrated digital power amplifier (4 x 50 watts) and a Dolby digital decoder.

The integrated navigation system of the ZE-NC2040 is absolutely upper class: maps covering 43 European countries, TMC and TMC Pro receivers, tunnel mode, lane assistant, 3-D landscape/city map views or the highway split screen display mode with real signpost rendering (display of the highway signs on the map) – these features underline the high standard with which the top-of-the-line ZENEC E>GO navigates.

The ZE-NC2040 is equipped with an advanced CK5050+ Bluetooth system from Parrot. This makes playing music from a mobile phone and making phone calls in the car as simple as child‘s play.

The E>GO has a USB-Port and a SD/SDHC card reader so music, movies, multimedia files or photos can be easily played back. The card slot is easily accessible on the front and is useable for SD and SDHC cards up to 8 GB of memory.

The 16.5cm / 6.5" touchscreen display is top quality: A non-reflecting TFT LCD panel with LED backlight delivers sharp, brilliant and high-contrast pictures – even with poor lighting conditions. All of the functions can be comfortably controlled using the touch sensitive panel. A Dual-Main-GUI (graphic user interface) with two main planes and large display icons make sure that the E>GO can be unerringly operated during the ride.

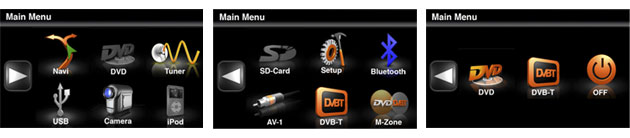

The main GUI

Simple and totally straightforward operation has been one of the most critical points taken into account when this naviceiver line up was developed. The graphic user interface (GUI) is well structured and for best usuability, it has been separated in two main GUI start pages. The often cited “intuitive operation” has a really new meaning when it comes to the ZE-NC2010.

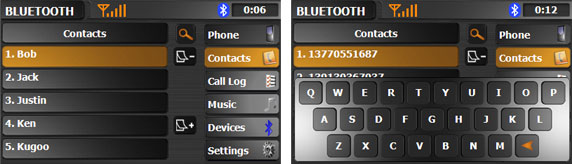

The Bluetooth interface

The ZE-NC2040 is equipped with an advanced CK5050+ Bluetooth system from Parrot. This makes playing music from a mobile phone and making phone calls in the car as simple as child‘s play.

Make phone calls and play music from your mobile phone: ZENEC‘s naviceiver will establish interconnection with most convenient operation of a Bluetooth compatible mobile phone from a ZE-NC2040 control possible. You do not need any installation kits, fixtures, cables, or even additional speakers in the vehicle‘s interior.

Audio streaming

In addition to the hands-free application, audio files from a mobile phone can be read-out (audio streaming via A2DP with AVRCP-profile) and played back in superb quality through the car‘s speakers and operated by touchscreen.

Convenient hands-free talking

The new Parrot Bluetooth module marks an improvement in mobile communication: advanced signal processing technology, the so called Parrot Beamforming, is provided through a multi-directional, freely positionable microphone which is easily attached to the A-column. With this technology, all surrounding noises and echo effects are eliminated so that the voice is clearer. In cases where an externally mounted microphone is no option, an internal microphone is provided as well.

Hands-Free during the drive – the caller number, phone book entries and other information is clearly shown on the ZE-NC2040 display. The address book of the naviceiver is automatically synchronized with the mobile phone. The Parrot module enables an alphanumeric sorting of phone book entries with an additional search function – a feature that guarantees ease in finding phone book entries, especially for professional use.

Additional Bluetooth features

redialing
switch between hands-free and mobile phone to continue a call via mobile if necessary
memory for dialed and received calls
connection of up to 5 mobile phones, management and hosting of up to 1000 phone book entries
search function using initials

Always up-to-date

The Bluetooth component firmware from ZE-NC2040 can be conveniently updated using a USB stick, for example if you would like to use a new mobile phone model or business phone in the car. The palette of compatible mobile telephones can be expanded at any time – with the ZE-NC2040 you are always up-to-date.

The GPS navigation

Navigate unerringly via touchscreen in all of western and eastern Europe – with its integrated navigation system, the naviceiver ZE-NC2040 reliably shows you the way in more than 43 countries. Due to the 400 MHz CPU (128 MB SD RAM) and the customized Nav-Engine software iGO8, the route calculation is very fast.

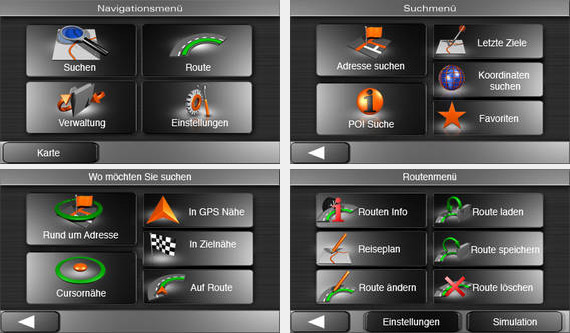

Searching the destination

Enter the desired destination thereby choosing between the various destination and route entries – through address, ZIP/postal code, POI, saved/last found destinations. etc. – and you are ready to go. Your electronic copilot guides you to your destination without detours and shows you, if you so wish, relevant points such as gas stations, hotels, restaurants, parking lots, etc.

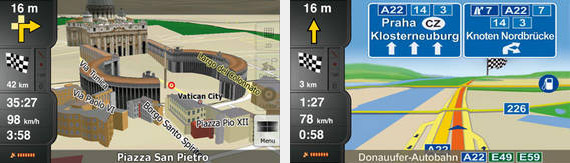

Map display

Unmistakable navigation is ensured through a clear graphic map display, where various scales and view modes are available in 2-D and 3-D, as well as precise voice guidance (in 28 languages) and an easily understandable GUI display (also in 28 languages).

The automatic zoom at intersections or traffic circles makes sure that there is no confusion even at difficult locations. Tunnel mode and lane assistant plus the 3-D landscape or 3-D city map views (with buildings, places of interest, and city maps) simplify the navigation just as well as the highway split screen mode with real signpost rendering (the display of signs in real-time on the map).

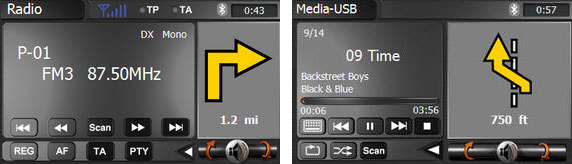

Splitscreen mode

A special feature deployed is the so called split screen mode. Whatever source you are listening to, like radio or music from other audio sources: with the touch of one finger you can activate the split screen mode to see turn arrow and distance information in the right hand pane of the main screen, to never miss an exit or a crossing.

Map-Updates via Naviextras

Naviextras is the online Portal for map updates and additional features for ZENEC naviceiver models and external ZENEC navigation devices.

In the PDF below you can find important information on the Naviextras services:

Conneting USB and iPhone/iPod

Especially practical: USB-Port with iPod connection and plug 3.5 mm A/V port are in the included, very compact media-link box. With the help of this box (1.5 m cable extension), which can be easily placed in the center console or in the glove compartment, you can quickly connect and disconnect additional components.

E>GO compatible cars

The ZE-NC2040 fits to the following cars. Please read the following information:

ZE-NC2040 is delivered without CAN/Stalk interface. To operate the steering wheel remote control with the ZE-NC2040,optional CAN/Stalk interfaces can be purchased separately.
Due to technical reasons, the ZE-NC2040 is not designed or suited to support the MFD+ (multi function display).
Vehicle must either feature a 2-DIN radio mounting slot, or else it must provide the option to be retrofitted with it.
ZE-NC2040 is delivered with a standard ISO harness in the set content. Cars equipped with Quadlock connectors require an optional adapter (that must be purchased separately).

• VW Golf IV 1997 - 2003   VW Golf IV Variant 1999 - 05/2006
• VW Passat 2001 - 03/2005   VW Passat Variant 2001 - 08/2005
• VW Bora 09/1998 - 01/2005   VW Bora Variant 1999 - 05/2006
• VW Polo 05/2005 - 06/2009   VW Sharan 1998 - 2008
• AUDI A4 (B6) 2000 - 02/2004   AUDI A6 (C5) 1997 - 02/2004
• SEAT Ibiza (6L) 2002 - 2008   SEAT Leon (1M) 1999 - 2005
• SEAT Cordoba (6L) 2002 -2008   SEAT Toledo (1M) 1999 - 2004
• SEAT Alhambra 1996 - 2008

Zenec ZE-NC2040 Features CD/DVD:

• Playback of CD, CD-R/RW, MP3, WMA, DVD, DVD±R/RW, DVD-MP3, DivX6, VCD, SVCD, AVI, JPEG, Picture CD
• Regional Code 2
• Integrated Dolby Digital decoder
• Electronic (ESP) and mechanical anti-shock system
• Last-playback-memory function

Zenec ZE-NC2040 LCD monitor:

• 16.5cm/6.5" 16:9 LCD display with touchscreen-control
• Anti-glare coated display
• High brightness 450 cd/m2
• High resolution 1440 x 234 (336960 Pixel)
• Extended viewing angle left/right > 60°/ up > 30°/ down > 60°

Zenec ZE-NC2040 RDS-tuner:

• Radio data system (RDS)
• FM/AM-tuner
• 30 preset stations (18 FM/12 AM)
• Best stations memory (BSM)

Zenec ZE-NC2040 GPS-Navigations System:

• iGO8 navigation software and pre-installed map data for 43 Eastern and Western European countries
• Western Europe: Andorra, Austria, Belgium, Denmark, Finland, France, Germany, Gibraltar, Ireland, Italy, Liechtenstein, Luxembourg, Monaco, Netherlands, Norway, Portugal, San Marino, Spain, Sweden, Switzerland, United Kingdom, Vatican
• Eastern Europe: Albania, Belarus, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Greece, Hungary, Latvia, Lithuania, Macedonia, Montenegro, Moldova, Poland, Romania, Serbia, Slovakia, Slovenia, Turkey, Ukraine
• Voice guidance in 28 languages
• Menu in 28 languages
• TMC und TMC Pro (only in Germany available)
• external TMC Box
• Multi destination search
• Lane information
• 2D- and 3D map display with auto-zoom-function and 3-D Citymap
• Including 3D-buildings, 3D-landmarks and 3D-terrain representation
• Splitscreen mode
• TTS "Text-to-Speech" funktion
• Tunnel mode
• Rich POI data base

• 2 x RCA composite video outputs (NTSC)
• 1 x RCA input (RCA)
• 1 x RCA video input for rear view camera with automatic switching function
• 2-CH RCA preamp line outputs without volume adjustment
• Analog 5.1 RCA preamp line outputs (front, rear, center and subwoofer)

Zenec ZE-NC2040 Additional features:

• Integrated SD-card reader – SDHC compatible (up to 8 GB)
• integrated Parrot Bluetooth module with internal and external microphone
• iPod/iPhone Ready, supports also video mode
• USB 2.0 Port (max. 500 mA)
• Including Media-Link-Box
• Theft protection (security code)
• Integrated 4 x 50 watts digital amplifier
• Multi-Zone funktion
• Key illumination red
• Menu in different languages: English, Estonian, Czech, German, Dutch, French, Italian, Norwegian, Polish, Portuguese, Romanian, Spanish
• Including 2 x IR-remote control
