Package Contents:

• Sony XAV-72BT - Car CD DVD Multimedia Stereo Bluetooth, USB 7" Touchscreen

• Quantum QTM-100 - In Car Digital TV Tuner Digital Terrestrial TV

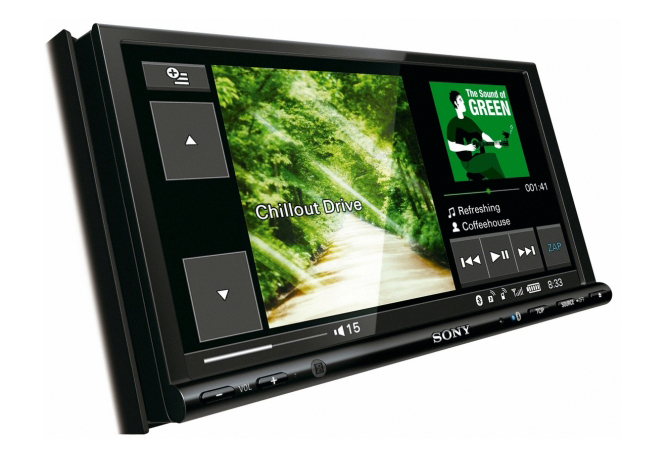

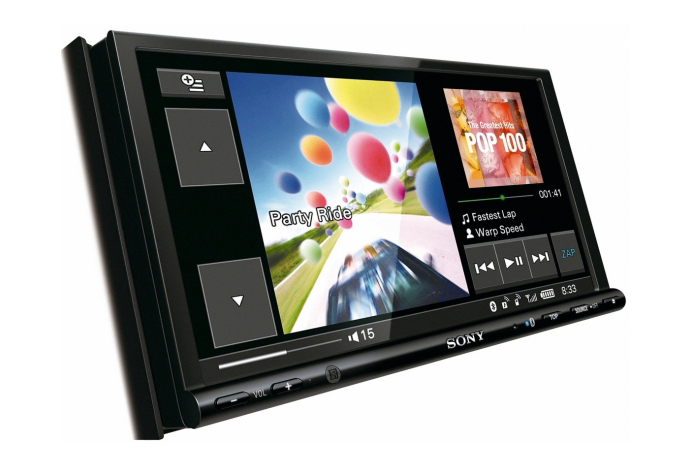

Sony XAV-72BT Description:

Sony XAV-72BT Bluetooth® Multimedia 7" /17.78 cm motorized touchscreen head unit Wire free multimedia player with 7" / 17.78 cm motorised screen. Bluetooth, touchscreen, rear USB, iPod/iPhone, SensMe™, ZAPPIN™, 4x52W, Centre Speaker Organizer. Talk hands-free and stream music wirelessly, Connect your iPod/iPhone/Walkman, Hi-res touchscreen brings DVDs to life.

Sony XAV-72BT Features:

• Bluetooth® - Supports PBAP, HFP, A2DP and AVRCP profiles for hands-free talking and music streaming (XA-MC10 mic supplied)
• Hi-res 7" / 17.78 cm WVGA motorised touchscreen - With the brightest and sharpest display, enjoy excellent image and DVD playback at your fingertips
• Multi-codec play-back - MP3/WMA/AAC/Xvid/JPEG & MPEG-4 Simple Profile codec compatible
• Rear USB - Connect, control and charge virtually any type of media device (iPod/iPhone/Walkman®) to your car stereo
• Centre Speaker Organizer - Creates virtual 5.1 channel surround sound throughout the car, for multi-channel playback
• Intelligent Time Alignment - Ensures high quality sound from anywhere in the car
• SensMe™ - SenseMe™ technology organises your music into different moods at the touch of a button
• ZAPPIN™ - Search with ease through hundreds of tracks to find your favourites
• High / Low pass filters - Improve sound customisation, and deliver purer audio quality with no interruptions
• Powerful sound - 52W x4 amplifier delivers window-shaking power and reduced distortion
• 3x 4V pre-out - For ultimate system expandability - add amps, subwoofers and speakers


Sony XAV-72BT General Feature:

• Output Power (W): 52
• Pre Out: 4.1ch
• Pre Out Voltage (V): 4
• Sub Out
• Aux-In: (Rear A/Vx2)
• Rear View Camera in
• USB
• Video out: x1(Rearout)
• Center Speaker Orgaizer
• Time Alignment
• Rear Bass Enhancer
• EQ7(7-band EQ)
• Balance
• Fader
• High Pass Filter
• Low Pass Filter
• Listening Position
• Zappin
• SensMe Channels
• SensMe Mood
• Album artwork Indication
• Tag Indication


Sony XAV-72BT Tuner Feature:

• Preset: FM18/MW6/LW6
• Auto Memory: BTM
• RDS/EON
• AF
• TA
• RDS Memory: 32


Sony XAV-72BT CD/DVD Control Feature:

• Repeat/Shuffle(Main Unit)
• Pause
• CD-R/CD-RW playback
• DVD-R/-RW playback
• DVD+R/+RW playback
• MP3: ID3 Tag Indication (Version, Title/Artist/Album): ID3ver2.4)
• CD-DA playback(Main Unit)
• MP3 playback(Main Unit)
• AAC playback(Main Unit)
• MPEG1/2 Layer2 playback(Main Unit)
• Dolby Digital playback(Main Unit)
• Linear PCM playback(Main Unit)
• DVD-Video playback(Main Unit)
• DVD-VR playback(Main Unit)
• VCD playback(Main Unit)
• JPEG playback(Main Unit)
• WMA playback(Main Unit)
• MPEG-4 playback(Main Unit): (Simple Profile)
• Xvid playback(Main Unit)


Sony XAV-72BT Bluetooth Features:

• HFP 1.5
• A2DP
• OPP
• AVRCP: (1.3)
• PBAP
• Speed dial: (6x1=6 memories)
• Recent calls: (20 numbers)
• Last dialed call: (select from the dialed call history)
• Phonebook (Built in): (300 contacts, 5 memories/contact)
• Phonebook Access via PBAP
• External microphone: Supplied: XA-MC10
• Battery remainder indication
• Signal strength indication


Sony XAV-72BT Monitor:

• Motorized
• TILT
• LCD Type: TFT Active Matrix
• Screen Aspect: 17:09
• Screen Diagonal(inch/cm): 7 / 17.78
• Resolution(DOT): 800x480
• Dimmer
• Color System: NTSC/PAL/SECAM/M-PAL
• Brightness (cd/m2): 950


Sony XAV-72BT Multi Language:

• Menu: English/Spanish/Russian
• Caution: English/Spanish/Russian
• ID3 Tag: English, European language(ISO8859-1) and Cyrillic


Sony XAV-72BT USB Mass Strage Device Control Feature:

• Repeat: OFF/TRACK/FOLDER/DRIVE
• Shuffle: OFF/FOLDER
• Pause
• Resume Play
• Plug and Play
• Audio Codec: MP3/AAC/WMA
• Video Codec: Xvid/MPEG-4(Simple Profile)/JPEG
• Playable File Extension: .mp3/.m4a/.wma/.avi/jpeg/.mp4
• Max Layer#/Folder#/File#: 8/256/2000


iPod Control Feature:

• Passenger Control

Developed by Quantum QTM 100 is the only diversity antenna decoder available in the market featuring free-to-air and pay-per-view reception: three different conditional access NAGRAVISION, IRDETO and CONAX are included and automatically activated when the correspondent smart card is inserted in the smart card reader. In the Italian market the Mediaset Premium smart card is bundled with the product. QTM 100 has been developed by Quantum’s engineers with the automotive application in mind: diversity antenna technology for optimal digital video quality up to a speed of 250 Km/hrs, sturdy and robust construction featuring vibration and shock proof technology suitable for heavy duty and extreme working conditions.

Main advantages of Digital Terrestrial TV (DTT)

The UE community has adopted DTT as the European broadcasting standard and December 2008 is the commonly agreed deadline for the official switchover when the analogue broadcasting transmission will be ceased. DTT gives to the user important advantages versus analogue TV:

• More channels available
• TV programs as well as Radio
• Digital image quality like playing a DVD
• Digital audio quality featuring 5+1 stereo surround like playing a CD
• Interactive services and programs

• Automotive homologation E24 10R-020235
• Diversity antenna technology for DTT reception while moving of free-to-air and Pay-per-View content
• MultiCA system embedding Nagravision, Irdeto and Conax;
• Mediaset premium Pay-per-View compatible
• LA7 Cartapiu’ Pay-per-View compatible
• Automatic channel search with auto-tracking
• Favourite channel list
• 12/24 VDC power compatibility
• 220 VCA wall power supply (included in the QTM 100C)
• Remotized infrared sensor
• On air software upgrade
• 2 A/V inputs
• 3 Video outputs
• Remote powered dedicated active antennas
• Antennas included


• Network Interface Module—DVB-T COFDM
• Dual-RF Diversity with Anti-Doppler Enhancement
• DVB / MPG2 Transport and De-Multiplexing
• ISO / IEC 13818-1 MPEG-2 Transport Stream Compliance
• Nording II and ETS 300 744 DVB-T Full compliance
• Full 47—860 Mhz Frequency Range for VHF and UHF
• OFDM Demodulation 2K and 8K FFT for SFN and MFN
• Symbol rates : up to 34 MS/s
• Automatic Adjacent-Channel Interface Cancellation
• Supports QPSK and 16/64QAM Constellation
• Support 1/4, 1/8, 1/16, 1/32 Guard Interval
• Support FEC Decoding: 1/2, 2/3, 3/4, 5/6 and 7/8
• Support Reed-Solomon (204, 188) ETS 300 477

• ISO/IEC 13818-2 MPEG-2 Video MP@ML Compliance
• ISO/IEC 11172-2 MPEG-1 Video Compliance
• Resolution 720x480 for NTSC and 720x576 for PAL
• 16:9/4:3, 3:2 Pull Down, Letterbox and Pan/Scan
• 65K Colour OSD

• ISO/IEC 13818-3 MPEG-2 Audio Compliance
• ISO/IEC 11172-3 MPEG-1 Audio Compliance
• Stereo / MTS

• Smart Card Reader
• Power– on / lock LED’s
• IR sensor (QTM100C)
• IR Remote Connector
• Power LED
• Car Power Connector 12/24 V (QTM100K)
• External Power Supply Connector (QTM100C)

• Antenna-In : F-type x2
• Stereo Audio Input (RCA) x 2
• Composite Video Input (RCA) x 2
• Mono Audio Output (RCA) x 1
• Stereo Audio Output (RCA) x 1
• Composite Video Output (RCA) x 3

• Operation temperature : - 5 C - +55 C
• Storage temperature : -25 C - +85 C

• 0,94 A in full operation powering two antennas
• 0,65 A in stand by
• 500 microA when off (car key off)

• Dimension (WxDxh): 275 mm x 140 mm x 42 mm
