More bass. More power. Greater flexibility.

Get powerful, punchy bass in your car – from the pedigree of world record-breaking subs. The TS-W259S4 sub features a IMPP cone, which makes the body ultra-rigid, yet lightweight, giving you low distortion and powerful bass at high sound press levels.

Wiring and installation is made easier with one-sided terminals.

Pioneer TS-W259S4 Features:

• Maximum output power 1.200 Watt
• Nominal output power 350 Watt
• Impedance 4ohms
• Frequency response 20 - 280 Hz
• Lowest resonance frequency (Hz) 48 Hz
• Sensitivity (1W/1m) 92 dB
• Woofer size (cm) 25 cm
• Woofer material IMPP Composite Seamless Cone
• Voice Coil type Single
• Voice Coil bobbin type Aluminum, diam. 1,5 inch (40mm)

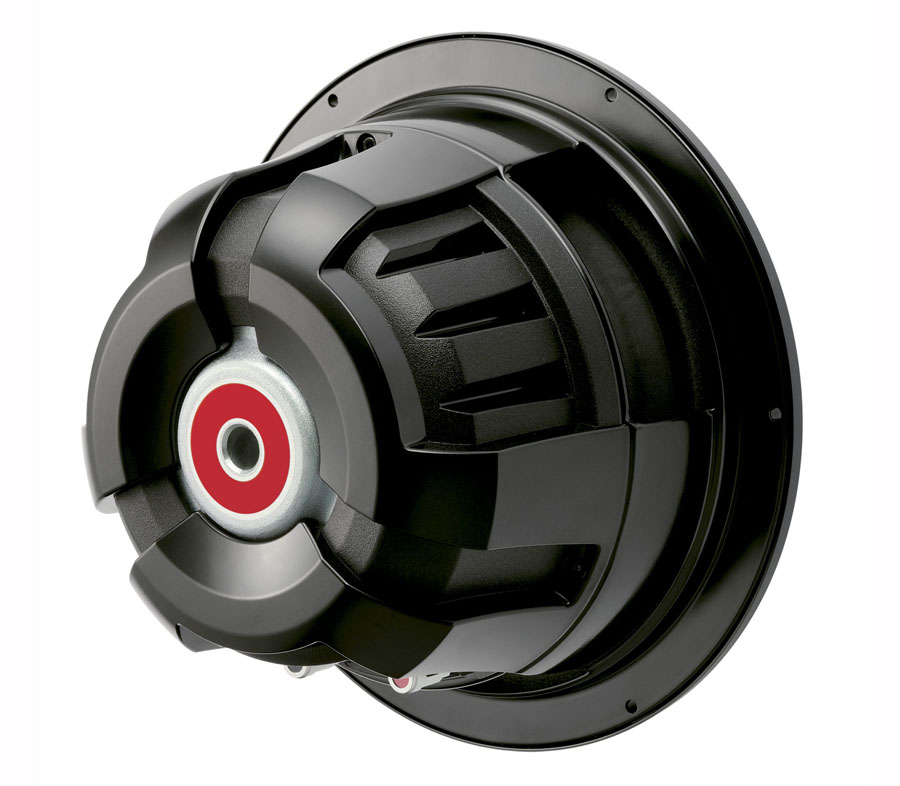

• Pole Yoke Type Extended and Vented pole yoke
• Magnets Double-stacked, high power
• Terminals Push-type
• Recommended sealed enclosure (Litres) 18,4 - 35,4 litres

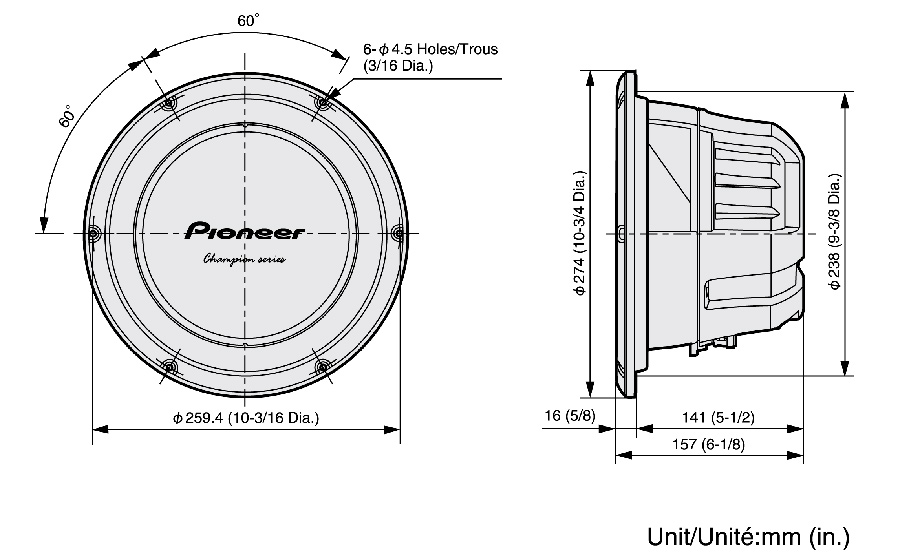

• Cut-out Hole 238 mm mm
• Mounting Depth 140.9 mm mm
• Surround Dual Layer, Fiber Reinforced Elastic Polymer Surround

Thiele/Small Parameters:

• Nom. Dia.(In) 10
• Qts 0.84
• Fs [Hz] 38.2
• Vas [l] 14.02
• Vas [ft3] 0.5
• Xmax [mm] 8.6
