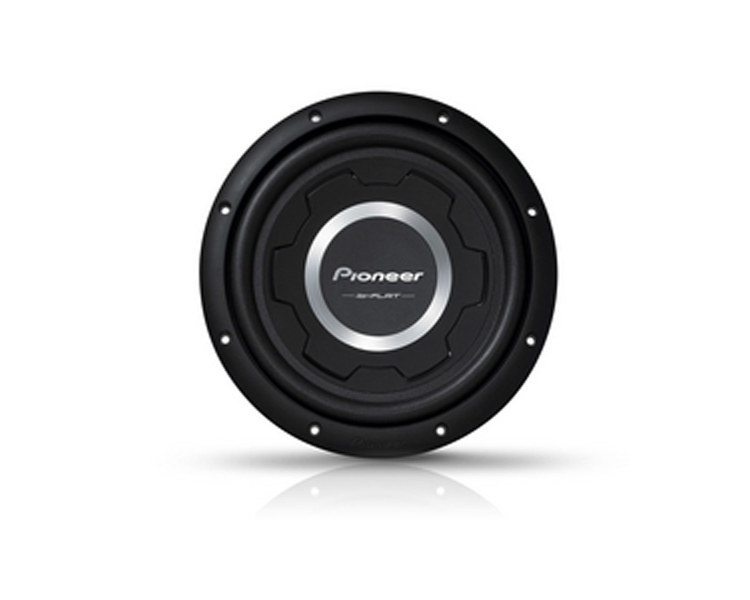

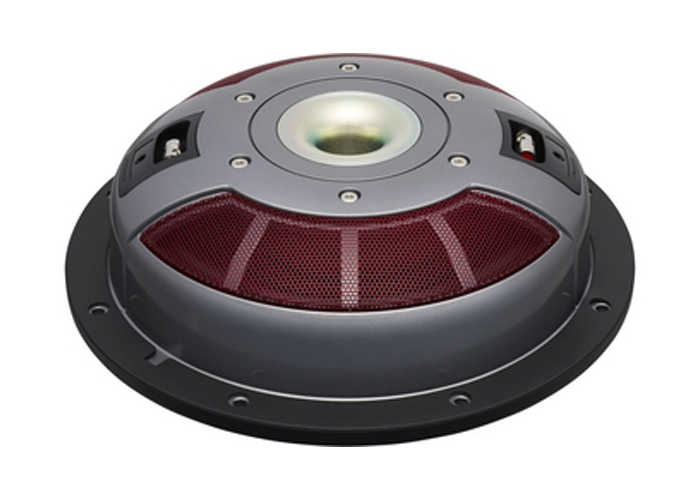

A 30cm sub that is just 8.1cm deep.

Now you can boost your car audio with 1500 Watts of pure, solid bass of a superior sub without losing too much space in your car.

Designed for enclosed use, the TS-SW3001S4 combines the interlaced basalt and carbon fibre reinforced IMPP (Injection-Moulded Polypropylene) double cone and our unique
damper-less air suspension excursion control system.

A typical sub uses a damper to control the woofer’s cone excursion. Our air suspension system creates a sealed air space between the double cones, effectively replacing the damper and providing superior compliance linearity - regardless of the volume input - for reproducing exceptionally clear, low distortion bass sound.

Pioneer TS-SW3001S4 Features :

• Maximum input power 1.500 W
• Nominal input power 400 W
• Frequency response 20 - 230 Hz
• Sensitivity (1W/1m) 93 dB
• Woofer size 30 cm
• Woofer material Basalt & Carbon Fiber reinforced IMPP Upper Cone
• Recommended sealed enclosure 14,2 - 28,3 litres

• Nom. Dia.(In) 12
• Qts 0,740
• Qms 13,800
• Qes 0,780
• Fs [Hz] 35,1
• Vas [l] 19,90
• Vas [ft3] 0,703
• Vd [l] 0,287
• Vd [ft3] 0,0101388408157394
• Sd [m2] 0,0495
• Sd [ft2] 0,533
• Revc [Ω] 3,0
• Levc [mH] (2000Hz) 2,900
• Xmax [mm] 5,8
• Xmax [in] 0,23
• Zmax [Ω] 59,41
• BI [Tm] 15,140
• Rms[Ns/m] 4,071
• Mms [g] 255,35
• Cms [m/N] 0,000081
• Mg.Wt.[g] 2040
• Flux Density [Gauss] 5380
• Hag [mm] 10
• Hag [In] 0,394
• Hvc [mm] 22
• Hvc [In] 0,850
• VC.Diameter [mm] 65
• Eff [%] 0,11
• S.P.L. [dB] 93,0
• R.M.S.Power [W] 400
• M.M.P. [W] 1500
• Sp. Displacement [l] 2,81
• Sp. Displacement [ft3] 0,099
• Recom. Enclosure [l] 18,4
• Recom. Enclosure [ft3] 0,65
• F0 (in Cabinet) 50,6
• Q0 (in Cabinet) 1,068
