The PRS-D1200 includes a Bass Boost, from which you can select a bass level of 0, 6, 9 or 12 dB. The amp also features a Subsonic Select Switch, which cuts inaudible frequencies below 20Hz to eliminate unwanted vibrations and minimise power loss.

The amp has gold-plated terminals; so you can easily hook up a sub to boost your audio performance – without any power distortion. It can also be linked with other amps in a ‘master-slave’ set-up. Adjustments that are made to the master amplifier are automatically made to all other connected slave amplifiers.

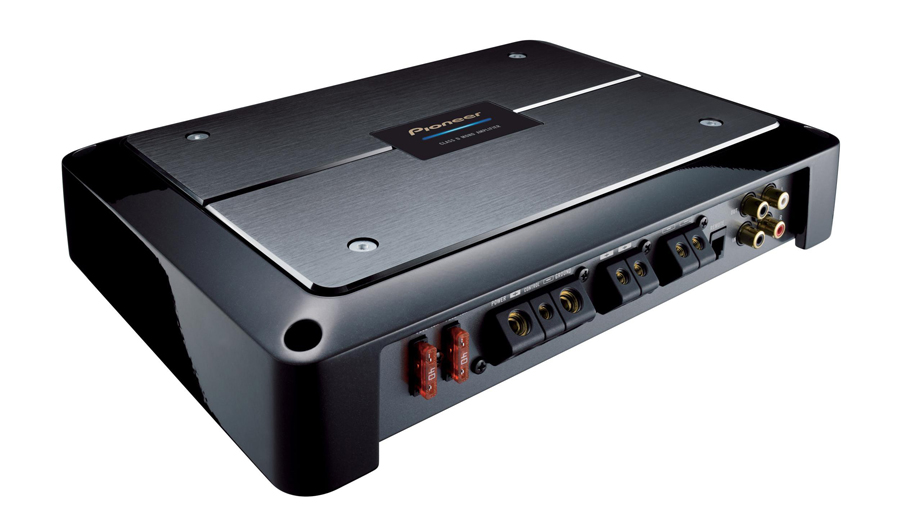

With an anti-resonance H-shaped chassis, the PRS-D1200M has a tight, compact design (which makes for easier installation), without compromising power output and audio quality levels. Installation can be as flexibile as you require; the top plate rotates 180 degrees to suite your mounting direction. Additionally, the speaker line input sensor automatically detects your speaker cables; meaning you can connect directly to the amplifier without a relay or other connections.

The PRS-D1200M shares the same linear technology op-amp (operational amplifier) as our DEH-P88RS-II reference CD tuner, making a perfect pairing for high quality sound.

Pioneer PRS-D1200M Features:

• Maximum Output Power 1 x 800W (4Ω ) or 1 x 1200W (1Ω/2Ω)
• Continuous power output (RMS)
• 14.4V (20Hz-240Hz/4Ω): 1 x 400W
• 14.4V (100Hz/2Ω):1 x 600W
• Load impedance capability 1 - 8Ω (≥2Ω bridged; external)
• Frequency response 10 - 240 Hz
• Distortion <0.03 (100 kHz/4Ω) %
• S/N ratio >92 dB
• Bass Boost 50 Hz, 0/6/9/12 dB (remote)
• LPF 40 - 240 Hz (-18dB/oct)
• Subsonic Filter (HPF) 20 Hz (-18dB/oct)
• RCA terminals Yes (input/output)
• Speaker Terminals Gold-plated screw-type
• Speaker line input sensor Yes
• Input level control RCA (400mV - 6.5V) (Low) SP (1.6V - 26V) (High) Switchable
• Max. current consumption (A/4Ω) 39 A
• Chassis size (W x H x D) 304 x 56 x 195 mm
• Unit weight 2.8 kg
