Pioneer GM-D9500F Four Channel Class-FD Car Amplifier (800W) Small size, big mouth

An amplifier shouldn’t take up too much space, especially in your car. But you still want that extra power. Well, our Class-D amps might just be what you’re looking for. Compact in size as it is, you can install it virtually anywhere in your car.

And here it comes: thanks to our signature improved electrical and thermal efficiencies, you get more than twice the power output than you’d get from a regular amplifier. And meanwhile you save on your input power.

Don’t worry about distortion: our Class-D amps produce a perfectly clean and crisp sound even at high volumes. What you hear is as smooth as is its stylish design.

Pioneer GM-D9500F Features:

• Maximum Output Power: 4 x 150W (4ohms, 4ch) or 2 x 400W (4ohms, 2ch Bridge)
• CEA 2006 Power (THD + N = 1%):
• 4 x 75W (20kHz - 20kHz/4ohms)
• 2 x 200W (1kHz / 4ohms bridge)
• 4 x 100W(1kHz / 2ohms)
• 77 dBA (ref: 1W into 4ohms)
• Frequency response: 10 - 35000 Hz
• Distortion: < 0.06  %
• S/N ratio: > 95  dB
• LPF: 40 - 500 Hz (-12 dB/oct)
• MOSFET output section

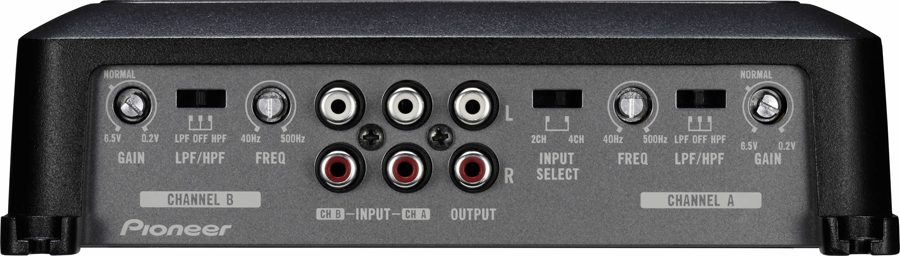

• RCA terminals: Input

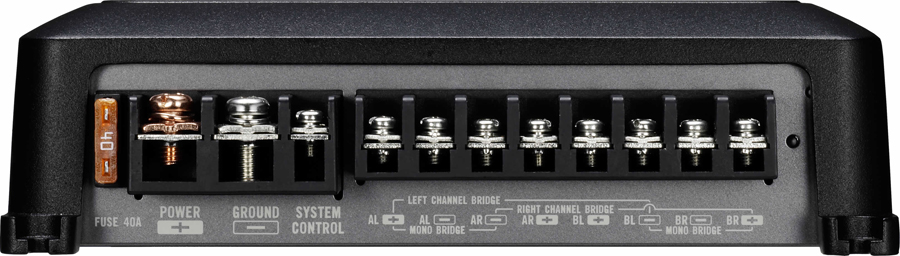

• Speaker Terminals: Block-type
• Input level control:
• RCA (200mV - 6.5V)
• SP (0.8V - 10V)
• Switchable, LR independent
• Max. current consumption (A/4ohms): 25 A
• Chassis size (W x H x D): 245 x 56 x 200  mm
• Unit weight: 2,2  kg
