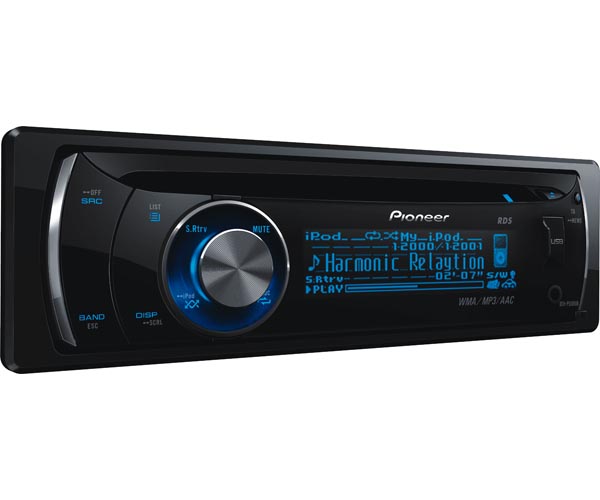

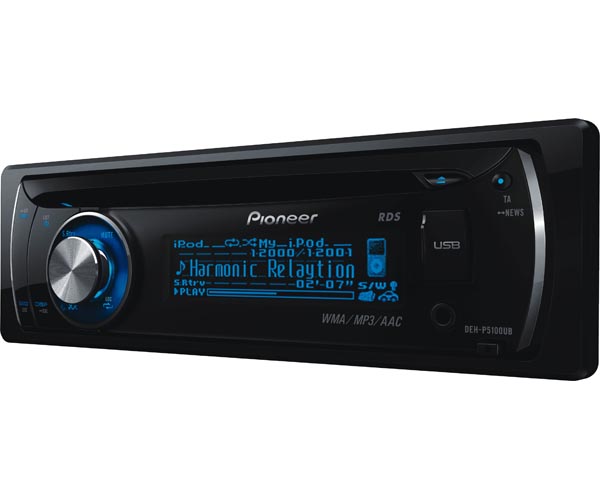

Pioneer DEH-P5100UB CD/Tuner, iPod Direct Control, RCA Pre-out, Front USB, Aux

Build your ideal system. With 3 hi-volt RCA pre-outs, the DEH-P5100UB is the perfect hub on which to expand your in-car audio system. You can directly connect up to 3 amplifiers: the high-volt pre-outs reduce demands on the input circuit of the amplifiers so they can work with lower gain settings.

The audio can be tuned to your tastes through the 7-band graphic equaliser. It allows you to adjust the equalisation to match the distinct interior acoustic characteristics of your car.

An Automatic Sound Leveliser (ASL) uses signal processing to optimally adjust the internal volume, compensating for the outside noise: what you hear is always perfected, whatever the driving conditions.

And of course, you can enjoy your entire music collection on the road, too. Play audio from your portable USB device, MP3 player – simply use the front-in USB and Auxiliary inputs. The DEH-P5100UB is even ready for your iPod or iPhone using the optional CD-IU50.

The large, cool blue OEL (Organic Electro Luminescent) display shows moving images and detailed information, making searching and selecting tracks quick and easy.

You also have the option of going wireless and adding full Bluetooth handsfree and audio streaming functionality by adding an optional adapter.


Pioneer DEH-P5100UB Features:

• Max. Power Output MOSFET 50W x 4
• Tuner AM, FM (24 pre-set stations)
• Plays • Your CD collection (including CD-R, CD-RW)
• • MP3, WMA, WAV, AAC compressed audio files on CD and USB
• • Your iPod and iPhone via an optional cable CD-IU50
• • Your USB device via front-in USB-input
• • Other music devices via a front auxiliary input
• Front Panel Removable
• Display Illumination Light blue OEL (showing 192 characters x 48 pixels)
• Button Illumination Blue
• Rotary Commander
• Remote Control Included
• Multi-Language Display  (English, French, German, Italian, Spanish, Dutch and Russian)
• Cellular telephone auto muting

DEH-P5100UB Connectivity:

• Aux-in Front
• iPod Direct Control
• USB Input
• IP Bus
• RCA Preout  3 (F + R + SW)
• Sub-display Output
• Hard-wired Remote Input
• Direct Sub Drive
• High Voltage Output  4V

DEH-P5100UB Bluetooth:

• Bluetooth Ready , via optional CD-BTB200 Bluetooth adapter

iPod Compatibility:

• iPod Ready , via optional cable CD-IU50
• Works with iPhone
• Compatible Generations From September 2005 onwards
• Supported Functions • Battery charging
• • List browsing
• • Music playback (track up/down, fast foward, rewind, pause, repeat and shuffle)

Tuner Features:

• Radio Data System (RDS)
• Traffic Announcement
• Best Stations Memory (BSM)
• Auto Alternative Frequency Search
• Auto/Manual Frequency Search
• PTY Search

CD Player Features:

• CD Text
• MP3 Text Display
• USB Text
• Disc Title Memory
• Track Search/Scan/Repeat //
• Last Position Memory
• Random Play

Audio:

• D/A Converter 1-bit
• Balance
• Fader
• Loudness
• Low Pass Filter
• High Pass Filter
• Graphic Equaliser 7-band, with 5 pre-set EQ curves
• ASL (Automatic Sound Leveliser)
• Advanced Sound Retriever
• Source Level Adjuster (SLA)
