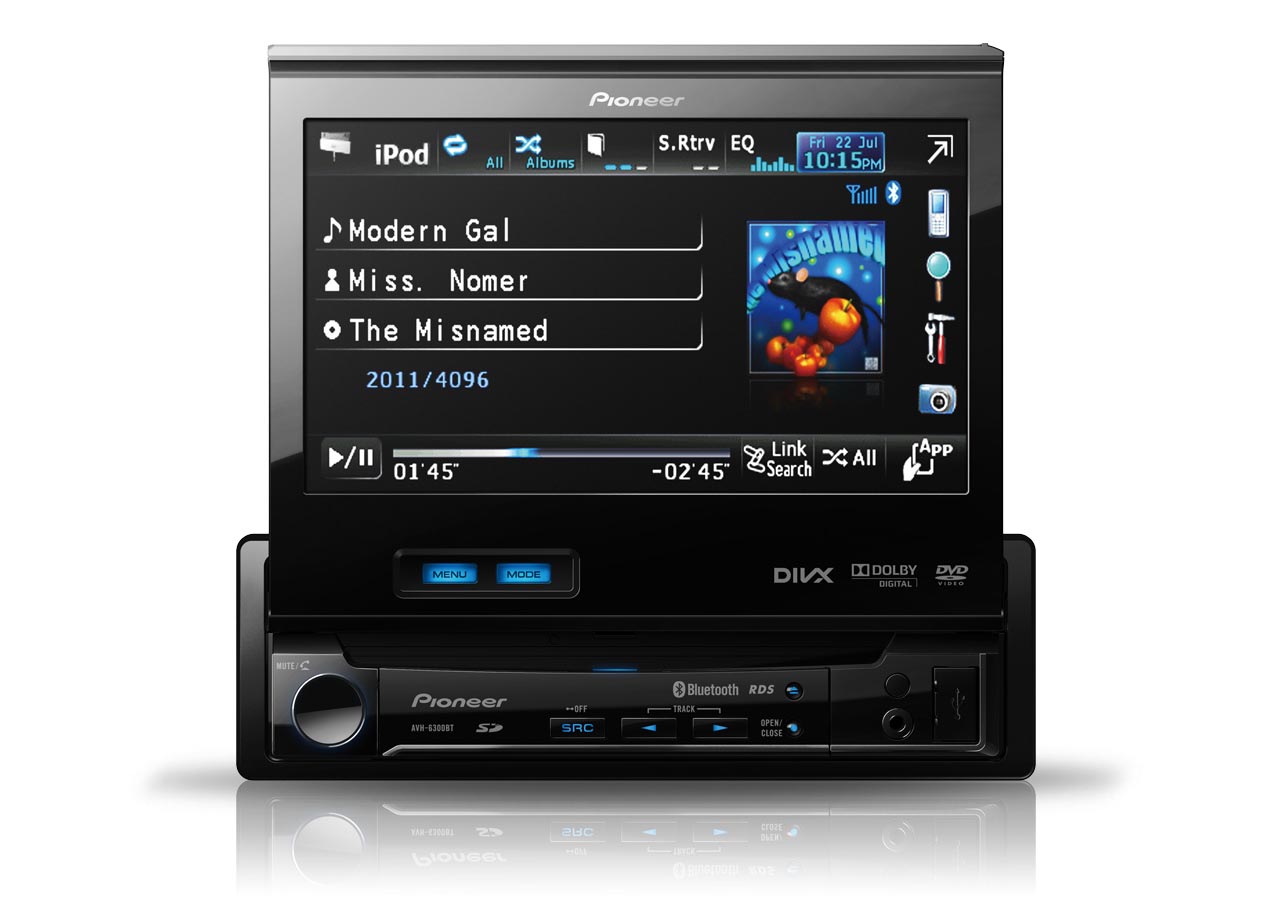

Get the most out of your 1-DIN slot with Pioneer AVH-6300BT 7-inch Motorised Touch Screen, DVD/CD, SD, USB, AUX

If you have a 1-DIN slot and would still like advanced A/V options and handsfree calling functionality in 1 unit, the AVH-6300BT is your solution.

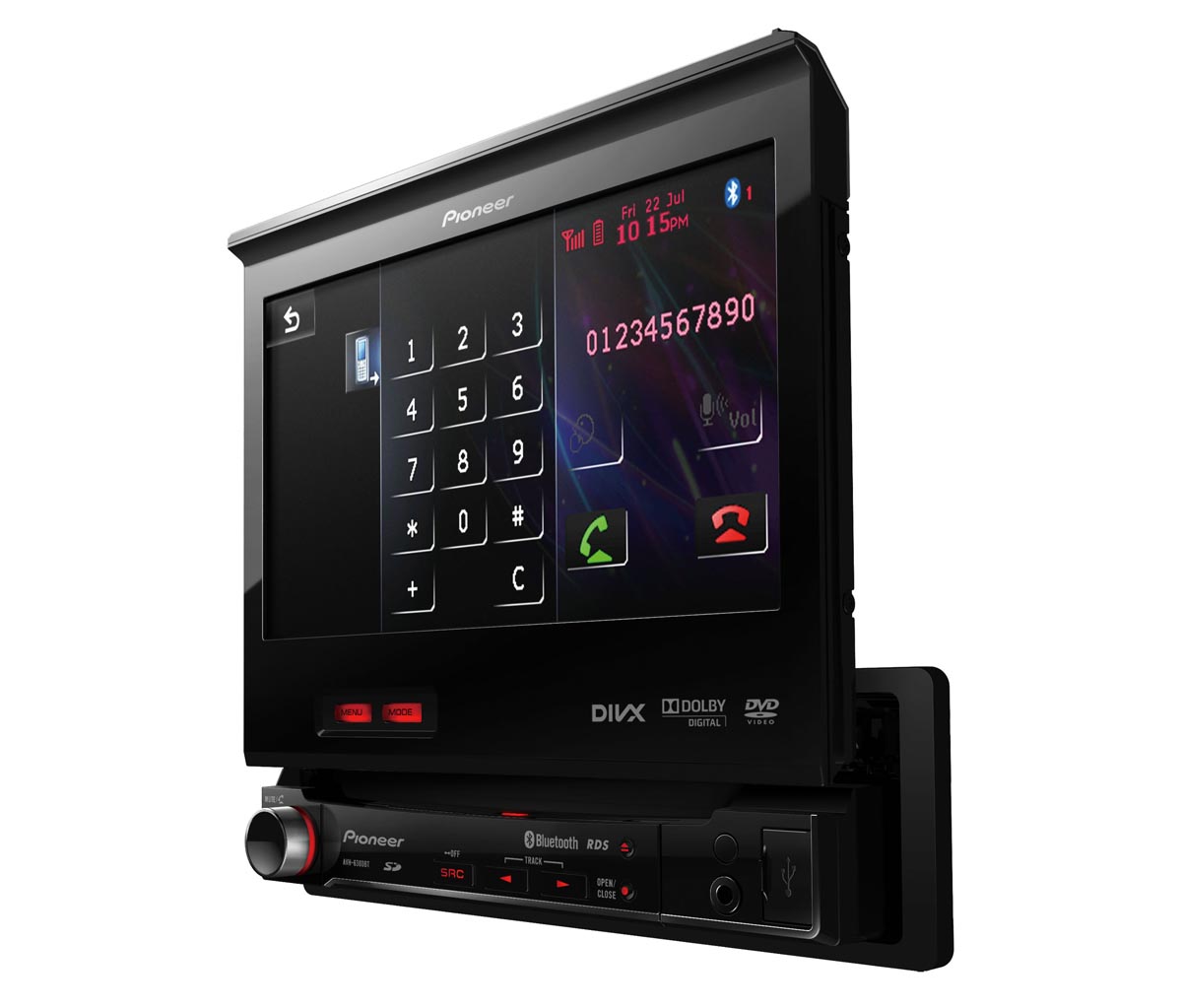

A Parrot Bluetooth module makes wireless calling hassle-free: it remembers 5 phones and saves up to 1000 contacts. A noise-cancelling microphone is included.

Enjoy your music and film collection in almost every popular format, including CD, DVD, MP3, WMA, AAC, JPEG and DivX. On the front panel, you’ll find an auxiliary input and a USB input so you can easily connect your iPod, iPhone (requires optional cable) or other device. The new App mode enables listening to music and video from your  iPhone and iPod touch Apps.

Or play music straight from an SD card: there’s an SD card slot behind the motorized front panel, for cards up to 32 GB). Video playback is supported from USB and SD.

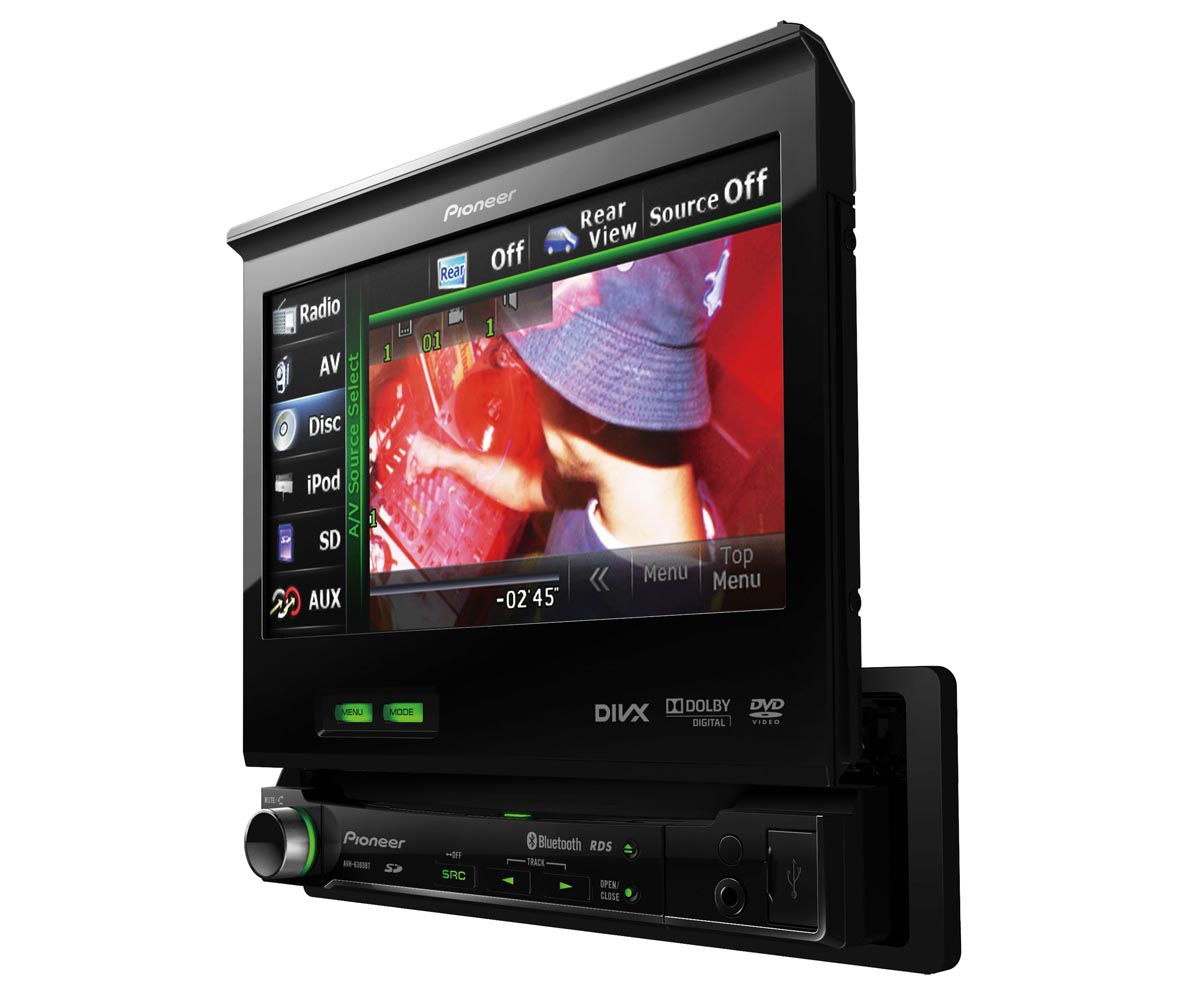

Dual Zone lets you add screens so rear-seat passengers can watch a film, while front seat passengers listen to music from another source simultaneously.

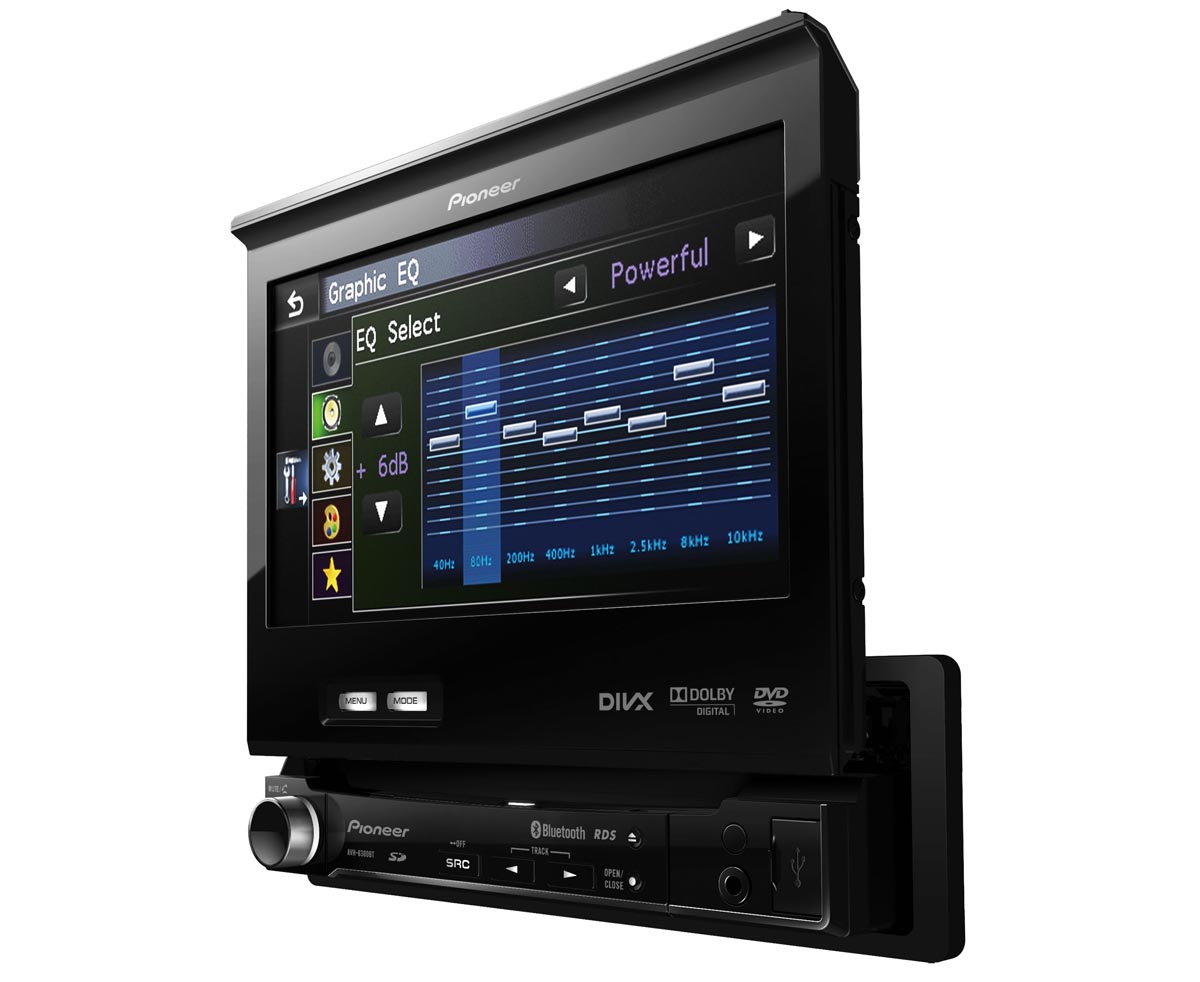

Audiophiles can be assured of high quality and pure audio, customised to their needs. The 8-band graphic equaliser, high/low-pass filters, Sonic Center Control and Auto EQ (with optional microphone) let you best match your device to the acoustics of your car.

Want more power? This tuner has 3 RCA pre-outs, so you can boost your in-car set-up with additional amps, subs and speakers.

You can personalise the main menu items, background image and button illumination (from a choice of 113 colours).

Upscale your system with navigation: our optional AVIC-F220 hideaway gps unit provides you with stress-free route guidance across Europe.

A detachable plate on the front panel offers protection from theft.

Please Note: Screen images are for illustrative purposes only.

Pioneer AVH-6300BT Features:

• Maximum Power Output  MOSFET 50W x 4
• Tuner    AM/FM Tuner (24 pre-set stations)
• Plays

• Your DVD film collection (including DVD-R/-RW discs in VR Mode)
• Your CD collection (including CD-R/-RW and Video CD)
• MP3, WMA, AAC compressed audio files on CD, USB and SD card
• DivX film and JPEG on CD, DVD, USB and SD card
• Your iPod, iPhone
• Your USB storage device via a front-in input
• An AV source (MP3 player or games console) via the Aux-in
• Screen Wide 7-inch QVGA anti-glare touch screen
• Installation Type: In-dash with motorised screen (1 DIN)
• Partially detachable Front Panel

• 113 colour variations Button Illumination

• DVD Region Code 2
• Dual Zone
• Bluetooth Ready (integrated)
• Navigation Ready
• Multi-language Display (English, Spanish, Portuguese and Russian)
• Remote Control (Optional CD-R55 remote control available)

Pioneer AVH-6300BT Connections:

• Aux In (Front AV)
• Direct sub drive
• High voltage output 4V
• Input for rear camera
• PAL/NTSC/SECAM
• RCA preouts 3 (F + R and SW)
• RCA video 2 (VCR + AV mini jack)
• SD Card, SDHC compatible (max 32GB)
• Hard wired remote input
• USB Input (Front)
• Video output 1

Pioneer AVH-6300BT Screen:

• Selectable wide screen modes
• Auto display brightness & backlight adjustment
• Rear camera switching
• Aspect ratio 16:9
• Effective display area  154 x 87 mm
• Angle adjustment

Pioneer AVH-6300BT Audio:

• Advanced Sound Retriever
• Auto EQ
• D/A Convertor    1-bit
• Dolby Digital
• DTS (Digital out)
• Equaliser  8-band graphic equaliser with 7 presets
• High Pass Filter
• Low Pass Filer
• Loudness
• Sonic Center Control
• Source Level Adjuster
• Time Alignment

Pioneer AVH-6300BT iPod Compatibility:

• iPod Ready, with optional CA-IW.50V cable
• Works with iPhone
• Compatible Generations

• iPhone 4, 3GS, 3G
• iPhone
• iPod nano 6th, 5th, 4th, 3rd, 2nd, 1st generation
• iPod touch 4th, 3rd, 2nd, 1st generation
• iPod touch 3rd, 2nd, 1st generation
• iPod classic 120GB, 160GB (2009)
• iPod classic 80GB, 160GB (2007)
• iPod 5th generation
• Supported Functions

• Battery charging
• List browsing
• Album art
• Music playback
• Video playback
• App Mode

Pioneer AVH-6300BT Bluetooth:

• Parrot Bluetooth Module
• Handsfree Telephony
• Additional Bluetooth Features

• Phone book transfer
• 1000 entries for up to 5 individual users (each entry can hold up to 5 unique numbers)
• External microphone for precise, noise-excluding audio included
