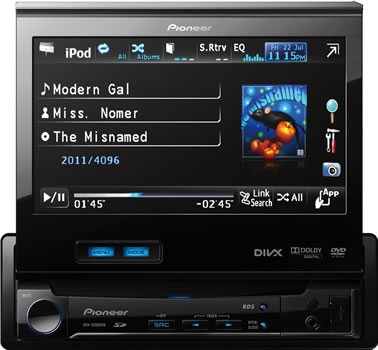

Pioneer AVH-5300DVD Motorised AV DVD player with 7inch screen, iPod /iPhone Control

If you have a 1-DIN slot and would still like advanced A/V options in one unit, the Pioneer AVH-5300DVD is your solution.

Enjoy your music and film collection in almost every popular format, including CD, DVD, MP3, WMA, AAC, JPEG and DivX. On the front panel, you’ll find an auxiliary input and a USB input so you can easily connect your iPod, iPhone (requires optional cable) or other device. The new App mode enables listening to music and video from your  iPhone and iPod touch Apps.

The Pioneer AVH-5300DVD will also play music straight from an SD card: there’s an SD card slot behind the motorized front panel, for cards up to 32 GB. Video playback is supported from USB and SD.

Dual Zone lets you add screens so rear-seat passengers can watch a film, while front seat passengers listen to music from another source simultaneously.

Audiophiles can be assured of high quality and pure audio, customised to their needs. The 8-band graphic equaliser, high/low-pass filters, Sonic Center Control and Auto EQ (with optional microphone) let you best match your device to the acoustics of your car.

Want more power? The Pioneer AVH-5300DVD multimedia centre has 3 RCA pre-outs, so you can boost your in-car set-up with additional amps, subs and speakers.

You can personalise the main menu items, background image and button illumination (from a choice of 113 colours).

A detachable plate on the front panel offers protection from theft.

Pioneer AVH-5300DVD Main Features:

• Maximum power output MOSFET 50W x 4
• Built-in AM/FM RDS Tuner AM/FM Tuner (24 pre-set stations)
• Plays Your DVD film collection (including DVD-R/-RW discs in VR Mode)
• Plays Your CD collection (including CD-R/-RW and Video CD)
• Plays MP3, WMA, AAC compressed audio files on CD, USB and SD card
• Plays DivX film and JPEG on CD, DVD, USB and SD card
• Plays Your iPod, iPhone
• Plays An AV source (MP3 player or games console) via the Aux-in
• Screen Wide 7-inch QVGA anti-glare touch screen
• Installation type In-dash with motorised screen (1 DIN)
• Front panel Partially detachable
• Button illumination 113 colour variations
• DVD Region Code 2
• Dual Zone
• Navigation Ready (optional module required)
• Multi-language display  (English, Spanish, Portuguese and Russian)
• Remote Control Optional (CD-R55 remote control available)

Pioneer AVH-5300DVD Connections:

• Aux In  (Front AV)
• Direct sub drive
• High voltage output: 4V
• Input for rear camera
• PAL/NTSC/SECAM
• RCA preouts: 3 (F + R and SW)
• RCA video: 2 (VCR + AV mini jack)
• RGB input: 1
• SD Card SDHC compatible (max 32GB)
• Hard wired remote input (optional steering control interface)
• USB control (Front)

Pioneer AVH-5300DVD Screen:

• Selectable wide screen modes
• Auto display brightness & back light adjustment
• Aspect ratio 16:9
• Effective display area 154 x 87mm
• Angle adjustment

Pioneer AVH-5300DVD Audio:

• Advanced Sound Retriever
• Auto EQ
• D/A Converter 1-bit
• Dolby Digital
• DTS (Digital out)
• Equaliser 8-band graphic equaliser with 7 presets
• High Pass Filter
• Low Pass Filer
• Loudness
• Sonic Center Control
• Source Level Adjuster
• Time Alignment

Pioneer AVH-5300DVD iPod:

• iPod ready, with optional CA-IW.50V cable
• Works with iPhone
• Battery charging
• List browsing
• Album art
• Music playback
• Video playback
• App Mode
• Compatible Generations
• iPhone 4, 3GS, 3G
• iPhone
• iPod nano 6th, 5th, 4th, 3rd, 2nd, 1st generation
• iPod touch 4th, 3rd, 2nd, 1st generation
• iPod touch 3rd, 2nd, 1st generation
• iPod classic 120GB, 160GB (2009)
• iPod classic 80GB, 160GB (2007)
• iPod 5th generation
