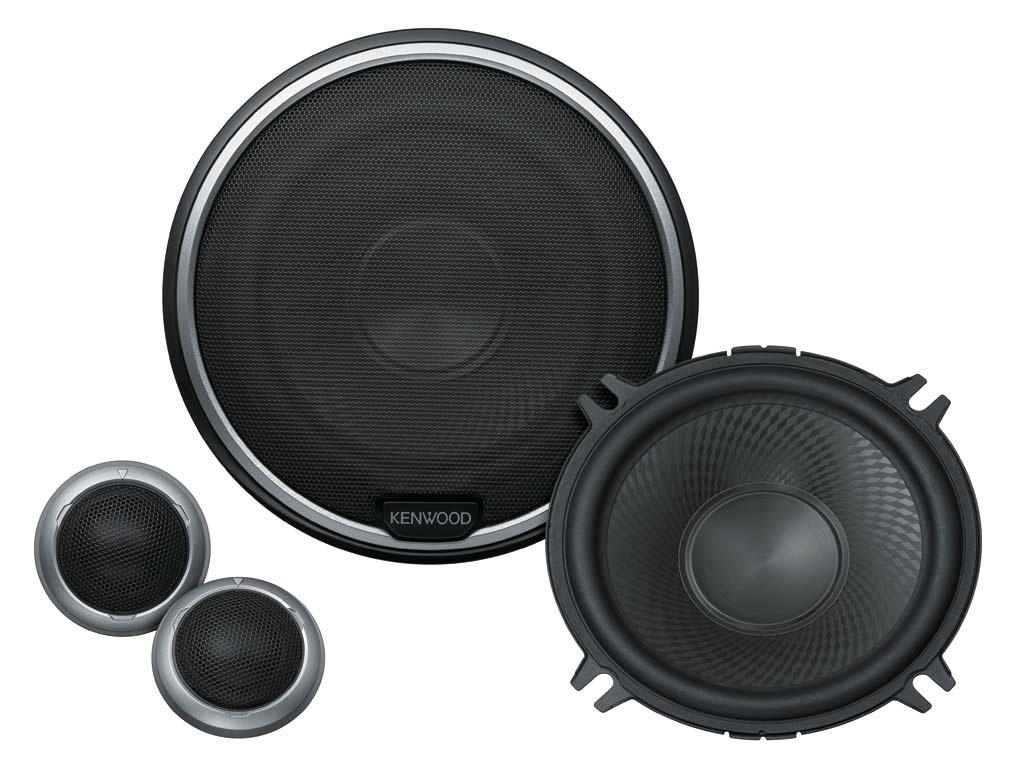

Kenwood KFC-S503P Key Features:

• 2-way separate component speaker package
• 13cm P.P mica woofer cone Diamond-array pattern
• 240W Peak Input Power
• 25mm Tetron soft dome tweeter
• 3-way tweeter mounting: Flush/surface or factory location
• Swifel type when mounted with flush mount brackets
• High Quality Crossover Network

Kenwood KFC-S503P Speaker Features:

• Speaker System: 2-way component
• Peak Input Power 240W
• Rated Input Power 45W
• Speaker Size 130mm
• Speaker Cone Design: Diamond-Array pattern
• Magnet Type: Ferrit
• Overload Protection System
• Terminals Gold-Plated: Screw type
• Terminals Gold plated
• Image Enhancer (Patent of KENWOOD since 1987) version IV
• Cross-over Network: High Quality Crossover Network

Kenwood KFC-S503P Speaker/woofer Specifications:

• Peak Input Power 240W
• Maximum Input Power 90W
• Rated Input Power 45W
• Woofer Cone material: P.P. Mica with fiber texture
• Speaker Basket: Steel
• Speaker Surround: Rubber
• Sensitivity 86dB/W/m
• Frequency Response 63Hz ~ 24000Hz
• Subwoofer Impedance 4ohm x 1
• Dimensions (W x H x D) 132 x 132 x 65.3mm
• Mounting Depth 60mm
• Mouting Hole Diameter 120mm
• Speaker Weight with Grille (pc.) 760gr
• Weight of Magnet 245gr

Tweeter Specifications:

• Cone Size: 25mm
• Dimensions: 38 x 38 x 22.7mm
• Cone Material: Soft dome
• Magnet Type Neodymium

Cross-over Network Specifications:

• Cross-over network type: High Quality Crossover Network
• Cross-over Frequency 4600 Hz
