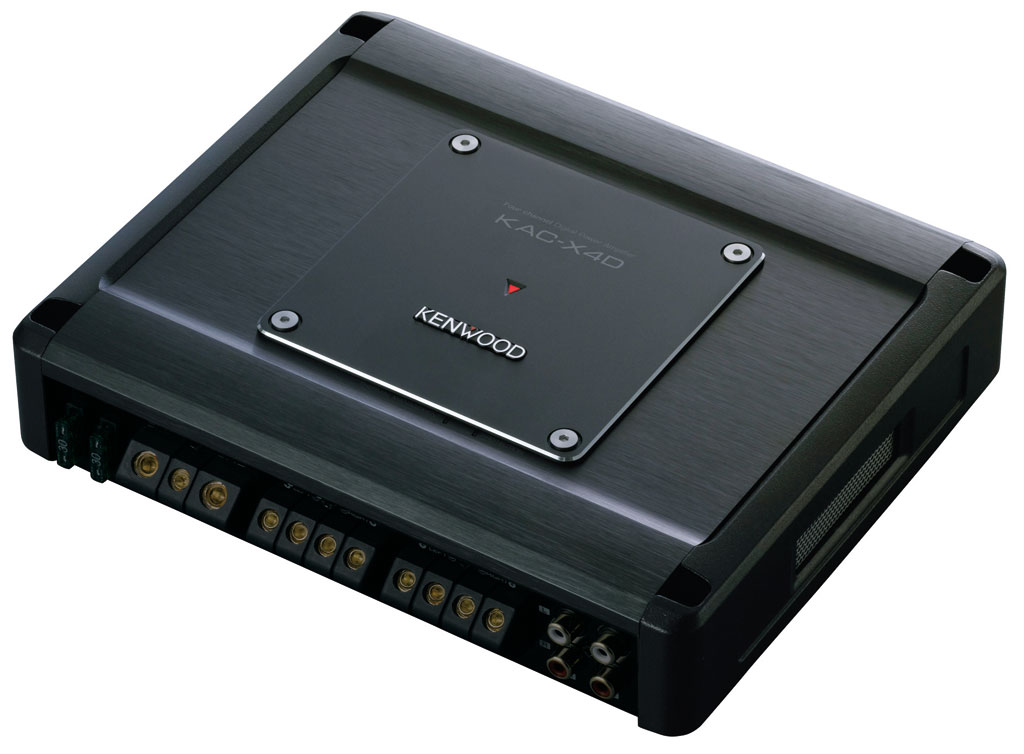

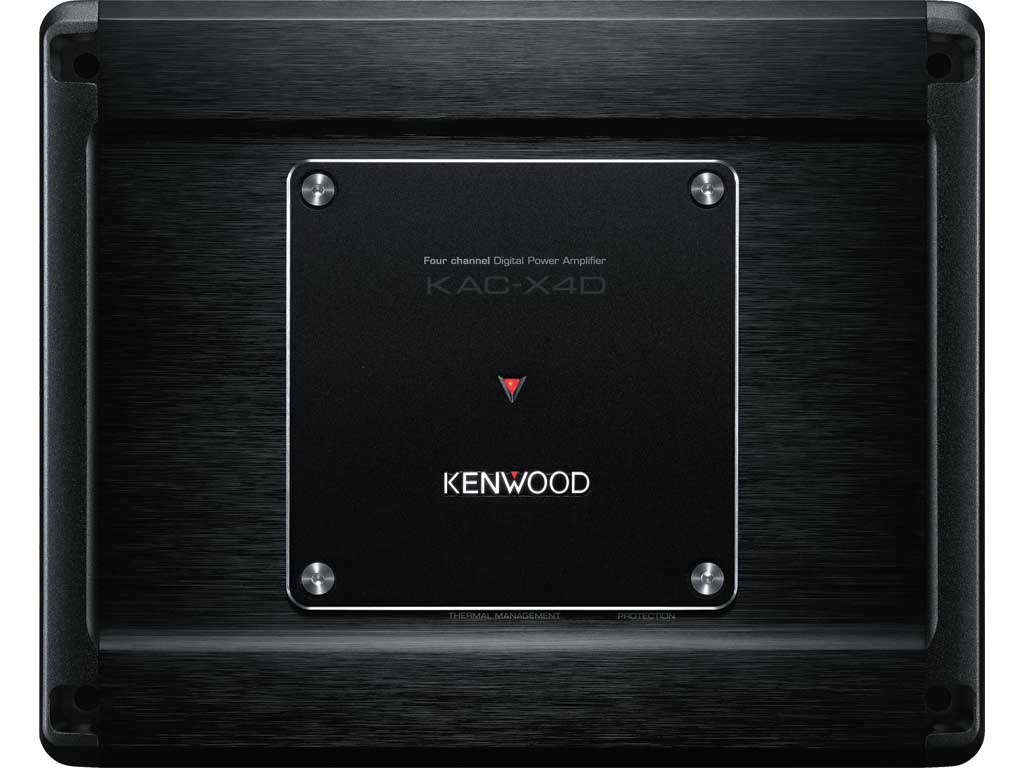

Kenwood KAC-X4D - Four Channel Digital Power Amplifier

These Reference Fit amplifiers will satisfy the discerning mobile audiophile with its simple design and unyielding power. These amplifiers are built to be easily installed in the tightest applications yet they provide the power required to pump out the sound you want to hear.

Kenwood KAC-X4D Key Features:

• Kenwood Car Audio Power Amplifier
• 1200W Maximum power Output
• Built-in variable low-pass filter
• Buitl-in variable high-pass filter
• 2 ohms load capability
• Dual power supply
• Power MOS-FET switching power supply

• Class D Amplifier
• Full Range Digital Amplifier
• 2Ω Stable Load Capability
• Maximum Output Power 1200W
• Rated Power Output 120W x 4 (4Ω)
• Rated Power Output 150W x 4 (2Ω)
• Bridged Power Output (4Ω) 300W x 2
• CEA-2006 Compliant
• Low-pass Filter
• High-pass Fliter
• Switched Mode Power supply with Power MOS-FET
• Dual Power Supply
• Cooling Fan
• Multifunctional Power Indicator
• Blue Illumination
• Protection function
• 1 x RCA (Gold Plated) Line in
• 1 x RCA Line out (Gold Plated)
• Input Selector A/AB
• Single Side Terminals
• Full Contact Terminal
• Gold Plated Power & Speaker Terminals
• Die-cast Chassis Aluminum
• Removable Coverplate

• Maximum Power Output (4Ω) 300W x 4
• Rated Power Output (4Ω, 14,4V) 120W x 4 (20Hz ~ 20000Hz, 1%THD)
• Rated Power Output (2Ω, 14,4V) 150W x 4 (1000Hz, 1%THD)
• Bridged Power Output (4Ω, 14,4V) 300W x 2 (1000Hz, 1%THD)
• Rated Power Output (CEA-2006) 120Watts RMS x 4 at 4 ohms and 1% THD
• Low-pass Filter 50~200Hz & 2,5~10kHz (-12dB/oct)
• High-pass Fliter 50~200Hz & 2,5~10kHz (-12dB/oct)
• Input Sensitivity 0.2 ~ 5V
• Input Impedance 10kΩ
• Signal to Noise Ratio 105dB
• Signal To Noise Ratio (CEA-2006) 73dBa (Reference: 1 Watt into 4 Ohms)
• Frequency response (+0dB, -3dB) 20Hz ~ 20000Hz
• Operating voltage 14.4V (11V ～ 16V allowable)
• Maximum current consumption 60A
• Dimensions (WxHxD) 235 x 52 x 192(mm),
• Weight 3kg
