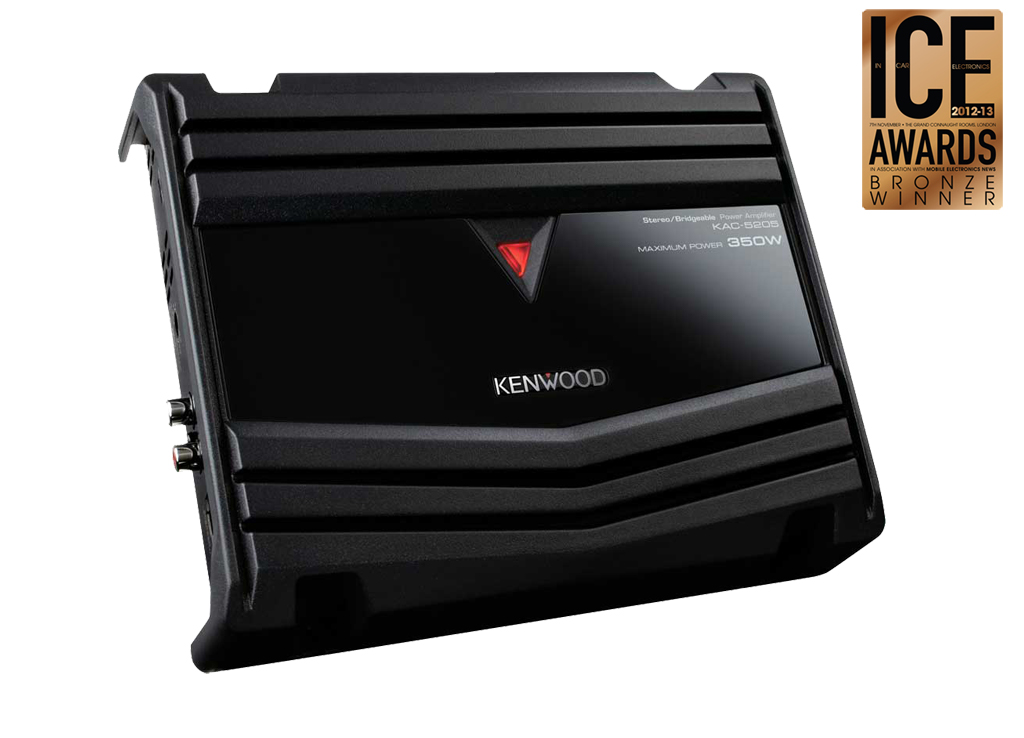

Kenwood KAC-5205 Key Features :

• 350W maximum power output
• Built-in low-pass filter
• 2 ohms load capability
• Power MOS-FET switching power supply
• Aluminum die cast heat sink

• Load Capability 2Ω Stable
• Maximum power output 350W
• Rated power output(4Ω) 60W x 2 (4Ω)
• Rated power output 75W x 2 (2Ω)
• Bridged power output(4Ω) 150W x 1
• CEA-2006 Compliant
• Low-pass Filter
• Switched Mode Power supply, with power MOS-FET
• Power Indicator
• Protection function
• Line in    RCA
• Speaker level Input
• Chassis Aluminum Die-cast

• Maximum power output (4Ω) 350W x 1
• Rated power output (4Ω, 14,4V) 60W x 2 (20Hz ~ 20Hz, 1%THD)
• Rated power output (2Ω, 14,4V) 75W x 2 (1000Hz, 1%THD)
• Rated power output (4Ω, 14,4V) 150W x 1 (1000Hz, 1%THD)
• Rated power output (CEA-2006) 60Watts RMS x 2 at 4 ohms and 1% THD
• Low-pass Filter    80Hz (-12dB/oct)
• Input Sensitivity 0.2 ~ 5V
• Input Impedance    10kΩ
• Signal to Noise Ratio 95dB
• Signal to noise ratio (CEA-2006) 75dBa (Reference: 1 Watt into 4 Ohms)
• Frequency response (+0dB, -3dB)    5Hz ~ 50Hz
• Operating voltage 14.4V (11V ～ 16V allowable)
• Maximum current consumption 13A
• Dimensions (WxHxD) 225 x 55 x 180(mm),
• Weight 1.4kg
