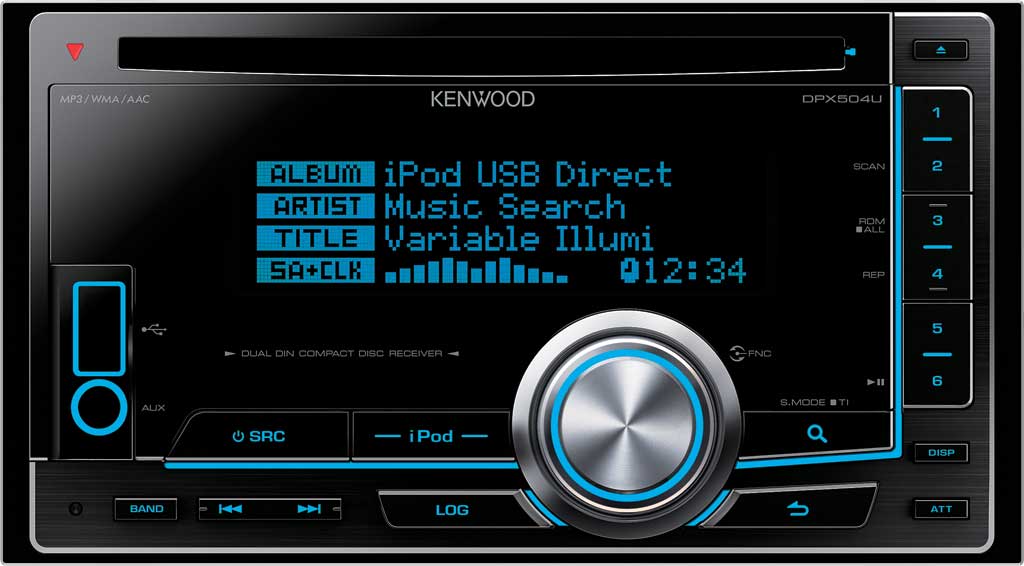

Kenwood’s DPX504U makes full use of cars which have double-DIN size radios. A large 4-line display gives excellent information in conjunction with its front iPod Direct USB input. A front AUX input is also available for quick connection to portable music players and navigation units. This can be used with the Dual Zone feature to playback only to the rear speakers for example. For hands-free mobile phone use an optional KCA-BT300 interface.

On an aesthetic note full colour variable illumination for both the display and the control knobs can be set to match your cars dashboard illumination perfectly. Large easy to understand operation keys and controls knobs make this unit a breeze to use even with the most complicated operations.

Kenwood DPX-504U Key Features:

• Full DOT LCD display
• Variable colour illumination
• Front USB en AUX input
• made for iPod/Iphone
• Multi+language text & tag display
• Ready for Bluetooth Hands-Free Profile / Audio Profile
• System Q-Ex, System E's+, Digital Sound Proccessor (DSP)
• Compatible with Kenwood Music editor Lite software
• Full DOT LCD display
• Variable colour illumination
• Front USB en AUX input
• made for iPod/Iphone
• Multi+language text & tag display
• Ready for Bluetooth Hands-Free Profile / Audio Profile
• System Q-Ex, System E's+, Digital Sound Proccessor (DSP)
• Compatible with Kenwood Music editor Lite software


Kenwood DPX-504U General Features:

• DIN Size: 2 DIN
• Security Code Function
• Key Illumination: Variable
• Rotary Encoder & Control Knob
• Multi control wheel
• Music Search function
• LOG function
• Accent key
• Installer Memory
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller
• Digital Clock (24H)
• All-off Select (20/40/60 minutes)
• Built-in Connector: Molex 16 pin
• ISO connector
• Optional Bluetooth unit
• USB interface x 1


Kenwood DPX-504U Display Features:

• Display Type: LCD Display
• Display Layout: 4 line, Ful dot
• Display Illumination: Variable
• Spectrum Analyzer
• Dimmer Control: 2 steps - Manual
• Colour control
• Positive/negative switchable
• Display Off Mode
• Demo Mode
• Menu text in selectable language: English, German, French, Italian, Spanish, Russian


Kenwood DPX-504U Cosmetics Features:

• Front/edge: Piano black
• Dress plate: Black painted (hair line)
• Volume & operation knob or wheel: Chrome Plated
• Preset key finish: Piano Black
• Escutcheon finish: Black Injection
• Triangle Illumination: Red
• Volume & operation knob illumination: Variable
• Key illumination: variable
• Variable color illumination


Kenwood DPX-504U Tuner Features:

• Radio Text Plus
• Program Type Function (PTY)
• Enhanced Other Networks Function (EON)
• K3I - Clean Reception Tuner
• FM Reception
• AM (MW/LW) Reception
• Presets    24 Presets: (18FM / 3LW / 3MW)
• Mixed preset memory (FM & AM): 24 presets
• Tuner preset/recall key
• Automatic Memory Entry (AME)
• Up/Down Seek Tuning
• Tuning mode (Auto1 / Auto2 / Manual)
• FM Stereo / Mono Selector


Kenwood DPX-504U CD Features:

• CD-R/RW Compatible
• MP3 Playback with ID3 Tag Display
• WMA (Windows Media Audio) Playback
• AAC (Advanced Audio Coding) Playback
• Compatible with Kenwood Music Editor Lite
• 0 bit Mute
• Random Function (Track/Disc)
• Repeat Function (Track/Disc)
• Scan Function (Track/Disc)


Kenwood DPX-504U USB Features:

• USB terminal: Frontside
• USB Type: USB1.1 / USB 2.0
• Kenwood Music Editor Lite
• MP3 playback with ID3 Tag Display
• WMA (Windows Media File) playback
• AAC (Advanced Audio Codec) playback
• Repeat/Scan/Random search


Kenwood DPX-504U iPod Features:

• Made for iPod & iPhone
• iPod control by 5L bus
• USB Digital connection (1 wire): with optiona cable KCA-iP102
• Music playback
• Music library search
• Alphabet search
• Skip search
• Related search
• My playlist
• Control by hand
• High speed search (ver.2)
• Works with iPod Classic * 80G & 120G
• Works with iPod Video * 5th/6th generation
• Works with iPod Touch * 1st/2nd generation
• Works with iPod Nano * 1st/2nd/3rd/4th/5th Gen
• Works with iPhone
• Battery charge + power control
• * Always update to latest Apple firmware


Kenwood DPX-504U External Media Control Features:

• Dual Changer Control (CH1, CH2 & AUX)
• CD Text Ready with Compatible KENWOOD Units
• Disc & Track Repeat
• Disc & Track Scan
• Disc & Track Random Play
• Direct Access
• Bluetooth Handsfree
• Bluetooth Audio Streaming
• iPod Control with KCA-iP500


Kenwood DPX-504U Audio Features:

• Maximum Output Power: 50W x 4
• MOSFET Power IC
• Auxiliary input front side
• Auxiliary Type: Mini-jack
• Pre-out: 2 RCA
• Pre-out Output Level: 2.5V
• Preout Rear / Subwoofer Switchable
• Subwoofer Reference Level Adj.
• Built-In Amplifier Cut-Off
• Dual-Zone Source & Volume Control
• Dual-Zone (FRONT / REAR Switchable)
• Att.(-20dB) with smooth Volume Return
• Sound Excellence DSP
• System Q_EX (Preset & Manual Sound Control)
• Equalizer built-in
• System E's+ (Built-in HPF & LPF)


Kenwood DPX-504U Sound excellence DSP:

• Highway sound
• Digital Time Alignment (DTA)
• Equalizer: 5 bands
• Preset Equalizer curve (KBS)
• iPod Equalizer curve preset
• Manual Equalizer Control
• Cabine selection
• Listening position selection
• New Bass-Boost
• Speaker setting Front
• Speaker setting Rear
• Speaker setting Subwoofer


Kenwood DPX-504U Connectivity:

• External Media Control Bus (5L)
• Changer Control (5L-Bus)
• iPod I/F Control (5L-Bus)
• Bluetooth Control (5L-Bus)
• iPod Digital Connection (1 Wire), with optional KCA-iP102
• USB interface
• OEM Wired Remote Control
• Power Control (P.CON) wire
• 2-way (Tel/Navi) mute wire
