Video Entertainment The direct auxiliary input gives you the option to connect to DVD player, DVD head unit, TV Tuner or your iPod®. A great way to enjoy music and videos from USB sources is to connect the USB interface KCE-635UB to your monitor. This USB interface provides an easy-to-use interface with Direct Touch control.

You also have the option to name your source the way it will appear on the menu. Enjoy video playback and watch your favorite movies, music videos, TV shows right from the screen.

Easy-to-Use Interface The simplified graphic interface is easy to use via the touch control screen. It provides a wide range of setup capabilities and lets you choose from among four background and button colours.

Safety First The TME-S370 offers a rear view camera input so you can hook up to a HCE-C105 or HCE-C200R rear view camera and get a better view of what’s going on behind you. This is a great way to stay safe and avoid hitting objects that may potentially be difficult to see

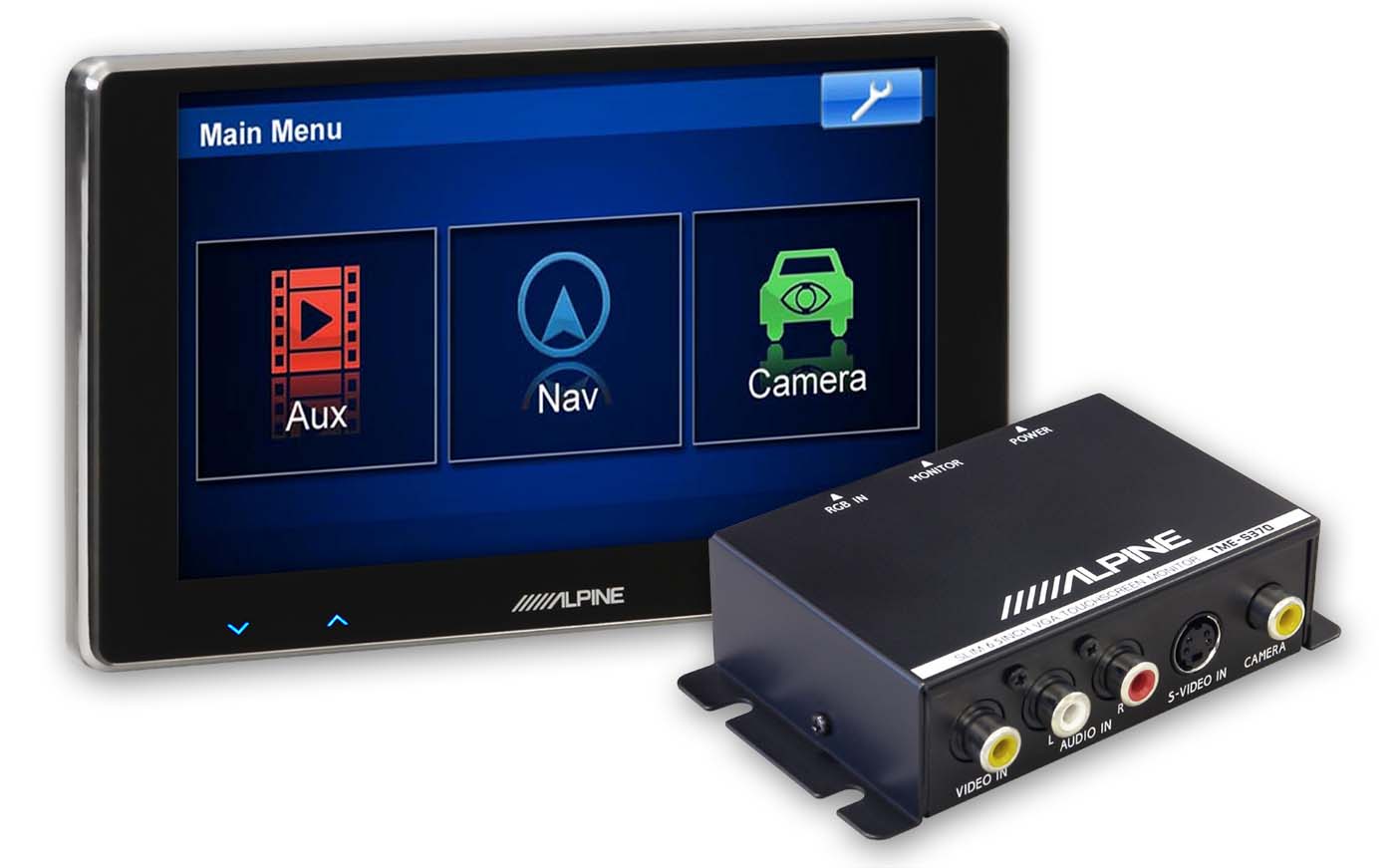

Alpine TME-S370 Features:

• 6.5” high-luminance WVGA Touch Screen
• Designed for On-dash Applications
• High Picture Quality
• RGB Navigation Input for NVE-M300P
• Built-in Speaker for Navigation Voice Guidance
• RCA and S-Video Inputs
• Dedicated Camera Input
• Ultra-slim Design
• Intuitive User Interface
• Ambient Light Sensor
• 4 Background and Illumination Colours Selectable (Green, Red, Blue & Amber)
• Touch-sensitive Hard Keys
• Image flip (Horizontal/Vertical)
• Extended Voice Guidance Timing

• Screen Size : 6.5 inch
• Resolution : WVGA
• Operation System : TFT active matrix
• Number of Picture Elements : 1,152,000 pcs.
• Effective Number of Picture Elements : 99.99% or more
• Illumination System : LED

• Power Requirement : 14.4 V DC (11–16 V allowable)
• Operation Temperature : -10°C to +60°C
• Storage Temperature : -20°C to +75°C
• Chassis Size (Monitor section)
• Width : 178 mm (7")
• Height : 100 mm (3-15/16")
• Depth : 36 mm (1-7/16")
• Weight : 385 g
• Black Box Size
• Width : 88 mm
• Height : 60 mm
• Depth : 28 mm
