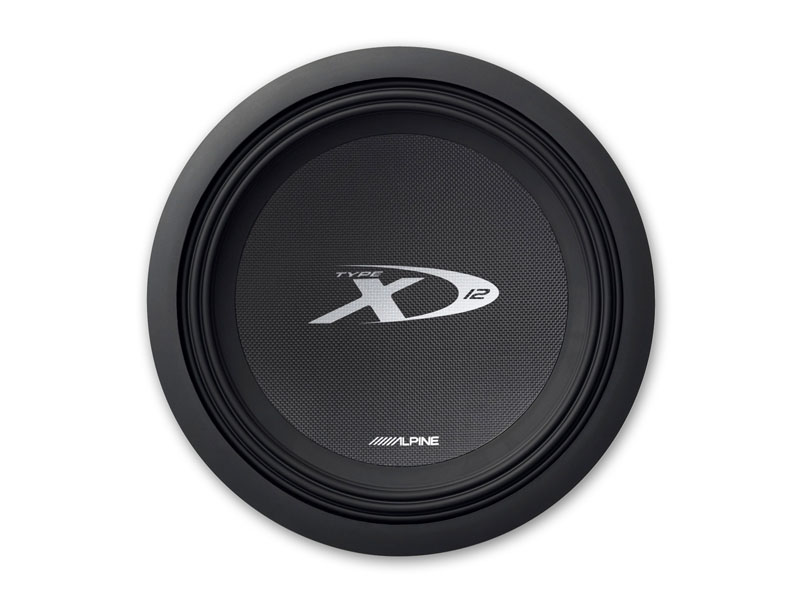

Alpine SWX-1243D Features :

• Designed and Engineered in USA
• Fixing holes hidden by the seal
• Jumper with gold terminals for easy connection
• Terminals on one side
• Large Strontium magnet in
• Multi Roll with High excursion Santoprene
• Optimized Nomex ® Spider
• T-Drive motor structure with heat transfer system
• Multi-Stage Ventilation System
• Integrated Spider Landing and Heat Transfer Plate
• Dual Coil Design, 4 layers, management of temperatures up to 220 °
• Basket with aluminum elements
• Cone Made of Carbon Fiber & Aluminum

• Maximum power of 3000 W
• RMS Power 1000 W
• Impedance: 4 + 4 Ohm
• Sensitivity 86dB / W (1m)
• Frequency Response: 20-500Hz
• Mounting depth: 221 mm
• Installation Diameter: 277mm
