Alpine PMD-B200P Blackbird Portable Satellite Navigation

Ready To Go Wherever You Go Go wherever you want to go – Alpine and the PMD-B200P Blackbird will help you get there. This pocket-size navigation unit is the perfect travelling companion. Take it on a business trip, use it in a rental car, share it with your family – it provides all the guidance you need to get you safely to your destination.

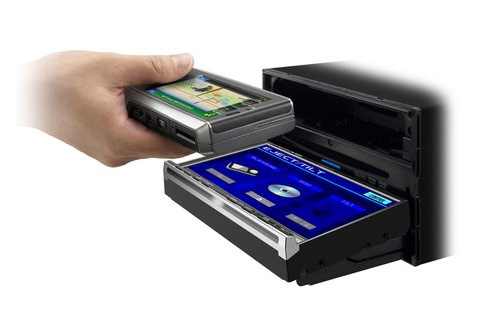

Direct docking with IVA-W505R and IVA-W205 Direct Blackbird docking with IVA-W505R and IVA-W205R. The IVA-W505R and the IVA-W205R have a built-in dock that let you insert the PMD-B200P to instantly gain the convenience of a powerful navigation system and a Bluetooth module for hands-free mobile phone use.

FM Transmitter: Plays your device's audio wirelessly through your car stereo including MP3 music and navigation instructions.

Bluetooth Built-in The PMD-B200P is ready to work with your Bluetooth-enabled mobile phone, giving you hands-free calling - either stand-alone or when docked. Docking with the IVA-W205R / IVA-W505R also lets you hear the caller’s voice from the car speakers and use the built-in mic.

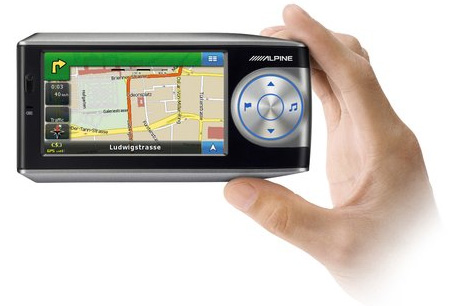

Touch Screen Operation The high-resolution 4” monitor not only gives you a bright, sharp view of maps and menus, it allows control with simple to use on-screen buttons, for faster and easier operation.

Three Ways To Go Three different guidance display modes provide even greater navigation convenience, showing you what you want to see, the way you want to see it.

Map Display Turn-by-Turn Display, Split Screen Display

THIS IS A VERSION 2

Alpine PMD-B200P Features:

• Auto zoom to let you easily recognize your manoeuvre for calculated routes
• Map scale for slow and high speed driving
• Daytime and night colour profiles as well as a different colour scheme for tunnels
• Track Logs: Alpines Navigation software is able to log the track you drive
• Legitimately provides road safety cameras for various countries
• Route demonstration mode
• 4" Wide Touch Screen Display
• Direct Docking with IVA-W505R and IVA-W205R
• Built-in Bluetooth module for hands-free mobile phone operation
• Increased map coverage especially for eastern European countries* (view Product Information)
• 2D and real 3D map display with hundreds of 3D landmark icons
• New User Interface with consistent structure
• Lane guidance display
• Personal POI (Point Of Interest) import
• Turn-by-turn guidance
• Built-in TMC tuner with wide European coverage* (view Product Information) available in docking and cradle mode
• 7 digit UK postcode search
• Card slot for SD cards
• Built-in music player and picture viewer

Alpine PMD-B200P Specification:

• Main Unit Size: 145mm x 74mm x 29mm (6.1" x 2.9" x 1.2")
• Main Unit Weight: 227 g (8 oz)
• CPU: SiRF Atlas III, Embedded 16 channel GPS
• Built-In Main Unit: antenna with optional external antenna connection
• Storage/Media: Built-In flash memory with pre-loaded maps of western and eastern Europe
• Card Slot: Secure Digital (SD) or Multimedia Card (MMC) for playback of music and pictures
• Audio: Integrated speaker in main unit, amplified speaker in cradle, Stereo headphone jack, Optional docking station audio output
• FM Transmitter: Built-in cradle, up to 12 selectable frequencies
• RDS-TMC Tuner: Built-in main unit with antenna in cradle power cable
• USB Interface: 2.0

Power Requirements:

• Handheld Mode: 5V @ 1A (via 1100 mAh Li-Polymer Battery, approximately 2 hours of continuous use)
• Cradle Mode: 12 VDC @ 2A (via Cigarette Lighter Adapter)
• Fuse: AGC/3AG -2Amp
• Operating Temp: 0° to +60° C (32° to 140° F)
• Storage Temp: -25° to +70° C (-13° to 158° F)

Alpine PMD-B200P Display:

• Screen Size 4" diagonal
• Resolution QWVGA 480 x 272 pixels
• Display Type Digital TFT display with anti-glare touch screen
• Brightness 320 nits (typical)

Note: Due to continuous product improvement, specifications are subject to change without notice.
