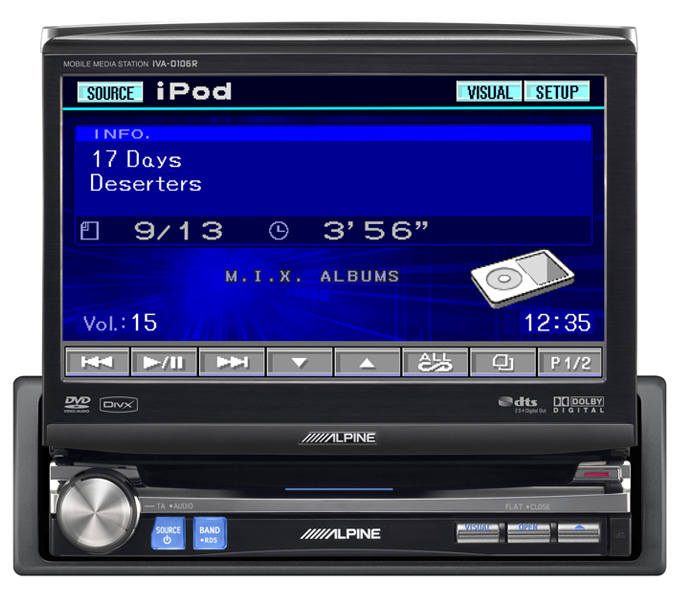

Alpine compact 1DIN Mobile Media Stations give you full control over your entire system, large displays, plus a wealth of advanced entertainment features.

Alpine IVA-D106R Features:

• Display: 7.0" Wide QVGA Display
• Control Type: Rotary Encoder Knob
• iPersonalize: Wall Paper Download
• Face Color: Black
• Illumination Buttons: Blue/Red
• PreOut: 3 PreOut
• PreIn: 2 PreIn (Front/Rear)
• AUX-In A/V Input: 1, Camera-In (Dedicated), Full Speed AUX-In
• AUX-Out A/V Output:1
• DVB-T: DVB-T Ready
• Steering Wheel Control Ready
• Detachable Face Plate
• Dimmer: Auto Dimmer
• Power Antenna Output
• Amplifier Remote Turn-On Output
• Audio Interrupt Input
• Remote Control Ready

IVA-D106R Tuner:

• Preset Stations (FM:18/MW:6/LW:6)
• RDS Functions
• TA, TP, PTY, NEWS, T.INFO, RADIO TEXT

IVA-D106R Bluetooth®:

• Bluetooth Ready
• Alpine KCE-300BT Required. Features may differ between phone model and service providers.
• Hands Free Calling, Voice Dial Function
• Phone Book Transfer
• Streaming Music Playback
• Streaming Music Control

IVA-D106R Connection for iPod®:

• Full Speed Connection for iPod® (KCE-422i optional)
• Connection: Full Speed Video Cable (KCE-430iV optional)
• iPod Compatibility: All iPod Products with Dock Connector
• Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer
• Video Capability: Video Playlist, Movie, Music Video, Video Podcast
• Percentage Search: Percentage Search
• Information Display: Artist, Song, Album

IVA-D106R Disc Player:

• Disc Type: DVD Player
• Disc Playback Type: DVD-Video, DVD-Audio, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-VR, VCD, CD, CD-R, CD-RW
• File Playback: MP3/AAC/WMA/DivX Playback
• DAC: 24-Bit DAC

IVA-D106R Sound Tuning:

• Subwoofer Level Adjustment
• Bass Center Frequency Adjustment
• EQ Width Adjustment
• Bass Level Adjustment
• Treble Center Frequency Adjustment
• Treble Level Adjustment
• High Pass Filter Adjustment
• MediaXpander: ready
• Time Correction: ready
• Equalizer: ready
• Crossover: ready
• MultEQ: IMPRINT ready

IVA-D106R CD-Changer Control

• M.I.X.: One/All (Shuffle)
• Music Text Information: CD: Text Scroll Display, MP3: Text Information Display (ID3 Tag)


IVA-D106R Specifications:

• Power Requirement 14.4 V DC (11–16 V allowable)
• Operating temperature 0°C to +45°C
• Maximum Power Output 50 W × 4
• Output Voltage 2V/10k ohms
• Bass ± 14 dB at 100 Hz
• Treble ± 14 dB at 10 kHz
• Weight 2.6 kg
• Audio output level Preout (Front, Rear): 2V/10k ohms (max.)
• Preout (Subwoofer): 2V/10k ohms (max.)
• AUX OUT: 1.3V/10k ohms
• Ai-NET: 850 mV
• Chassis Size
• Width 178 mm
• Height 50 mm
• Depth 165 mm

FM Tuner Section:

• Tuning Range 87.5 – 108.0 MHz
• Mono Usable Sensitivity 9.3 dBf (0.7 µV/75 ohms) 50 dB
• Quieting Sensitivity 13.5 dBf (1.1 µV/75 ohms)
• Alternate Channel Selectivity 80 dB
• Signal-to-Noise Ratio 65 dB
• Stereo Separation 35 dB Capture Ratio 2.0 dB

MW Tuner Section:

• Tuning Range 531 – 1,602 kHz Sensitivity (IEC Standard) 22.5 µV/27 dBf
• LW Tuner Section
• Tuning Range 153 – 281 kHz Sensitivity (IEC Standard) 31.6 µV/30 dBf

CD/DVD Section:

• Frequency Response 5 – 20,000 Hz
• Wow & Flutter (% WRMS) Below measurable limits
• Total Harmonic Distortion 0.008% (at 1 kHz)
• Dynamic Range 95 dB (at 1 kHz) Channel Separation 85 dB (at 1 kHz)
• Signal system NTSC/PAL
• Horizontal resolution 500 lines or greater
• Video output level 1Vp-p (75 ohms)
• Video S/N ratio DVD: 60 dB
• Audio S/N ratio More than 105 dB

Monitor Section:

• Screen Size LCD: 7.0"
• Type Operation System: Transparent type TN LCD TFT active matrix
• Number of Picture Elements: 336,960 pixels (1440 × 234)
