Package Contents: - Alpine INE-S900R - Double Din One Look Car Sat Navigation DVD CD Bluetooth
- Quantum QTM-100 - In Car Digital TV Tuner Digital Terrestrial TV
Please note: This product requires connection to the vehicle Speed Pulse signal. Speed Pulse connection ensures accurate positioning in built up areas, tunnels, or other areas with no satellite coverage. Without this, the Navigation and Auto Volume Control will not function correctly. To ensure correct fitment with the Speed Pulse signal of the vehicle, we recommend that installation should be carried out by an Authorised Alpine dealer.
Alpine INE-S900R - ADVANCED NAVI STATION Alpine INE-S900R has an interface that allows drivers to display two applications of their choice on the screen, so they can see exactly what they want, depending on the driving situation. This extremely easy to use interface offers the ability to combine Alpine’s advanced navigation features with Bluetooth phone use, rear camera views, and much more.  ONE LOOK NAVI is Alpine’s new all-in-one navigation solution featuring an  interface that lets you choose exactly what you want to display, with full-screen or split-screen view. You see all your desired information at one glance. Navigation maps, music and video sources, phone and a clock, it’s right there when you want it. Switch Between Main and Side Screens

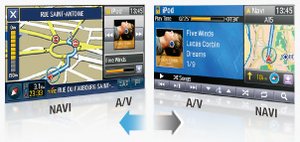

 Another great ONE LOOK NAVI innovation is that you can always shift the side screen to the main screen. For example, put the navigation map on the main screen while driving in the city, then when you’re on the motorway change your music source to the main screen or you can select an entirely different side screen at any time.
All the Media Options You Want   A great navigation system is only the beginning of what you get with ONE LOOK NAVI. It keeps you entertained with a built-in DVD/CD player (MP3/DivX compatible), an AM/FM tuner, and a USB connection for iPod, iPhone or USB sticks. Plus you can add other Alpine options like a TV tuner or a USB video interface. Controlling all these sources is simple, thanks to the touch screen and the easy to use interface.
Enjoy TV with Touch Control
 Let your passengers watch news, sports and their favourite programmes by connectingone of Alpine’s DVB-T DigitalTV Tuners (MPEG-4 compatible) when vehicle is stationary. Analogue TV Tuners are also available.
Front AUX Port for Audio and Video
 An AUX port on the front panel lets you plug in a portable media player to hear the music and watch the videos that you have stored on it.
|  One Look Operation
You have a choice of a full screen or main and side screens. The dual-screen mode gives you two clear views with one look and is fully customisable, so you select what you want to see. You can also switch the two screens at any time depending on the driving situation, for example, whether you want the map on the main screen, side screen, or not at all.
Choose What You Want to See on Each Screen  After you decide what you want on the main screen, you have numerous choices for the side screen. View the information for each iPod song that plays, see incoming phone calls automatically, keep a mini-map on the side, and more. Just choose the most useful combination.
1.) Radio, 2.) Navigation, 3.) iPod / CD, 4.) Phone, 5.) Clock, 6.) P0Is
 Designed for Maximum iPod and iPhone Enjoyment
 In addition to enjoying your favourite music and podcasts, you can watch iPod and iPhone videos. Song selection and playback control are quick and easy, and you get all the track information plus a view of the album cover on your choice of full screen, main screen or side screen.
Radio Display Shows Station Names
 You also get one look radio convenience. When you put the radio display on the main screen, you see the name of the station that’s tuned in and the names of the preset stations, in addition to the frequencies. This makes selecting stations much easier, not only for you, but for other family members who may use the car.
ADVANCED USB VIDEO INTERFACE
 KCE-635UB
Lets you connect USB sticks and some portable HDD drives for watching videos. It has an MP3 player and picture viewer, displays sharp album artwork images, and provides a simple, good-looking user interface.
| | One Look Guidance | | One Look Guidance
Alpine’s latest navigation interface gives you more useful information at one look, with a main screen plus a side screen that provides many viewing options.
View Two Maps at the Same Time
 Put a map with a zoomed-in view on the main screen for a close look at motorway exit numbers, one way streets and other details. Keep the usual low-zoom map on the side screen to get the big picture.
Highway Mode  In addition to a view of the map, this mode gives you various detailed information such as upcoming rest stops. You can see the distance and estimated arrival time, and what types of facilities are there, such as petrol stations and restaurants.
Wide Country Coverage  The INE-S900R provides map software for 35 countries. The menu shows country flags and abbreviations, making selection easy. When selected, the country is indicated on the map.
Full Route Overview After Calculation
 After the system calculates your route, you can view the entire route on the map. You see your trip with one look, so it’s easy to make desired adjustments.
|  Ultra-High Speed Route Calculation You’ll appreciate how quickly the navigation screen comes up after you power on the unit. Start-up is much quicker than other systems and route calculation is ultra fast: for example, for a 1600km route, calculation is done in only 6 seconds, as opposed to the common one minute for competitors.
 Advanced TMC Mode Advanced TMC is a great time saver! It keeps you abreast of road delays and shows you how to avoid them. With one look you see your current route in red and an alternate route in green, plus the difference in time and distance. Just press OK to choose the new route.
Personal POI Importing  If you have set personal POIs on Google Maps, etc., you can download them to a USB stick and import them. You can also download desired POIs (favourite petrol stations, coffee shops, etc.) from POI websites.
Consistently High Accuracy  Alpine uses both a gyro sensor and a speed pulse feed to ensure accurate positioning at all times. Even with temporary loss of the GPS signal, such as in tunnels or near many high buildings, the system maintains its high accuracy.
| | Product information | | | Map Coverage for 35 Western and Eastern European countries Andorra, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Liechtenstein, Lithunia, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Vatican City
High Quality Graphic User Interface (GUI) and Navigation Voice Guidance in 18 languages
Czech, Danish, Dutch, English (UK), Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish
 Security Code This theft-prevention feature lets you set your own security code. If the unit is disconnected and then connected again, the code must be input to enable the unit, making it useless to a thief.  Choice of Menu Colours
You have a choice of menu styles: a neutral version and a more colourful version, for best matching with all types of dashboards. |  Built-in Bluetooth Module
The built-in Bluetooth Module lets you safely handle phone calls without having to hold the phone. It is compatible with most of the latest Bluetooth-enabled mobile phones, such as Apple iPhone 3GS, Nokia N97 and N95 8G, HTC Hero and Touch Diamond, Samsung S8000 Jet, and Sony Ericsson XPERIA X1.
Convenient Display on Side Screen
 When you receive a call, a special Bluetooth window automatically comes up on the side screen, with the caller’s name and buttons for you to accept or decline the call. The side screen does not overlap the navigation map or anything on the main screen as with other systems
Rear Camera with Distance Guide Driving is both safer and easier thanks to support for Alpine’s Driver Assist rear camera, which lets you check the view when parking or doing any type of difficult manoeuvring. For even  greater convenience, coloured pylons (green, yellow and red) are superimposed on the screen to let you know how close you are to walls and other objects. You can adjust each pylon to match your car. | | DIRECT CONNECTION REVERSING CAMERA HCE-C107D  Compact for easy mounting, yet delivers a sharp and clear picture. Provides day and night modes and a wide viewing angle. Comes supplied with an 11-metre cable.
| Front AUX Port for Audio and Video An AUX port on the front panel lets you plug in a portable media player to hear the music and watch the videos that you have stored on it.
1. Remove the cover from the Front AUX Input Terminal.
2. Connect a portable music player, etc., by using an optional adapter cable. | | | | | ALPINE INE-S900R FEATURES: | ALPINE INE-S900R SPECIFICATION: |
ALPINE INE-S900R Tuner
- Memory Presets: Preset Stations (FM:18 / MW:6 / LW:6)
- FM presets With Station Label if Available
- Memory: Auto Memory
- Seek Mode: Local / DX Selection / ManualRDS
- RDS
- Functions: TA, TP, PTY, NEWS, RADIO TEXT
ALPINE INE-S900R Bluetooth:
- Built-In Bluetooth Module
- Hands Free Calling
- Phone Book Transfer
- Alphabetic search
- Short Dial
ALPINE INE-S900R Connection for iPod:
- Made for iPod, Works with iPhone ( KCU-451iV required)
- USB Connection Type
- USB Cable Included ( KCU-451iV required)
- M.I.X. (Shuffle) Capability: Song, Albums, All
- Music Control: Song Up / Down / Repeat
- Video Playback, Video Search
- Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
- Percentage Search
- Alphabet Search
- Information Display: Album Art, Song (Title, Album), Clock
ALPINE INE-S900R Disc Player:
- Disc Type: CD / DVD Player
- Disc Playback Type: Type CD/CD-R/-RW/DVD±R/±RW
- Music Playback: Divx/MP3/WMA/AAC Playback
- DAC: 24bit-DAC
- Zero data Mute
- Digital Servo
- Sensor: Scan/Repeat
- Playback Control: Play/Pause/Forward/Backward
ALPINE INE-S900R USB Media Connection:
- USB Cable Included
- Music Playback: MP3/AAC/WMA Playback
ALPINE INE-S900R Sound Tuning:
- Subwoofer Level Adjustment
- Bass Level Adjustment
- Treble Level Adjustment
- Loudness Feature
ALPINE INE-S900R General:
- 4 x 50 W High Power Amplifier
- Display: 6.1 QVGA Monitor
- Touch Screen Control
- DVD Direct Touch
- Direct Touch Operation for External Devices ( KCE-635UB )
- Black Face Color
- White Illuminated Buttons
- 3 PreOuts (2 V)
- Selectable Power Input 2 PreIn (Front / Rear)
- 24-bit DAC
- Front AUX: Front A/V Input
- Steering Wheel Remote Control Ready
- Vehicle Sub-display Ready
- Bass & Treble Controls
- Fader & Balance Controls
- Dimmer Input
- Power Antenna Output
- Amplifier Remote Turn-On Output
- Audio Interrupt Input
- Remote Control Ready (Audio)
- Direct Rear Camera Input ( HCE-C107D )
| - Max Power Output Ratings
- Max Power Output: 4 x 50 W
ALPINE INE-S900R NAVIGATION:
- Reception Frequency: 1575.42 ±1 MHz
- Reception Sensitivity: -130 dB max.
ALPINE INE-S900R GPS:
- GPS Reception Method: Parallel 12 Channels
- Antenna Dimensions: (W x H x D) 26 mm x 12.9 mm x 26 mm
ALPINE INE-S900R MONITOR:
- Screen Size: 6.1"
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 336,960 pcs. (480 x 3 x 234)
- Effective Number of Picture Elements: 99% or more
- Illumination System: LED
ALPINE INE-S900R FM Tuner:
- Tuning Range: 87.5 - 108.0 MHz
- Mono Usable Sensitivity: 13.5 dBf (0.8 uV/75 ohms)
- 50 dB Quieting Sensitivity: 13.5 dBf (1.3 uV/75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2.0 dB
- MW TUNER
- Tuning Range: 531 - 1,602 kHz
ALPINE INE-S900R USB:
- USB Requirements: USB 1.1/2.0
- Max. Power Consumption: 1,000 mA
- USB Class: USB (Play From Device) / USB (Mass Storage Class)
- File System: FAT12/16/32
ALPINE INE-S900R CD/DVD Player:
- Frequency Response: 5 - 20.000 Hz
- Wow & Flutter (% WRMS): Below Measurable Limits
- Total Harmonic Distortion: 0.02% (at 1 kHz)
- Dynamic Range: 95 dB (at 1 kHz)
- Channel Separation: 85 dB (at 1 kHz)
- Signal System: NTSC/PAL
- Horizontal Resolution: 500 Lines or Greater
- Video Output Level: 1Vp-p (75 ohms)
- Video S/N Ratio DVD: 60 dB
- Audio S/N Ratio: More than 105 dB
ALPINE INE-S900R Sound Tuning:
Subwoofer Level Adjustment: 0 to 15
Bass Level Control Range: +/-7
Treble Level Control Range: +/-7 ALPINE INE-S900R Dimensions:
- Din Size: 2
- Chassis Size (W x H x D): 178mm x 100mm x 160mm
ALPINE INE-S900R General:
- Power Requirement: 14.4 V DC (11-16 V allowable)
- Operating Temperature: -4°F to +140°F (-20°C to + 60°C)
- Weight: 2.3 kg (5 lbs. 1-1/8 oz)
- Audio output level
- Preout (Front, Rear): 2V/10k ohms (max.)
- Preout (Subwoofer): 2V/10k ohms (max.)
- AUX OUT: 1.2V/10k ohms
- Accessories
- iPod USB Video Cable KCU-451iV
- Advanced USB Video Interface KCE-635UB
- Direct Connection Reversing Camera HCE-C107D
|
Quantum QTM-100 Description: Developed by Quantum QTM 100 is the only diversity antenna decoder available in the market featuring free-to-air and pay-per-view reception: three different conditional access NAGRAVISION, IRDETO and CONAX are included and automatically activated when the correspondent smart card is inserted in the smart card reader. In the Italian market the Mediaset Premium smart card is bundled with the product. QTM 100 has been developed by Quantum’s engineers with the automotive application in mind: diversity antenna technology for optimal digital video quality up to a speed of 250 Km/hrs, sturdy and robust construction featuring vibration and shock proof technology suitable for heavy duty and extreme working conditions.
Main advantages of Digital Terrestrial TV (DTT)
The UE community has adopted DTT as the European broadcasting standard and December 2008 is the commonly agreed deadline for the official switchover when the analogue broadcasting transmission will be ceased. DTT gives to the user important advantages versus analogue TV:
- More channels available
- TV programs as well as Radio
- Digital image quality like playing a DVD
- Digital audio quality featuring 5+1 stereo surround like playing a CD
- Interactive services and programs
Audio / Video Switch Matrix
All most frequent audio/video in/out’s connections at a glance selectable by remote control: three video outputs, two audio outputs (one stereo) and two independent audio/video stereo inputs
Pay-per-View Compatibility
QTM100 is the only DTT diversity decoder available embedding three different conditional access systems which are automatically enabled when the correspondent smart card is inserted. For the Italian market it is approved by Mediaset and LA7 for the pay-per-view offer. The homologation by the main operators secures the automatic availability via broadcasting download of software upgrades adding new features and applications
Free-to-air Digital Terrestrial TV and Pay-per-View programming featuring today in your vehicle
Quantum’s top notch engineers has worked on digital TV technologies since 1995 developing set top boxes that have been successfully marketed by leading companies active in the consumer industry.
The evolution of the technology and the availability of new standards internationally adopted like DVB-T and DVB-H paves the way to the introduction of a new product line for the mobile entertainment of which the QTM 100 is the first to come to the marketplace.
Quantum spa is the leading industry in Europe in the new technologies for the mobile TV
MAIN CHARACTERISTICS AND ACCESSORIES
- Automotive homologation E24 10R-020235
- Diversity antenna technology for DTT reception while moving of free-to-air and Pay-per-View content
- MultiCA system embedding Nagravision, Irdeto and Conax;
- Mediaset premium Pay-per-View compatible
- LA7 Cartapiu’ Pay-per-View compatible
- Automatic channel search with auto-tracking
- Favourite channel list
- 12/24 VDC power compatibility
- 220 VCA wall power supply (included in the QTM 100C)
- Remotized infrared sensor
- On air software upgrade
- 2 A/V inputs
- 3 Video outputs
- Remote powered dedicated active antennas
- Antennas included
TECHNICAL SPECIFICATIONS
DVB-T
- Network Interface Module—DVB-T COFDM
- Dual-RF Diversity with Anti-Doppler Enhancement
- DVB / MPG2 Transport and De-Multiplexing
- ISO / IEC 13818-1 MPEG-2 Transport Stream Compliance
- Nording II and ETS 300 744 DVB-T Full compliance
- Full 47—860 Mhz Frequency Range for VHF and UHF
- OFDM Demodulation 2K and 8K FFT for SFN and MFN
- Symbol rates : up to 34 MS/s
- Automatic Adjacent-Channel Interface Cancellation
- Supports QPSK and 16/64QAM Constellation
- Support 1/4, 1/8, 1/16, 1/32 Guard Interval
- Support FEC Decoding: 1/2, 2/3, 3/4, 5/6 and 7/8
- Support Reed-Solomon (204, 188) ETS 300 477
Video Decoding and OSD
- ISO/IEC 13818-2 MPEG-2 Video MP@ML Compliance
- ISO/IEC 11172-2 MPEG-1 Video Compliance
- Resolution 720x480 for NTSC and 720x576 for PAL
- 16:9/4:3, 3:2 Pull Down, Letterbox and Pan/Scan
- 65K Colour OSD
Audio Decoding
- ISO/IEC 13818-3 MPEG-2 Audio Compliance
- ISO/IEC 11172-3 MPEG-1 Audio Compliance
- Stereo / MTS
Front Panel
- Smart Card Reader
- Power– on / lock LED’s
- IR sensor (QTM100C)
- IR Remote Connector
- Power LED
- Car Power Connector 12/24 V (QTM100K)
- External Power Supply Connector (QTM100C)
Rear Panel
- Antenna-In : F-type x2
- Stereo Audio Input (RCA) x 2
- Composite Video Input (RCA) x 2
- Mono Audio Output (RCA) x 1
- Stereo Audio Output (RCA) x 1
- Composite Video Output (RCA) x 3
Safety and Reliability
- Operation temperature : - 5 C - +55 C
- Storage temperature : -25 C - +85 C
Consumptions
- 0,94 A in full operation powering two antennas
- 0,65 A in stand by
- 500 microA when off (car key off)
Mechanical Specification
- Dimension (WxDxh): 275 mm x 140 mm x 42 mm
 |
