Alpine CDE-131R CDE-131R CD receiver offers just what you need. Play your iPod or iPhone via USB (cable sold separately) and control music playback and search functions right from the head unit. Alternatively you can also switch to Direct Control Mode and control playback from the iPod and iPhone directly. The convenient USB port and 3.5mm auxiliary input on the front of the unit allow you to easily hook up USB flash drives or an MP3 player.

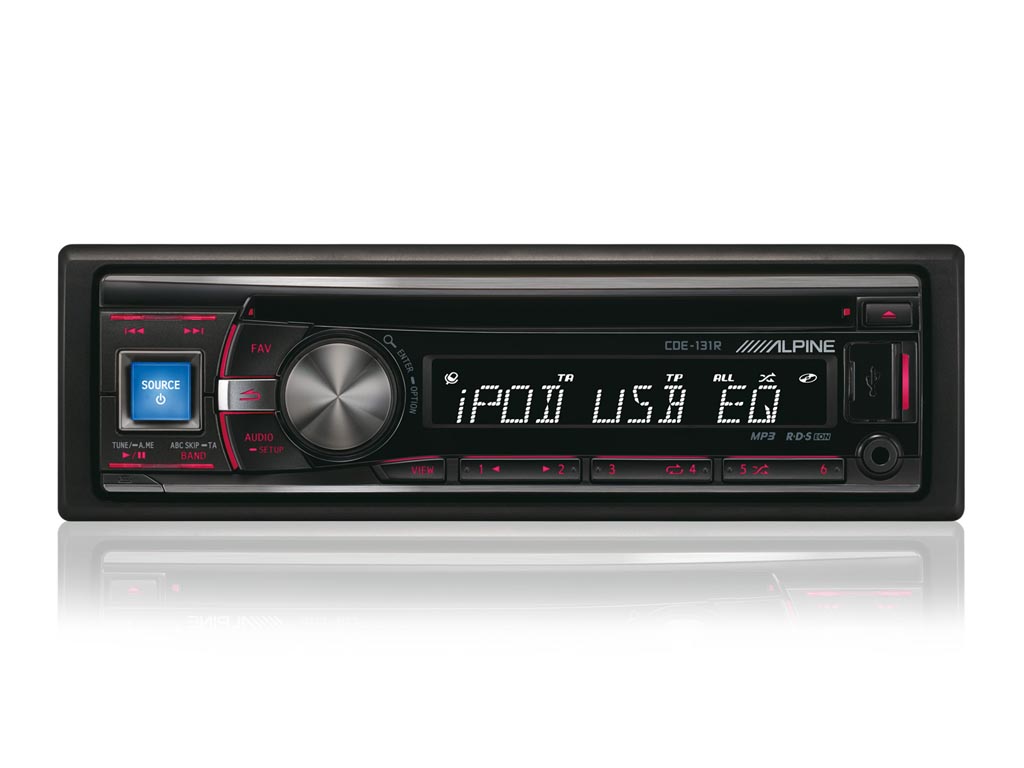

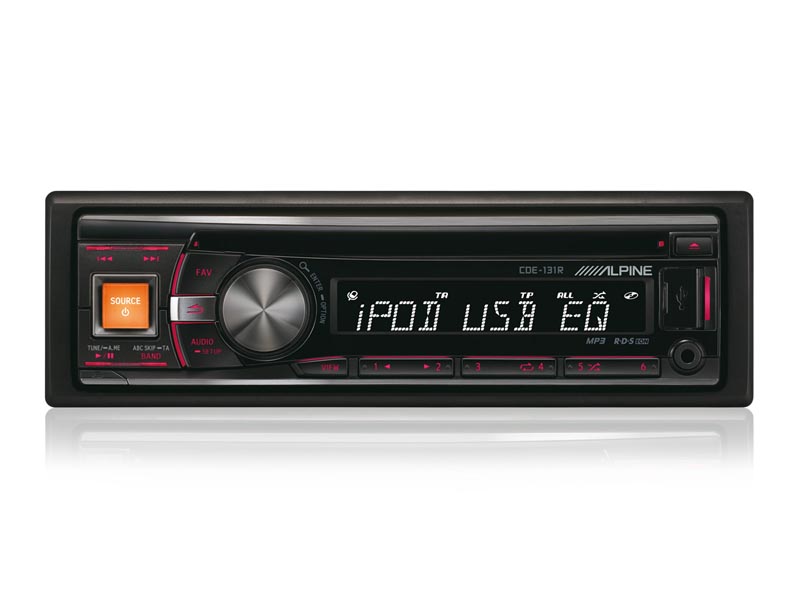

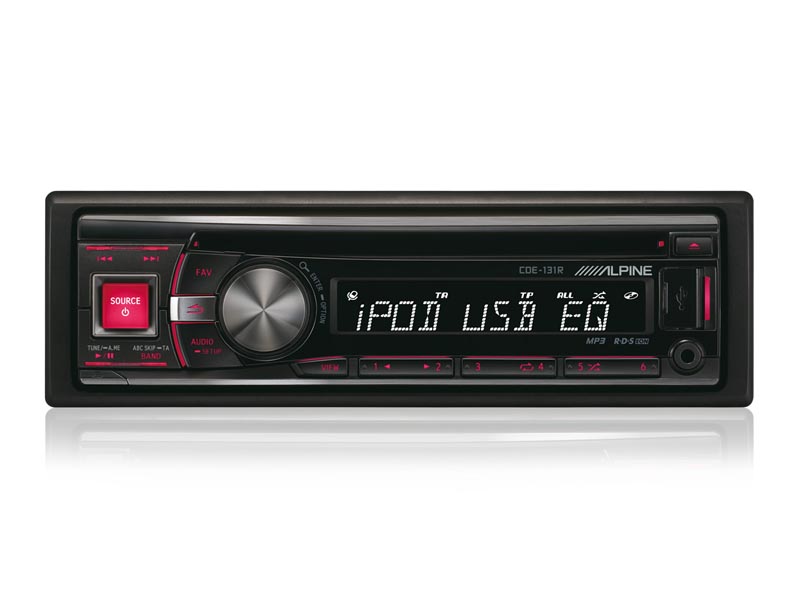

4 Illumination Colours Selectable

You can adjust the Head Unit’s button illumination color to match your dash. The main button can be switched to green, blue, red or amber illumination, while the other buttons can be set to green or red illumination.

You can control your iPhone/iPod from the head unit, using Quick Search to find songs fast. Direct iPod Control Mode lets you use the iPhone/iPod interface for direct operation and for viewing information in your desired language. This comes especially handy when a passenger selects the music while you keep your eyes on the road. Connect your iPod or iPhone via the CDE-131R’s front USB port (requires KCU-445i or the original Apple USB cables that comes with your Apple product).

Here’s the best way to find your music fast. The rotary knob and Quick Search feature let you easily and quickly browse through your iPod music by playlist, artist, album, song, genre, podcast, audiobook or composer.

Expand your listening choices by plugging your USB mass storage device into the front panel USB port. There’s also a 3.5mm mini jack for MP3 players.

You can connect Nokia phones via USB to play back the music stored on the phone. You can also control basic music playback functions such as play, pause and title skip and search for music by files and folders. The phone also charges while it is connected. Requires KCU-230NK connection cable.

• Memory Presets: Preset Stations (FM:18 / MW:6 / LW:6)
• Memory: Auto Memory
• Seek Mode: Local/DX Selection
• RDS
• Max Tune Tuner
• RDS Functions: AF, TA, TP, RADIO TEXT
• Tuner Presets: FM x 18, MW x 6, LW x 6
• Local / DX Selectable

• Connection Type: USB Connection
• Compatibility for iPod / iPhone: iPod touch 5G - 1G, iPod nano 7G - 1G, iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
• Connection: KCU-445i (sold separately) required
• M.I.X. (Shuffle) Play: Song, Album, All
• Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
• Repeat
• Music Control: Skip Up/Down, Fast Forward/Fast Backward
• Direct Up/Down: Playlist/Artist/Album/Genre/Composer Selection
• Alphabet Search
• Percentage Search
• Direct iPod/iPhone Control
• Battery Charging

• Works with supported Nokia Phones: Mass Storage Mode
• Connection Type: Micro USB Connection
• Connection: KCU-230NK (Sold separately) Required
• Muisc Playback: MP3 Playback
• File/Folder Name Search
• Folder Up/Down
• Battery Charging

• Disc Type: CD Player
• Disc Playback Type: CD, CD-R/RW
• Music Playback: CDDA, MP3
• Playback Control: Skip Up/Down, Fast Forward/Fast Backward
• Repeat
• M.I.X. Random Play: Track/File, All
• CD Text Display
• Multi Bit DAC
• 0 Bit Mute
• Digital Servo

• Front USB Connection
• MP3 Playback
• USB Class: Mass Storage Class
• File/Folder Name Search
• Folder Up/Down

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Select (0°/180°)
• Subwoofer Level Control Adjustment
• High Pass Filter: Off / 60 / 80 / 120 / 160 Hz
• Low Pass Filter: Off / 60 / 80 / 120 / 160 Hz
• Default Equalizer setup: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical, User Setup
• 3-band Parametric Equalizer (-7 to +7)
• TW: 7,5 / 10 / 12,5 / 15kHz (Q 0.75 / 1.25)
• MID: 0,5 / 1 / 1,5 / 2,5Hz (Q 0.75 / 1 / 1.25 / 1.5)
• SUB: 60 / 80 / 100 / 120Hz (Q 0.5 / 1 / 1.5 / 2)
• Input source level adjustment
• Loudness
• Source Tone Memory

• Power Output: 4 x 50W High Power Amplifier
• Display: 14 Segments White LCD Display in Dot Matrix Design
• Control Type: Rotary Encoder Knob
• Face Colour: Black
• Illumination Buttons: 4 Illumination colours selectable for main button (Blue/Green/Red/Amber), 2 Colours selectable for sub buttons (Red/Green). Possible colour combinations are: blue/red, red/red, green/green and amber/red
• 1 PreOut (2V, Front/Subwoofer Selectable)
• Front AUX Input (3.5mm mini jack)
• Steering Wheel Remote Control Ready
• Remote Control Ready
• Display of Roman and Cyrillic ID3 Tag information
• Mute
• Favorite Source Key
• DIN Trim Plate: Detachable Trim Plate
• Detachable Face Plate
• Dimmer Input
• Power Antenna Output
• Amplifier Remote Turn-On
• Audio Interrupt Input
